1-01 — ACCELERATOR PEDAL AND CONTROL (#55387) — 136 parça

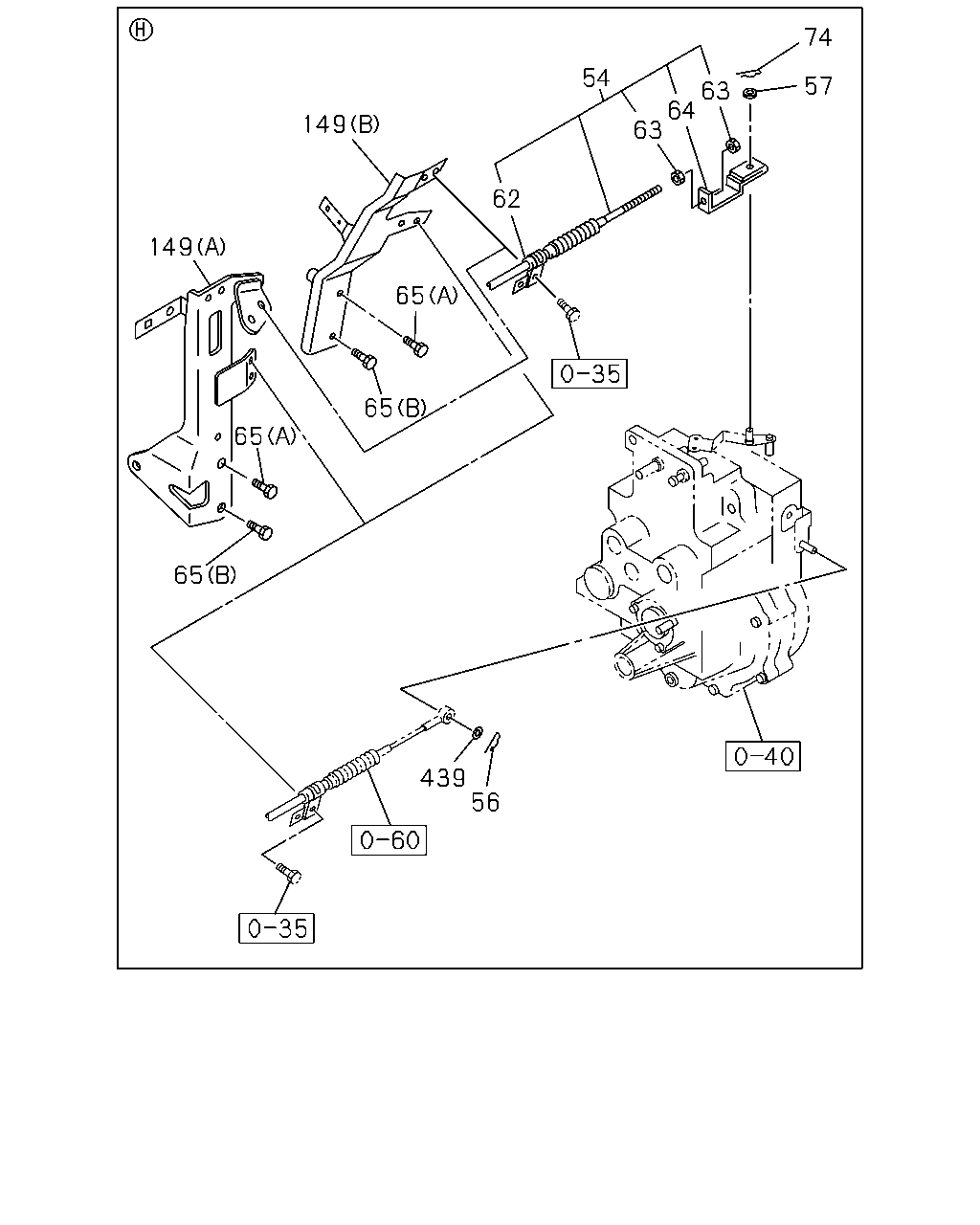

74 54 57 63 64 63 149 62 149 65 65 65 65 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	0110-	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2996.5	1-73996-348-3	01	1	0511-		●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2949	1-73996-284-2	01	1	0511-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0110-0607	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0511-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0110-0605	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16 MAL	0-91610-508-0	01	1	0511-0607	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16 MAL	0-91610-508-0	01	1	0608-	●	●
62	CLIP; ENG CONT CABLE EURO2 SPECIFICATION<THN>	8-94397-228-0	01	1	0511-		●
62	CLIP; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> L=30	1-09701-104-0	01	1	0511-		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0110-0510	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0511-	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0110-0510	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0511-	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0110-0510	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0511-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0110-0510	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0511-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER MAL	8-94279-208-0	01	1	0110-0904	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	01	1	0905-	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0110-0607	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0511-1509	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09987-141-0	01	1	1510-	●	●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0110-	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0511-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0110-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0511-0607	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0608-	●	●

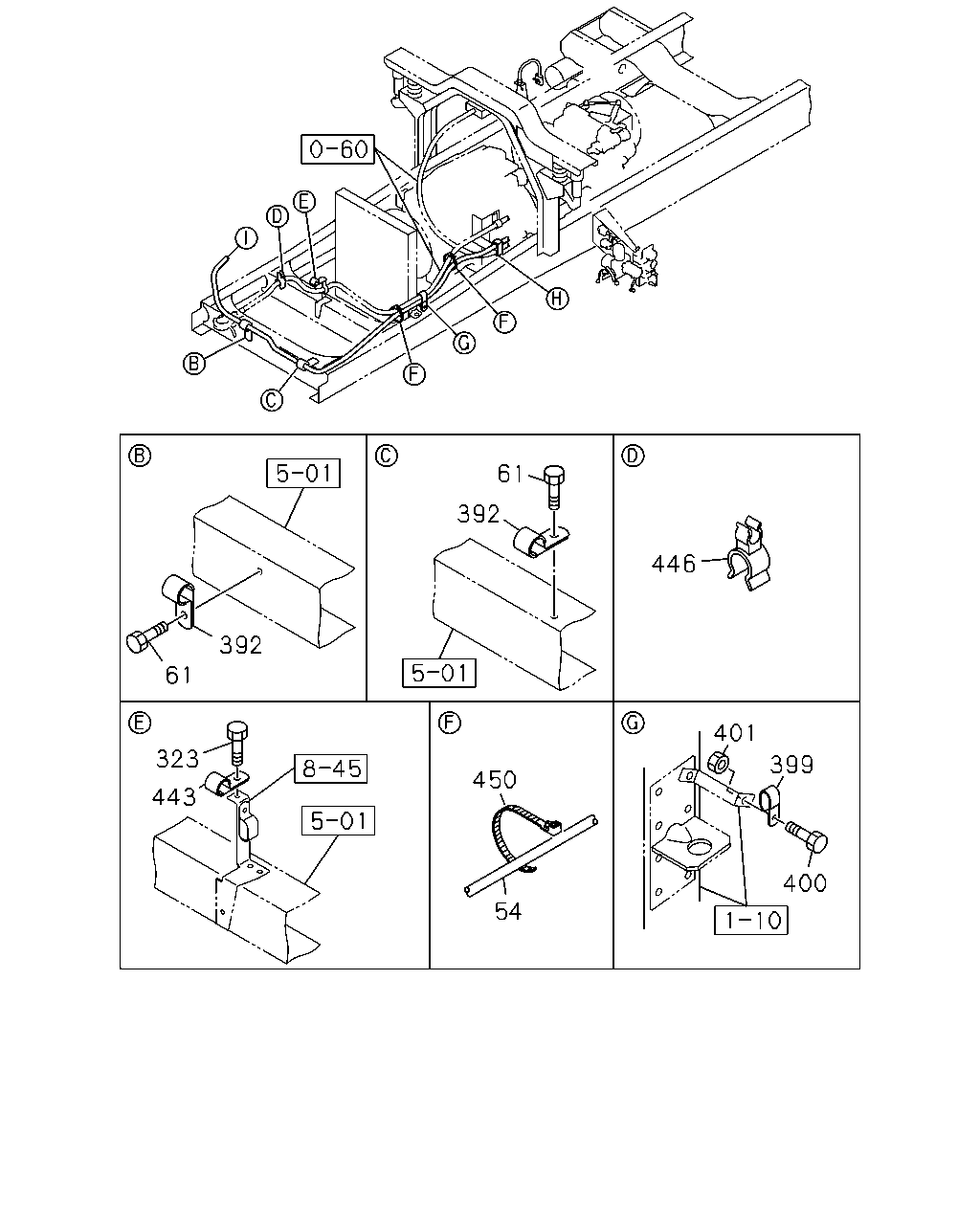

61 392 446 392 61 401 323 399 450 443 400 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	0110-	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2996.5	1-73996-348-3	01	1	0511-		●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2949	1-73996-284-2	01	1	0511-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE MAL	0-28050-816-0	02	1	0511-0607	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE MAL	0-28050-816-0	02	1	0608-	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0110-0512	●
323	BOLT; CLIP M8X16 FLANGE MAL	0-28050-816-0	01	1	0511-0607	●	●
323	BOLT; CLIP M8X16 FLANGE MAL	0-28050-816-0	01	1	0608-	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	0110-0606	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0511-0607	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0608-	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0110-0607	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0511-	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0110-0512	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE MAL	0-28050-816-0	01	1	0511-0607	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE MAL	0-28050-816-0	01	1	0608-	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0110-0602	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE MAL	0-91180-108-0	01	1	0603-0607	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE MAL	0-91180-108-0	01	1	0608-	●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0110-0606	●	●
443	CLIP; CABLE ID=7 L=20	0-95234-635-0	01	1	0511-0607	●	●
443	CLIP; CABLE ID=7 L=20	0-95234-635-0	01	1	0608-	●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	0110-0607	●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	0511-	●	●
450	CLIP; BAND L=140 MAL	5-09707-031-1	02	1	0110-0607	●
450	CLIP; BAND L=140 MAL	5-09707-031-1	02	1	0511-	●	●

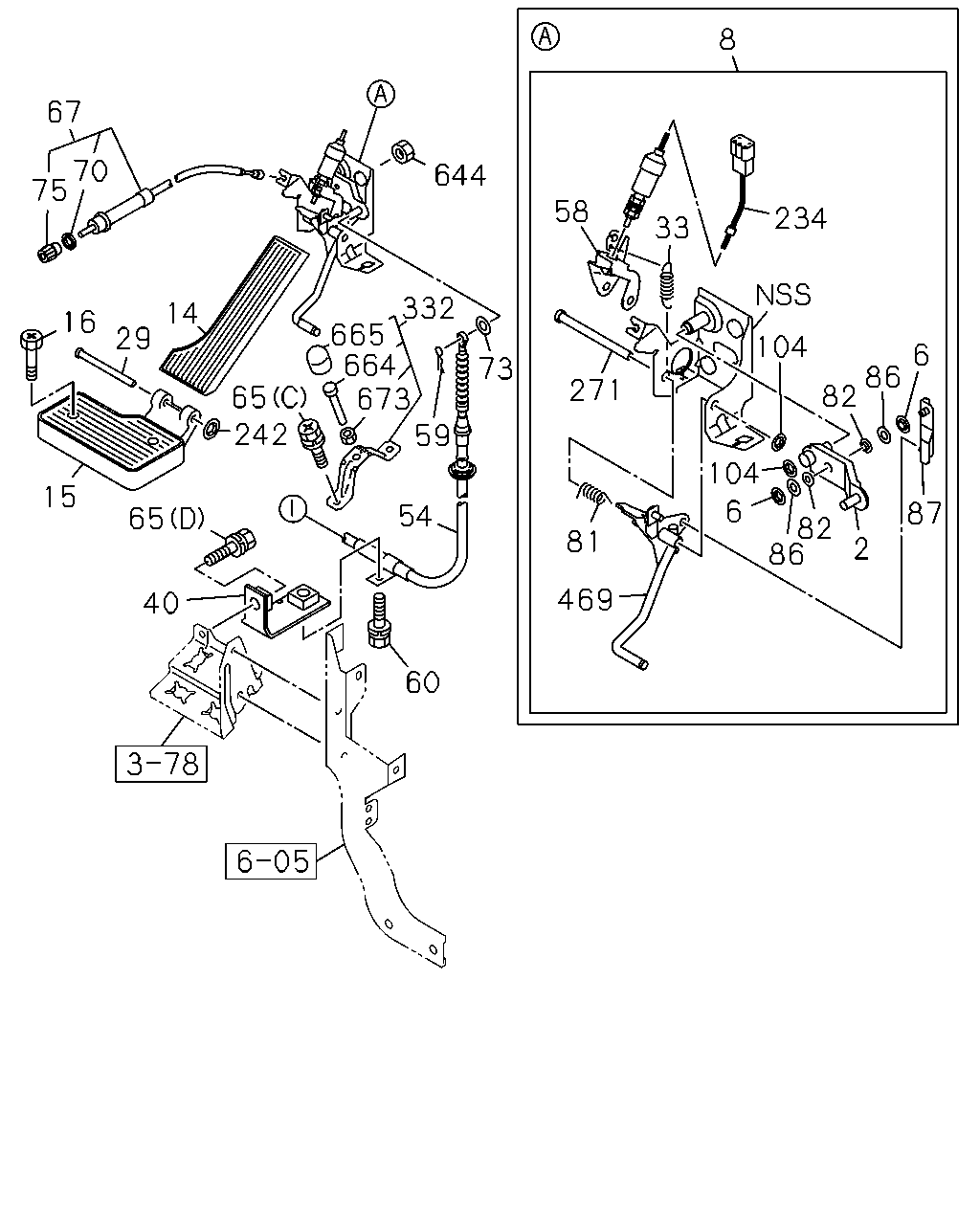

8 67 70 75 644 58 234 33 332 14 16 665 664 673 59 29 104 6 73 86 82 271 65 242 104 82 86 15 6 87 54 65 81 2 469 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	0110-0601	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0511-	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0110-0601	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0511-0604	●	●
6	RING; SNAP,LINK TO LINK ID=4 MAL	0-91805-504-0	02	1	0605-	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0110-0601	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0511-	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0110-	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0511-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0110-	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0511-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0110-	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0511-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0110-	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0511-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0110-0601	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0511-	●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0110-	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0511-	●	●
54	CABLE; ENG CONT L=2939	1-73998-940-6	01	1	0110-	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> L=2996.5	1-73996-348-3	01	1	0511-		●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> L=2949	1-73996-284-2	01	1	0511-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0110-0601	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0511-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7 MAL	1-09747-005-0	01	1	0110-0607	●
59	PIN; SNAP,ENG CONT CABLE L=27.7 MAL	1-09747-005-0	01	1	0511-	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER MAL	8-94279-208-0	01	1	0110-0607	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER MAL	8-94279-208-0	01	1	0511-0904	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	01	1	0905-	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0110-0510	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0511-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0110-0510	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0511-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER MAL	8-94279-208-0	01	1	0110-0904	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	01	1	0905-	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0110-0204	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-0603	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0604-	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0110-0603	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0604-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0110-0605	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16 MAL	0-91610-508-0	01	1	0511-0607	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16 MAL	0-91610-508-0	01	1	0608-	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0110-0110	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-0603	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0511-	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0110-0601	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0511-	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0110-0601	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0511-	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0110-0601	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0511-	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0110-0601	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0511-	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0110-0601	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0511-	●	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	0110-0601	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0511-	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT MAL	8-97022-565-0	01	1	0110-	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT MAL	8-97022-565-0	01	1	0511-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0110-0601	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0511-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0110-0212	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0511-	●	●
469	LEVER ASM	1-71907-209-5	01	1	0110-0601	●
469	LEVER ASM	1-71907-209-5	01	1	0511-	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0110-	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0511-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0110-	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0511-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0110-0212	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0110-0512	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0511-	●	●
