◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#55386) — 48 parça

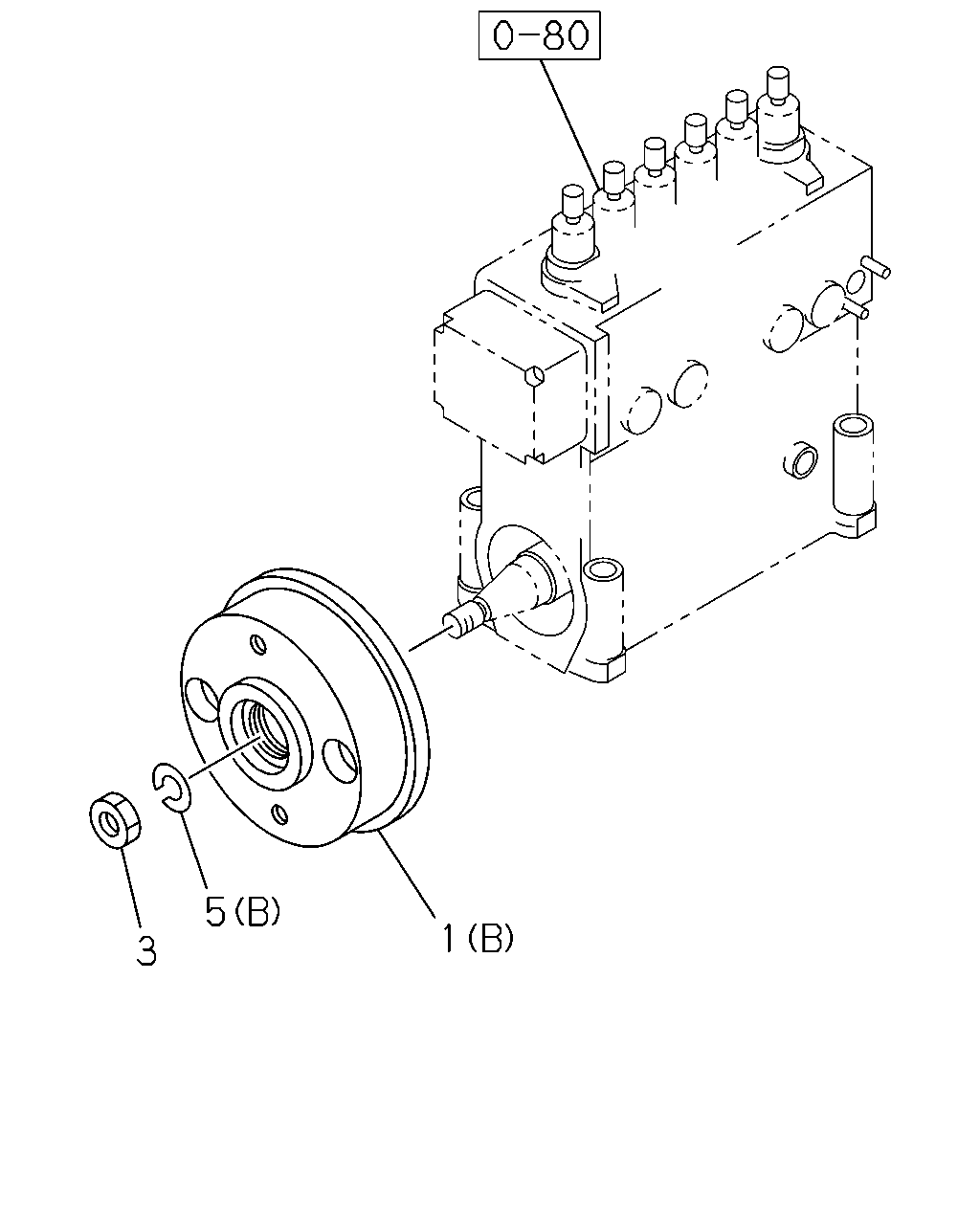

çizim 173554
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 0110- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0511- ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-041-0 01 1 0511- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0511- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0511- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0511- ●

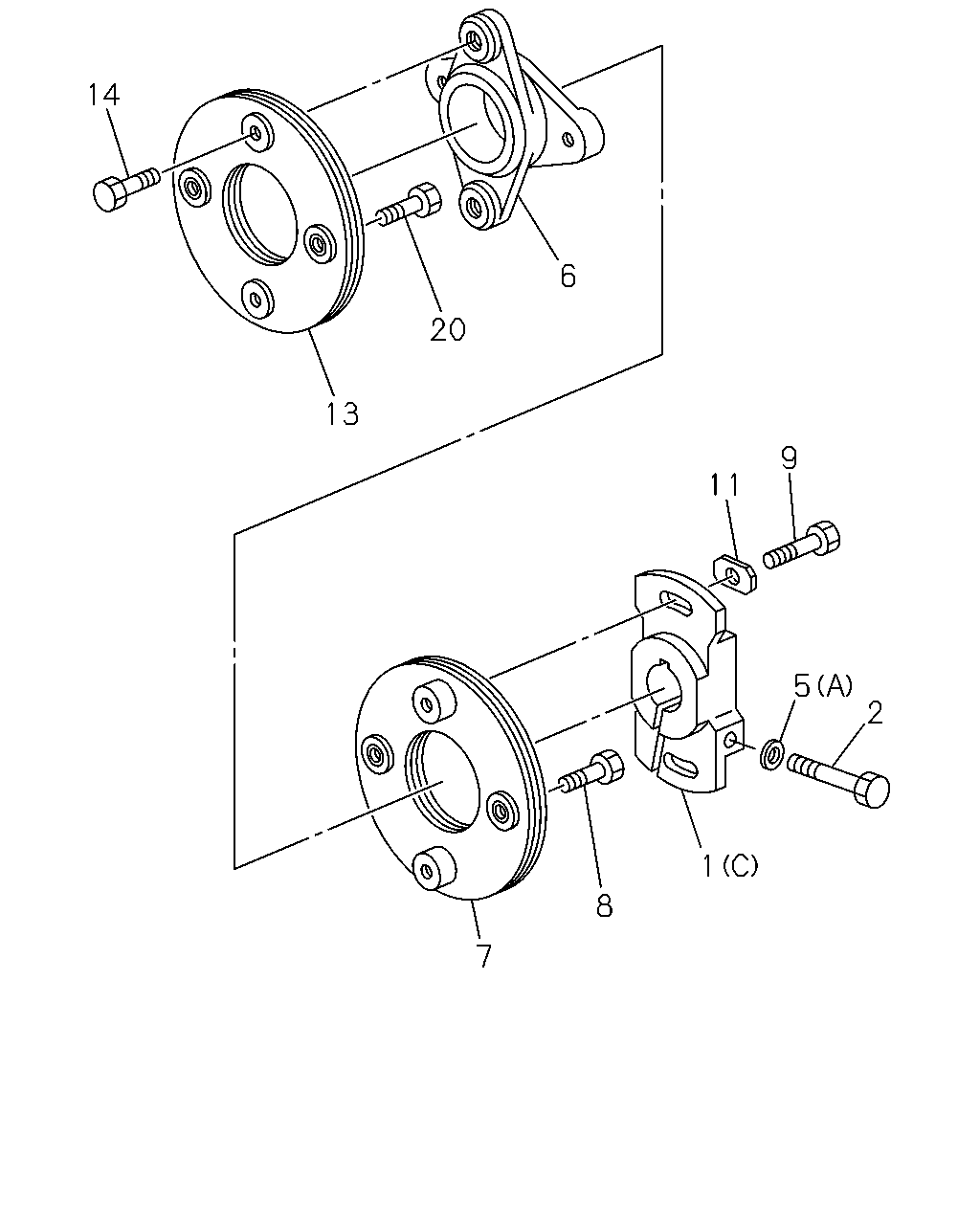

çizim 173555
14 6 20 13 11 5 2 1 8 7 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 0110- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0511- ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-041-0 01 1 0511- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 0110- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0511- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0511- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0511- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 0110- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0511- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 0110- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0511- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 0110- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0511- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 0110- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0511- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0511- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 0110- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0511- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 0110- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0511- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 0110- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0511- ●

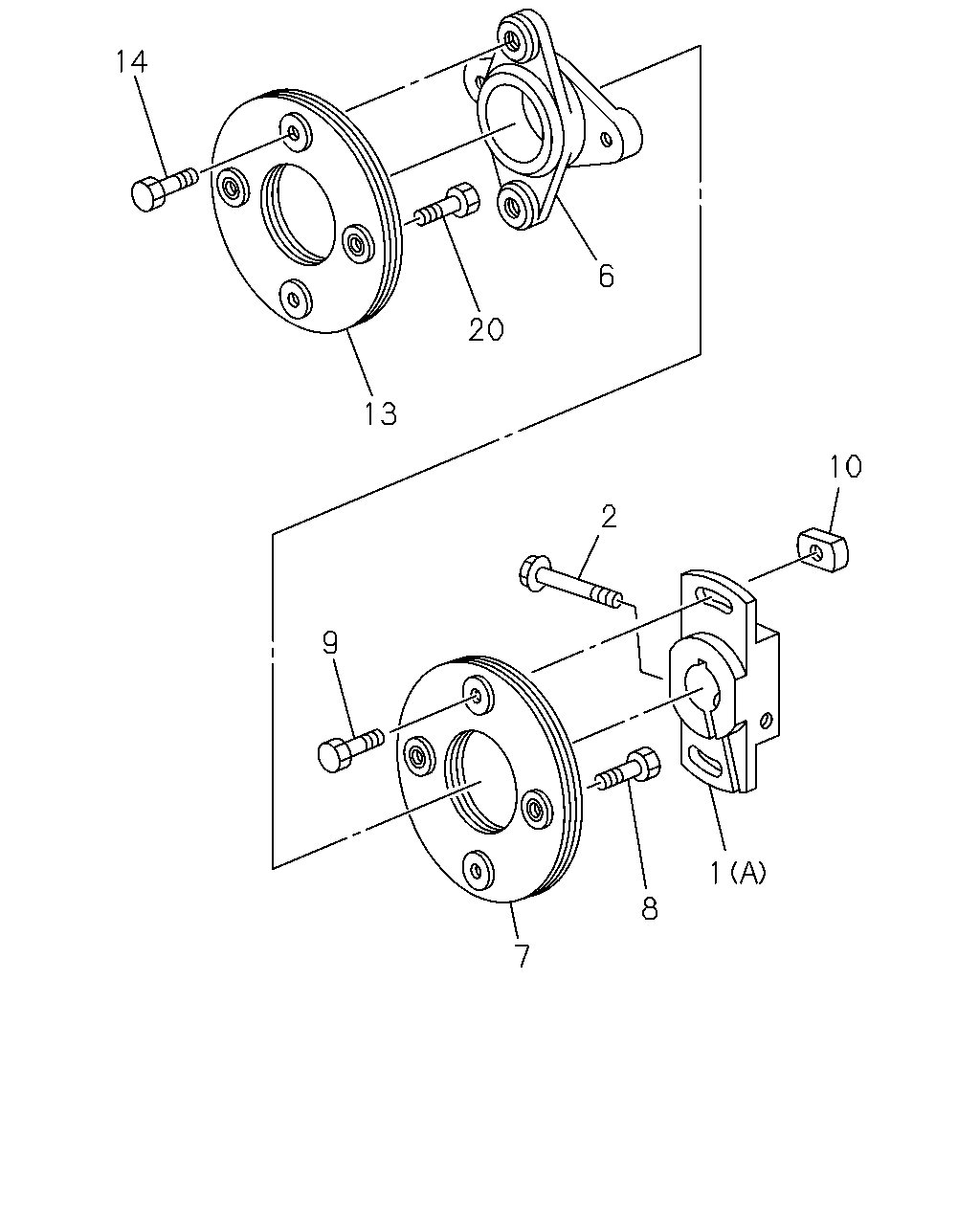

çizim 173559
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 0110- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0511- ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-041-0 01 1 0511- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 0110- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0511- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 0110- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0511- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 0110- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0511- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 0110- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0511- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 0110- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0511- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 0110- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 0110- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0511- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 0110- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0511- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 0110- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0511- ●
