0-52 — OIL AND VACUUM PIPING; ENGINE (#55376) — 88 parça

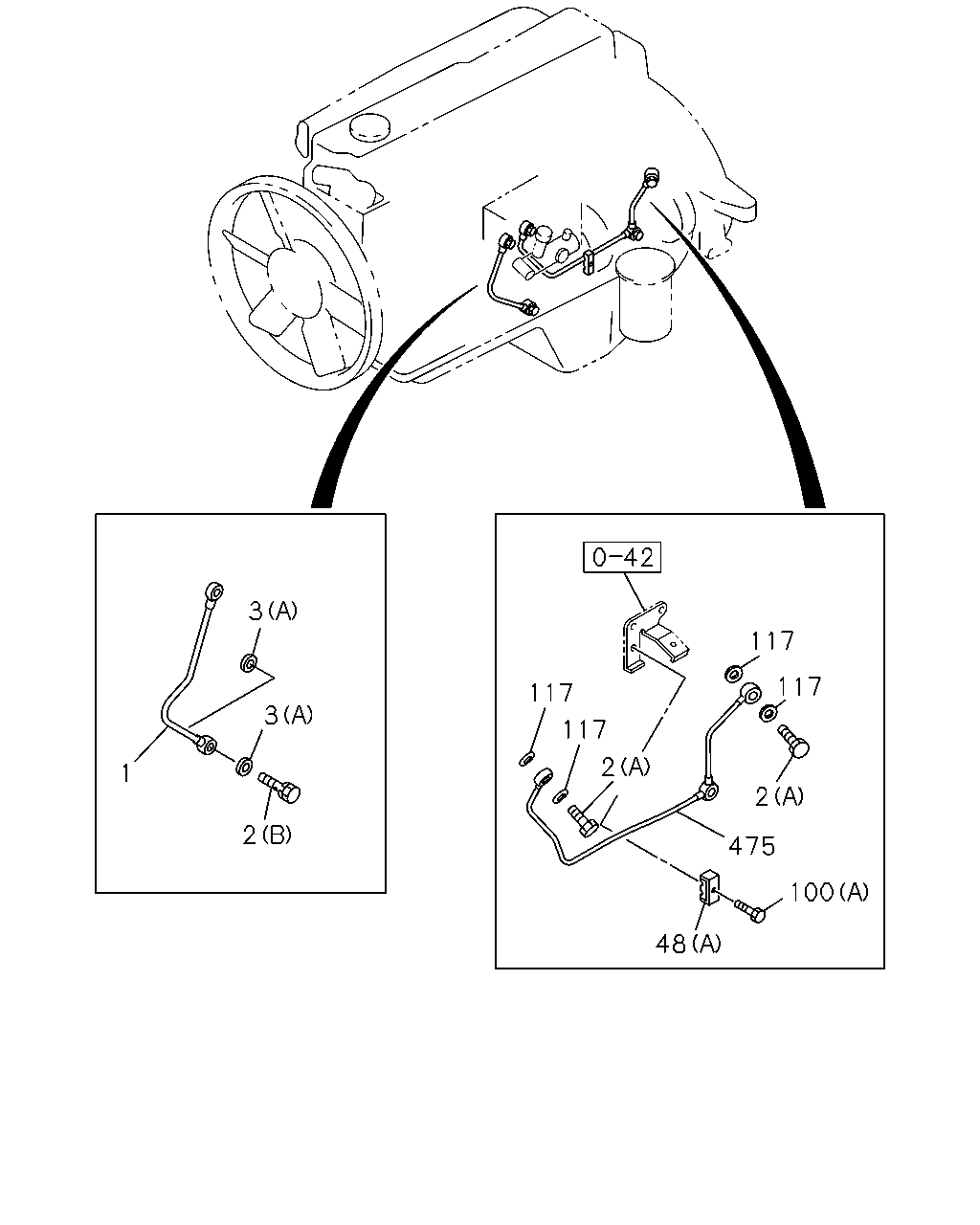

3 117 117 117 3 117 2 1 2 2 475 100 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0110-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0511-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0110-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0110-0510	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0511-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0110-0510	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0511-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0511-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0511-		●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0511-0512		●
100	BOLT; CLIP (B) M6X16 FLANGE MAL	0-28050-616-0	01	1	0601-		●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0511-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0110-0510	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0511-	●	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0511-		●

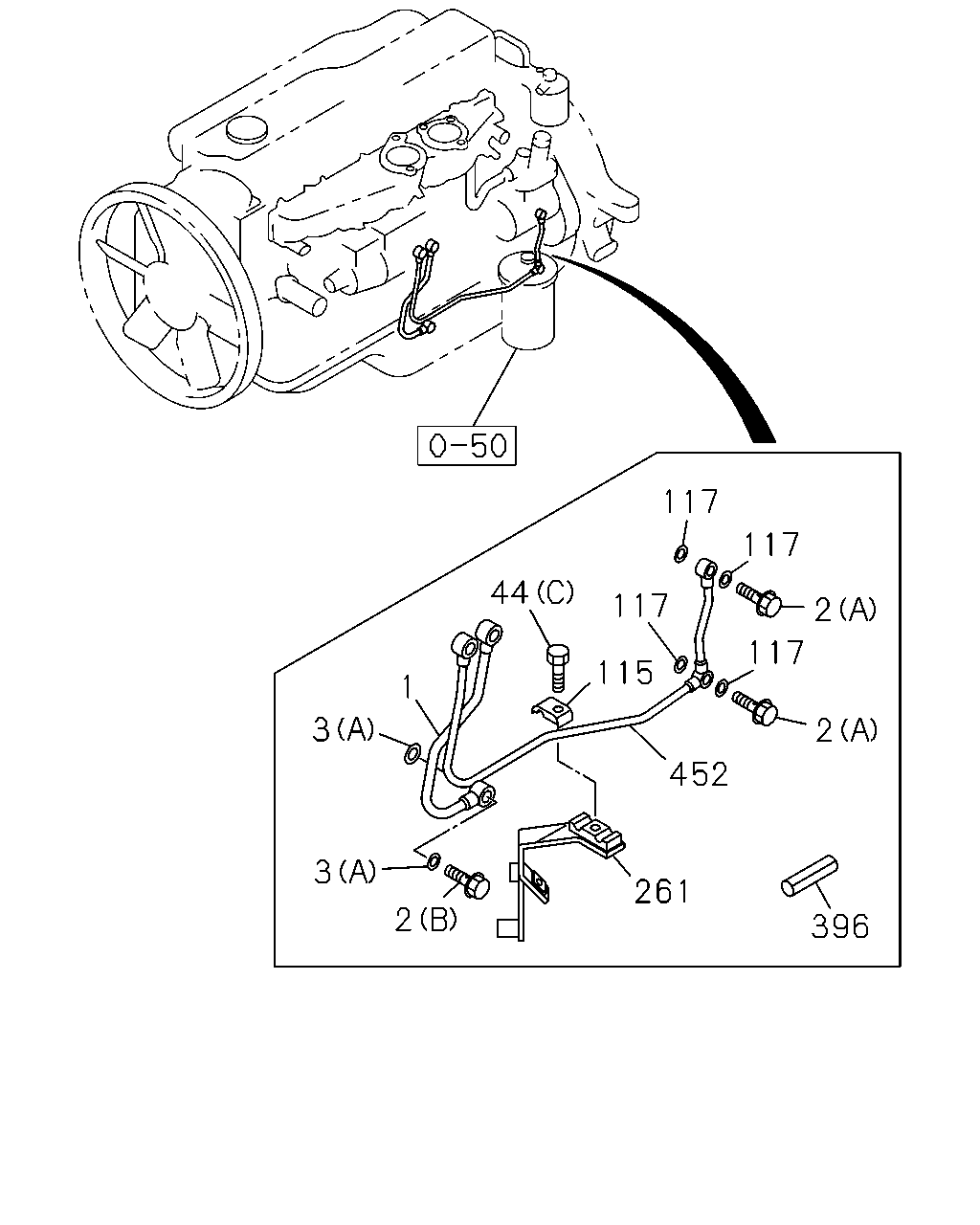

117 117 44 117 2 117 115 1 3 2 452 3 261 2 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0110-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0511-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0110-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0110-0510	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0511-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0110-0510	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0511-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0110-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0511-0512		●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0511-0512		●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE MAL	0-28050-816-0	01	1	0601-		●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0110-	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0110-0510	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0511-	●	●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	0110-	●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0110-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0110-	●

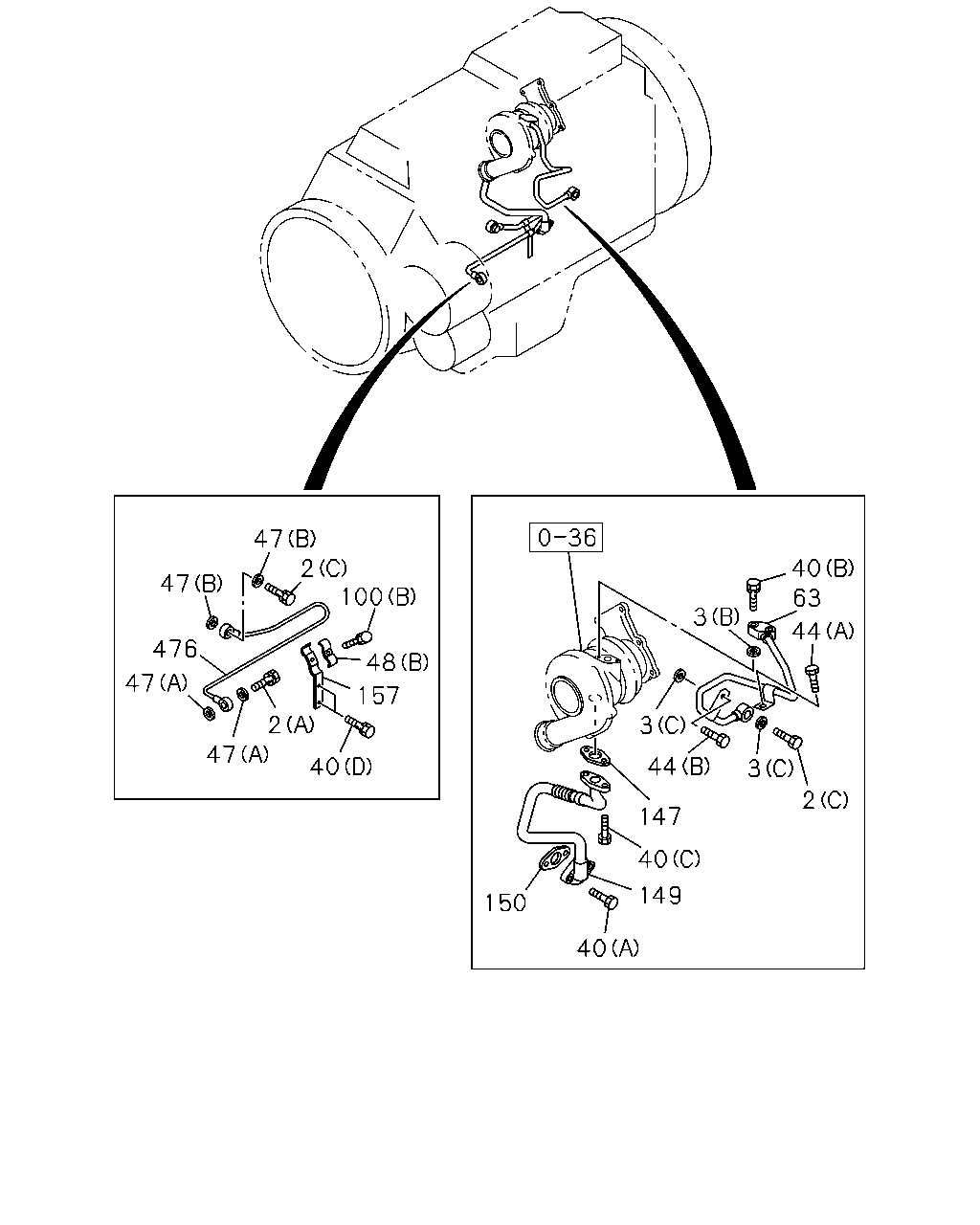

47 2 100 40 63 47 3 44 476 48 47 157 2 3 47 44 40 3 2 147 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0110-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0110-0510	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0511-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0511-0805		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0110-0510	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0511-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0511-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0511-0512		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0511-0512		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0511-0512		●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0511-		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0110-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0511-0512		●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0511-0512		●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE MAL	0-28050-816-0	01	1	0601-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0511-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0511-		●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0511-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0511-		●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0511-0512		●
100	BOLT; CLIP (B) M6X16 FLANGE MAL	0-28050-616-0	01	1	0601-		●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0511-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0511-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0511-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0511-		●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0511-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0511-		●
