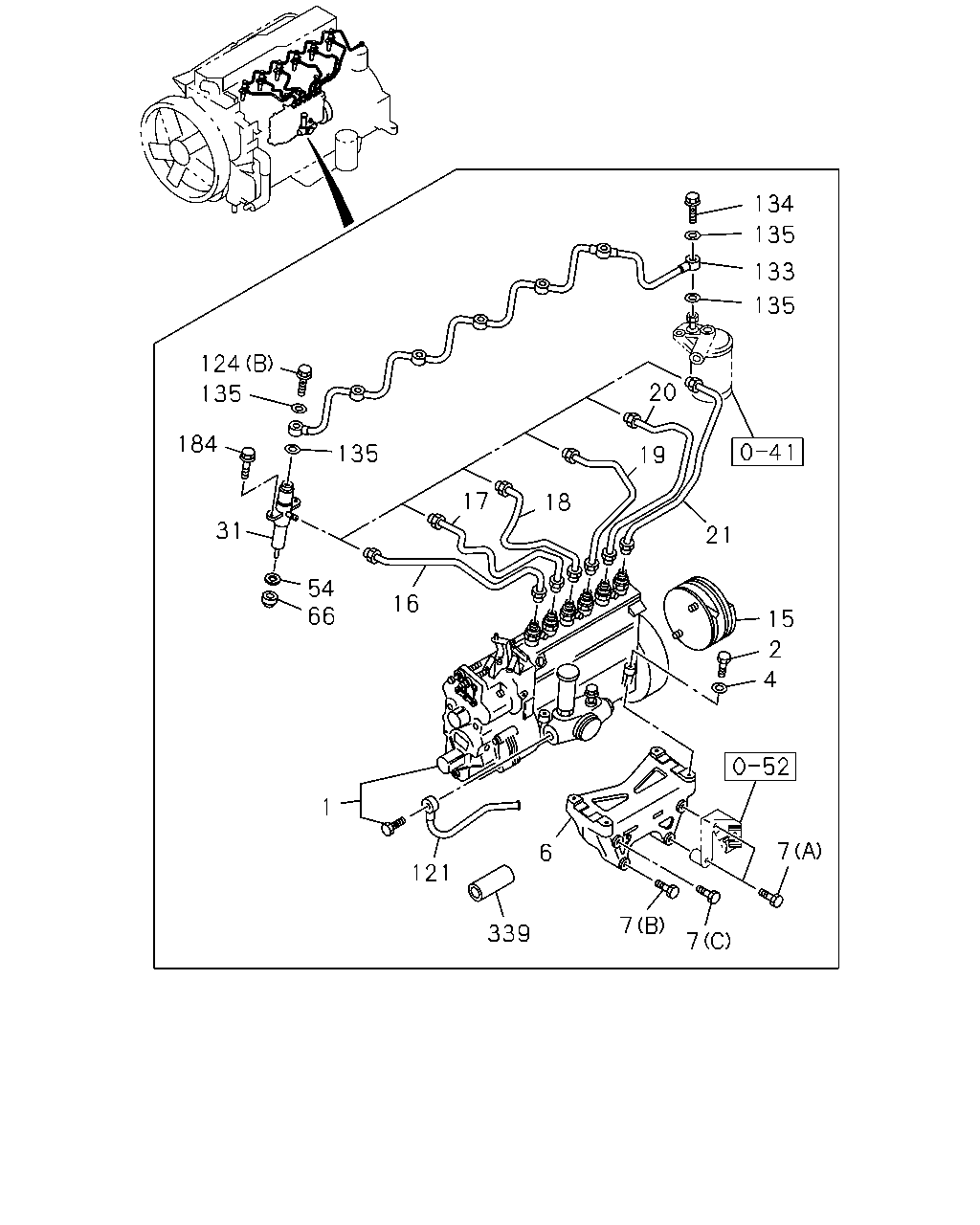

0-40 — FUEL INJECTION SYSTEM (#55371) — 176 parça

134 135 133 135 124 20 135 184 135 19 17 18 31 21 54 66 16 15 2 4 1 7 6 121 7 339 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0110-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0511-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0110-	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0511-0512		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0110-	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	0110-	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0110-	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0511-		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0110-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0110-	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0110-0805	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0511-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28151-040-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	03	1	0511-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	03	1	0601-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0110-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0511-		●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0110-	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0511-		●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0110-	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0511-		●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0110-	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0511-		●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0110-	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0511-		●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0110-	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0511-		●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0110-	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0511-		●
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0110-	●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0511-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0110-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0110-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	0511-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0110-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0511-		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	06	1	0110-	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0511-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0511-		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	0110-	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0511-		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0110-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0110-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0511-		●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	0110-0512	●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28050-840-0	12	1	0601-	●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0110-	●

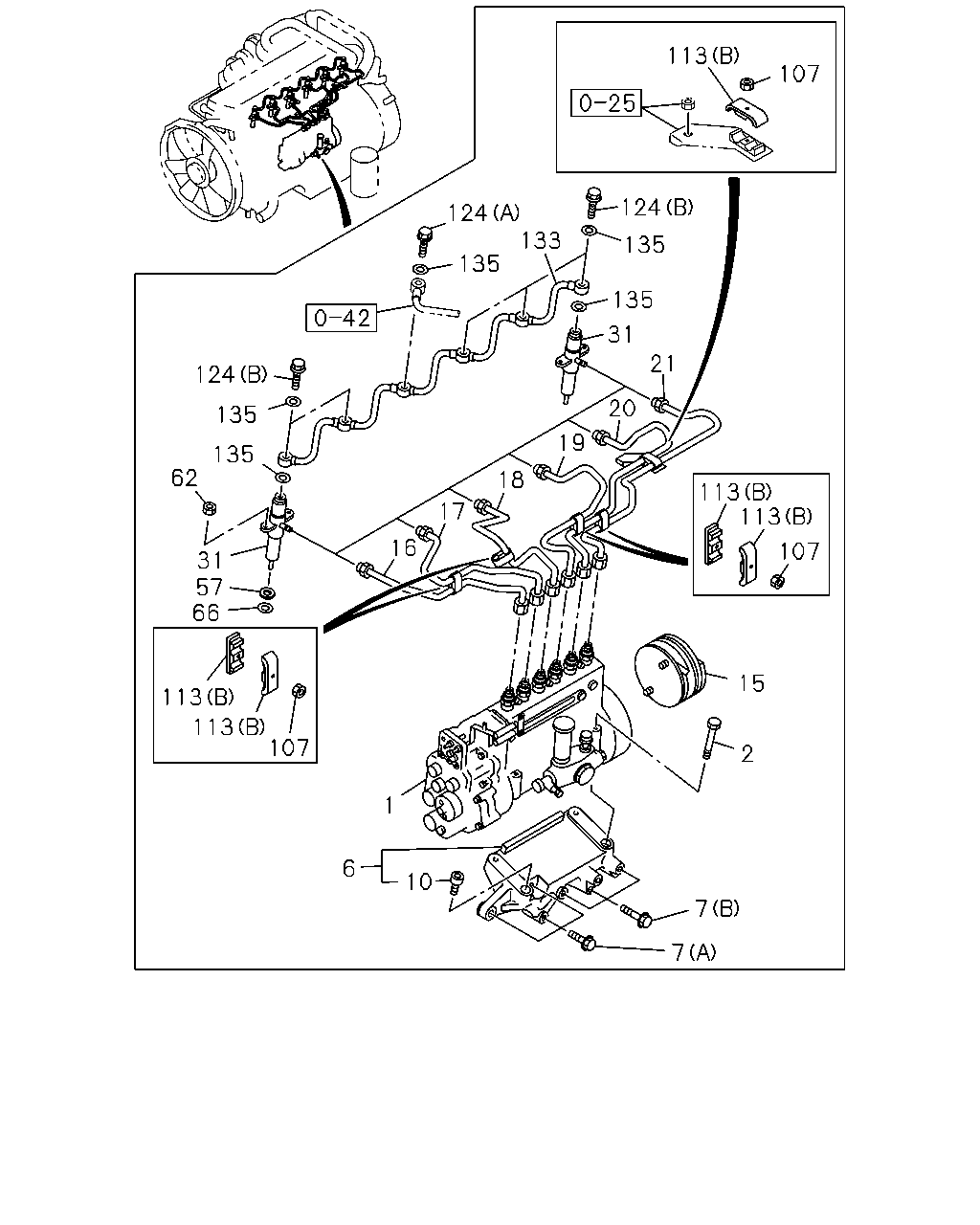

20 21 19 18 16 17 113 113 113 113 107 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0110-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0511-		●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0110-	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0511-		●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0110-	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0511-		●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0110-	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0511-		●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0110-	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0511-		●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0110-	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0511-		●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0110-	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0511-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0110-0602	●
107	NUT; INJ PIPE CLIP M6 FLANGE MAL	0-91180-106-0	04	1	0603-	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0511-0602		●
107	NUT; INJ PIPE CLIP M6 FLANGE MAL	0-91180-106-0	06	1	0603-		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0110-	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0110-	●
113	CLIP; INJ PIPE (B)	1-09701-132-1	10	1	0511-1202		●
113	CLIP; INJ PIPE (B)	1-09701-240-0	10	1	1203-		●

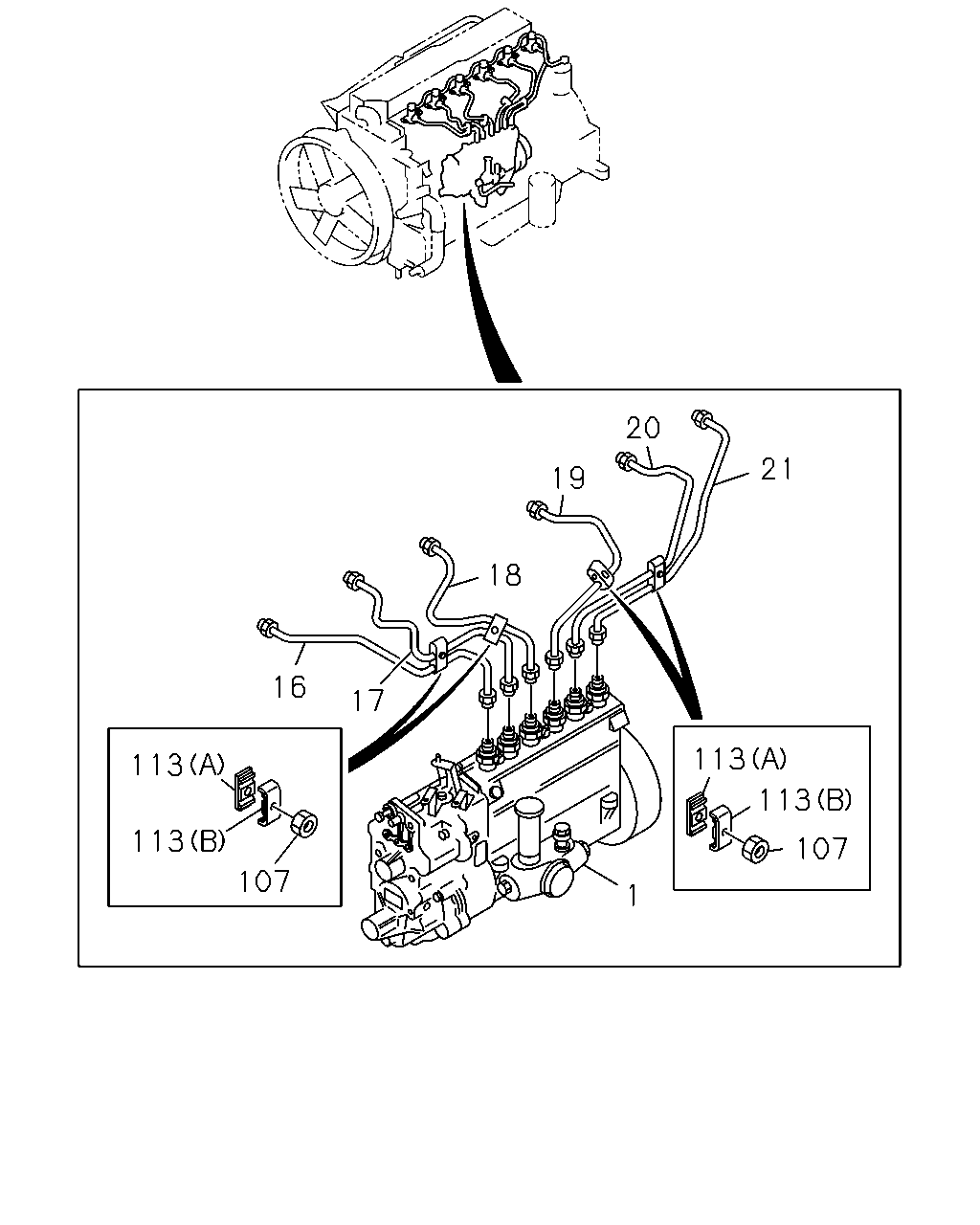

31 37 38 32 39 44 45 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0110-	●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0511-		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	0110-	●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0511-		●
33	NOZZLE; INJ	8-94390-382-0	06	1	0110-	●
33	NOZZLE; INJ	8-94394-699-0	06	1	0511-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0110-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0511-		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	0110-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	0110-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	0110-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0110-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0511-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	0110-	●

113 107 124 124 133 135 135 135 31 21 124 20 135 19 135 62 18 113 113 17 16 107 31 57 66 15 113 113 107 2 1 6 10 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-081-1	01	1	0110-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0511-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0110-	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0511-0512		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0110-	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0511-		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0110-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	02	1	0601-	●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0110-	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0110-0805	●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0511-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28151-040-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	03	1	0511-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28151-080-0	03	1	0601-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0511-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-962-2	01	1	0110-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0511-		●
16	PIPE; INJ NO.1	8-94394-546-0	01	1	0110-	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0511-		●
17	PIPE; INJ NO.2	8-94394-547-0	01	1	0110-	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0511-		●
18	PIPE; INJ NO.3	8-94394-548-0	01	1	0110-	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0511-		●
19	PIPE; INJ NO.4	8-94394-549-0	01	1	0110-	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0511-		●
20	PIPE; INJ NO.5	8-94394-550-0	01	1	0110-	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0511-		●
21	PIPE; INJ NO.6	8-94394-551-0	01	1	0110-	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0511-		●
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0110-	●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0511-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	0511-		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0511-0602		●
62	NUT; NOZZLE HOLDER M8 FLANGE MAL	0-91180-108-0	12	1	0603-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0110-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	12	1	0511-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0110-0602	●
107	NUT; INJ PIPE CLIP M6 FLANGE MAL	0-91180-106-0	04	1	0603-	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0511-0602		●
107	NUT; INJ PIPE CLIP M6 FLANGE MAL	0-91180-106-0	06	1	0603-		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0110-	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0110-	●
113	CLIP; INJ PIPE (B)	1-09701-132-1	10	1	0511-1202		●
113	CLIP; INJ PIPE (B)	1-09701-240-0	10	1	1203-		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	06	1	0110-	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0511-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0511-		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-805-0	01	1	0110-	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0511-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	14	1	0110-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0511-		●

31 32 34 36 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94395-498-2	06	1	0110-	●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0511-		●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	0110-	●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0511-		●
33	NOZZLE; INJ	8-94390-382-0	06	1	0110-	●
33	NOZZLE; INJ	8-94394-699-0	06	1	0511-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0511-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0110-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0511-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0511-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	0511-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	0110-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0511-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	0511-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	0511-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	0511-		●
145	GASKET; RET NUT	8-94128-915-0	06	1	0511-		●
146	SPACER; NOZZLE	1-15339-095-0	06	1	0511-		●

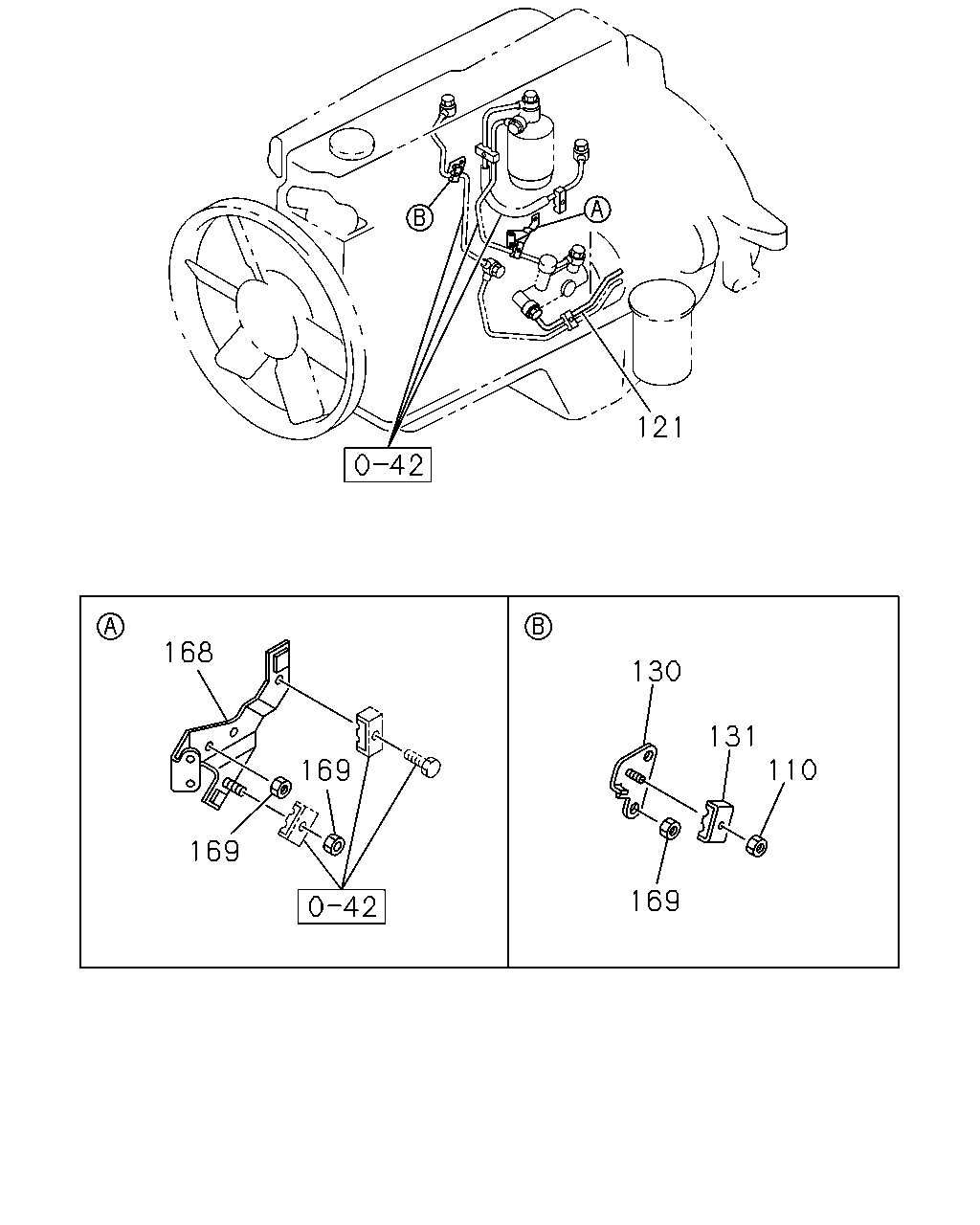

121 168 130 131 110 169 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0511-0602		●
110	NUT; CLIP M6 FLANGE MAL	0-91180-106-0	01	1	0603-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0110-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0511-		●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0511-		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0511-		●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	0511-		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0511-0602		●
169	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	04	1	0603-		●
