0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#55369) — 136 parça

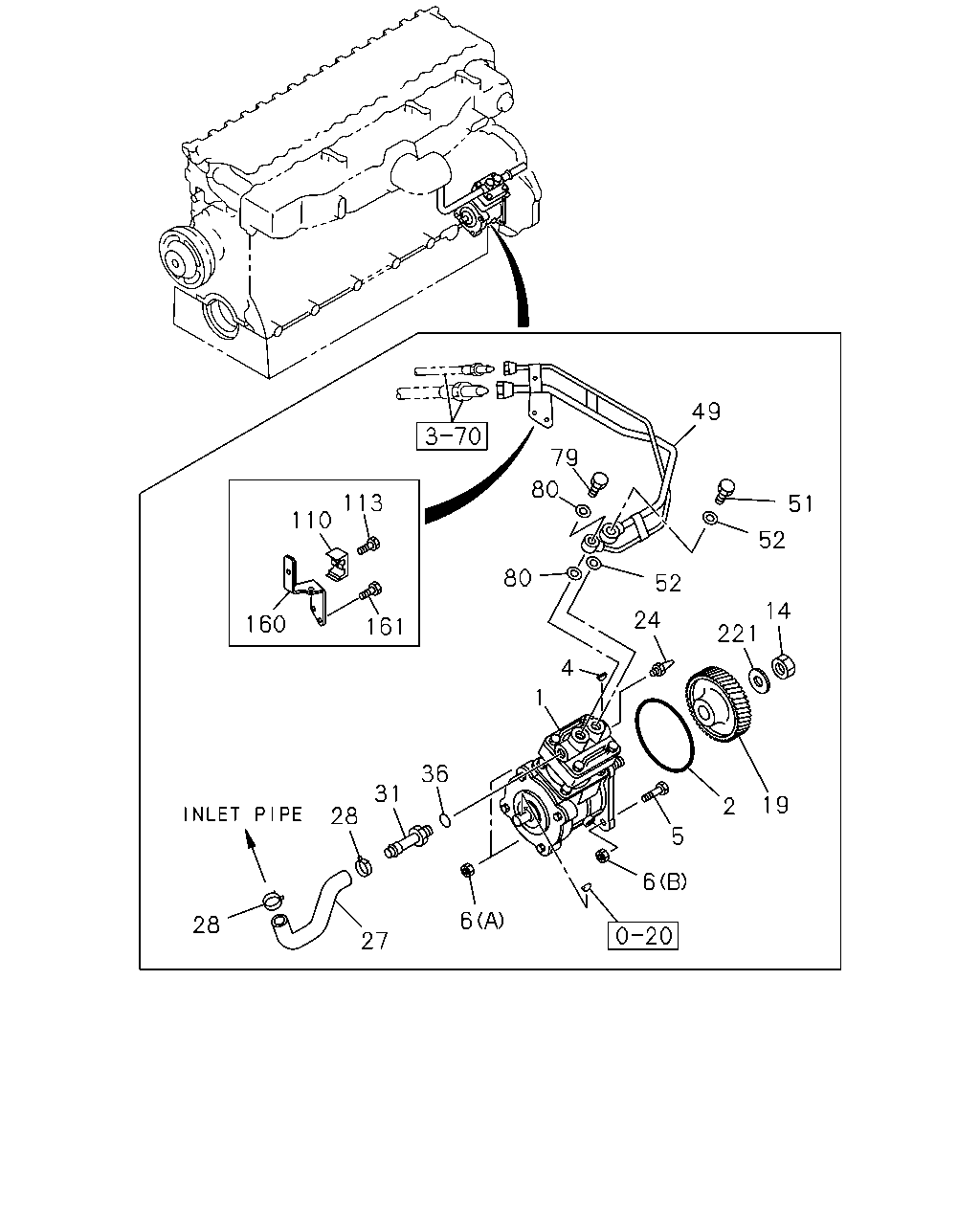

49 79 80 113 51 110 52 80 52 14 24 160 161 221 4 1 36 31 19 2 28 5 6 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0110-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-309-1	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0511-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0511-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0110-	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0110-	●
6	NUT; AIR CMPR (A) M10 FLANGE MAL	0-91150-110-0	02	1	0110-0602	●
6	NUT; AIR CMPR (A) M10 FLANGE MAL	0-91180-110-0	02	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0602	●
6	NUT; AIR CMPR (B) M12 FLANGE MAL	0-91180-112-0	01	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	0511-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE MAL	0-91180-212-0	01	1	0603-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0110-0510	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0511-0512	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0110-	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0110-	●
27	HOSE; AIR CMPR,SUCTION	8-94394-809-1	01	1	0110-	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0511-		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0110-0510	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0511-	●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-942-1	01	1	0110-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0511-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	0110-	●
49	PIPE; AIR,CHARGE	8-94390-063-1	01	1	0110-0112	●
49	PIPE; AIR,CHARGE	8-94394-275-1	01	1	0201-	●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0511-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-1	01	1	0110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0511-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0110-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0511-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0110-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0511-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0110-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0110-	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0511-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0110-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0511-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE MAL	0-28680-620-0	01	1	0511-0512		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE MAL	0-28650-620-0	01	1	0601-0611		●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0110-	●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	0511-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE MAL	0-28050-816-0	02	1	0601-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0110-0510	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0511-0605	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●	●

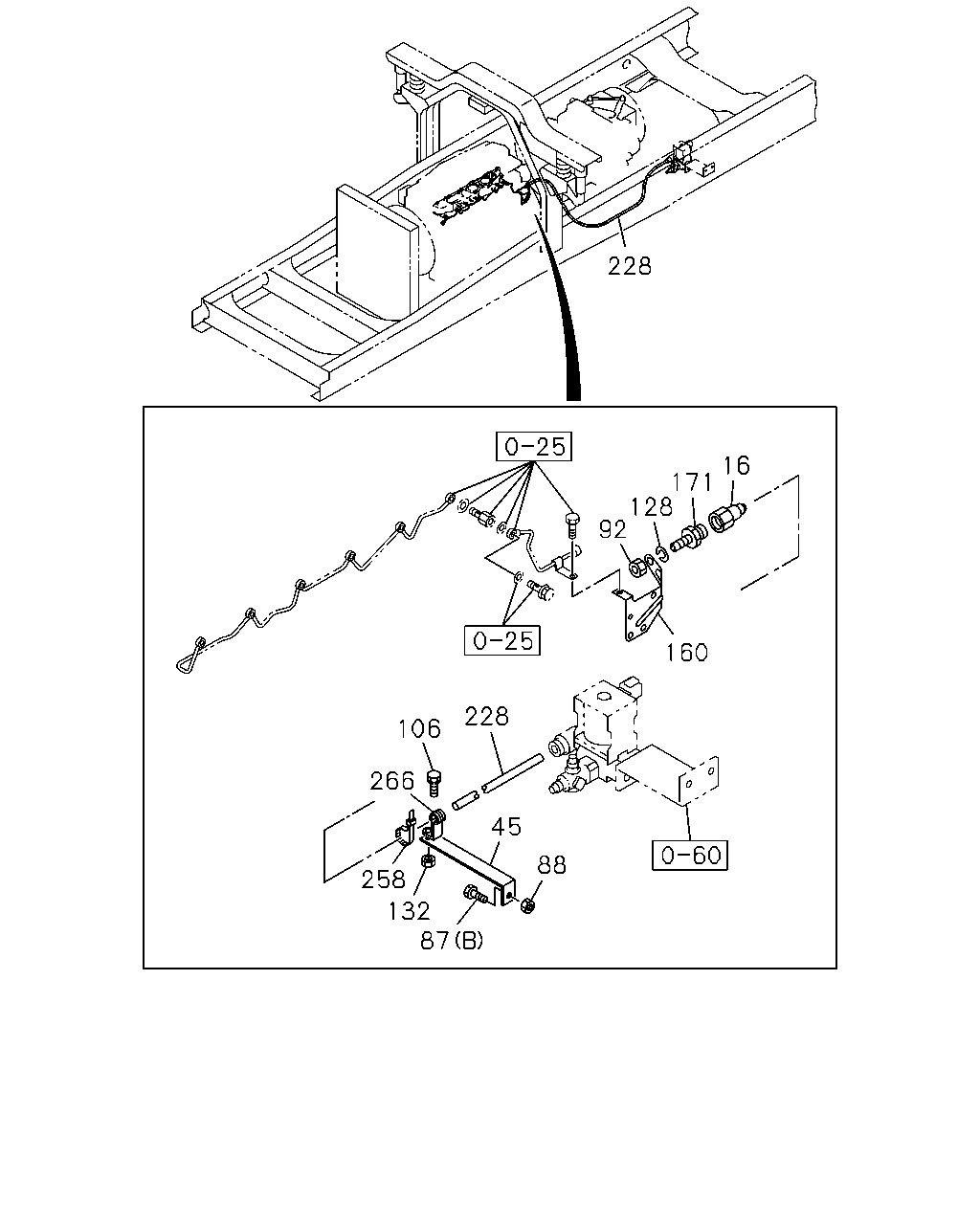

228 16 171 128 92 160 228 106 266 45 258 88 132 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADAPTER EURO2 SPECIFICATION<THN> DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	0511-		●
45	BRACKET; CLIP EURO2 SPECIFICATION<THN> L=90 B=25	1-47475-530-0	01	1	0511-		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0511-0512		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE MAL	0-28050-816-0	02	1	0601-		●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE MAL	0-28680-825-0	01	1	0511-0512		●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-		●
88	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	0511-0602		●
88	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE MAL	0-91180-108-0	01	1	0603-		●
92	NUT; UNION EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0511-		●
106	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL	0-28680-820-0	01	1	0511-0512		●
106	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL	0-28650-820-0	01	1	0601-		●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0511-0603		●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2 MAL	0-91510-512-0	01	1	0604-		●
132	NUT; CLIP EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	0511-0602		●
132	NUT; CLIP EURO2 SPECIFICATION<THN> M8 FLANGE MAL	0-91180-108-0	01	1	0603-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0110-	●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	0511-		●
171	UNION EURO2 SPECIFICATION<THN> M12 L=56.5	9-09223-106-1	01	1	0511-0607		●
171	UNION EURO2 SPECIFICATION<THN> M12 L=56.5	0-92113-106-0	01	1	0608-		●
228	TUBE; NYLON WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN>	1-49222-146-0	01	1	0511-		●
258	CLIP; BAND,NYLON TUBE WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=250	1-09707-126-0	03	1	0511-		●
266	CLIP; NYLON TUBE EURO2 SPECIFICATION<THN> D=9 T=45	5-09700-021-0	01	1	0511-		●

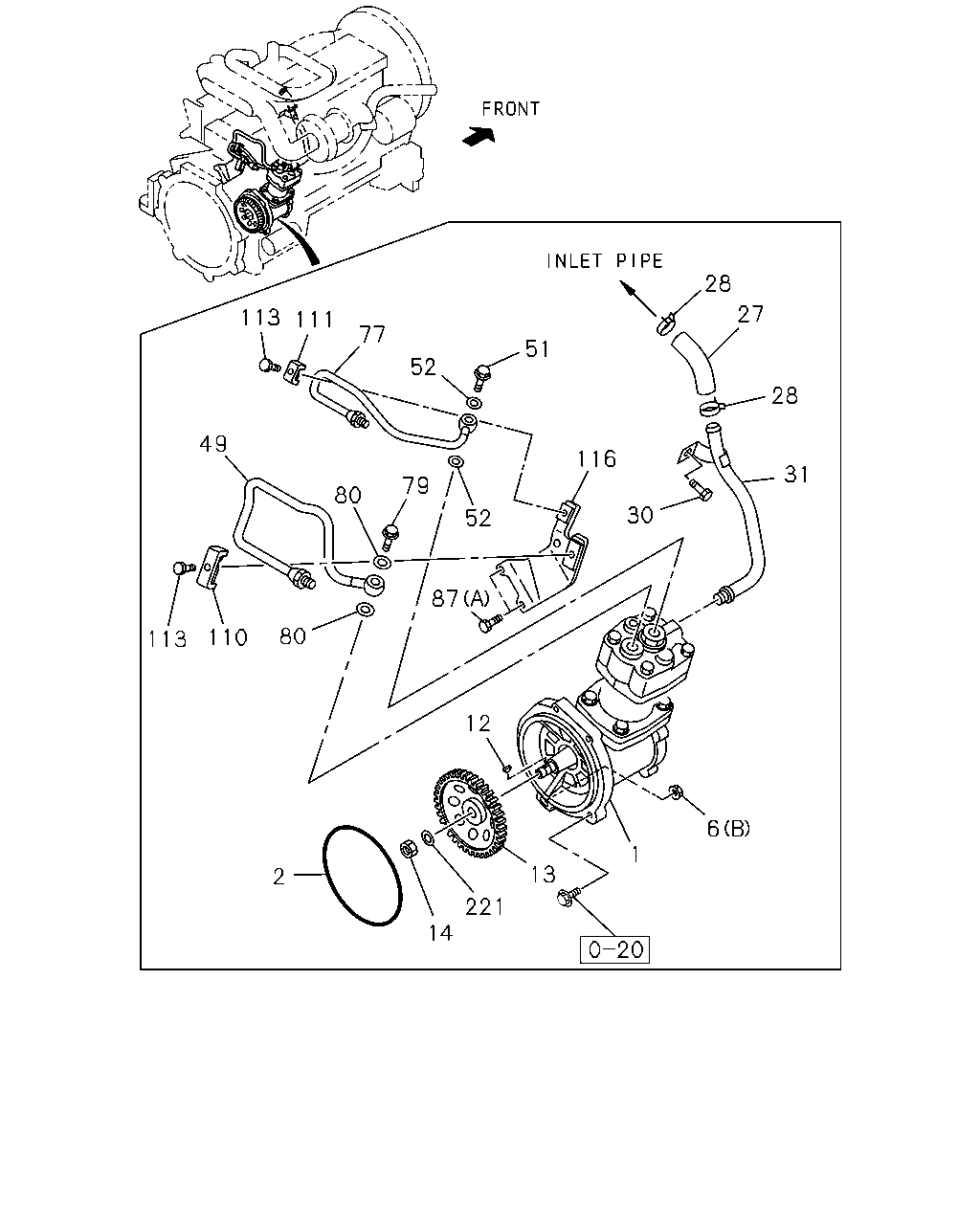

28 27 113 111 77 51 52 28 49 116 31 79 80 30 52 87 80 110 113 12 6 1 13 2 221 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0110-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-309-1	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0511-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0511-		●
6	NUT; AIR CMPR (A) M10 FLANGE MAL	0-91150-110-0	02	1	0110-0602	●
6	NUT; AIR CMPR (A) M10 FLANGE MAL	0-91180-110-0	02	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0602	●
6	NUT; AIR CMPR (B) M12 FLANGE MAL	0-91180-112-0	01	1	0603-	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-212-0	01	1	0511-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE MAL	0-91180-212-0	01	1	0603-		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0511-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0511-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0110-0510	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0511-0512	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●	●
27	HOSE; AIR CMPR,SUCTION	8-94394-809-1	01	1	0110-	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0511-		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0110-0510	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0511-	●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0511-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-942-1	01	1	0110-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0511-		●
49	PIPE; AIR,CHARGE	8-94390-063-1	01	1	0110-0112	●
49	PIPE; AIR,CHARGE	8-94394-275-1	01	1	0201-	●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0511-		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-1	01	1	0110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0511-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0110-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0511-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0511-		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0110-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0511-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0110-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0511-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0511-0512		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE MAL	0-28050-816-0	02	1	0601-		●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE MAL	0-28680-825-0	01	1	0511-0512		●
87	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0110-	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0511-		●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0511-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0110-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0511-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE MAL	0-28680-620-0	01	1	0511-0512		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE MAL	0-28650-620-0	01	1	0601-0611		●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-		●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	0511-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0110-0510	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0511-0605	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●	●
