Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

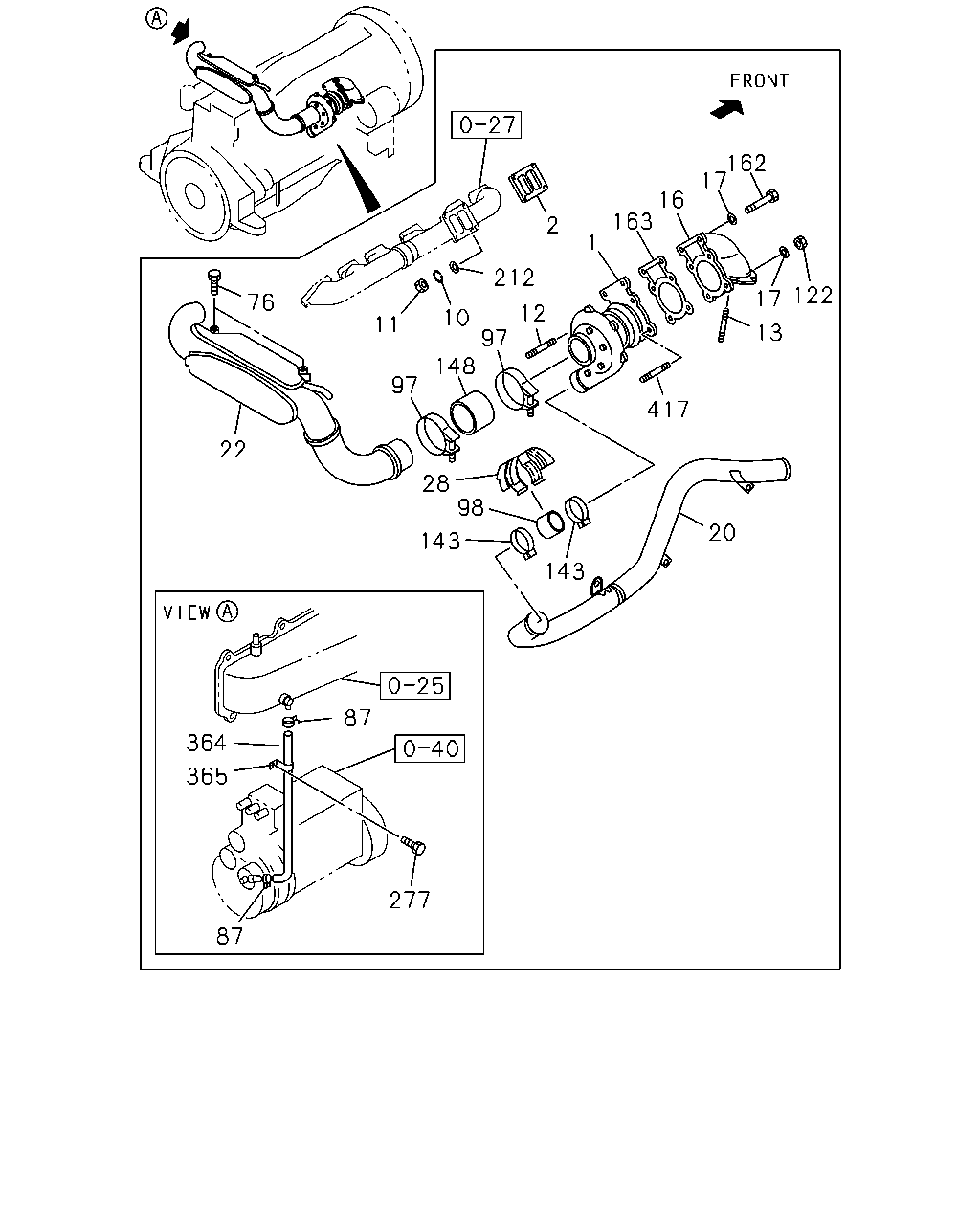

0-36 — TURBOCHARGER SYSTEM
(#55367) — 30 parça
162
17
16
163
2
1
212
17
122
76
12
10
11
13
97
148
97
417
22
28
98
20
143
143
87
364
365
277
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-94390-650-0
01
1
0511-1007
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98162-141-0
01
1
1008-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
0511-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
0511-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
0511-
12
STUD; TURBOCHARGER
M10X80
9-04731-080-0
02
1
1008-
13
STUD; EXH PIPE
M12X103 L=123
8-94394-656-0
01
1
0511-
16
ADAPTER; EXH PIPE
8-94391-161-1
01
1
0511-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
0511-
20
PIPE; INL,TURBOCHARGER OUT
8-94390-649-2
01
1
0511-
22
DUCT; INL,ACL TO TURBOCHARGER
8-94390-407-0
01
1
0511-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-264-0
01
1
0511-
76
BOLT; AIR DUCT
M8X50 FLANGE
0-28080-850-0
02
1
0511-0512
76
BOLT; AIR DUCT
M8X50 FLANGE
0-28050-850-0
02
1
0601-
87
CLIP; RUBBER HOSE FIX
ID=11
8-94238-570-0
02
1
0511-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
1-09707-198-0
04
1
0511-0810
97
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
1-09707-114-0
04
1
0811-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-782-0
01
1
0511-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
0511-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-65
1-09707-204-0
02
1
0511-0810
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69
8-94316-991-0
02
1
0811-
148
HOSE; TURBOCHARGER,INL
5-09360-846-0
01
1
0511-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
0511-
163
GASKET; ADAPTER TO EXH PIPE
1-14145-162-2
01
1
0511-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
0511-
277
BOLT; CLIP
M6X10 FLANGE
0-28080-610-0
01
1
0511-0512
277
BOLT; CLIP
M6X10 FLANGE
0-28050-610-0
01
1
0601-
364
HOSE; BOOST
L=200 SERVICED BY L=3000
0-04770-300-0
01
1
0511-
365
CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20
8-94246-610-0
01
1
0511-
417
STUD; ADAPTER TO EXH PIPE
M8X25
9-04130-825-0
01
1
1008-
