0-32 — WATER PIPING; ENGINE (#55364) — 48 parça

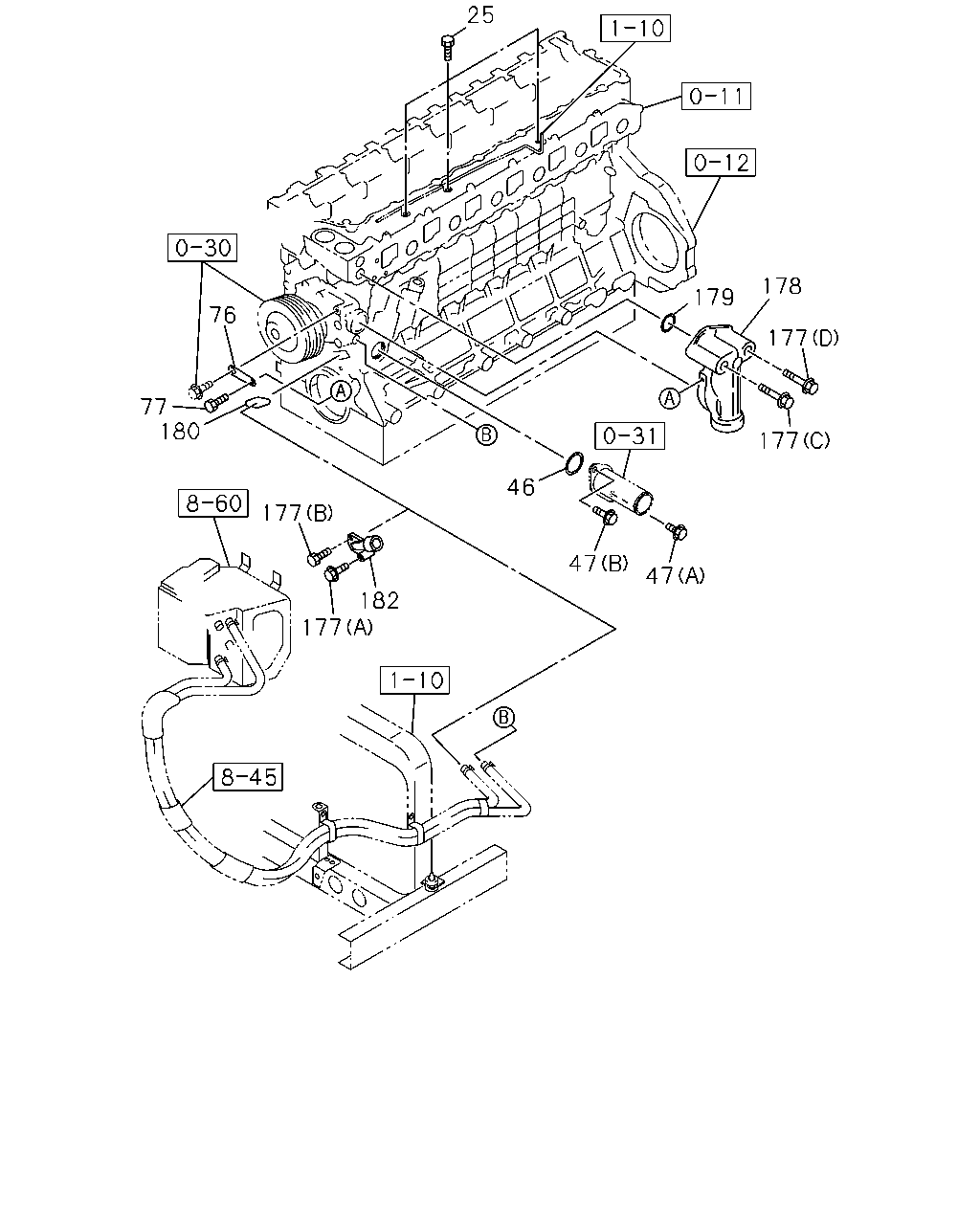

çizim 173508
25 179 178 177 177 47 47 46 180 77 76 177 177 182
BalonParca AdiParca NoAdetTipApplied Date A B
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 03 1 0110-0512 ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0110-0510 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0511- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 0110-0510 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 0511-0512 ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0110-0510 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0511-0512 ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0110-0510 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0511- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0110-0512 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 0511-0512 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 02 1 0601- ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 0110-0510 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 0511-0512 ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0110-0510 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0511-0512 ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0110-0510 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0511- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0110-0510 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0511- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-2 01 1 0110-0510 ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 0511- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0110-0510 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0511-1408 ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0110-0510 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0511- ● ●
182 DUCT; WATER,HTR 8-94390-283-0 01 1 0110-0510 ●
182 DUCT; WATER,HTR 8-94390-283-0 01 1 0511- ● ●

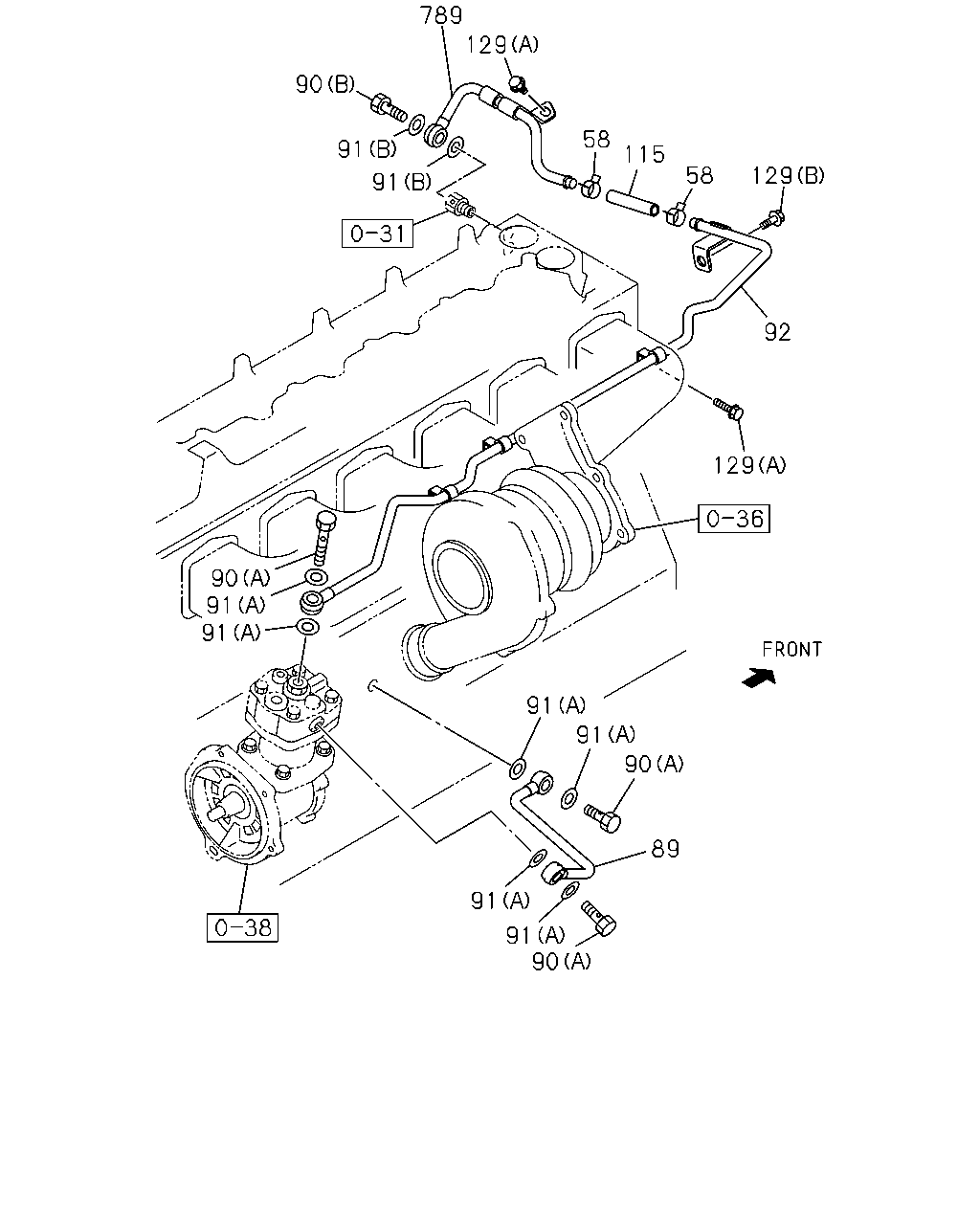

çizim 173509
789 129 90 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 0511- ●
89 PIPE; WATER,AIR CMPR,IN 8-94395-452-2 01 1 0511- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 0511- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X25 		5-09675-028-2 01 1 0511- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 06 1 0511-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1401- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 0511- ●
92 PIPE; WATER,AIR CMPR,OUT 8-94390-070-0 01 1 0511- ●
115 HOSE; RUBBER
L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 0511- ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0511-0512 ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0601- ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 W/LK WASHER 		0-50051-220-0 01 1 0511- ●
789 PIPE; WATER,AIR CMPR TO CYL HD 8-94395-454-4 01 1 0511- ●
