0-30 — WATER PUMP AND CORROSION RESISTOR (#55362) — 142 parça

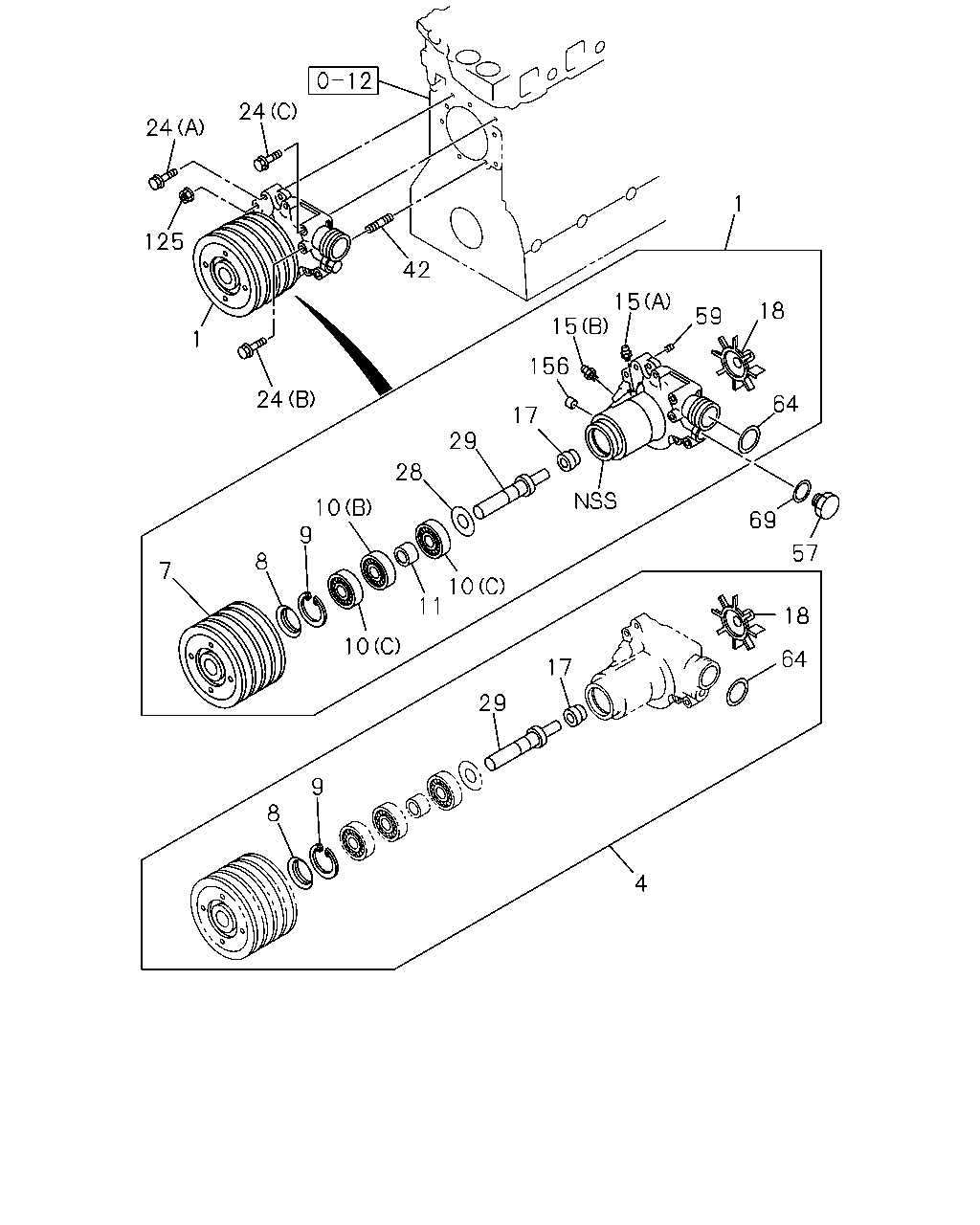

24 24 125 1 42 24 15 15 156 17 29 28 10 9 8 7 10 11 10 59 1 18 64 69 57 18 64 17 29 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET	8-94390-601-5	01	1	0110-0301	●
1	PUMP ASM; WATER,W/GASKET	8-97602-775-0	01	1	0302-0801	●
1	PUMP ASM; WATER,W/GASKET	8-97627-357-1	01	1	0802-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-842-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-916-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-988-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET	8-97602-781-2	01	1	0511-1208		●
1	PUMP ASM; WATER,W/GASKET	1-87310-839-0	01	1	1209-1312		●
1	PUMP ASM; WATER,W/GASKET	1-87310-911-0	01	1	1401-1405		●
1	PUMP ASM; WATER,W/GASKET	1-87310-983-0	01	1	1406-		●
4	REPAIR KIT; WATER PUMP	1-87814-172-0	01	1	1401-1405		●
4	REPAIR KIT; WATER PUMP	1-87814-612-0	01	1	1406-		●
4	REPAIR KIT; WATER PUMP	1-87812-027-1	01	1	0110-0801	●
4	REPAIR KIT; WATER PUMP	1-87813-363-0	01	1	0802-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-948-0	01	1	1209-1312	●
4	REPAIR KIT; WATER PUMP	1-87814-173-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-613-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87812-028-1	01	1	0511-1208		●
4	REPAIR KIT; WATER PUMP	1-87813-946-0	01	1	1209-1312		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0110-	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0511-		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0110-0510	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0511-	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0110-0510	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0511-	●	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	02	1	0110-	●
10	BEARING; WATER PUMP (C)	8-94391-298-0	02	1	0511-		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0511-		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0110-	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0511-		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0110-0510	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0511-	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0110-0510	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0511-0512	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0110-0510	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0511-1208	●	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0110-0510	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0511-	●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0110-0510	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0511-0512	●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0110-0510	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0511-	●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0110-0510	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0511-	●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0110-0510	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0511-	●	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0110-	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0511-		●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0110-0510	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0511-0604	●	●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-	●	●
57	PLUG; HTR,WATER PUMP M20	9-99202-320-0	01	1	0302-0510	●
57	PLUG; HTR,WATER PUMP M20	9-99202-320-0	01	1	0511-	●	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0110-0801	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0511-0801		●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0802-	●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0110-0510	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0511-	●	●
69	GASKET; PLUG,HTR ID=20.5 OD=28.0	9-09571-420-0	01	1	0302-0510	●
69	GASKET; PLUG,HTR ID=20.5 OD=28.0	9-09571-420-0	01	1	0511-	●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0110-0510	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0511-0602	●	●
125	NUT; WATER PUMP M8 FLANGE MAL	0-91180-108-0	04	1	0603-	●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0110-0510	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0511-	●	●

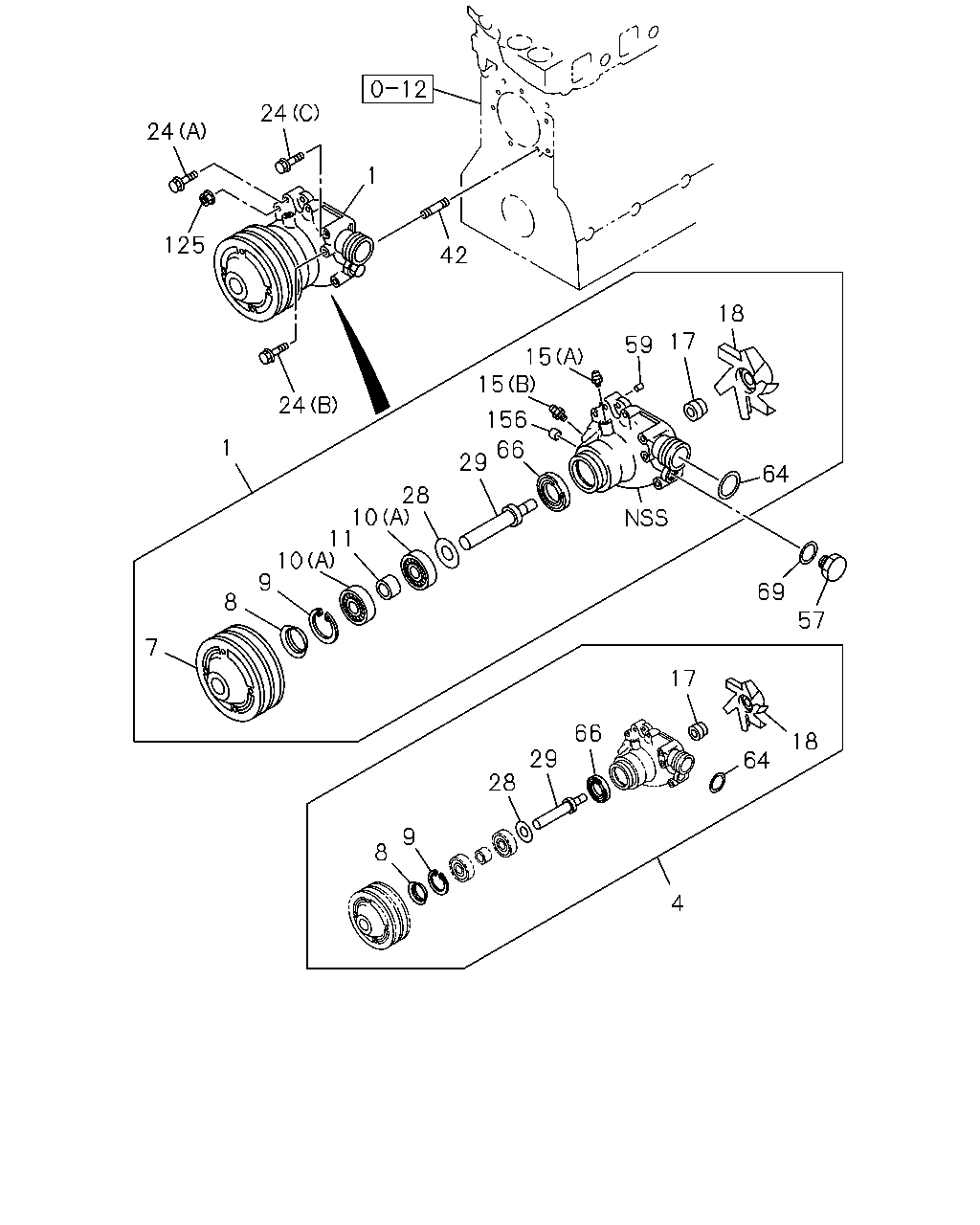

24 24 125 1 42 24 1 7 8 9 10 11 10 28 29 66 156 15 15 59 17 18 64 69 57 18 64 17 66 29 28 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET	8-94390-601-5	01	1	0110-0301	●
1	PUMP ASM; WATER,W/GASKET	8-97602-775-0	01	1	0302-0801	●
1	PUMP ASM; WATER,W/GASKET	8-97627-357-1	01	1	0802-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-842-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-916-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-988-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET	8-97602-781-2	01	1	0511-1208		●
1	PUMP ASM; WATER,W/GASKET	1-87310-839-0	01	1	1209-1312		●
1	PUMP ASM; WATER,W/GASKET	1-87310-911-0	01	1	1401-1405		●
1	PUMP ASM; WATER,W/GASKET	1-87310-983-0	01	1	1406-		●
4	REPAIR KIT; WATER PUMP	1-87814-172-0	01	1	1401-1405		●
4	REPAIR KIT; WATER PUMP	1-87814-612-0	01	1	1406-		●
4	REPAIR KIT; WATER PUMP	1-87812-027-1	01	1	0110-0801	●
4	REPAIR KIT; WATER PUMP	1-87813-363-0	01	1	0802-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-948-0	01	1	1209-1312	●
4	REPAIR KIT; WATER PUMP	1-87814-173-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-613-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87812-028-1	01	1	0511-1208		●
4	REPAIR KIT; WATER PUMP	1-87813-946-0	01	1	1209-1312		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0110-	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0511-		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0110-0510	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0511-	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0110-0510	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0511-	●	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	02	1	0110-	●
10	BEARING; WATER PUMP (C)	8-94391-298-0	02	1	0511-		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0511-		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0110-	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0511-		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0110-0510	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0511-	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0110-0510	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0511-0512	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0110-0510	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0511-1208	●	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0110-0510	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0511-	●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0110-0510	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0511-0512	●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0110-0510	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0511-	●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0110-0510	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0511-	●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0110-0510	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0511-	●	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0110-	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0511-		●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0110-0510	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0511-0604	●	●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-	●	●
57	PLUG; HTR,WATER PUMP M20	9-99202-320-0	01	1	0302-0510	●
57	PLUG; HTR,WATER PUMP M20	9-99202-320-0	01	1	0511-	●	●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0110-0801	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0511-0801		●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0802-	●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0110-0510	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0511-	●	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	0110-0801	●
66	SEAL; SECONDARY	8-98084-780-0	01	1	0802-	●
69	GASKET; PLUG,HTR ID=20.5 OD=28.0	9-09571-420-0	01	1	0302-0510	●
69	GASKET; PLUG,HTR ID=20.5 OD=28.0	9-09571-420-0	01	1	0511-	●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0110-0510	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0511-0602	●	●
125	NUT; WATER PUMP M8 FLANGE MAL	0-91180-108-0	04	1	0603-	●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0110-0510	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
