Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

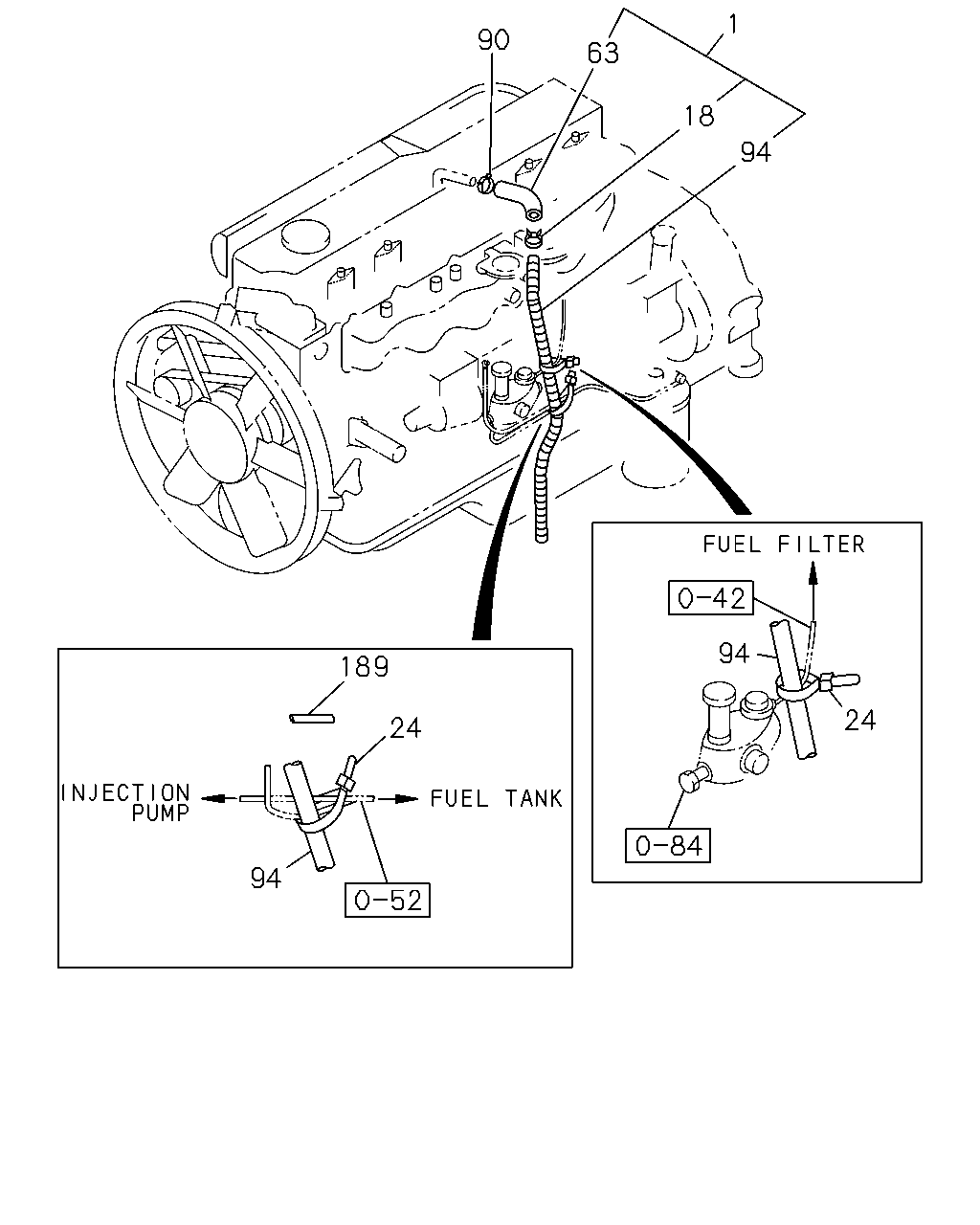

0-28 — VENTILATION SYSTEM
(#55361) — 17 parça
Tümü
A - 6HH1 STD ENG
B - 6HE1 TC ENG
1
90
63
18
94
94
189
24
24
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
8-94394-859-4
01
1
0110-
●
1
BREATHER; AIR
8-94394-777-2
01
1
0511-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
0110-0510
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=38
9-09915-041-1
01
1
0511-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
0511-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0110-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
03
1
0511-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
03
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
0511-
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0110-0510
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0511-
●
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
0110-0510
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-1
01
1
0511-
●
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0110-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
