Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#55360) — 57 parça
Tümü
A - 6HH1 STD ENG
B - 6HE1 TC ENG
◀

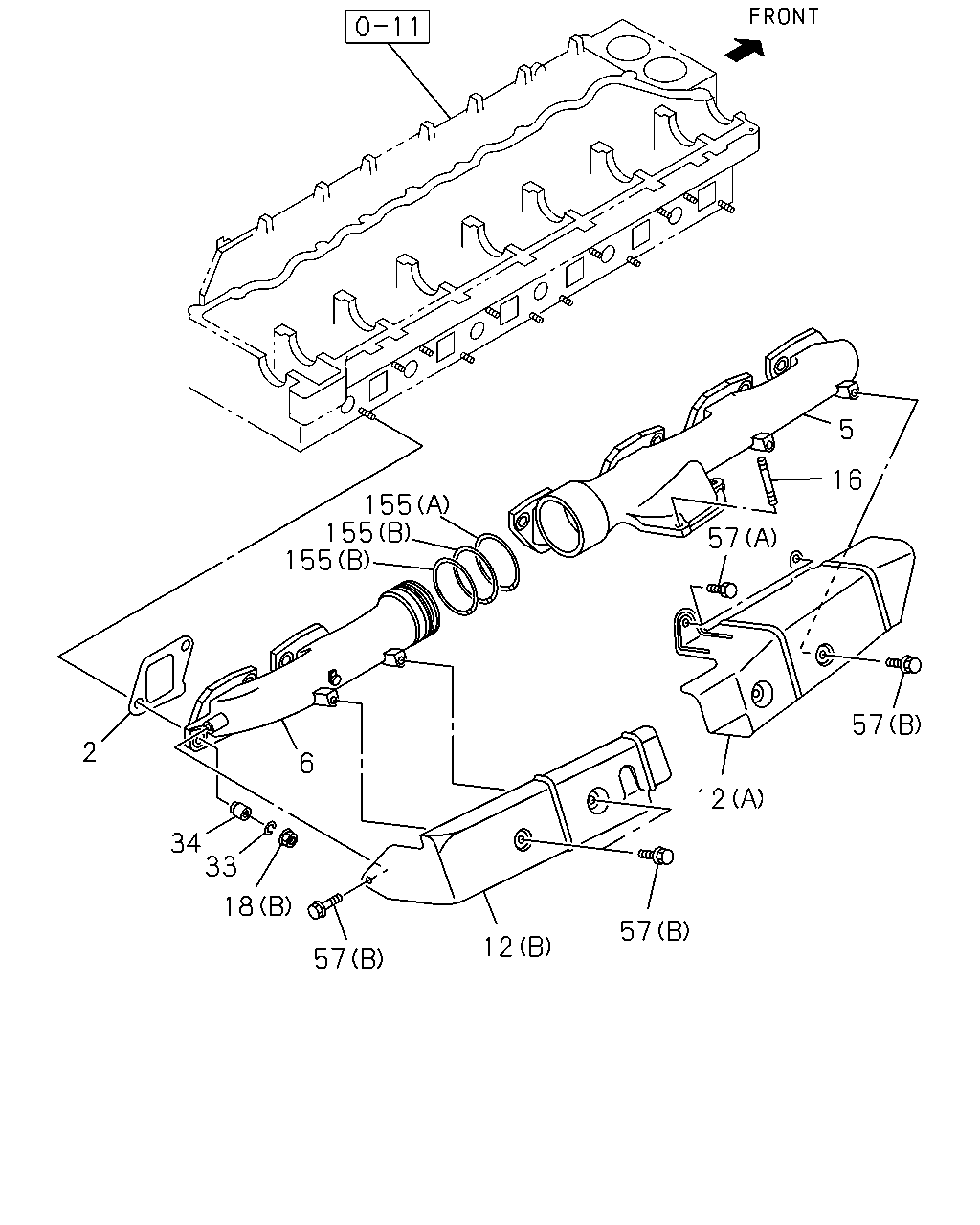

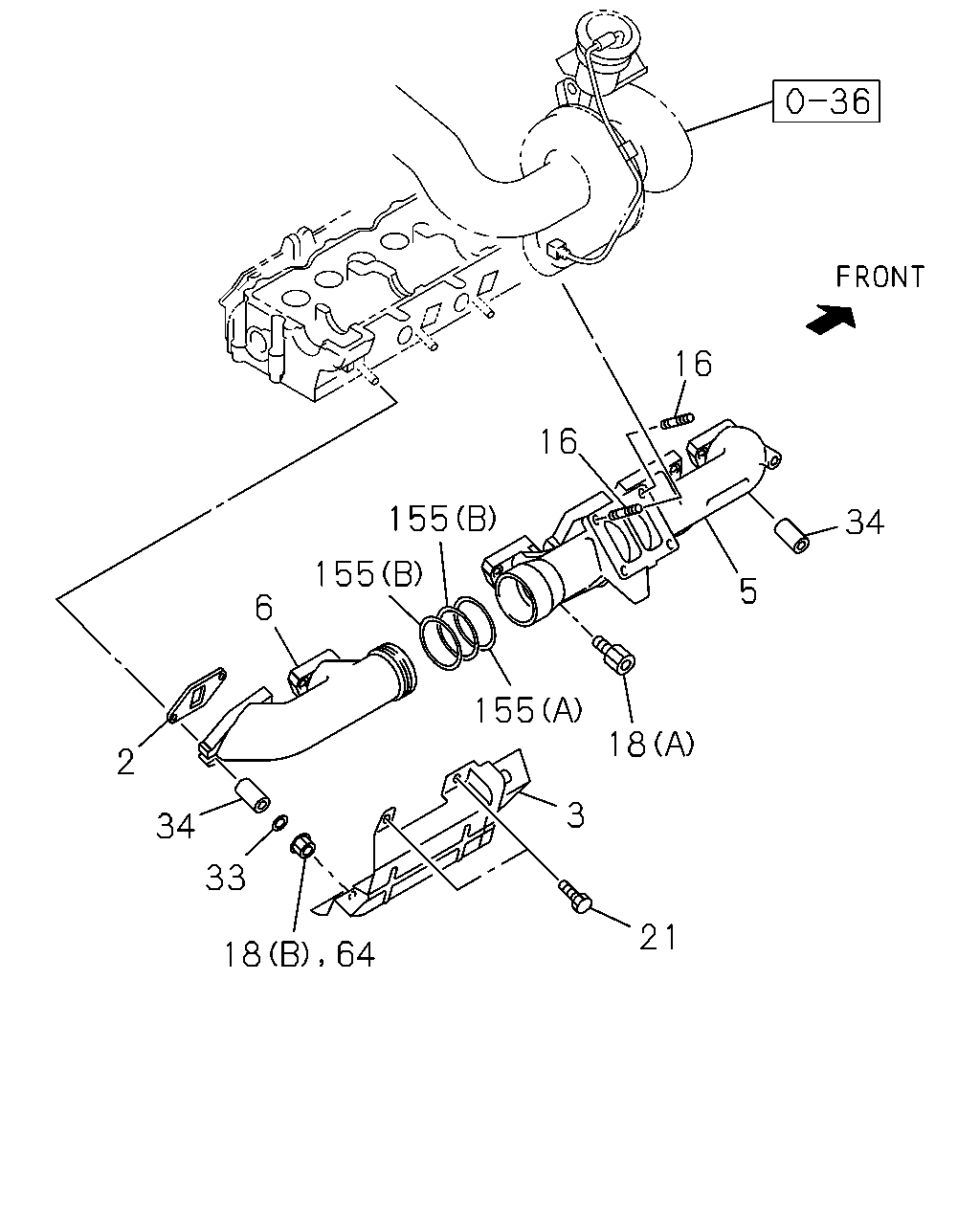

[027A] 6HE1 (28 parça)
[027A] 6HH1 (29 parça)
▶
16
16
155
34
155
5
6
155
18
2
3
34
33
21
18
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-2
06
1
0110-0510
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
0511-
●
●
3
PROTECTOR; HEAT,EXH MANIF
8-94391-582-1
01
1
0511-
●
5
MANIFOLD; EXH,FRT
8-94394-753-1
01
1
0110-
●
5
MANIFOLD; EXH,FRT
8-97602-056-0
01
1
0511-
●
6
MANIFOLD; EXH,RR
8-94394-755-4
01
1
0110-
●
6
MANIFOLD; EXH,RR
8-97600-970-0
01
1
0511-
●
16
STUD; EXH PIPE TO MANIF
M12X103 L=123
8-94394-656-0
03
1
0110-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0511-
●
18
NUT; EXH MANIF
(B) M10 FLANGE
0-91150-210-0
12
1
0110-0602
●
18
NUT; EXH MANIF
(B) M10 FLANGE MAL
0-91180-210-0
12
1
0603-
●
18
NUT; EXH MANIF
(B) M10 FLANGE
0-91150-210-0
10
1
0511-0602
●
18
NUT; EXH MANIF
(B) M10 FLANGE MAL
0-91180-210-0
10
1
0603-
●
18
NUT; EXH MANIF
(A) M10 L=51
8-94394-991-1
02
1
0511-1202
●
18
NUT; EXH MANIF
(A) M10
8-98205-394-0
02
1
1203-
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28080-816-0
02
1
0511-0512
●
21
BOLT; HEAT PROTECTOR
M8X16 FLANGE MAL
0-28050-816-0
02
1
0601-
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
12
1
0110-0510
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
12
1
0511-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-94395-679-0
12
1
0110-0209
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0210-0510
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0511-
●
●
64
NUT; HEAT PROTECTOR
M10 FLANGE
0-91150-210-0
02
1
0511-0602
●
64
NUT; HEAT PROTECTOR
M10 FLANGE MAL
0-91180-210-0
02
1
0603-
●
155
RING; SEAL,EXH MANIF
(A) STAMP RH
1-14149-151-0
01
1
0110-0510
●
155
RING; SEAL,EXH MANIF
(A) STAMP RH
1-14149-151-0
01
1
0511-
●
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
02
1
0110-0510
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
02
1
0511-
●
●
5
16
155
155
155
57
57
2
6
12
34
33
18
57
12
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-2
06
1
0110-0510
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
0511-
●
●
5
MANIFOLD; EXH,FRT
8-94394-753-1
01
1
0110-
●
5
MANIFOLD; EXH,FRT
8-97602-056-0
01
1
0511-
●
6
MANIFOLD; EXH,RR
8-94394-755-4
01
1
0110-
●
6
MANIFOLD; EXH,RR
8-97600-970-0
01
1
0511-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B)
8-94392-947-0
01
1
0110-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
8-94395-204-0
01
1
0110-
●
16
STUD; EXH PIPE TO MANIF
M12X103 L=123
8-94394-656-0
03
1
0110-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
0511-
●
18
NUT; EXH MANIF
(B) M10 FLANGE
0-91150-210-0
12
1
0110-0602
●
18
NUT; EXH MANIF
(B) M10 FLANGE MAL
0-91180-210-0
12
1
0603-
●
18
NUT; EXH MANIF
(B) M10 FLANGE
0-91150-210-0
10
1
0511-0602
●
18
NUT; EXH MANIF
(B) M10 FLANGE MAL
0-91180-210-0
10
1
0603-
●
18
NUT; EXH MANIF
(A) M10 L=51
8-94394-991-1
02
1
0511-1202
●
18
NUT; EXH MANIF
(A) M10
8-98205-394-0
02
1
1203-
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
12
1
0110-0510
●
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
12
1
0511-
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-94395-679-0
12
1
0110-0209
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0210-0510
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
0511-
●
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE
0-28080-812-0
02
1
0110-0512
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE
0-28050-812-0
02
1
0601-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE
8-94312-699-1
05
1
0110-0408
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE
8-97378-075-0
05
1
0409-
●
155
RING; SEAL,EXH MANIF
(A) STAMP RH
1-14149-151-0
01
1
0110-0510
●
155
RING; SEAL,EXH MANIF
(A) STAMP RH
1-14149-151-0
01
1
0511-
●
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
02
1
0110-0510
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
02
1
0511-
●
●
