1-10B — RADIATOR (#5536) — 105 parça

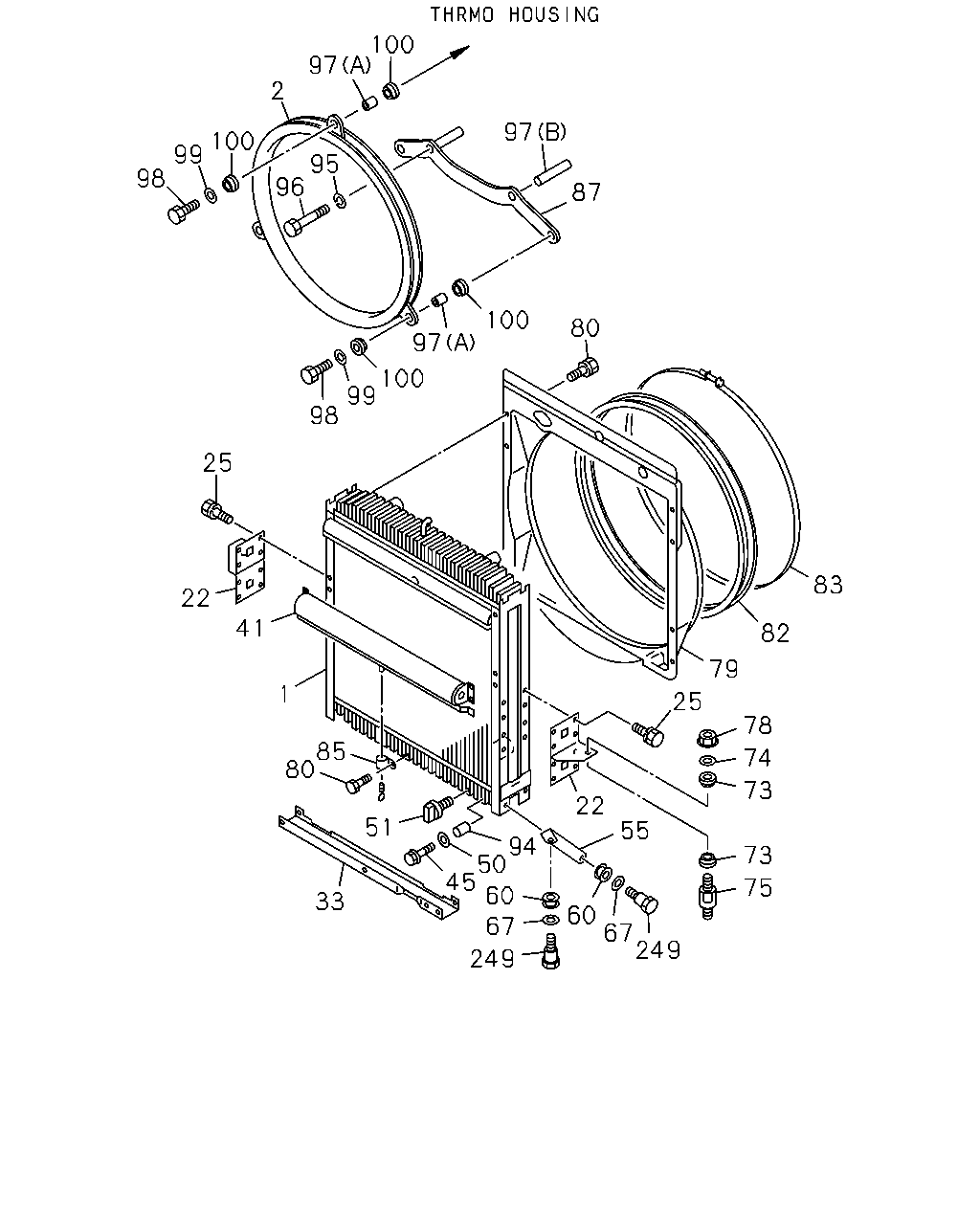

çizim 7284
100 97 2 97 100 99 98 95 96 87 97 100 80 100 99 98 25 83 22 41 82 79 1 25 78 85 80 74 73 22 51 55 94 50 45 73 75 60 67 33 60 67 249 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-685-0 01 1 9603-9708 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-685-0 01 1 9709-9904 ●
1 RADIATOR ASM
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21410-685-1 01 1 9905- ● ●
1 RADIATOR ASM
RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 9905- ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-684-0 01 1 9709-9904 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> EXC. RADIATOR CURTAIN<SK7> 		1-21410-684-0 01 1 9905- ● ●
2 GUIDE; FAN 1-21551-235-3 01 1 9603-9904 ●
2 GUIDE; FAN 1-21551-235-3 01 1 9905- ● ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9603-9708 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-382-0 01 1 9709-9904 ●
22 BRACKET; RAD MTG
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21464-382-0 01 1 9905- ● ●
22 BRACKET; RAD MTG
RADIATOR CURTAIN<SK7> 		1-21464-382-0 01 1 9905- ● ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9603-9708 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-381-0 01 1 9709-9904 ●
22 BRACKET; RAD MTG
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21464-381-0 01 1 9905- ● ●
22 BRACKET; RAD MTG
RADIATOR CURTAIN<SK7> 		1-21464-381-0 01 1 9905- ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> 		1-21464-380-0 01 1 9709-9904 ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> EXC. RADIATOR CURTAIN<SK7> 		1-21464-380-0 01 1 9905- ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> 		1-21464-379-0 01 1 9709-9904 ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> EXC. RADIATOR CURTAIN<SK7> 		1-21464-379-0 01 1 9905- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9603-9810 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9811-9904 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9905-0005 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0006- ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9603-9708 ●
33 PROTECTOR; RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9709-9810 ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 9811-9904 ●
33 PROTECTOR; RAD
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9811-9904 ●
33 PROTECTOR; RAD
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 9905-0005 ● ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 9905-0005 ● ●
33 PROTECTOR; RAD
EXC. RADIATOR CURTAIN<SK7>,RADIATOR HEAVY DUTY<V05> 		1-21419-050-0 01 1 0006- ● ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0006- ● ●
33 PROTECTOR; RAD
RADIATOR HEAVY DUTY<V05> 		1-21419-049-0 01 1 9709-9904 ●
33 PROTECTOR; RAD
RADIATOR HEAVY DUTY<V05> EXC. RADIATOR CURTAIN<SK7> 		1-21419-049-0 01 1 9905- ● ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-105-1 01 1 9603-9904 ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-105-1 01 1 9905- ● ●
45 BOLT; RAD SHUTTER
RADIATOR CURTAIN<SK7> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9904 ●
45 BOLT; RAD SHUTTER
RADIATOR CURTAIN<SK7> M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ●
50 WASHER; PL,RAD SHUTTER
RADIATOR CURTAIN<SK7> ID=8.4 OD=22 		9-09160-708-0 01 1 9603-9904 ●
50 WASHER; PL,RAD SHUTTER
RADIATOR CURTAIN<SK7> ID=8.4 OD=22 		9-09160-708-0 01 1 9905- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9603-9810 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9811-9904 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9905-0005 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0006- ● ●
55 STAY; RAD TO UPR MBR 1-21464-386-0 01 1 9603-9708 ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-386-0 01 1 9709-9904 ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-386-0 01 1 9905- ●
55 STAY; RAD TO UPR MBR 1-21464-386-0 01 1 9905- ●
55 STAY; RAD TO UPR MBR 1-21464-385-0 01 1 9603-9708 ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-385-0 01 1 9709-9904 ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-385-0 01 1 9905- ●
55 STAY; RAD TO UPR MBR 1-21464-385-0 01 1 9905- ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-384-0 01 1 9709- ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-383-0 01 1 9709- ●
60 GROMMET 1-09332-117-0 04 1 9603-9904 ●
60 GROMMET 1-09332-117-0 04 1 9905- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9603-9904 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9905- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9603-9904 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9905- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9603-9904 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9905- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9603-9904 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9905- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9905- ● ●
79 GUIDE; FAN,RAD 1-21551-403-0 01 1 9603-9904 ●
79 GUIDE; FAN,RAD 1-21551-403-0 01 1 9905-9907 ● ●
79 GUIDE; FAN,RAD 1-21551-450-0 01 1 9908- ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 9603-9904 ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 9905- ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 9603-9904 ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 9905- ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9603- ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9603- ●
85 CLIP
RADIATOR CURTAIN<SK7> 		9-09520-835-0 01 1 9603-9904 ●
85 CLIP
RADIATOR CURTAIN<SK7> 		9-09520-835-0 01 1 9905- ● ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9603-9904 ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9905- ● ●
94 TUBE; DIST
RADIATOR CURTAIN<SK7> 		1-21419-052-0 01 1 9603-9904 ●
94 TUBE; DIST
RADIATOR CURTAIN<SK7> 		1-21419-052-0 01 1 9905- ● ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9603-9904 ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9905- ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9603-9904 ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9905- ● ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9603-9904 ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9905- ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9603-9904 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9905- ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9603-9904 ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9905- ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9603-9904 ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9905- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9603-9904 ●
100 RUBBER; MTG 1-09337-017-0 06 1 9905- ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9603-9904 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9905- ● ●

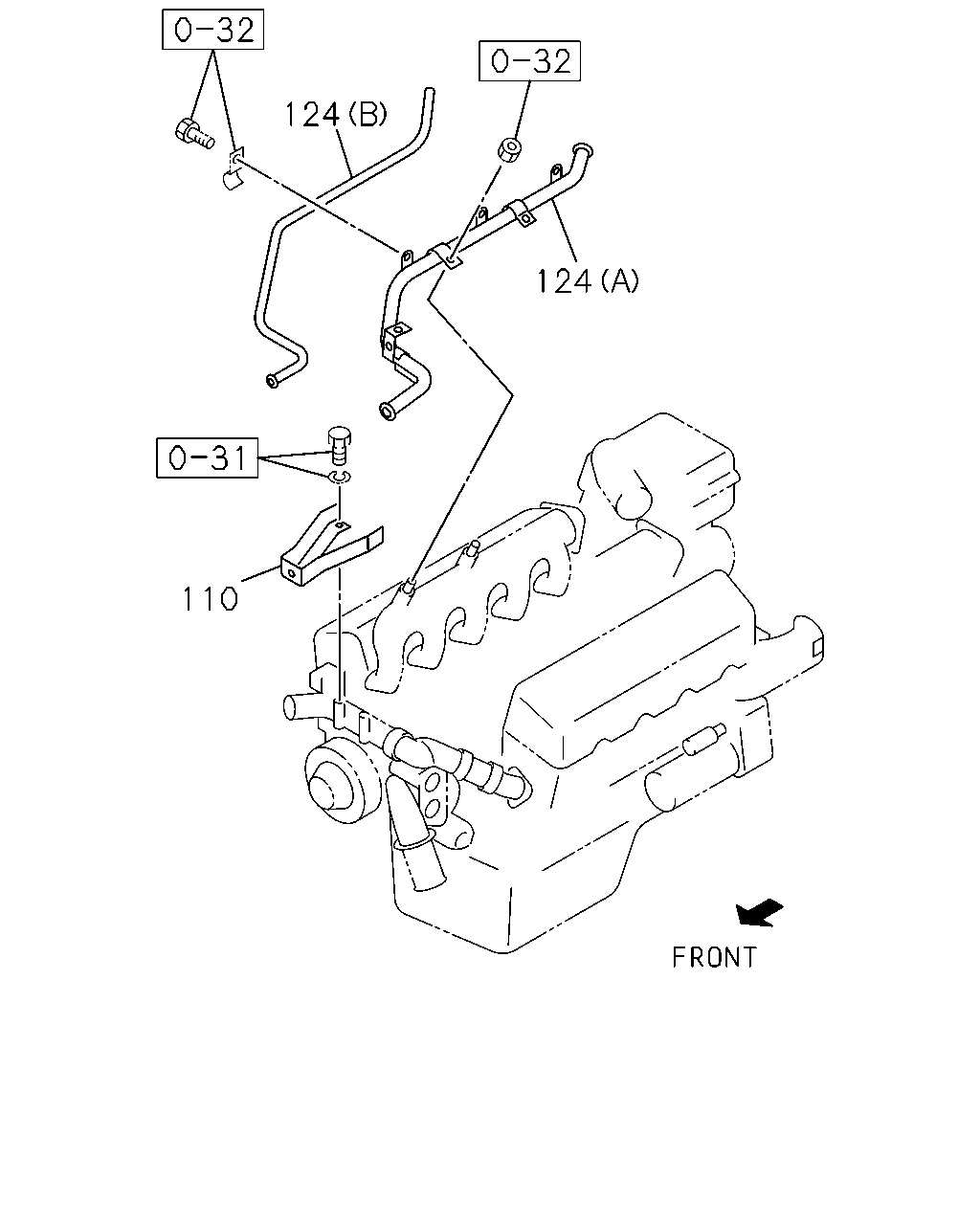

çizim 42688
124 124 110
BalonParca AdiParca NoAdetTipApplied Date A B
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9603-9904 ●
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9905- ● ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9603-9904 ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9905- ● ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-536-1 01 1 9603-9705 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9706-9904 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9905- ● ●
