0-25 — INLET MANIFOLD (#55359) — 83 parça

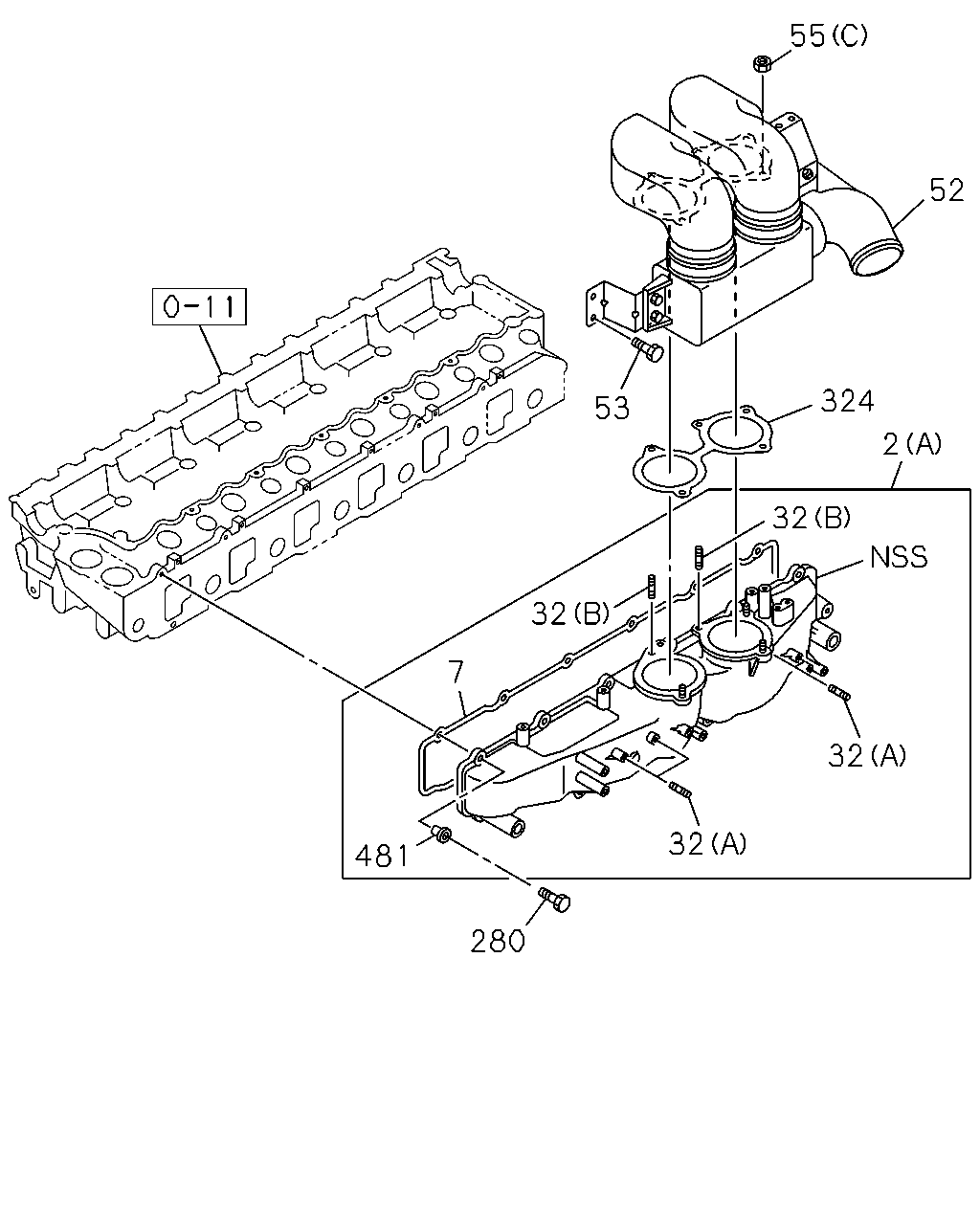

çizim 173494
55 52 324 53 2 32 32 7 32 32 481 280
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL
(A) 		8-94395-899-1 01 1 0110- ●
2 COVER; INL
(B) 		8-97602-255-0 01 1 0511- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0110-0510 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0511- ● ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0110-0604 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
(B) M8X20 L=32 		9-04110-820-0 05 1 0110-0604 ●
32 STUD; INL PIPE
(B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(D) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(D) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0511- ●
52 PIPE; INL 8-94395-597-1 01 1 0110- ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0110-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0110-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE MAL 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(A) M10 FLANGE MAL 		0-91150-110-0 04 1 0511-0602 ●
55 NUT; INL PIPE
(A) M10 FLANGE MAL 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(B) M8 MAL 		9-09110-408-0 03 1 0511-0512 ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 0110- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0110- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 0511- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0110- ●

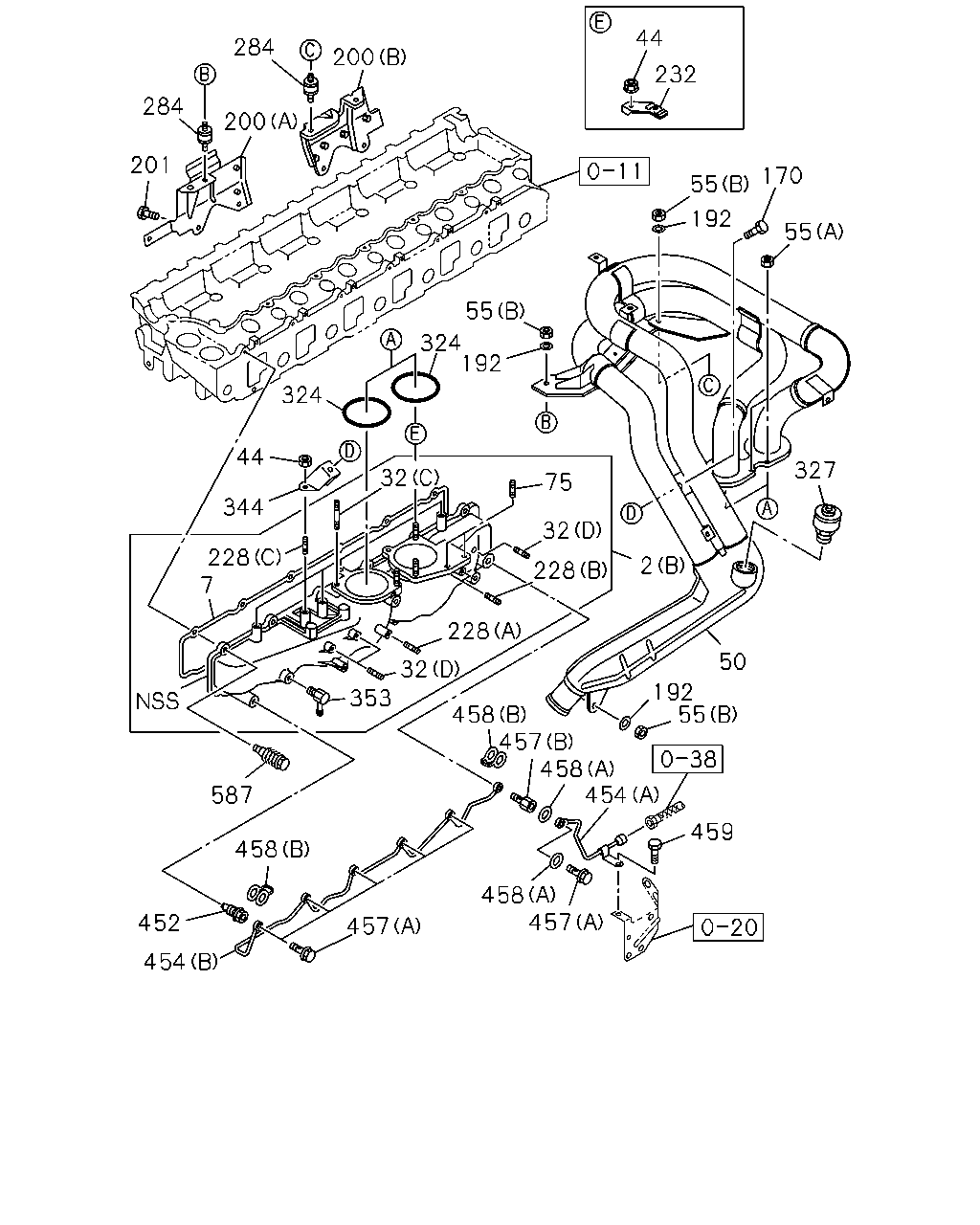

çizim 173505
44 284 200 232 284 200 201 170 55 192 55 55 324 192 324 44 327 32 75 344 32 228 7 2 228 228 50 32 192 55 353 458 457 458 454 587 459 458 458 457 452 457 454
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL
(A) 		8-94395-899-1 01 1 0110- ●
2 COVER; INL
(B) 		8-97602-255-0 01 1 0511- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0110-0510 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 0511- ● ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0110-0604 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
(B) M8X20 L=32 		9-04110-820-0 05 1 0110-0604 ●
32 STUD; INL PIPE
(B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(D) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(D) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0511- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 03 1 0511-0602 ●
44 NUT; PIPE BRKT
M8 FLANGE MAL 		0-91180-108-0 03 1 0603- ●
50 PIPE; INL 8-97601-301-0 01 1 0511- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0110-0602 ●
55 NUT; INL PIPE
(C) M8 FLANGE MAL 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(A) M10 FLANGE MAL 		0-91150-110-0 04 1 0511-0602 ●
55 NUT; INL PIPE
(A) M10 FLANGE MAL 		0-91180-110-0 04 1 0603- ●
55 NUT; INL PIPE
(B) M8 MAL 		9-09110-408-0 03 1 0511-0512 ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0511-0604 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		0-44011-025-0 02 1 0605- ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ●
170 BOLT; BRKT
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0601- ●
170 BOLT; BRKT
M8X25 FLANGE MAL 		0-28080-825-0 01 1 0511-0512 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 0511-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 0511-0605 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 0511- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 0511- ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 0511-0512 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE MAL 		0-28050-816-0 05 1 0601- ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 0511-0604 ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0605- ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
(B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
(C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
232 BRACKET; INJ PIPE 8-94391-452-0 01 1 0511- ●
284 RUBBER; INL PIPE MTG 8-94394-268-1 02 1 0511-0910 ●
284 RUBBER; INL PIPE MTG 8-98148-109-0 02 1 0911- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0110- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 0511- ●
327 VALVE; SAFETY,TURBOCHARGER 8-94393-227-0 01 1 0511- ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 0511- ●
353 PIPE; AIR,BOOST
PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
452 CYLINDER ASM; AIR 1-14370-007-0 06 1 0511- ●
454 PIPE; AIR,IVES
(B) 6-JOINT 		8-94394-415-1 01 1 0511- ●
454 PIPE; AIR,IVES
(A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
(B) M8X19 		1-09675-220-0 01 1 0511- ●
458 GASKET; AIR PIPE,VSS
(A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0511- ●
458 GASKET; AIR PIPE,VSS
(B) ID=8.3 		8-97600-925-0 06 1 0511-1301 ●
458 GASKET; AIR PIPE,VSS
(B) 		8-98231-394-0 06 1 1302- ●
459 BOLT; CLIP FIX
M8X12 FLANGE 		0-28080-812-0 01 1 0511-0512 ●
459 BOLT; CLIP FIX
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
587 MOUNTING; INTAKE DUCT 8-94395-966-0 13 1 0511- ●
