◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#55356) — 83 parça

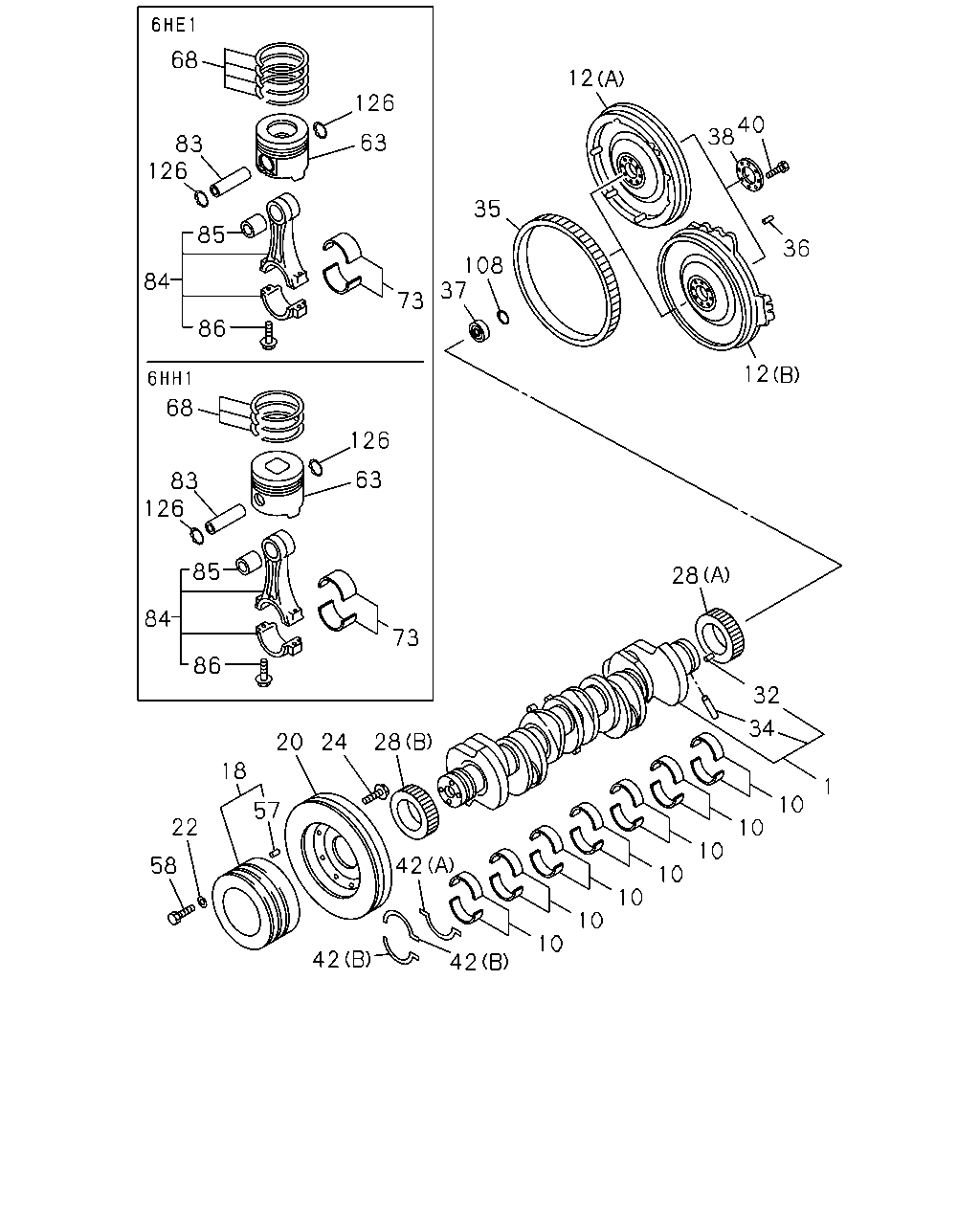

çizim 173477
68 126 40 38 63 83 126 35 85 36 108 37 84 73 86 68 126 63 83 126 85 28 84 73 86 32 34 28 20 24 18 1 10 57 22 10 10 42 58 10 10 10 10 42 42 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94393-291-4 01 1 0110-0305 ●
1 CRANKSHAFT 8-97603-003-1 01 1 0306- ●
1 CRANKSHAFT 8-97603-004-0 01 1 0511- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 07 1 0309-0510 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 07 1 0511- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 07 1 0309-0510 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 07 1 0511- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 07 1 0309-0510 ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 07 1 0511- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 0110-0308 ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 0110-0308 ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 0110-0308 ●
12 FLYWHEEL
(B) 		8-94393-849-2 01 1 0110- ●
12 FLYWHEEL
(A) 		8-94395-450-2 01 1 0511- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94395-286-3 01 1 0110- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 0511- ●
20 DAMPER; CR/SHF 8-94395-314-3 01 1 0110- ●
20 DAMPER; CR/SHF 8-94394-354-7 01 1 0511-1110 ●
20 DAMPER; CR/SHF 8-94392-276-3 01 1 1111- ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0110-0510 ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0511- ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 0110-0510 ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 0511-0512 ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28151-016-0 06 1 0601- ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 0110-0510 ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 0511- ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0110-0510 ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0511- ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0110-0510 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0511- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0110-0510 ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0511- ● ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 0110-0510 ●
35 GEAR; RING
Z=140 		8-94396-784-1 01 1 0511- ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0110-0510 ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0511- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0110-0510 ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0511- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-157-0 01 1 0110-0510 ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-157-0 01 1 0511- ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0110-0510 ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0511- ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 0110-0510 ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 0511- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0110-0510 ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0511-0703 ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0110-0510 ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0511-0703 ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0110-0510 ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0511- ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 0110-0510 ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 0511-0512 ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		0-20951-650-0 04 1 0601- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-606-1 06 1 0110- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 0511- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94390-799-2 06 1 0110- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-7 06 1 0511- ●
73 METAL SET; CONN ROD,STANDARD 8-94393-328-0 06 1 0110- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 06 1 0511-0701 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 06 1 0511-0701 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 06 1 0707- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 06 1 0707- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 06 1 0110- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 06 1 0511- ●
84 ROD ASM; CONN 8-94396-394-8 06 1 0110- ●
84 ROD ASM; CONN 8-94399-661-2 06 1 0511-0706 ●
84 ROD ASM; CONN 8-98018-425-3 06 1 0707- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 06 1 0110-0805 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98075-233-0 06 1 0806-0905 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 06 1 0906- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 0511-0706 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 06 1 0707- ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0110-0510 ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0511-0905 ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0906-0906 ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0906-1004 ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 12 1 1005- ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0110-0510 ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0511- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 12 1 0110- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 0511- ●
