0-11 — CYLINDER HEAD (#55352) — 76 parça

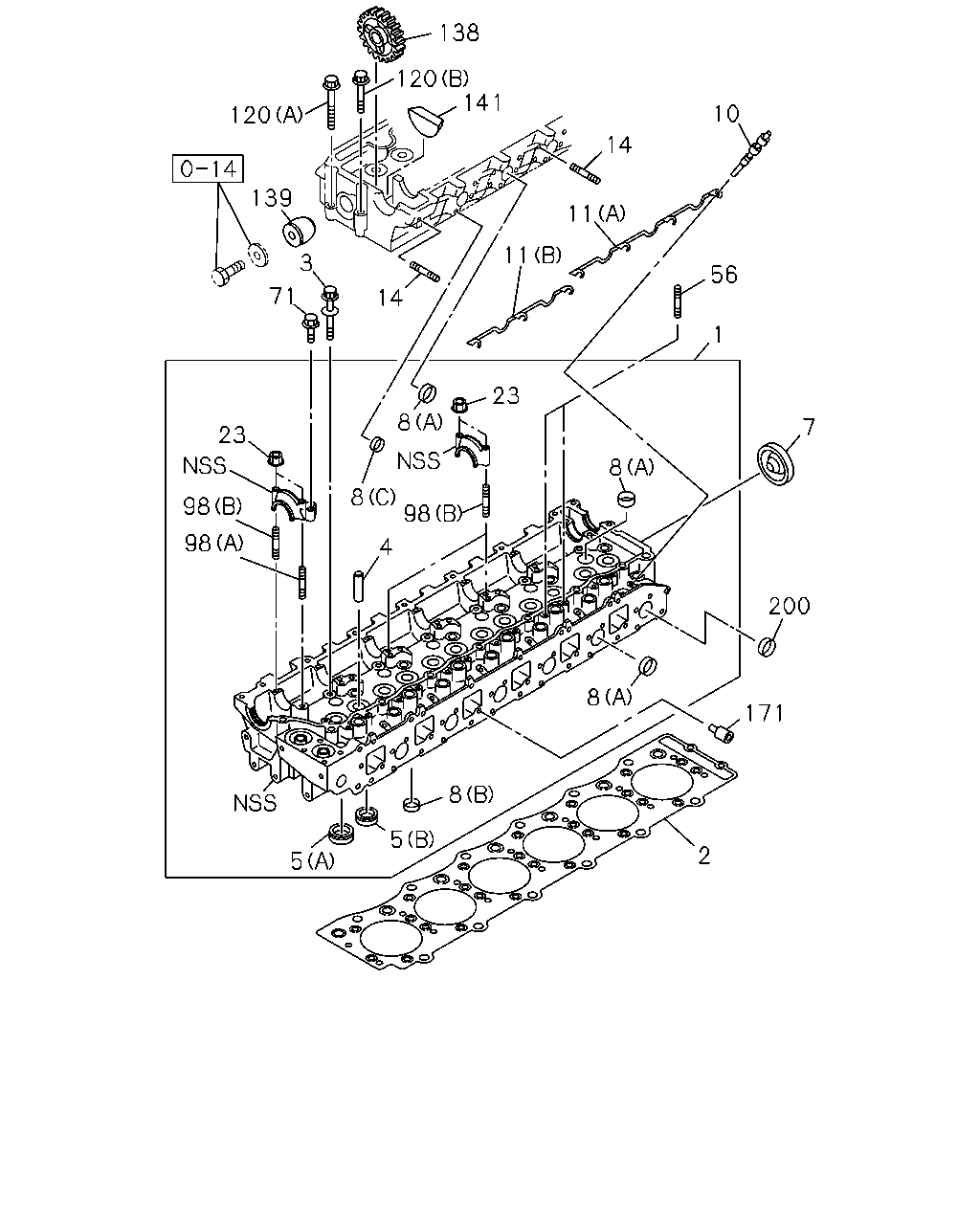

çizim 173481
138 120 141 10 120 14 139 11 11 3 56 71 14 1 23 8 7 23 8 8 98 98 98 4 200 8 171 8 5 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-082-7 01 1 0110-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0511-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 0110- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0511- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0110-0510 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0511-0901 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0110-0510 ●
4 GUIDE; VLV 8-94396-598-0 12 1 0511- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0110- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0110-0510 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0511- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0511- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0110-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0510 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0511- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 18 1 0110- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0110-0510 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0511- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0110-0510 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0511- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0511- ●
10 PLUG; GLOW 1-82513-043-1 06 1 0110-0510 ●
10 PLUG; GLOW 1-82513-043-2 06 1 0511- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0110-0206 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207-0510 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0511- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0110-0510 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0511- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0110-0510 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0511- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0110-0510 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0511-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0511- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0110-0510 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0511-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0110-0510 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0511- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0110-0510 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0511- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0110-0510 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0511- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0110-0510 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0511- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0110-0510 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0511- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0110-0510 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0511- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0110-0510 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0511-1005 ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ●
171 SEAT; VLV 8-94395-571-1 06 1 0110- ●
171 SEAT; VLV 8-94394-678-1 06 1 0511- ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 0511- ●

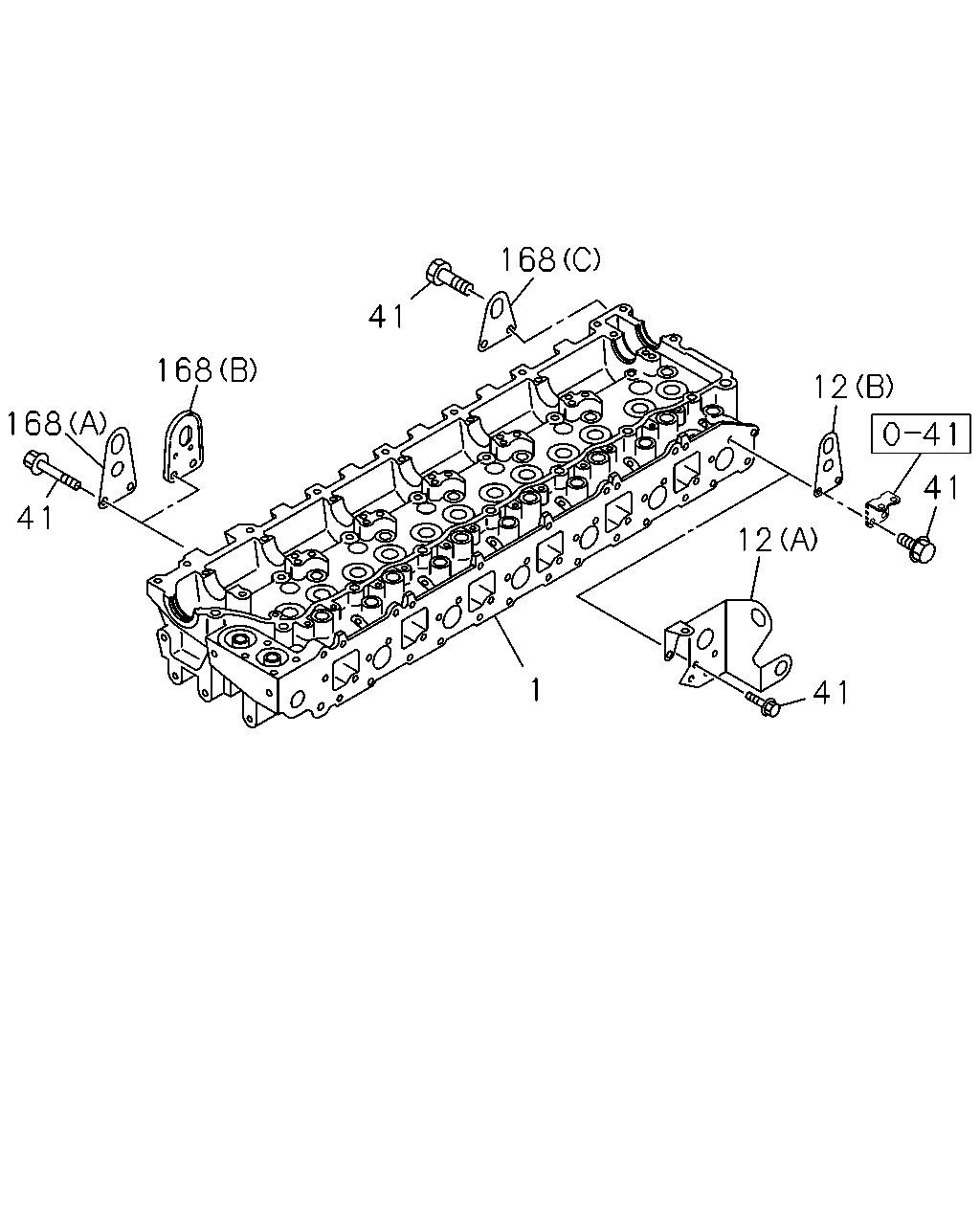

çizim 173484
168 41 168 12 168 41 41 12 1 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-082-7 01 1 0110-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0511-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
12 HANGER; ENG,RR
(B) 		8-94399-404-3 01 1 0110- ●
12 HANGER; ENG,RR
(A) 		8-94394-337-1 01 1 0511- ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28181-020-0 02 1 0110-0512 ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
M12X28 FLANGE 		0-28181-228-0 02 1 0110- ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28181-020-0 03 1 0511-0512 ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
41 BOLT; ENG HANGER
M12X22 FLANGE 		0-28181-222-0 03 1 0511- ●
41 BOLT; ENG HANGER
M10X25 FLANGE 		0-28781-025-0 02 1 0511-0512 ●
41 BOLT; ENG HANGER
M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0110- ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 0511- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0511- ●
