◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#55351) — 23 parça

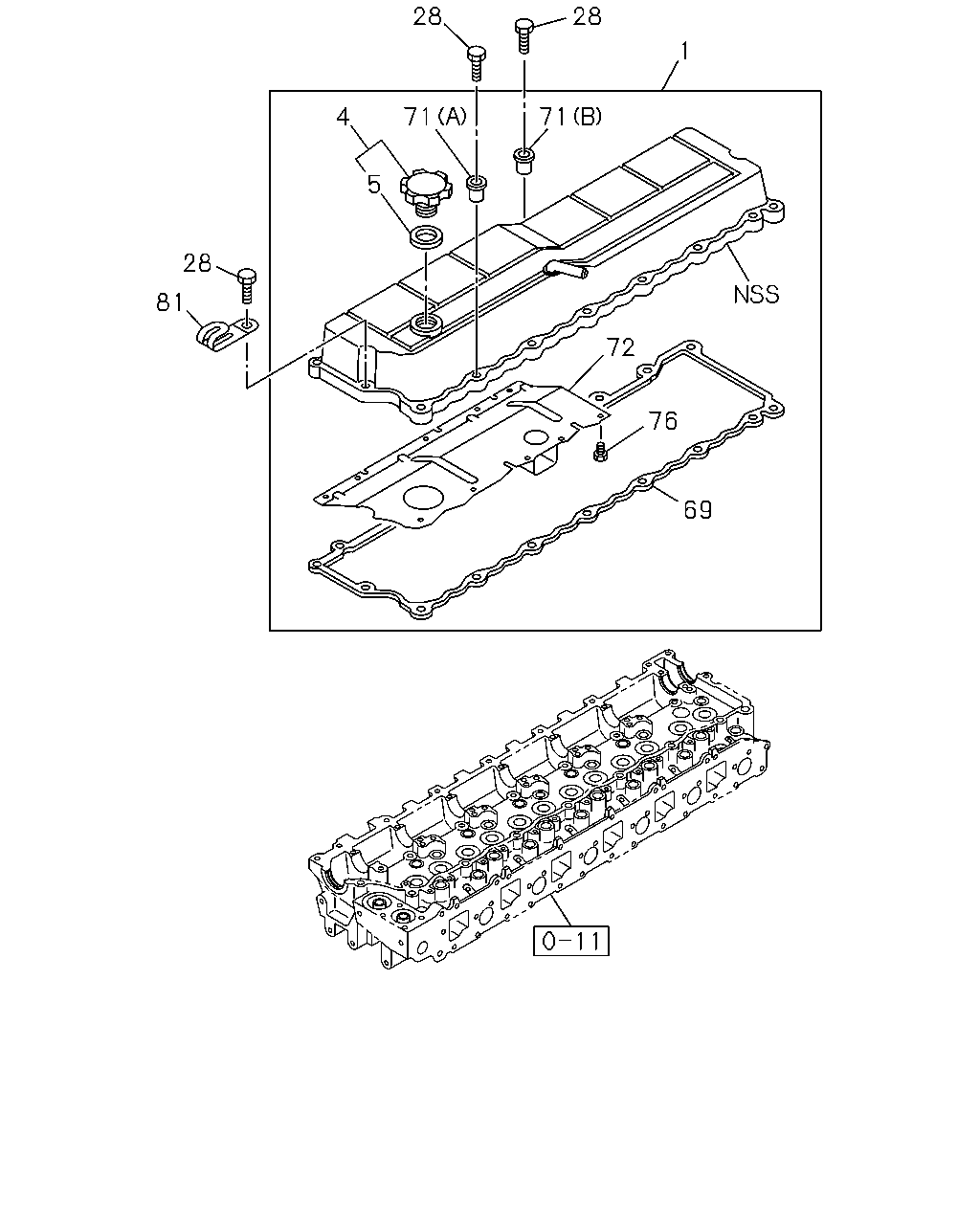

çizim 173506
28 28 1 71 71 4 5 28 81 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-94394-862-1 01 1 0110-0510 ●
1 COVER; CYL HD 8-94394-862-2 01 1 0511- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0110-0510 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0511- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0110-0510 ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0511- ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 0110-0510 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 0511-0512 ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 0110-0510 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 0511- ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 0110-0510 ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 0511- ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 0110-0510 ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 0511- ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0110-0510 ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0511- ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 0110-0510 ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 0511-0603 ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71240-412-0 07 1 0604- ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0110-0510 ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0511-0801 ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
