◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10A - RADIATOR ▶
1-10A — RADIATOR (#5535) — 111 parça

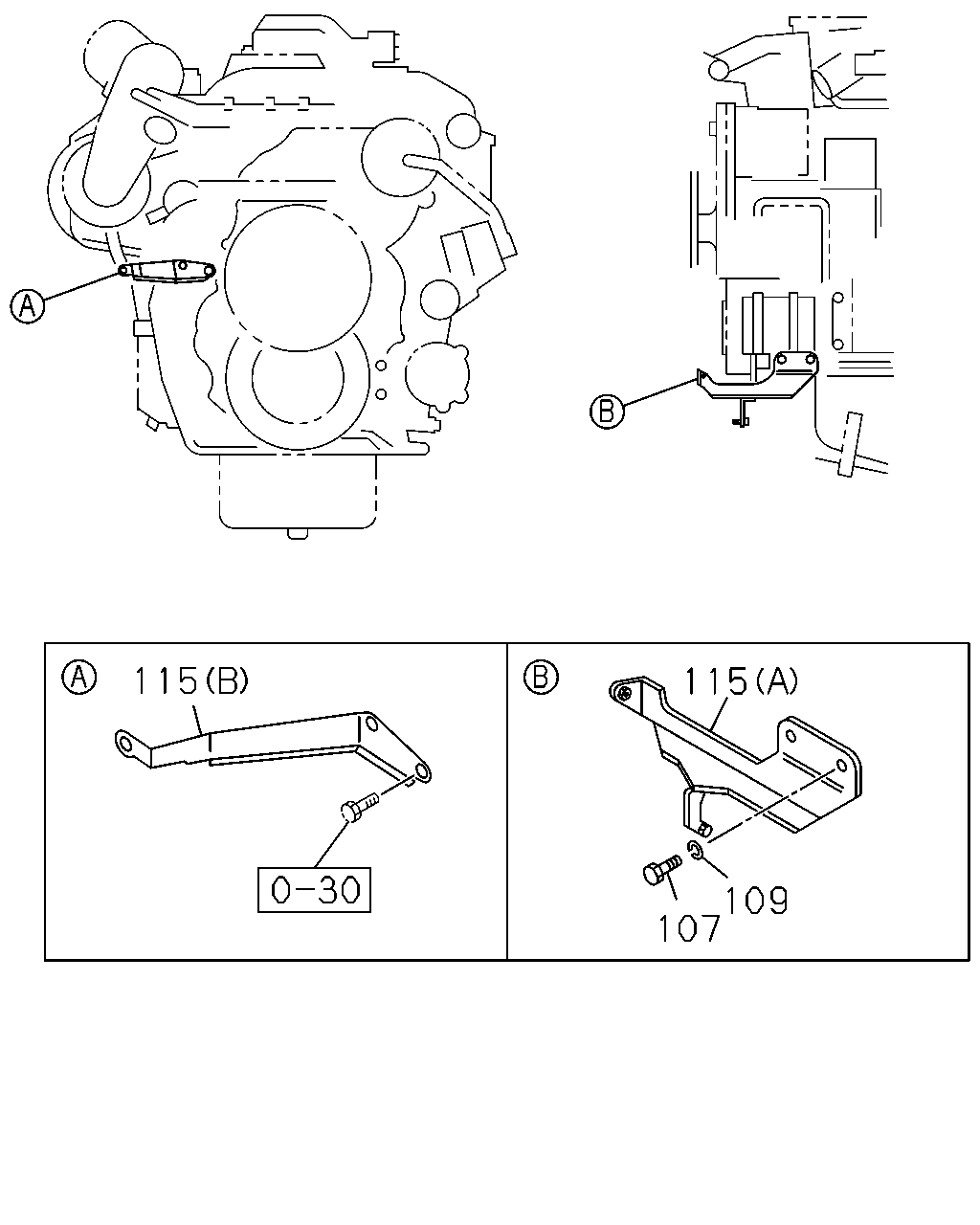

çizim 5184
115 115 109 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
107 BOLT; BRKT TO STAY
M14X30 		0-23801-430-0 02 1 9603-9604 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9605-9810 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9811-9904 ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9905- ● ● ●
109 WASHER; LK,BRKT,FAN GUIDE
ID=14.2 		9-09150-514-0 02 1 9603-9604 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-347-0 01 1 9603-9604 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9605-9810 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9811-9904 ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9905- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-335-1 01 1 9603-9604 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9605-9810 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9811-9904 ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9905- ● ● ●

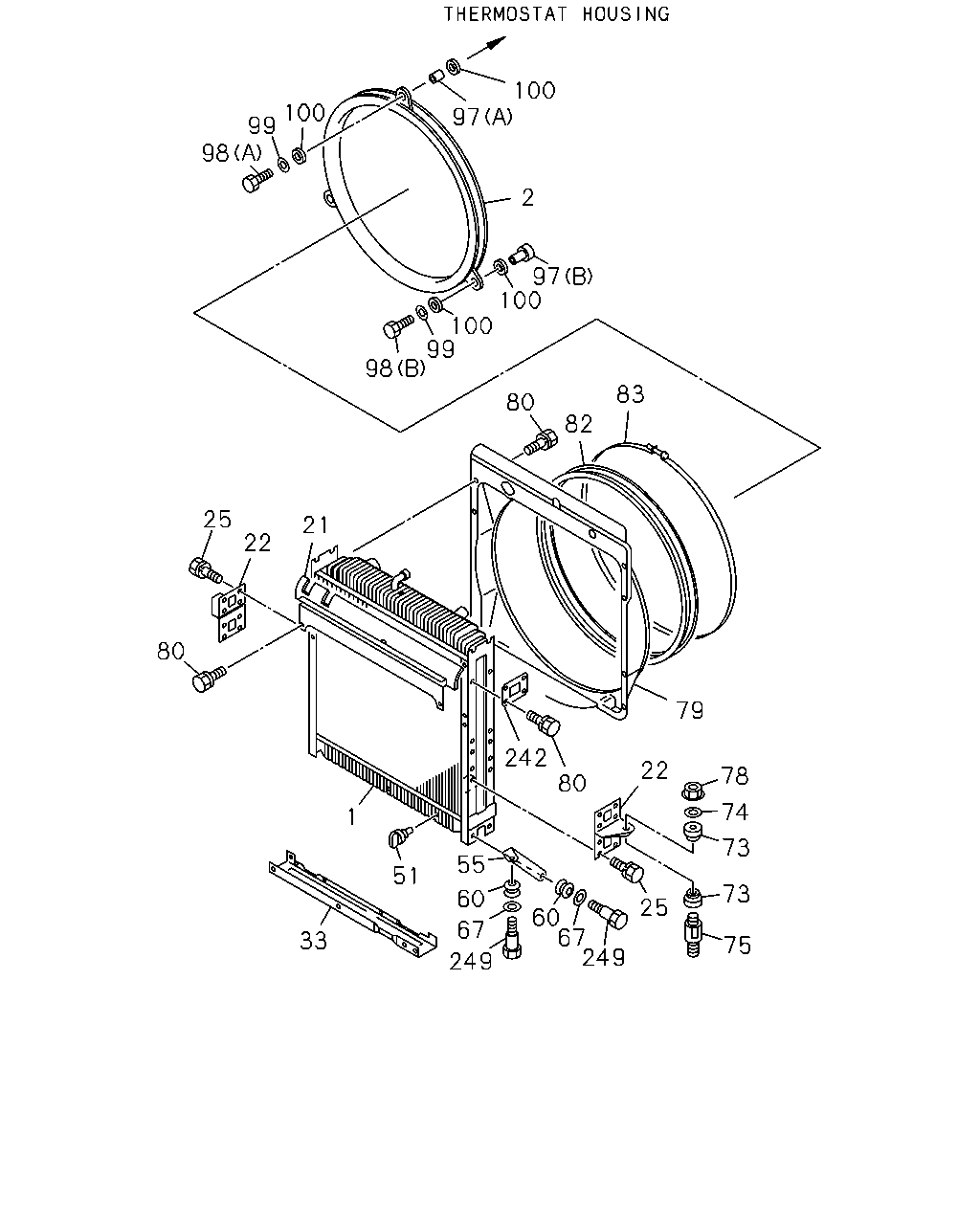

çizim 7189
100 100 97 99 98 2 97 100 100 99 98 83 80 82 25 21 22 80 79 242 22 78 80 74 1 73 55 51 73 60 25 60 67 249 67 33 75 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-693-0 01 1 9603-9810 ●
1 RADIATOR ASM 1-21410-693-0 01 1 9811-9904 ● ●
1 RADIATOR ASM 1-21410-693-0 01 1 9905-0005 ● ●
1 RADIATOR ASM
ELECTRONIC GOV RED3(KG5) 		1-21410-693-0 01 1 9905-0005 ●
1 RADIATOR ASM 1-21410-693-0 01 1 0006- ● ● ●
1 RADIATOR ASM
EXC. ELECTRONIC GOV RED3(KG5) 		1-21410-693-0 01 1 9905-0005 ●
2 GUIDE; FAN 1-21551-369-0 01 1 9603-9904 ●
2 GUIDE; FAN 1-21551-369-0 01 1 9905- ● ● ●
21 SEAL; RAD 1-21460-094-0 01 1 9603-9810 ●
21 SEAL; RAD 1-21460-094-0 01 1 9811-9904 ● ●
21 SEAL; RAD 1-21460-094-0 01 1 9905-0005 ● ●
21 SEAL; RAD
ELECTRONIC GOV RED3(KG5) 		1-21460-094-0 01 1 9905-0005 ●
21 SEAL; RAD 1-21460-094-0 01 1 0006- ● ● ●
21 SEAL; RAD
EXC. ELECTRONIC GOV RED3(KG5) 		1-21460-094-0 01 1 9905-0005 ●
22 BRACKET; RAD MTG 1-21464-444-0 01 1 9603-9810 ●
22 BRACKET; RAD MTG 1-21464-444-0 01 1 9811-9904 ● ●
22 BRACKET; RAD MTG 1-21464-444-0 01 1 9905-0005 ● ●
22 BRACKET; RAD MTG
ELECTRONIC GOV RED3(KG5) 		1-21464-444-0 01 1 9905-0005 ●
22 BRACKET; RAD MTG 1-21464-444-0 01 1 0006- ● ● ●
22 BRACKET; RAD MTG 1-21464-443-0 01 1 9603-9810 ●
22 BRACKET; RAD MTG 1-21464-443-0 01 1 9811-9904 ● ●
22 BRACKET; RAD MTG 1-21464-443-0 01 1 9905-0005 ● ●
22 BRACKET; RAD MTG
ELECTRONIC GOV RED3(KG5) 		1-21464-443-0 01 1 9905-0005 ●
22 BRACKET; RAD MTG 1-21464-443-0 01 1 0006- ● ● ●
22 BRACKET; RAD MTG
EXC. ELECTRONIC GOV RED3(KG5) 		1-21464-444-0 01 1 9905-0005 ●
22 BRACKET; RAD MTG
EXC. ELECTRONIC GOV RED3(KG5) 		1-21464-443-0 01 1 9905-0005 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9603-9810 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9811-9904 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9905-0005 ● ●
25 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) M8X16 FLANGE 		0-28080-816-0 14 1 9905-0005 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0006- ● ● ●
25 BOLT; BRKT
EXC. ELECTRONIC GOV RED3(KG5) M8X16 FLANGE 		0-28080-816-0 14 1 9905-0005 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9603-9708 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9709-9810 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9811-9904 ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9905-0005 ● ●
33 PROTECTOR; RAD
ELECTRONIC GOV RED3(KG5) 		1-21419-050-0 01 1 9905-0005 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 0006- ● ● ●
33 PROTECTOR; RAD
EXC. ELECTRONIC GOV RED3(KG5) 		1-21419-050-0 01 1 9905-0005 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9603-9810 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9811-9904 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9905-0005 ● ●
51 PLUG; DRAIN
ELECTRONIC GOV RED3(KG5) W/GASKET 		1-09609-009-0 01 1 9905-0005 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0006- ● ● ●
51 PLUG; DRAIN
EXC. ELECTRONIC GOV RED3(KG5) W/GASKET 		1-09609-009-0 01 1 9905-0005 ●
55 STAY; RAD TO UPR MBR 1-21464-397-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR 1-21464-397-0 01 1 9905- ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-396-0 01 1 9603-9904 ●
55 STAY; RAD TO UPR MBR 1-21464-396-0 01 1 9905- ● ● ●
60 GROMMET 1-09332-117-0 04 1 9603-9904 ●
60 GROMMET 1-09332-117-0 04 1 9905- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9603-9904 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9905- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9603-9904 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9905- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9603-9904 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9905- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9603-9904 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9905- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9603-9810 ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9811-9904 ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9905-0005 ● ●
79 GUIDE; FAN,RAD
ELECTRONIC GOV RED3(KG5) 		1-21551-384-0 01 1 9905-0005 ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 0006- ● ● ●
79 GUIDE; FAN,RAD
EXC. ELECTRONIC GOV RED3(KG5) 		1-21551-384-0 01 1 9905-0005 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9603-9810 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9811-9904 ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9905-0005 ● ●
80 BOLT; FAN GUIDE
ELECTRONIC GOV RED3(KG5) M8X12 FLANGE 		0-28080-812-0 16 1 9905-0005 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 0006- ● ● ●
80 BOLT; FAN GUIDE
EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE 		0-28080-812-0 16 1 9905-0005 ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9603- ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9603- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9603-9904 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9905- ● ● ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9603-9904 ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9905- ● ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 		0-10806-040-0 01 1 9603-9612 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9701-9904 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9905- ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X55 		0-10806-055-0 02 1 9603-9612 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9701-9904 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9905- ● ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9603-9904 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9905- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9603-9904 ●
100 RUBBER; MTG 1-09337-017-0 06 1 9905- ● ● ●
242 BRACKET; RAD 1-21464-461-1 02 1 9603-9810 ●
242 BRACKET; RAD 1-21464-461-1 02 1 9811-9904 ● ●
242 BRACKET; RAD 1-21464-461-1 02 1 9905-0005 ● ●
242 BRACKET; RAD
ELECTRONIC GOV RED3(KG5) 		1-21464-461-1 02 1 9905-0005 ●
242 BRACKET; RAD 1-21464-461-1 02 1 0006- ● ● ●
242 BRACKET; RAD
EXC. ELECTRONIC GOV RED3(KG5) 		1-21464-461-1 02 1 9905-0005 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9603-9904 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9905- ● ● ●
