◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#55341) — 69 parça

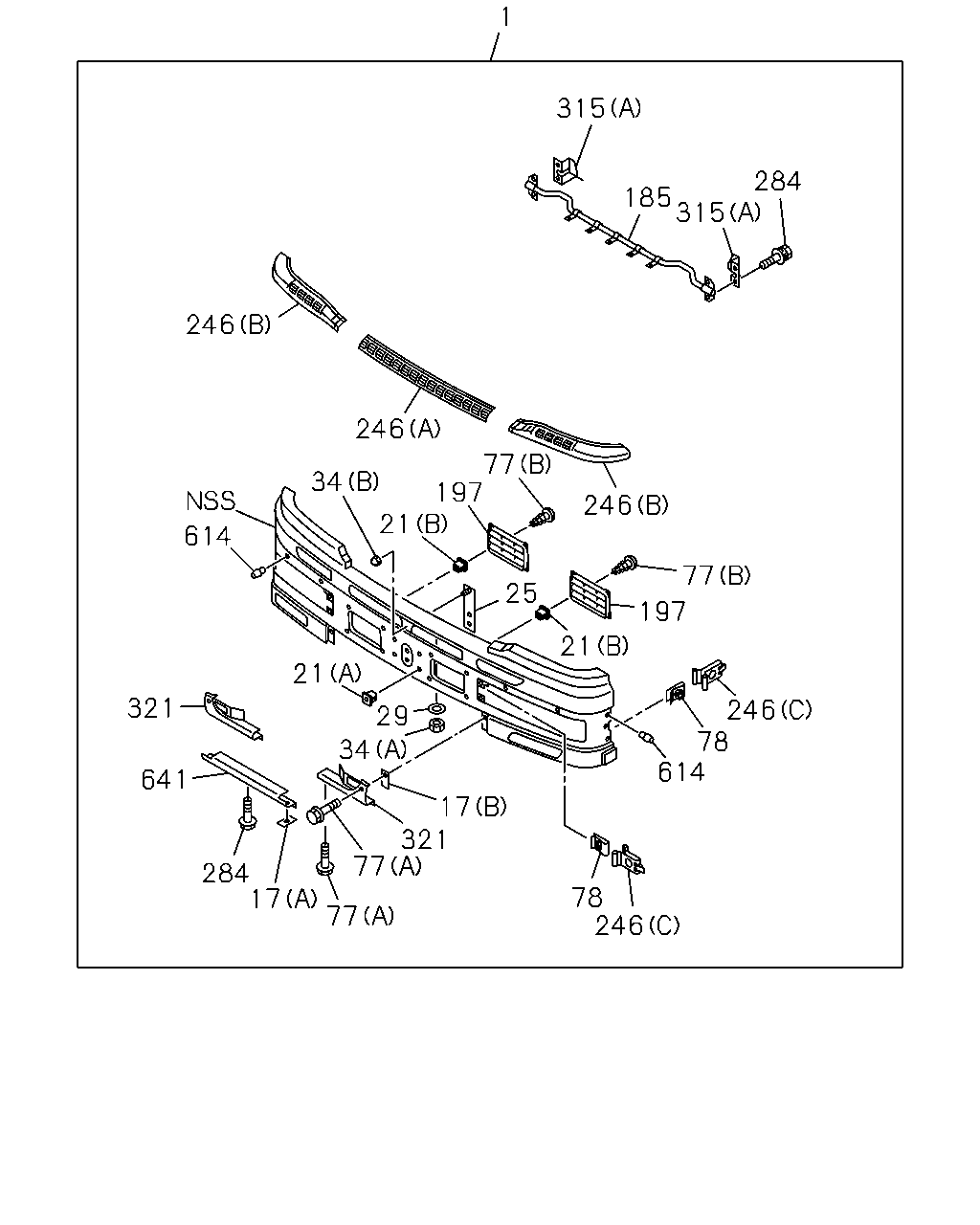

çizim 169566
1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 21 29 321 246 78 614 34 641 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) WHITE 		1-71211-427-2 01 1 0811-
17 PROTECTOR; FRT BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71260-185-0 02 1 0811-
17 PROTECTOR; FRT BUMPER
BODY COLOR ARC WHITE(729) (B) 		1-71260-277-0 02 1 0811-
21 GROMMET; SCREW,BUMPER PROTECTOR
BODY COLOR ARC WHITE(729) (B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0811-
21 GROMMET; SCREW,BUMPER PROTECTOR
BODY COLOR ARC WHITE(729) (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0811-
25 SPACER; PLATFORM
BODY COLOR ARC WHITE(729) 		1-71230-640-0 01 1 0811-
29 WASHER; FRT BUMPER
BODY COLOR ARC WHITE(729) ID=8.4 OD=22 		0-91610-708-0 13 1 0811-
34 NUT; BRKT,BUMPER
BODY COLOR ARC WHITE(729) (A) M8 FLANGE 		0-91180-108-0 13 1 0811-
34 NUT; BRKT,BUMPER
BODY COLOR ARC WHITE(729) (B) M10 CAP NUT 		1-09650-480-0 01 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 0811-
77 SCREW; BRKT
BODY COLOR ARC WHITE(729) (B) M5X16 TAPPING 		0-71240-516-0 08 1 0811-
77 SCREW; BRKT
BODY COLOR ARC WHITE(729) (A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0811-
78 NUT; SPIRE
BODY COLOR ARC WHITE(729) 		1-71260-174-0 06 1 0811-
185 BRACKET; BUMPER,INNER
BODY COLOR ARC WHITE(729) 		1-71230-610-0 01 1 0811-
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) 		1-71260-115-1 01 1 0811-
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) 		1-71260-116-1 01 1 0811-
246 PROTECTOR; BUMPER
BODY COLOR ARC WHITE(729) (B) 		1-71260-094-2 01 1 0811-
246 PROTECTOR; BUMPER
BODY COLOR ARC WHITE(729) (B) 		1-71260-095-2 01 1 0811-
246 PROTECTOR; BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71260-155-1 01 1 0811-
246 PROTECTOR; BUMPER
BODY COLOR ARC WHITE(729) (C) 		1-71260-162-0 06 1 0811-
284 BOLT; BRKT
BODY COLOR ARC WHITE(729) M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0811-
284 BOLT; BRKT
BODY COLOR ARC WHITE(729) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0811-
315 STAY; BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71230-636-0 01 1 0811-
315 STAY; BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71230-637-0 01 1 0811-
315 STAY; BUMPER
(C) 		1-71230-434-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0811-
315 STAY; BUMPER
(C) 		1-71230-624-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-625-0 01 1 0811-
321 COVER; BUMPER FRT SIDE
BODY COLOR ARC WHITE(729) 		1-71260-263-1 01 1 0811-
321 COVER; BUMPER FRT SIDE
BODY COLOR ARC WHITE(729) 		1-71260-264-1 01 1 0811-
614 STOPPER; LID
BODY COLOR ARC WHITE(729) 		1-71260-163-0 12 1 0811-
641 BUMPER; FRT,LWR
BODY COLOR ARC WHITE(729) 		1-71211-304-1 01 1 0811-

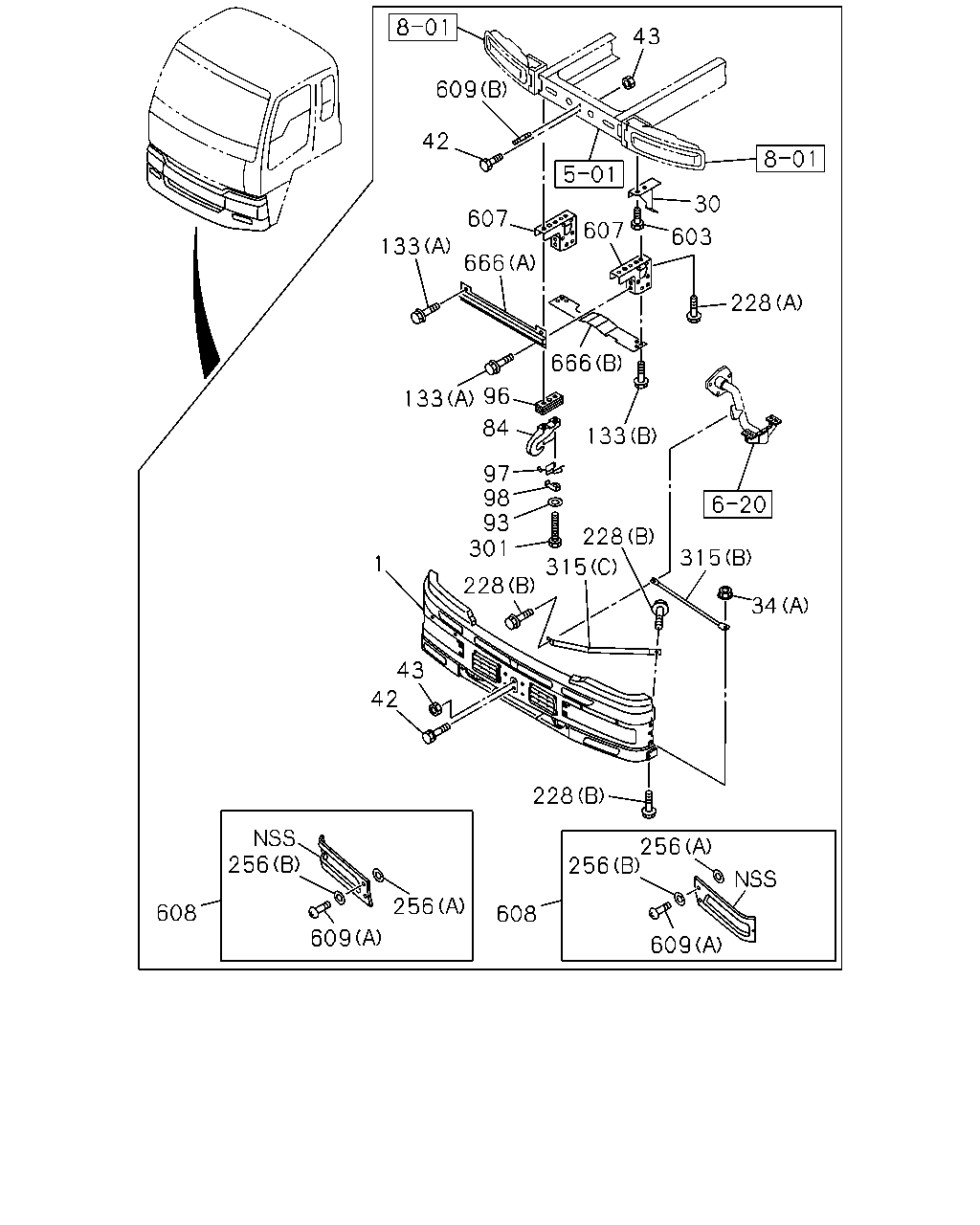

çizim 169619
43 609 42 30 607 607 603 133 666 228 666 96 133 84 133 97 98 93 301 228 315 1 315 228 34 43 42 228 256 256 256 256 608 608 609 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) WHITE 		1-71211-427-2 01 1 0811-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0811-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0811-
34 NUT; BRKT,BUMPER
BODY COLOR ARC WHITE(729) (A) M8 FLANGE 		0-91180-108-0 13 1 0811-
34 NUT; BRKT,BUMPER
BODY COLOR ARC WHITE(729) (B) M10 CAP NUT 		1-09650-480-0 01 1 0811-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 0811-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0811-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0811-
84 HOOK 1-57181-027-1 01 1 0811-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0811-
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0811-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0811-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0811-
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 0811-
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 0811-1207
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208-
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0811-
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0811-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0811-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0811-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0811-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0811-
315 STAY; BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71230-636-0 01 1 0811-
315 STAY; BUMPER
BODY COLOR ARC WHITE(729) (A) 		1-71230-637-0 01 1 0811-
315 STAY; BUMPER
(C) 		1-71230-434-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0811-
315 STAY; BUMPER
(C) 		1-71230-624-0 01 1 0811-
315 STAY; BUMPER
(B) 		1-71230-625-0 01 1 0811-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0811-
607 BRACKET 8-97608-469-3 01 1 0811-
607 BRACKET 8-97608-470-3 01 1 0811-
608 LID; BUMPER 1-71211-284-1 01 1 0811-
608 LID; BUMPER 1-71211-285-1 01 1 0811-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0811-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0811-
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0811-
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 0811-
