5-01 — FRAME AND OTHER PARTS (#55334) — 82 parça

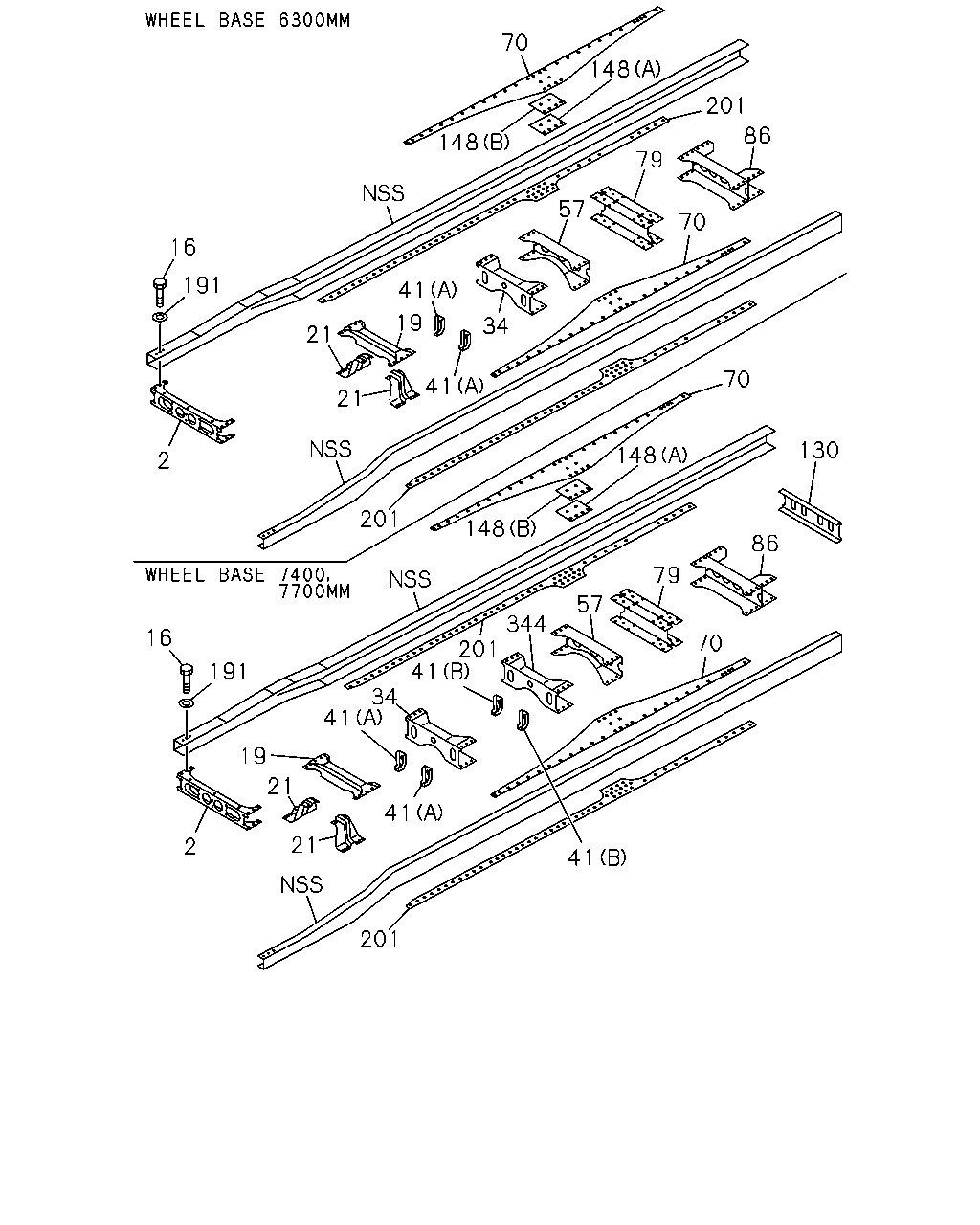

çizim 169487
70 148 148 201 86 79 70 57 41 19 34 41 21 21 16 191 2 201 148 148 70 130 86 79 70 57 344 201 41 34 41 191 16 19 21 21 41 2 201 41
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 1-53181-975-7 01 1 0811- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20951-440-0 02 1 0811- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0811- ● ● ●
21 GUSSET; 2ND CROSS 1-53164-208-0 02 1 0811- ● ● ●
34 MEMBER; CROSS,3RD 1-53182-070-1 01 1 0811- ● ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
(A) L=325 		1-53271-341-0 02 1 0811- ●
41 BRACKET; CENTER BRG,FRAME SIDE
(A) L=330 		1-53271-263-2 02 1 0811- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
(B) L=360 		1-53271-357-0 02 1 0811- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0811- ● ● ●
70 GUSSET; TRUNNION,UPR 1-53182-092-1 02 1 0811- ●
70 GUSSET; TRUNNION,UPR 1-53161-930-1 02 1 0811- ●
70 GUSSET; TRUNNION,UPR 1-53161-913-1 02 1 0811- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-054-1 01 1 0811- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-2 01 1 0811- ● ● ●
130 MEMBER; CROSS,END 1-53171-876-4 01 1 0811- ● ●
148 SPACER; C/MBR
(A) T=7.0 		1-53168-486-0 02 1 0811- ● ● ●
148 SPACER; C/MBR
(B) T=8.0 		1-53168-508-0 02 1 0811- ● ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=15 		9-09651-069-0 02 1 0811-1201 ● ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=15 		8-98010-627-1 02 1 1202- ● ● ●
201 GUSSET; C/MBR 1-53182-057-1 02 1 0811- ●
201 GUSSET; C/MBR 1-53161-931-1 02 1 0811- ●
201 GUSSET; C/MBR 1-53161-914-1 02 1 0811- ●
344 MEMBER; CROSS,4TH 1-53182-070-1 01 1 0811- ● ●

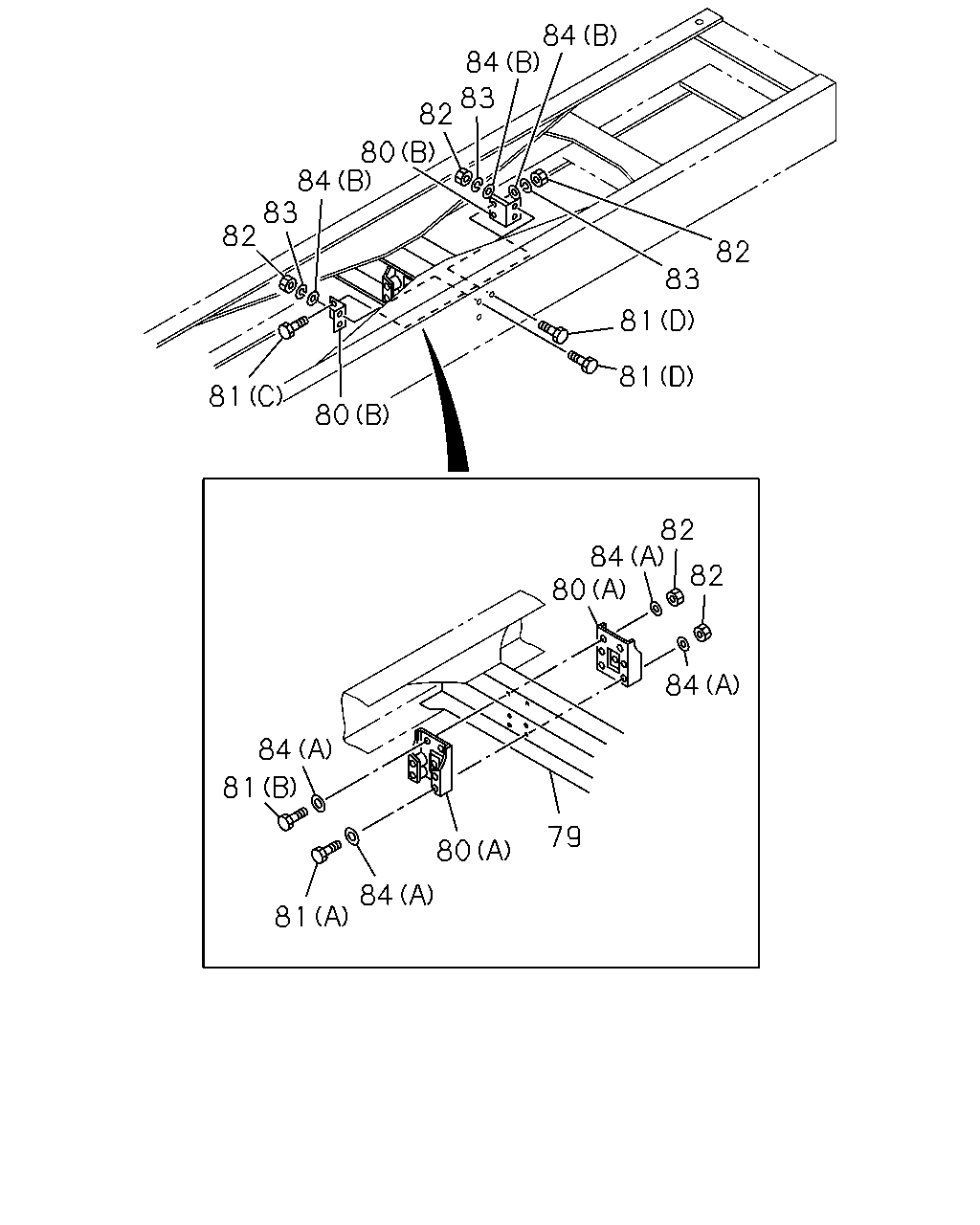

çizim 169510
84 84 83 82 80 84 83 82 81 80 81 81 83 82 82 82 84 84 80 79 80 84 81 81 84
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 1-53182-054-1 01 1 0811- ● ● ●
80 BRACKET; C/MBR
(A) 		1-53363-031-2 02 1 0811- ● ● ●
80 BRACKET; C/MBR
(B) 		1-53167-288-1 04 1 0811- ● ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 02 1 0811- ● ● ●
81 BOLT; BRKT
(A) M14X205 		1-09000-147-0 02 1 0811- ● ● ●
81 BOLT; BRKT
(C) M14X55 		9-91066-455-0 04 1 0811- ● ● ●
81 BOLT; BRKT
(D) M14X45 		9-92061-445-0 08 1 0811- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 08 1 0811- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0811- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 0811- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 08 1 0811-1201 ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1202- ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		9-09164-514-0 16 1 0811-1104 ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		0-91614-514-0 16 1 1105- ● ● ●

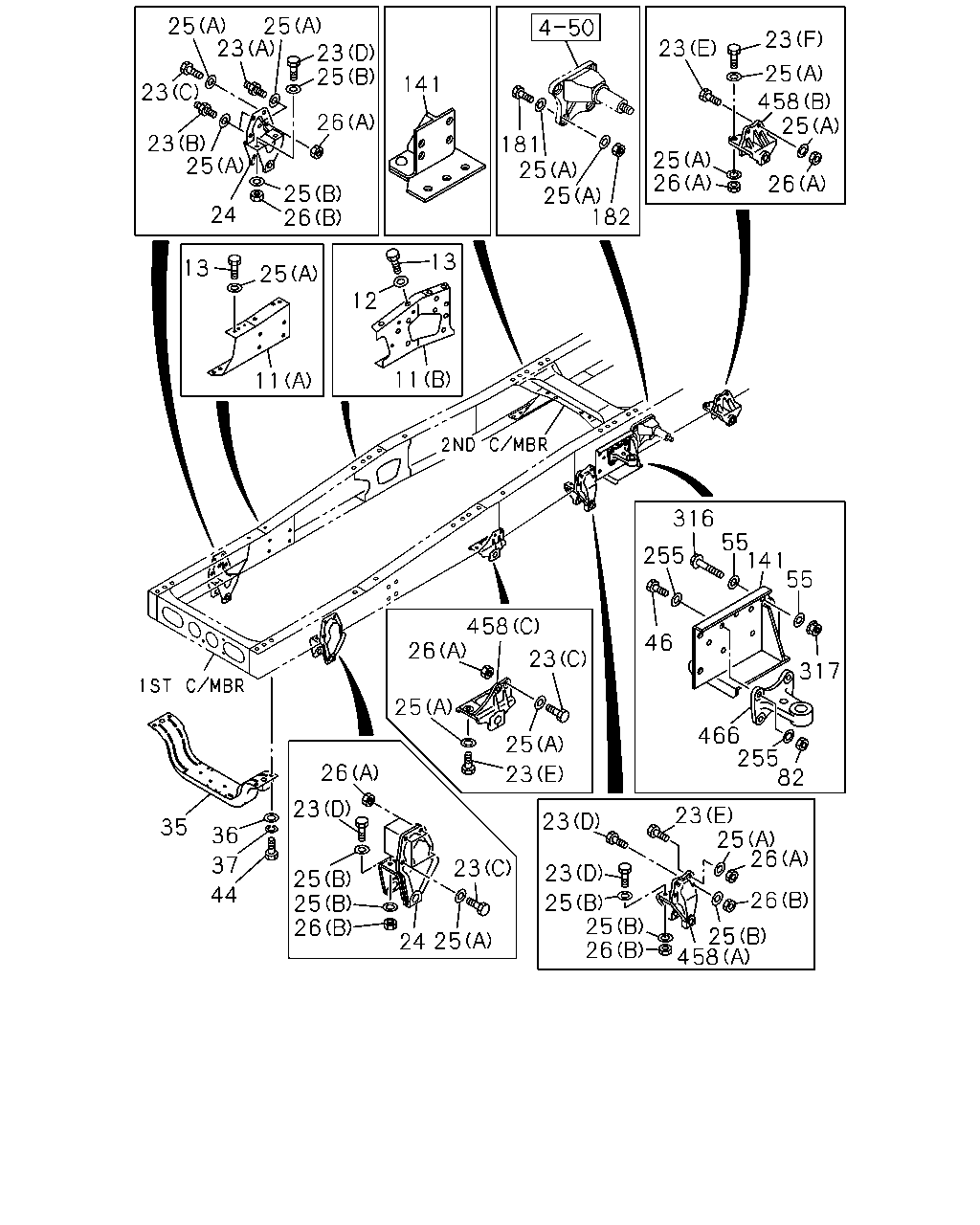

çizim 169528
25 25 23 25 26 25 26 24 25 23 23 23 141 181 25 25 182 25 26 23 23 25 458 25 26 13 12 11 11 25 13 35 36 37 44 26 23 25 25 26 24 25 23 23 23 25 25 26 458 25 26 26 25 23 82 255 466 317 55 141 55 316 255 46 458 23 25 23 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
(B) 		1-53239-139-1 01 1 0811- ●
11 BRACKET; ENG MTG
(B) 		1-53239-140-1 01 1 0811- ●
11 BRACKET; ENG MTG
(A) 		1-53211-399-0 01 1 0811- ● ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-400-0 01 1 0811- ● ● ●
11 BRACKET; ENG MTG
(B) 		1-53239-141-1 01 1 0811- ● ●
11 BRACKET; ENG MTG
(B) 		1-53239-142-1 01 1 0811- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 02 1 0811-1201 ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 02 1 1202- ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 06 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(C) M14X40 		0-20951-440-0 09 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(E) M14X50 		0-20951-450-0 12 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(F) M14X60 		0-20951-460-0 04 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(D) M16X50 		0-20951-650-0 12 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(A) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0811- ● ● ●
23 BOLT; BRKT,SPR
(B) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0811- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0811- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0811- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 20 1 0811- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 52 1 0811-1201 ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 52 1 1202- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 24 1 0811- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 12 1 0811- ● ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 0811- ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0811- ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0811- ● ● ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0811- ● ● ●
46 BOLT; BRKT FIX
M14X60 		0-20951-460-0 04 1 0811- ● ● ●
55 WASHER; PL
ID=15 		9-09651-069-0 10 1 0811-1201 ● ● ●
55 WASHER; PL
ID=15 		8-98010-627-1 10 1 1202- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 08 1 0811- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 12 1 0811- ● ● ●
141 STIFFENER 1-53151-699-0 01 1 0811- ● ● ●
141 STIFFENER 1-53151-700-0 01 1 0811- ● ● ●
181 BOLT; S/ABS BRKT TO FRAME
M14X50 		0-20951-450-0 08 1 0811- ● ● ●
182 NUT; S/ABS BRKT TO FRAME
M14 		0-91110-514-0 08 1 0811- ● ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0811-1201 ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1202- ● ● ●
316 BOLT; STIFFENER
M14X50 		0-20951-450-0 05 1 0811- ● ● ●
317 NUT; STIFFENER
M14 		0-91110-514-0 05 1 0811- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-217-0 01 1 0811- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-218-0 01 1 0811- ● ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 02 1 0811- ● ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-179-0 01 1 0811- ● ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-180-0 01 1 0811- ● ● ●
466 BRACKET; BOOSTER 1-44515-073-0 01 1 0811- ● ● ●
