Isuzu WW
▶
TRUCKS
▶
CYH
▶
11318 - CYH MIDDLE EAST WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

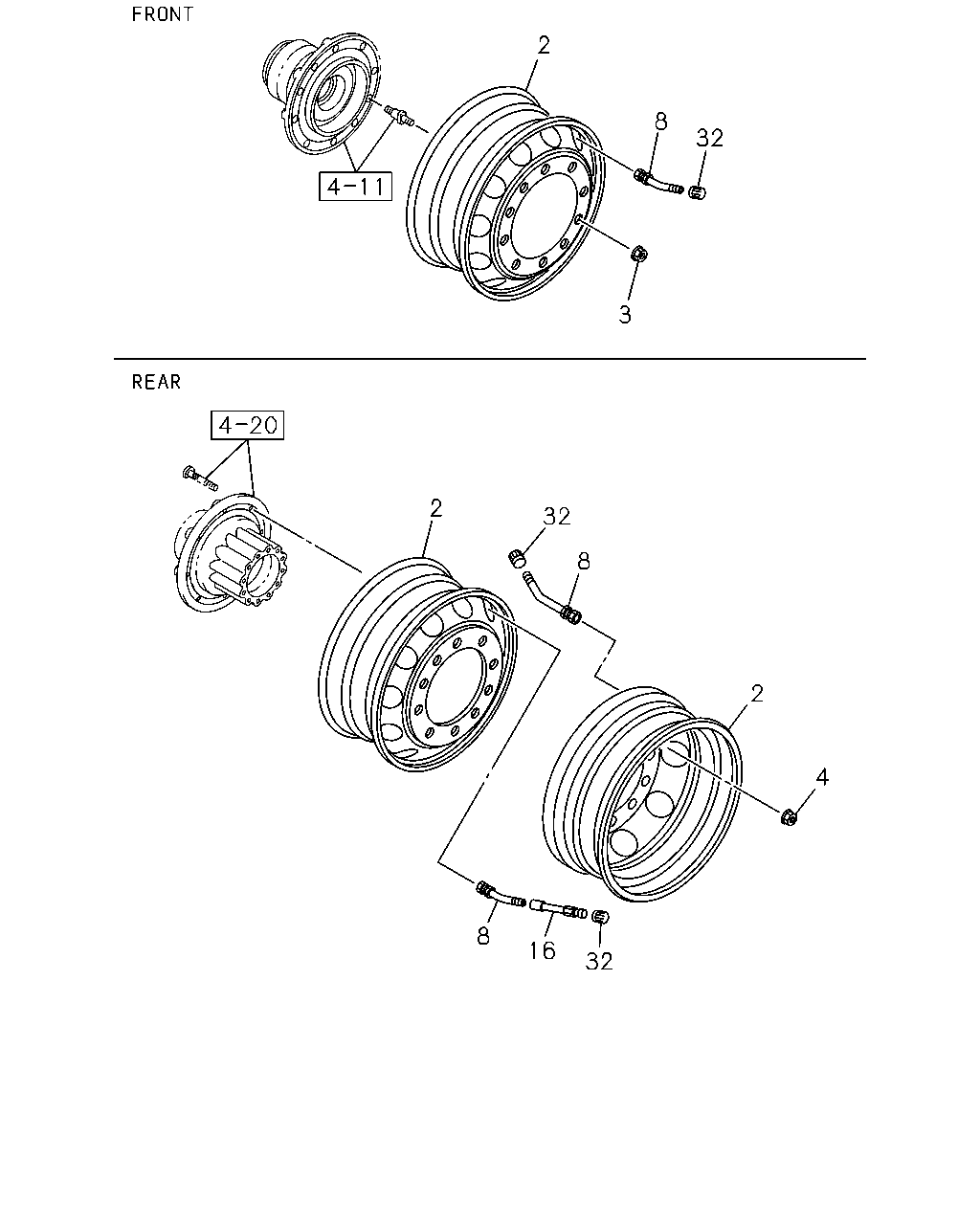

4-80 — ROAD WHEEL
(#55333) — 20 parça
2
8
32
3
2
32
8
2
4
8
16
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42350-730-0
01
1
0811-1205
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
8-98217-247-0
01
1
1206-1407
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
8-98281-497-0
01
1
1408-
2
WHEEL; DISC
FRONT,REAR
1-42350-730-0
12
1
0811-1205
2
WHEEL; DISC
FRONT,REAR
8-98217-247-0
12
1
1206-1407
2
WHEEL; DISC
FRONT,REAR
8-98281-497-0
12
1
1408-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-050-1
40
1
0811-0907
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
40
1
0908-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-050-1
40
1
0811-0907
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
40
1
0908-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-020-3
01
1
0811-1205
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-048-0
01
1
1206-1407
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-019-3
01
1
1408-
8
VALVE; TIRE
FRONT,REAR
1-42370-020-3
12
1
0811-1205
8
VALVE; TIRE
FRONT,REAR
1-42370-048-0
12
1
1206-1407
8
VALVE; TIRE
FRONT,REAR
1-42370-019-3
12
1
1408-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
1-42370-024-0
04
1
0811-1003
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
8-98167-052-0
04
1
1004-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42374-001-0
01
1
0811-
32
CAP; VALVE
FRONT,REAR
1-42374-001-0
12
1
0811-
