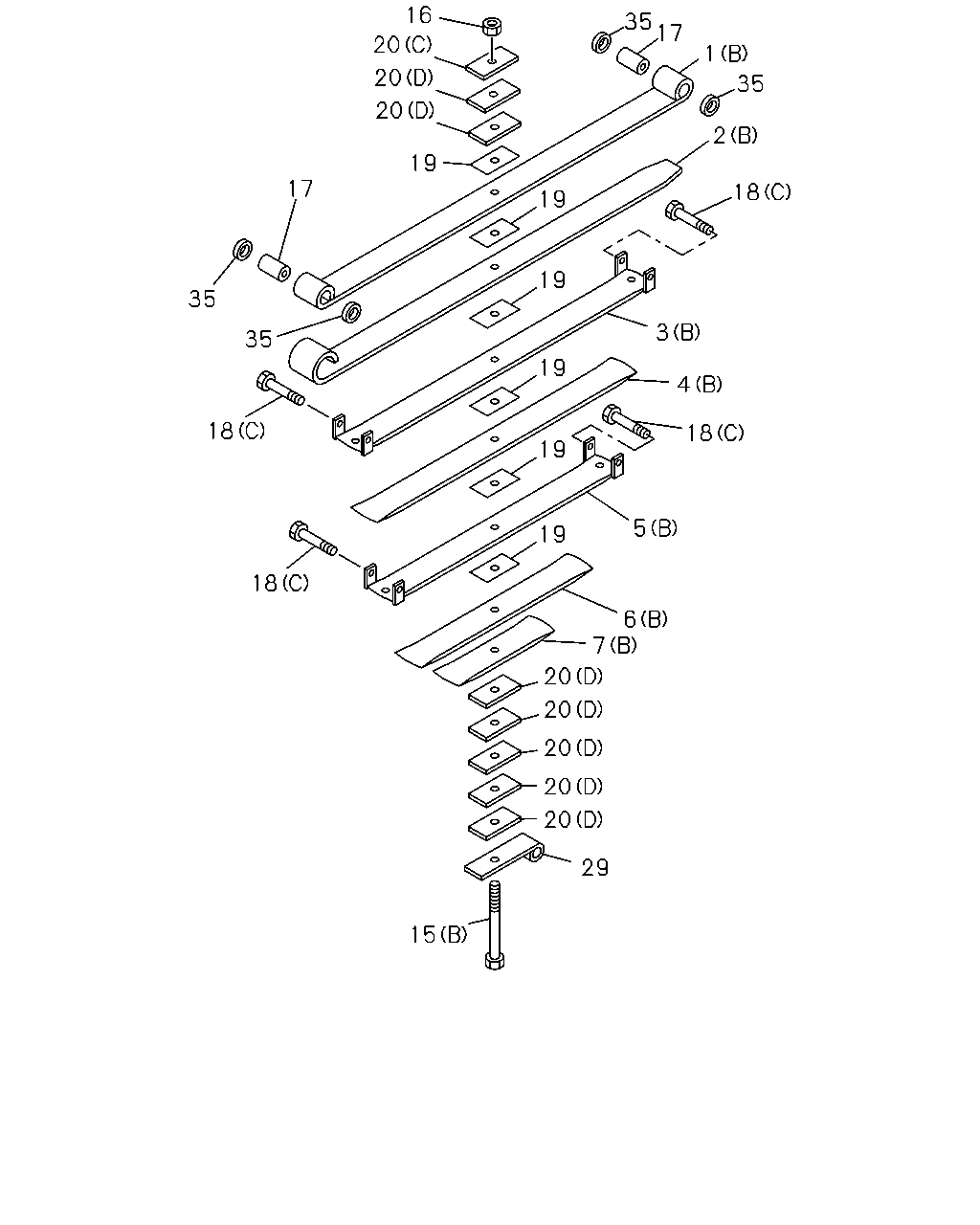

4-55 — FRONT LEAF SPRING (#55330) — 68 parça

16 35 17 20 1 20 35 20 2 19 17 18 19 19 35 3 35 19 4 18 18 19 5 19 18 6 7 20 20 20 20 20 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-97614-068-0	8-97615-338-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-98159-641-0	8-98165-012-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-97614-068-0	8-97615-339-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-98159-641-0	8-98165-013-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-340-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-341-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-342-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-344-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=205 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=225 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-940-0, B = 8-97614-068-0, C = 8-98159-641-0, D = 8-98159-653-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: C = 8-98159-641-0, D = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-940-0, B = 8-97614-068-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=11 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-347-0	07	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-940-0, B = 8-97614-068-0	1-51177-321-0	04	1	-

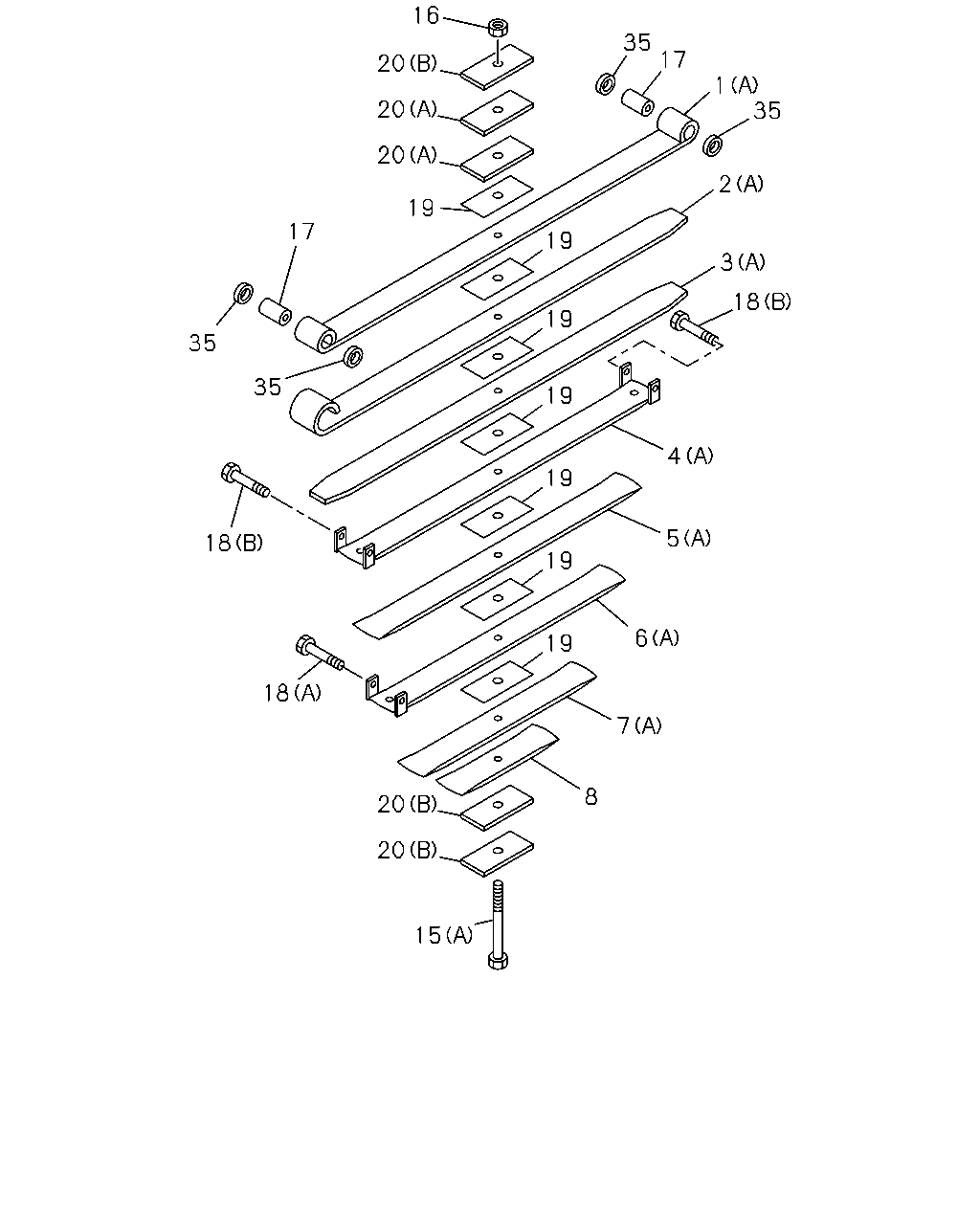

16 35 17 20 1 35 20 20 2 19 17 19 3 18 19 35 35 19 4 19 5 18 19 6 19 18 7 8 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-97614-068-0	8-97615-338-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-98159-641-0	8-98165-012-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-97614-068-0	8-97615-339-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-98159-641-0	8-98165-013-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-340-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-341-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-342-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-344-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=205 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=225 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-940-0, B = 8-97614-068-0, C = 8-98159-641-0, D = 8-98159-653-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: C = 8-98159-641-0, D = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-940-0, B = 8-97614-068-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-97614-068-0, C = 8-98159-641-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=11 ASM PART: A = 1-51130-940-0, D = 8-98159-653-0	1-51177-347-0	07	1	-
35	SEAL; DUST ASM PART: A = 1-51130-940-0, B = 8-97614-068-0	1-51177-321-0	04	1	-
