4-50 — FRONT SUSPENSION (#55329) — 94 parça

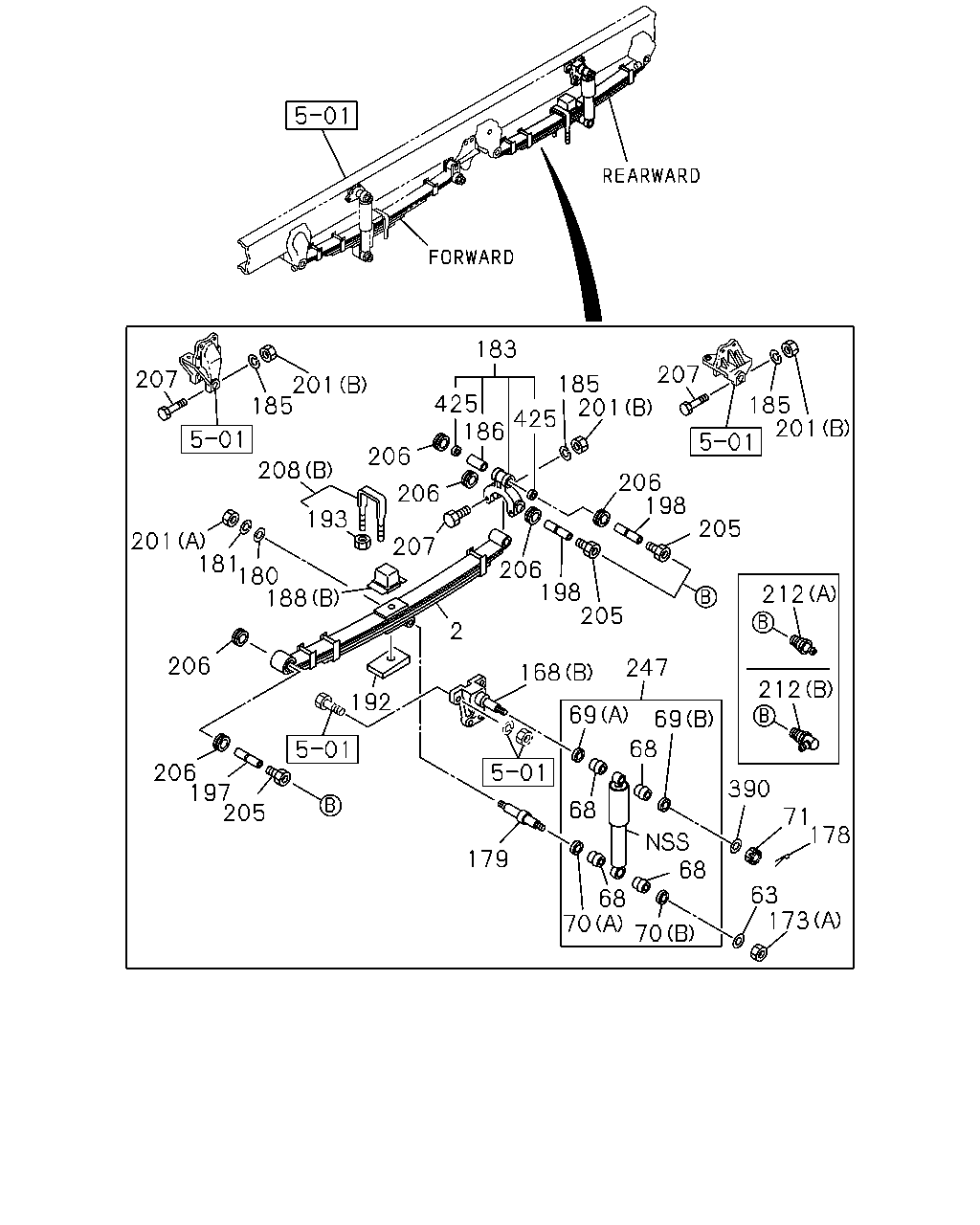

çizim 169485
207 183 207 185 201 201 185 425 425 186 185 201 206 208 206 198 206 193 205 201 181 180 188 207 206 198 205 212 2 206 247 168 212 192 69 69 68 206 197 205 390 68 71 178 68 179 63 173 68 70 70
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		1-51130-940-0 02 1 0811-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-97614-068-0 02 1 0811-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-98159-641-0 02 1 1001-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 02 1 0811-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0811-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0811-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0811-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0811-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0811-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0811-1010
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0811-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0811-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
173 NUT; S/ABS
(B) M14 		0-91110-514-0 08 1 0811-
173 NUT; S/ABS
(A) M20 		0-91110-520-0 04 1 0811-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0811-1011
179 PIN 1-51682-094-1 04 1 0811-
180 WASHER; PL,PIN 1-09503-169-0 04 1 0811-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0811-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0811-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0811-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0811-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-081-1 02 1 0811-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 0811-
192 PIECE; DIST 1-51177-281-1 02 1 0811-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0811-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0811-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0811-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0811-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 0811-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0811-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0811-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0811-
208 U-BOLT SET; FRT SPRING
(B) L=315 		1-87870-421-2 04 1 0811-
208 U-BOLT SET; FRT SPRING
(A) L=290 		1-87870-437-2 04 1 0811-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0811-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0811-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-444-0 02 1 0811-
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 02 1 0811-
425 SEAL; DUST 1-51177-321-0 08 1 0811-1005

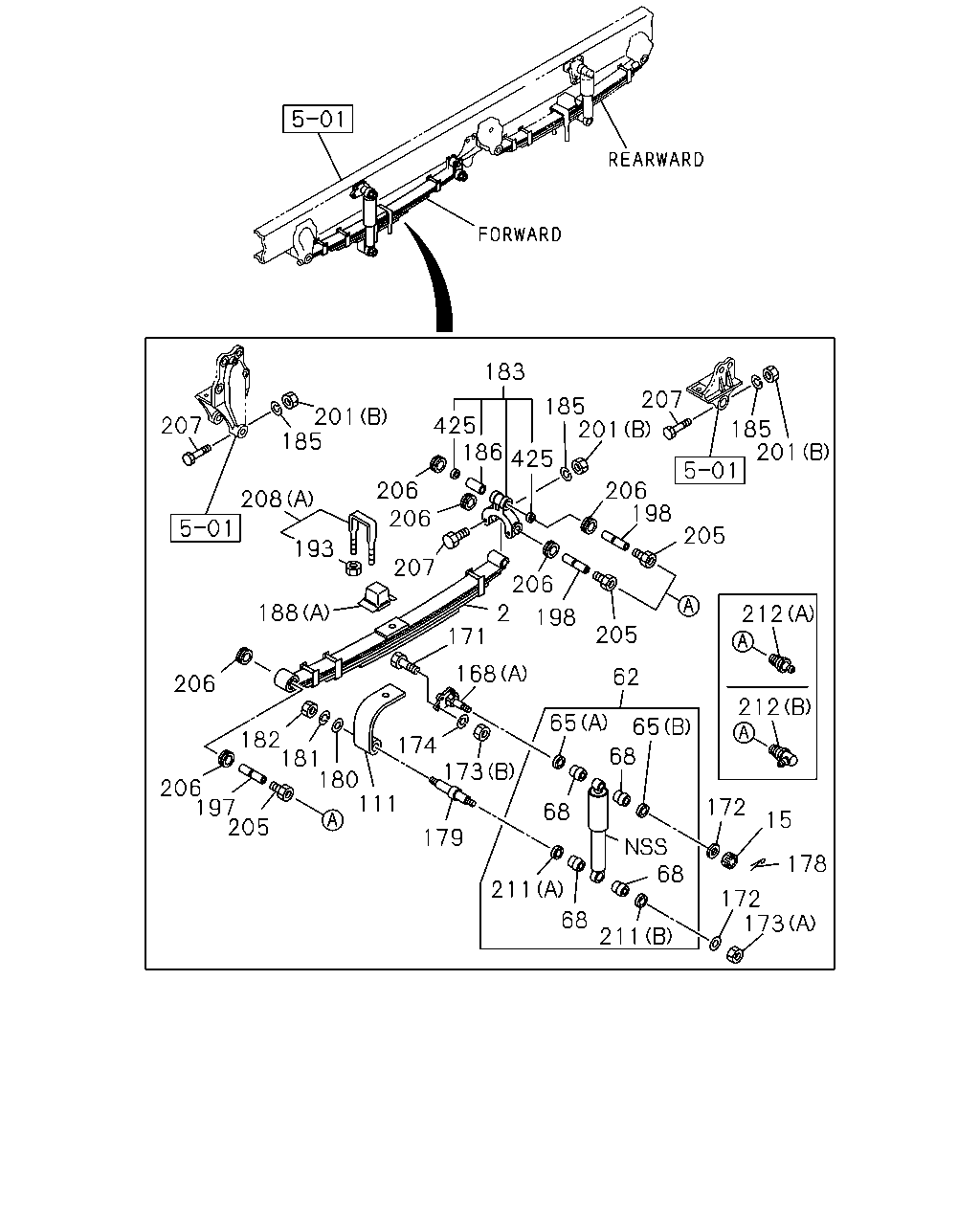

çizim 169814
183 207 185 201 201 185 207 425 186 425 185 201 206 206 206 198 208 205 193 207 188 2 212 198 205 171 168 62 206 212 65 182 181 180 111 65 174 173 68 206 197 205 172 68 15 68 179 178 211 172 173 68 211 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		1-51130-940-0 02 1 0811-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-97614-068-0 02 1 0811-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-98159-641-0 02 1 1001-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0811-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT 1-51630-443-0 02 1 0811-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0811-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0811-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0811-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 0811-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0811-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0811-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0811-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0811-
173 NUT; S/ABS
(B) M14 		0-91110-514-0 08 1 0811-
173 NUT; S/ABS
(A) M20 		0-91110-520-0 04 1 0811-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0811-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0811-1011
179 PIN 1-51682-094-1 04 1 0811-
180 WASHER; PL,PIN 1-09503-169-0 04 1 0811-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0811-
182 NUT; S/ABS LWR
M24 		0-91110-524-0 02 1 0811-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0811-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0811-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0811-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-081-1 02 1 0811-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 0811-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0811-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0811-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0811-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0811-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 0811-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0811-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0811-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0811-
208 U-BOLT SET; FRT SPRING
(B) L=315 		1-87870-421-2 04 1 0811-
208 U-BOLT SET; FRT SPRING
(A) L=290 		1-87870-437-2 04 1 0811-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0811-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0811-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0811-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0811-
425 SEAL; DUST 1-51177-321-0 08 1 0811-1005
