◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#55326) — 74 parça

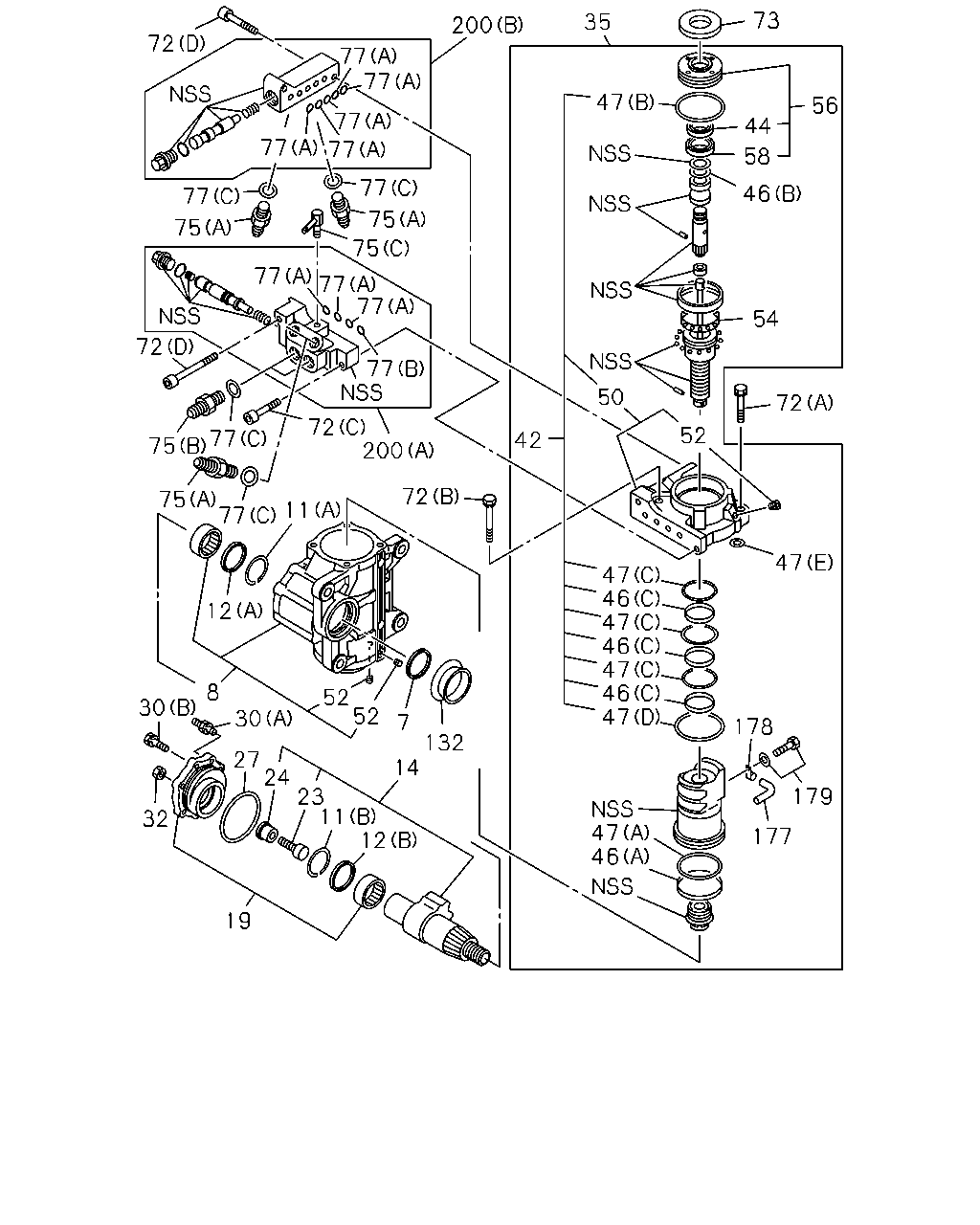

çizim 169502
73 35 200 72 77 77 47 56 77 44 77 77 58 77 46 77 75 75 75 77 77 77 54 77 72 50 72 77 75 72 200 52 42 72 75 77 11 47 47 46 47 46 47 46 47 12 8 52 52 30 30 7 178 132 14 27 24 23 11 12 179 47 46 32 177 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-923-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44240-152-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44320-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44260-030-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-19519-121-0 02 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44279-012-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44150-118-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44560-092-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-923-3 		1-44519-261-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-923-3 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44560-093-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44519-071-0 04 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44259-017-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44259-070-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44259-071-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(D) ASM PART: A = 1-44000-923-3 		1-44259-072-0 03 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-923-3 		1-44259-034-1 04 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-923-3 		1-44259-035-1 02 1 -
75 CONNECTOR; HSG STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44259-075-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-247-0 08 1 -
77 GASKET; CONNECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44159-248-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		9-89970-787-0 06 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44159-176-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-923-3 		1-09000-610-0 02 1 -
200 VALVE ASM; CONTROL
(A) ASM PART: A = 1-44000-923-3 		1-44560-094-0 01 1 -
200 VALVE ASM; CONTROL
(B) ASM PART: A = 1-44000-923-3 		1-44560-095-0 01 1 -

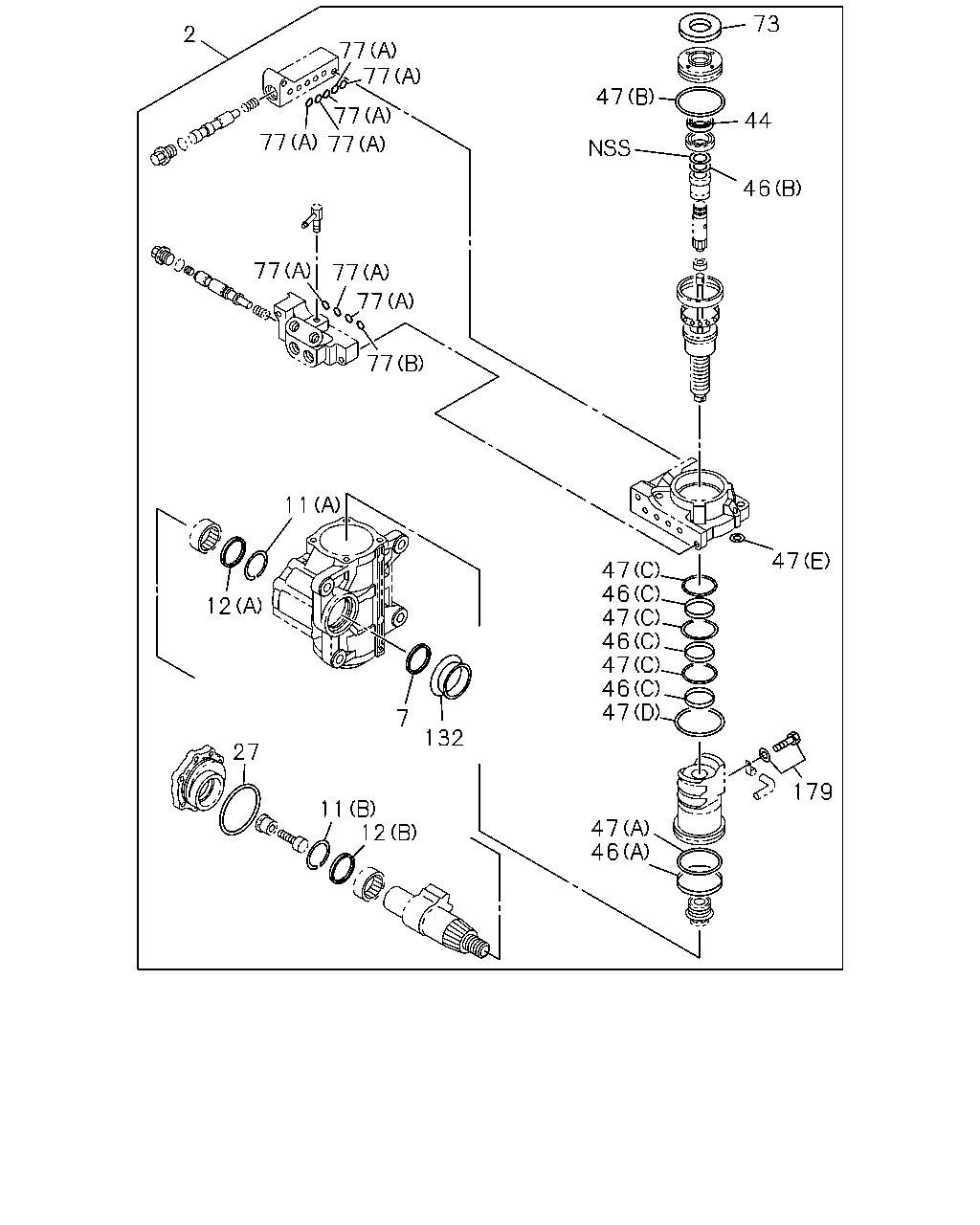

çizim 169532
73 2 77 77 47 77 44 77 77 46 77 77 77 77 11 47 47 46 47 46 47 46 47 12 7 132 27 179 11 12 47 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-923-3 		1-85574-085-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-923-3 		8-98166-415-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-923-3 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-923-3 		1-44519-261-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-923-3 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		8-98166-307-0 01 1 1004-
77 GASKET; CONNECTOR,STRG UNIT
(A) ASM PART: A = 1-44000-923-3 		1-44159-247-0 08 1 -
77 GASKET; CONNECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-923-3 		1-44159-248-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(C) ASM PART: A = 1-44000-923-3 		9-89970-787-0 06 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-923-3 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 1-44000-923-3 		1-09000-610-0 02 1 -
