4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#55324) — 218 parça

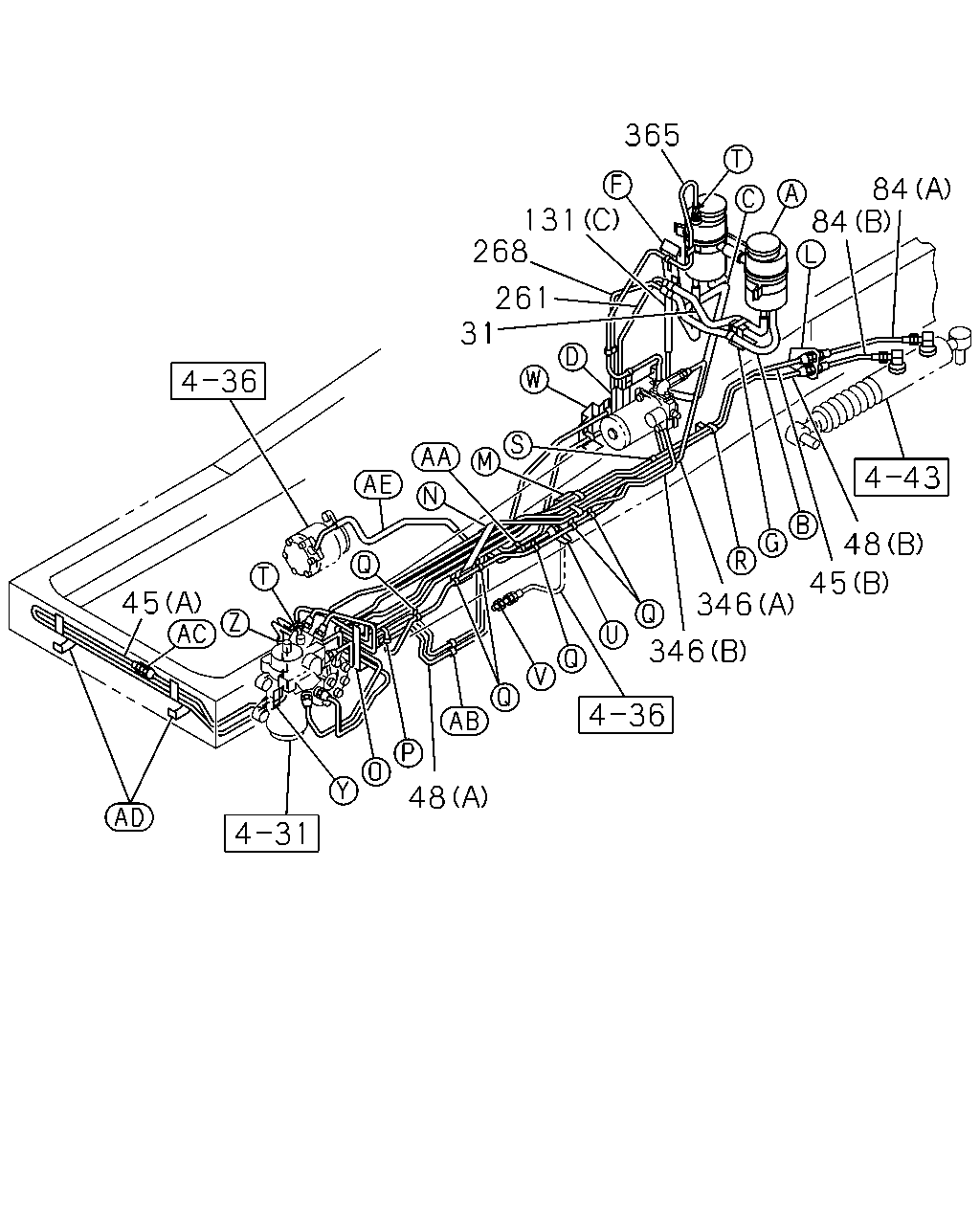

365 131 268 84 84 261 31 48 45 45 346 346 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21117-713-0	01	1	0811-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2738	1-21117-823-0	01	1	0811-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=2470	1-21117-937-0	01	1	0811-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) L=2811	1-21117-824-0	01	1	0811-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1911	1-21117-936-0	01	1	0811-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0811-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0811-
131	HOSE; RUBBER,P/S (A)	1-21117-837-0	01	1	0811-
131	HOSE; RUBBER,P/S (B)	1-21117-838-0	01	1	0811-
131	HOSE; RUBBER,P/S (C)	1-21117-839-0	01	1	0811-
261	PIPE; OIL,UNION TO HOSE L=2990	1-21117-938-0	01	1	0811-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1283	1-21117-474-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (A) L=2404	1-21117-825-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (B) L=2290	1-21117-826-0	01	1	0811-
365	HOSE; RUBBER,OIL TANK TO STRG UNIT L=3550	1-21117-835-0	01	1	0811-

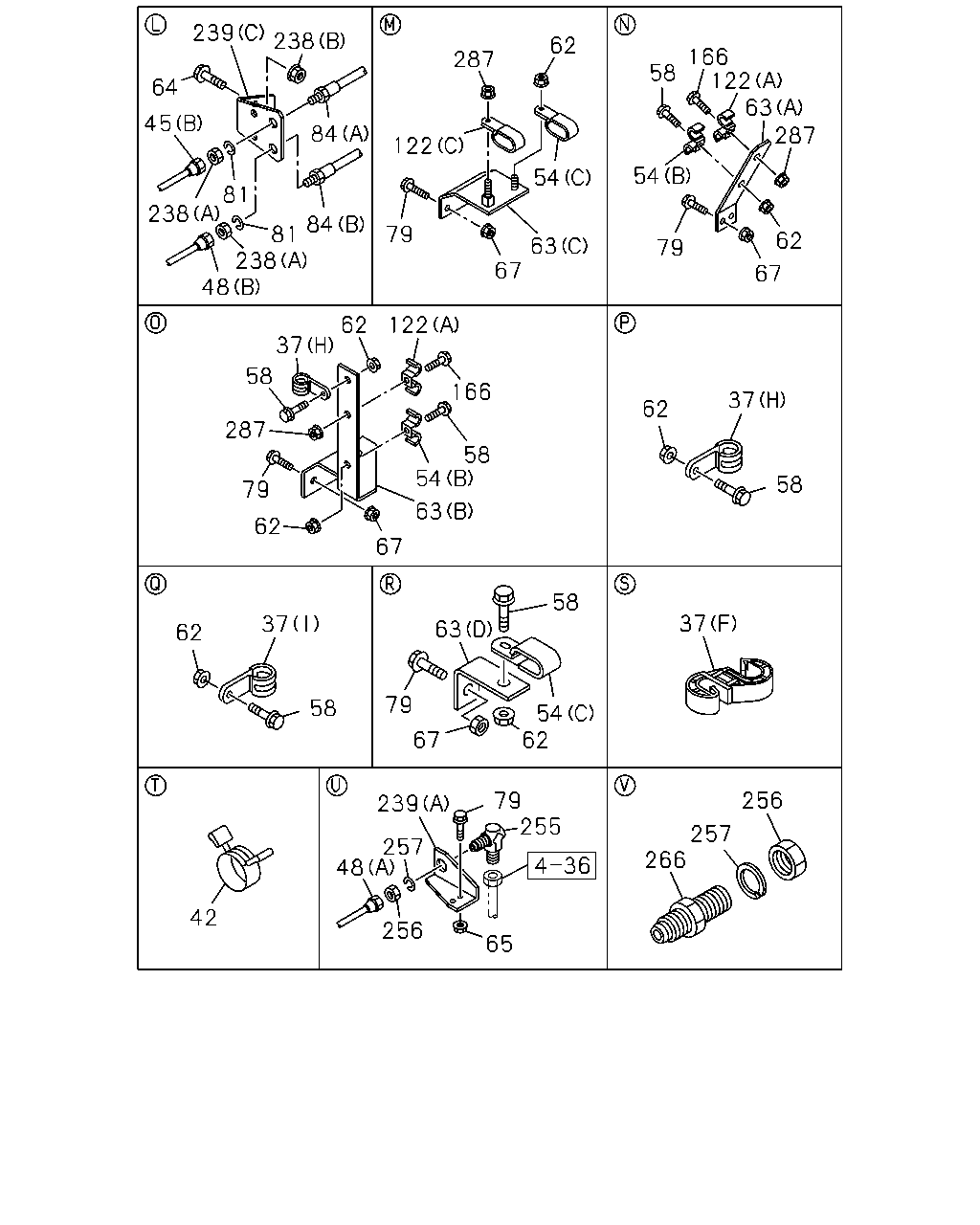

239 238 62 166 122 63 287 287 58 64 45 84 122 54 54 81 238 84 81 238 48 79 62 63 67 79 67 62 37 122 58 166 37 62 287 58 54 58 79 63 62 67 58 37 37 63 62 79 58 54 62 67 256 79 255 239 257 266 257 48 42 256 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (H) ID=13 L=20	0-95235-235-0	02	1	0811-
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	0811-
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0811-
37	CLIP; HOSE,P/S (I) ID=16 L=28	1-09700-872-0	10	1	0811-
37	CLIP; HOSE,P/S (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0811-
37	CLIP; HOSE,P/S (F) ID=12 & 12	1-09709-280-1	02	1	0811-
37	CLIP; HOSE,P/S (G) ID=12 & 15	1-09709-281-1	02	1	0811-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0811-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0811-
42	CLIP; HOSE,P/S ID=12	8-94238-610-0	02	1	0811-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2738	1-21117-823-0	01	1	0811-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=2470	1-21117-937-0	01	1	0811-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) L=2811	1-21117-824-0	01	1	0811-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1911	1-21117-936-0	01	1	0811-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	02	1	0811-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0811-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	0811-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0907
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	0908-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0811-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	18	1	0811-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0811-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	15	1	0811-
63	BRACKET; CLIP,P/S (A)	1-47471-268-0	01	1	0811-
63	BRACKET; CLIP,P/S (B)	1-47471-269-0	01	1	0811-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	0811-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	0811-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0811-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0811-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0811-
79	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0811-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0811-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0811-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0811-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0811-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0811-
122	CLIP; PIPE,P/S (B) ID=13 L=20	0-95235-235-0	01	1	0811-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-236-0	01	1	0811-
122	CLIP; PIPE,P/S (A) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	0811-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0811-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0811-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	0811-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	0811-
239	BRACKET; FLEX HOSE (B)	1-47471-239-0	01	1	0811-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	0811-
239	BRACKET; FLEX HOSE (A)	1-47479-664-0	01	1	0811-
255	UNION; FLEX HOSE	1-09656-769-0	01	1	0811-0811
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0812-
256	NUT; UNION M22	0-91111-522-0	01	1	0811-0811
256	NUT; UNION M22	0-91111-522-0	01	1	0812-
256	NUT; UNION M22	0-91111-522-0	01	1	0812-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0811-0811
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0812-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0812-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0812-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0811-

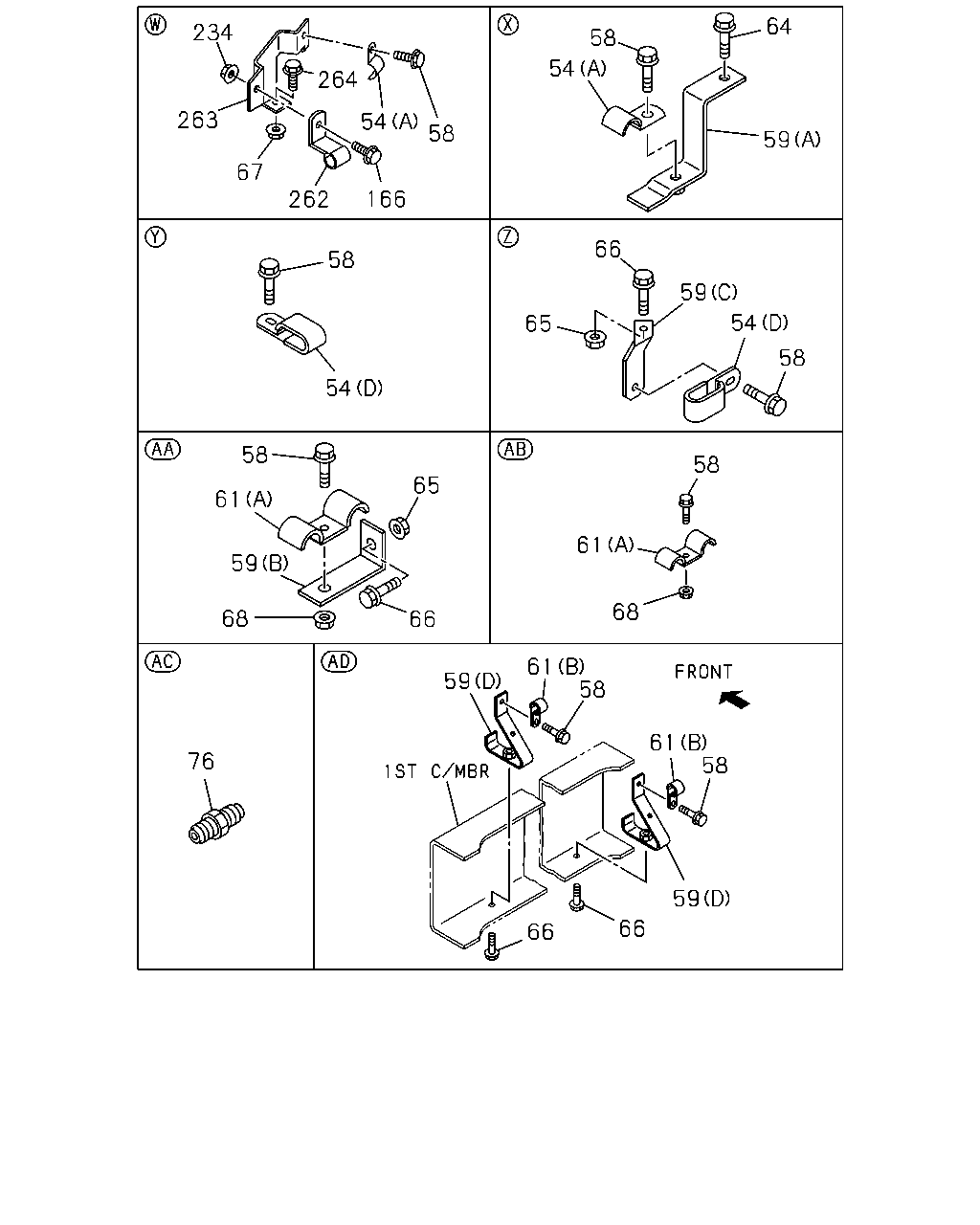

64 234 58 54 264 263 54 58 59 67 262 166 66 58 59 54 65 58 54 58 58 65 61 61 59 68 68 66 61 58 59 61 58 76 59 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	02	1	0811-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0811-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	0811-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0907
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	0908-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0811-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	18	1	0811-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0811-
59	BRACKET; CLIP,OIL PIPE (E)	1-47471-098-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (B) L=115 B=25	1-47476-758-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	0811-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	0811-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0811-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0811-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0811-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0811-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0811-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0811-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0811-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0811-
76	UNION; OIL PIPE M22	0-92123-015-0	01	1	0811-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0811-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0811-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0811-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0811-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0811-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0811-

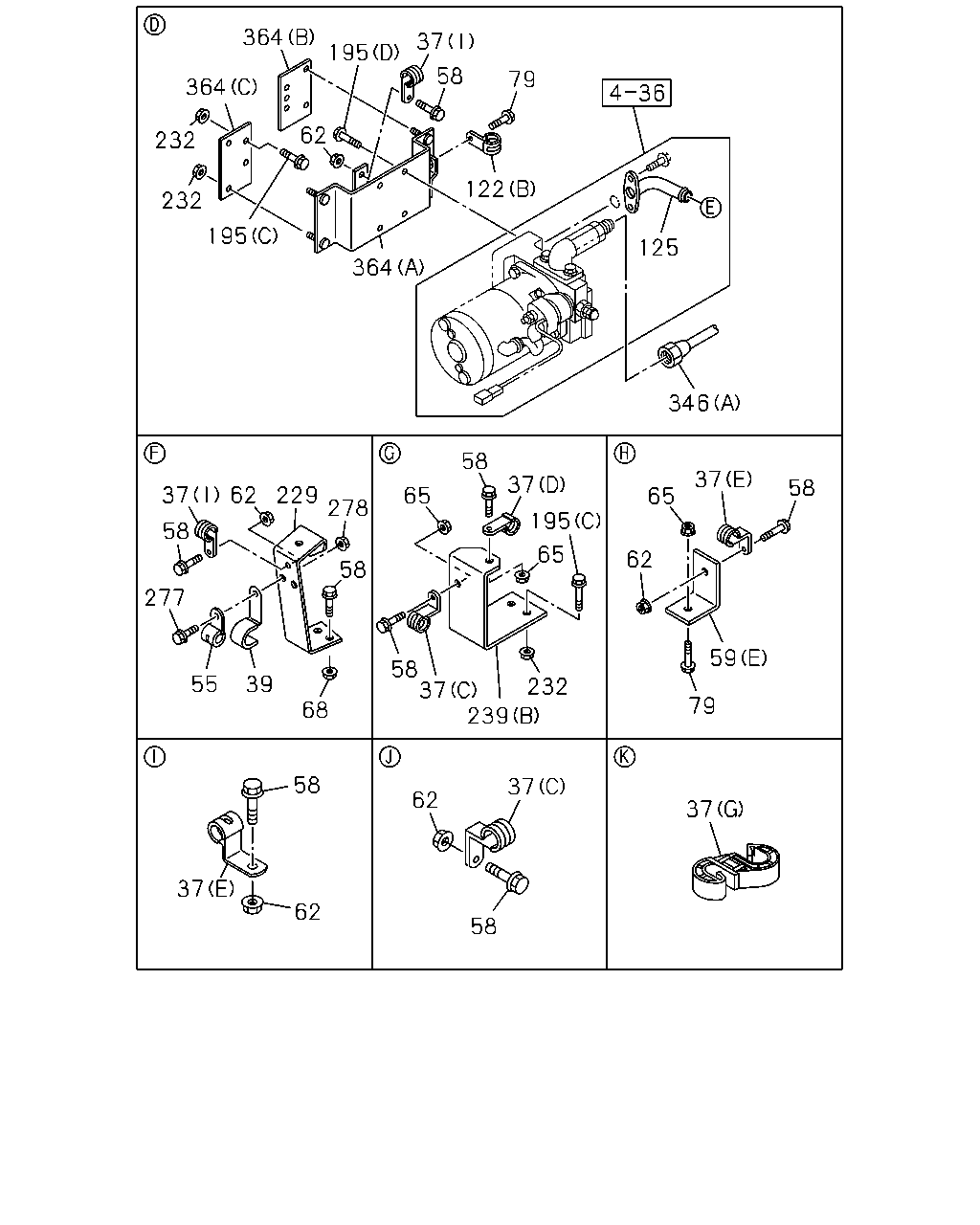

364 37 195 58 79 364 232 62 232 122 195 125 364 346 58 37 37 58 62 37 229 65 65 278 195 58 65 62 58 277 59 58 37 239 55 39 232 79 68 58 37 62 37 37 62 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (H) ID=13 L=20	0-95235-235-0	02	1	0811-
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	0811-
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0811-
37	CLIP; HOSE,P/S (I) ID=16 L=28	1-09700-872-0	10	1	0811-
37	CLIP; HOSE,P/S (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0811-
37	CLIP; HOSE,P/S (F) ID=12 & 12	1-09709-280-1	02	1	0811-
37	CLIP; HOSE,P/S (G) ID=12 & 15	1-09709-281-1	02	1	0811-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0811-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0811-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0811-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0811-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0811-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	18	1	0811-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0811-
59	BRACKET; CLIP,OIL PIPE (E)	1-47471-098-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (B) L=115 B=25	1-47476-758-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	0811-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	0811-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	15	1	0811-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0811-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0811-
79	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0811-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0811-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0811-
122	CLIP; PIPE,P/S (B) ID=13 L=20	0-95235-235-0	01	1	0811-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-236-0	01	1	0811-
122	CLIP; PIPE,P/S (A) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	0811-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0811-0811
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0812-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0812-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	0811-
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0811-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	06	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0812-
229	BRACKET; HOSE,POWER STRG	1-21464-776-0	01	1	0811-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	0811-
239	BRACKET; FLEX HOSE (B)	1-47471-239-0	01	1	0811-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	0811-
239	BRACKET; FLEX HOSE (A)	1-47479-664-0	01	1	0811-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0811-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (A) L=2404	1-21117-825-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (B) L=2290	1-21117-826-0	01	1	0811-
364	BRACKET; PUMP (A)	1-47471-090-2	01	1	0811-
364	BRACKET; PUMP (B)	1-47471-270-0	01	1	0811-
364	BRACKET; PUMP (C)	1-47479-956-0	01	1	0811-

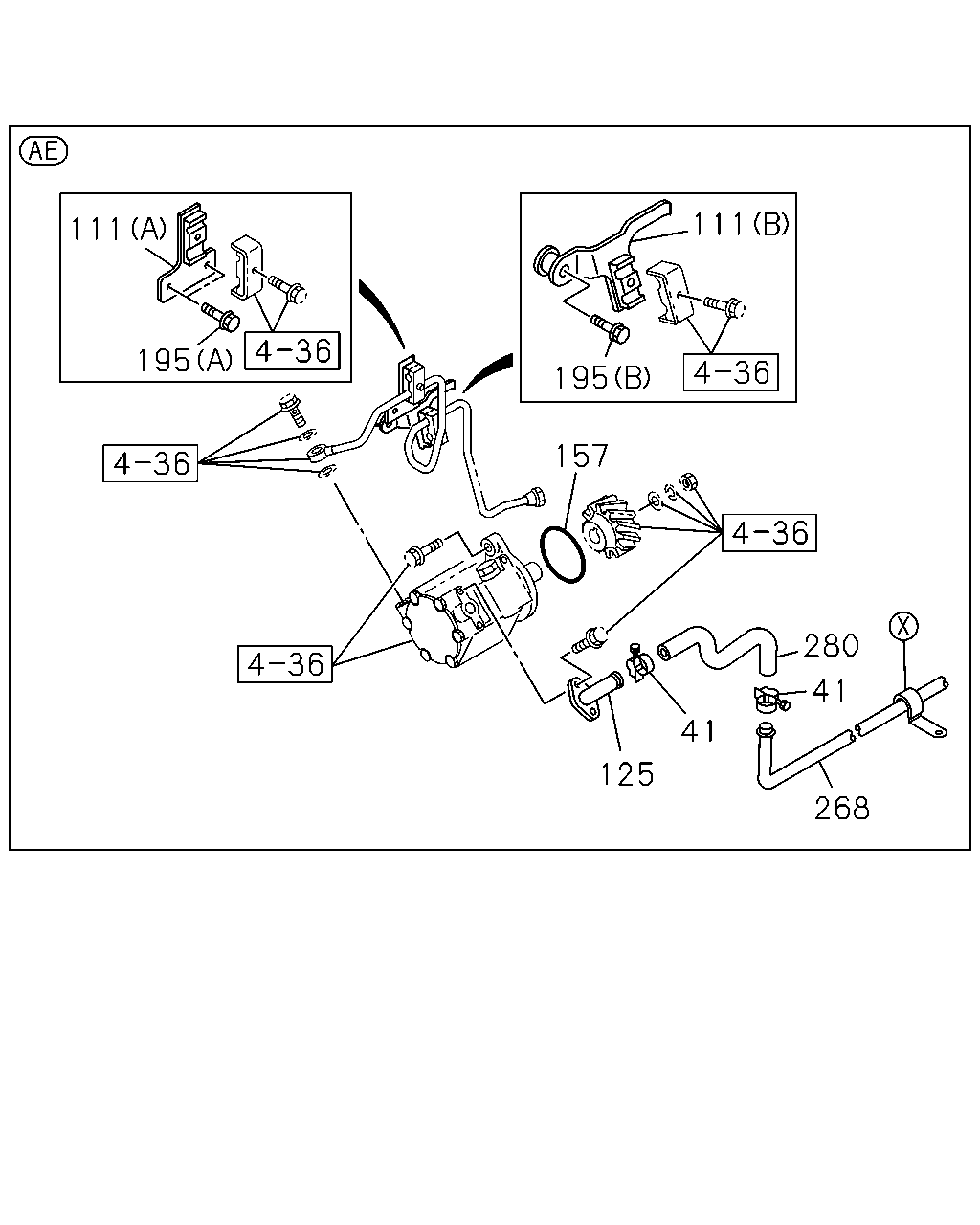

111 111 195 195 157 280 41 41 125 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0811-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0812-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0812-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0811-0811
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0812-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0812-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0812-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	0811-
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0811-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	06	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0812-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1283	1-21117-474-0	01	1	0811-
280	HOSE; P/S OIL PUMP,INL	1-21117-144-0	01	1	0811-

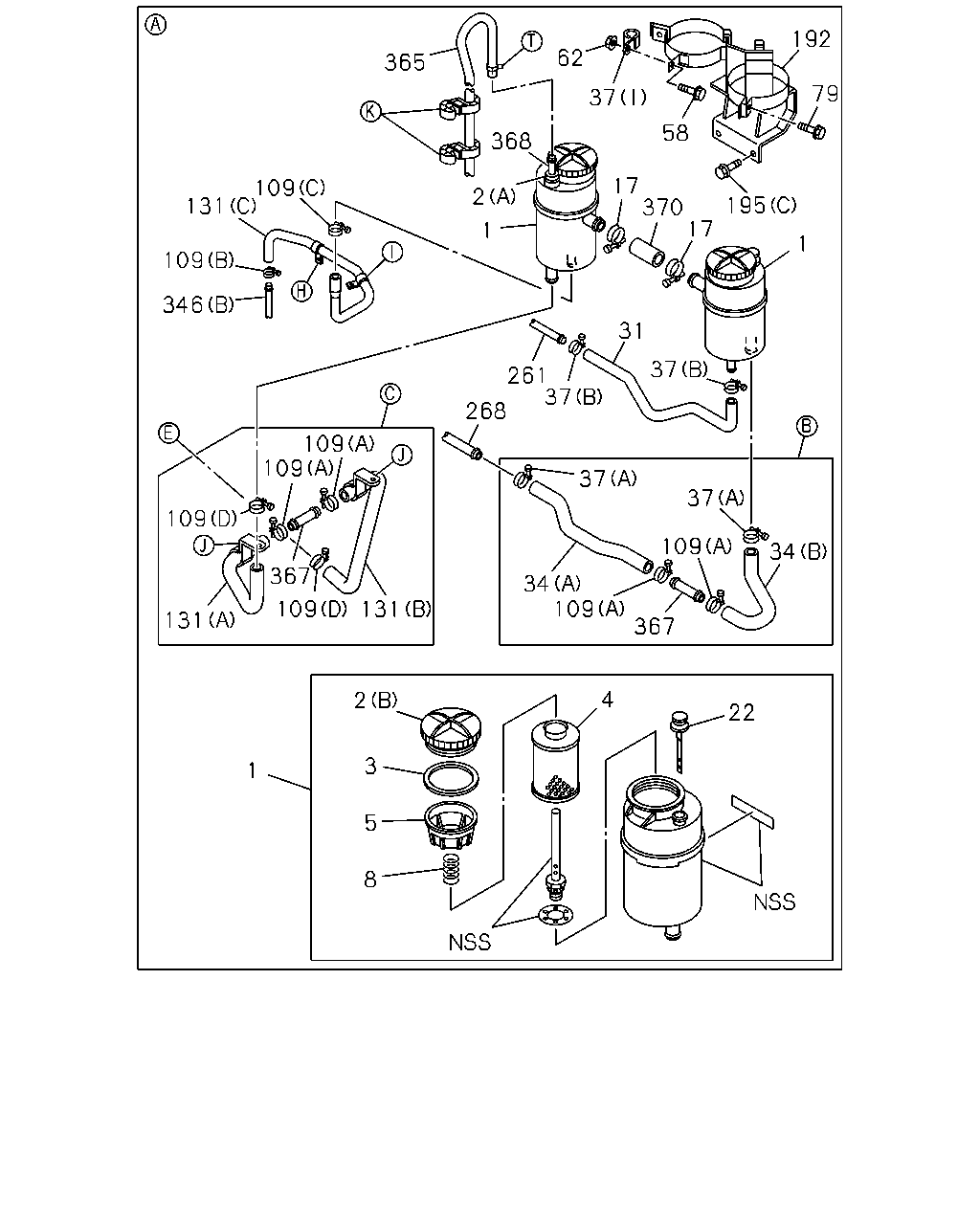

192 62 365 79 37 58 368 17 370 17 109 131 2 195 1 1 109 346 31 37 261 37 268 109 109 37 37 109 109 34 367 34 109 367 109 131 131 4 2 22 3 1 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-229-0	02	1	0811-
2	CAP; OIL TANK,P/S (A)	1-21241-017-0	01	1	0811-
2	CAP; OIL TANK,P/S (B)	1-21241-018-0	02	1	0811-
3	GASKET; OIL TANK,P/S	1-21249-015-0	02	1	0811-
4	FILTER; OIL TANK,P/S	1-21235-017-0	02	1	0811-
5	STRAINER; OIL TANK,P/S	1-21235-018-0	02	1	0811-
8	SPRING; OIL TANK,P/S	1-09580-595-0	02	1	0811-
17	CLIP; HOSE,OIL TANK ID=38	9-09915-666-1	02	1	0811-
22	GAUGE; OIL TANK,P/S	1-21241-019-0	02	1	0811-
31	HOSE; P/S OIL TANK,INL	1-21117-713-0	01	1	0811-
34	HOSE; P/S OIL TANK,OUTLET (A)	1-21117-692-0	01	1	0811-
34	HOSE; P/S OIL TANK,OUTLET (B)	1-21117-707-0	01	1	0811-
37	CLIP; HOSE,P/S (H) ID=13 L=20	0-95235-235-0	02	1	0811-
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	0811-
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0811-
37	CLIP; HOSE,P/S (I) ID=16 L=28	1-09700-872-0	10	1	0811-
37	CLIP; HOSE,P/S (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0811-
37	CLIP; HOSE,P/S (F) ID=12 & 12	1-09709-280-1	02	1	0811-
37	CLIP; HOSE,P/S (G) ID=12 & 15	1-09709-281-1	02	1	0811-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0811-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0811-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0811-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	18	1	0811-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0811-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	15	1	0811-
79	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0811-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0811-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0811-
109	CLIP; RUBBER HOSE (B) ID=26	1-09707-108-0	01	1	0811-
109	CLIP; RUBBER HOSE (A) ID=38	9-09915-041-1	04	1	0811-
109	CLIP; RUBBER HOSE (D) ID=38	9-09915-666-1	02	1	0811-
109	CLIP; RUBBER HOSE (C) ID=28	9-09915-672-1	01	1	0811-
131	HOSE; RUBBER,P/S (A)	1-21117-837-0	01	1	0811-
131	HOSE; RUBBER,P/S (B)	1-21117-838-0	01	1	0811-
131	HOSE; RUBBER,P/S (C)	1-21117-839-0	01	1	0811-
192	BRACKET; P/S OIL TANK	1-47471-240-0	01	1	0811-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	0811-
195	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0811-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	06	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0812-
261	PIPE; OIL,UNION TO HOSE L=2990	1-21117-938-0	01	1	0811-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1283	1-21117-474-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (A) L=2404	1-21117-825-0	01	1	0811-
346	PIPE; OIL,STRG UNIT (B) L=2290	1-21117-826-0	01	1	0811-
365	HOSE; RUBBER,OIL TANK TO STRG UNIT L=3550	1-21117-835-0	01	1	0811-
367	NIPPLE; HOSE	1-21117-691-0	02	1	0811-
368	CONNECTOR; OIL TANK	1-21431-576-0	01	1	0811-
370	HOSE; OIL TANK	1-21117-562-0	01	1	0811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
