◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87A - COUPLING; INJECTION PUMP ▶
0-87A — COUPLING; INJECTION PUMP (#5532) — 132 parça

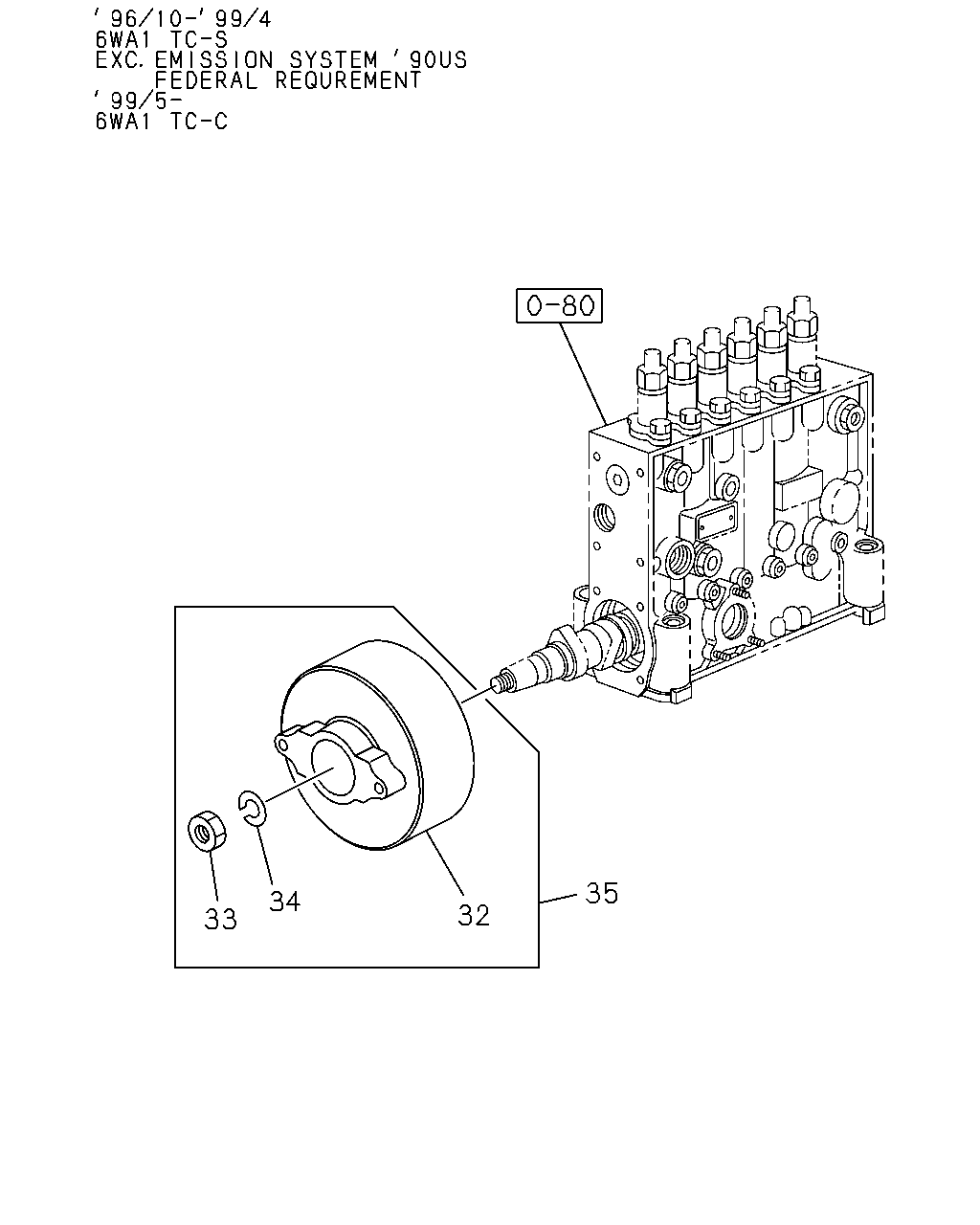

çizim 7287
35 34 32 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 9905- ●
32 DAMPER; INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15744-005-1 01 1 9610-9904 ●
33 NUT; DAMPER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-19179-020-0 01 1 9610-9904 ●
33 NUT; DAMPER 1-19179-020-0 01 1 9905- ●
34 WASHER; DAMPER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-19179-002-0 01 1 9610-9904 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9905- ●
35 DAMPER ASM; INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15744-007-1 01 1 9610-9904 ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9905- ●
çizim 40922
14 6 20 13 10 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9603-9810 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9811-9904 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15782-021-0 01 1 9811-9904 ●
1 COUPLING; INJ PUMP DRIVE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15782-020-0 01 1 9610-9904 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9905- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9603-9810 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9811-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9811-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-177-0 01 1 9610-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9905- ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9603-9810 ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9811-9904 ●
5 WASHER; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-021-0 01 1 9811-9904 ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-223-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-180-0 01 1 9603-9810 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-180-0 01 1 9811-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-180-0 01 1 9811-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-176-0 01 1 9610-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9603-9810 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9811-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9811-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-173-0 01 1 9610-9904 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9905- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9603-9810 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9811-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9811-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9905- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9603-9810 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9811-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9811-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-172-0 02 1 9610-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9905- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9603-9810 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9811-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-179-0 02 1 9811-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-174-0 02 1 9610-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9905- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9603-9810 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9811-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-096-0 01 1 9811-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-173-0 01 1 9610-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9905- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9905- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9603-9810 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9811-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9811-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9905- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9905- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9603-9810 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9811-9904 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-043-0 02 1 9811-9904 ●
20 BOLT; COUPLING TO INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9905- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9905- ● ●
çizim 45680
14 6 20 13 10 9 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9603-9810 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9811-9904 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15782-021-0 01 1 9811-9904 ●
1 COUPLING; INJ PUMP DRIVE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15782-020-0 01 1 9610-9904 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9905- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-021-0 01 1 9905- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9603-9810 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9811-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9811-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-177-0 01 1 9610-9904 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9905- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-223-0 01 1 9905- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-180-0 01 1 9603-9810 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-180-0 01 1 9811-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-180-0 01 1 9811-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-176-0 01 1 9610-9904 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9603-9810 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9811-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9811-9904 ●
7 PLATE; COUPLING,COUPLING SIDE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-173-0 01 1 9610-9904 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9905- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9905- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9603-9810 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9811-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9811-9904 ●
8 BOLT; PLATE TO CROSS COUPLING
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9905- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9905- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9603-9810 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9811-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9811-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-172-0 02 1 9610-9904 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9905- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9905- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9603-9810 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9811-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-179-0 02 1 9811-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-174-0 02 1 9610-9904 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9905- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-179-0 02 1 9905- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9603-9810 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9811-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-096-0 01 1 9811-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-173-0 01 1 9610-9904 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9905- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-096-0 01 1 9905- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9603-9810 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9811-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-098-0 02 1 9811-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9905- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 9905- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9603-9810 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9811-9904 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-043-0 02 1 9811-9904 ●
20 BOLT; COUPLING TO INJ PUMP
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15789-175-0 02 1 9610-9904 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9905- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-043-0 02 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
