Isuzu WW
▶
TRUCKS
▶
CYH
▶
11318 - CYH MIDDLE EAST WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#55313) — 79 parça
◀

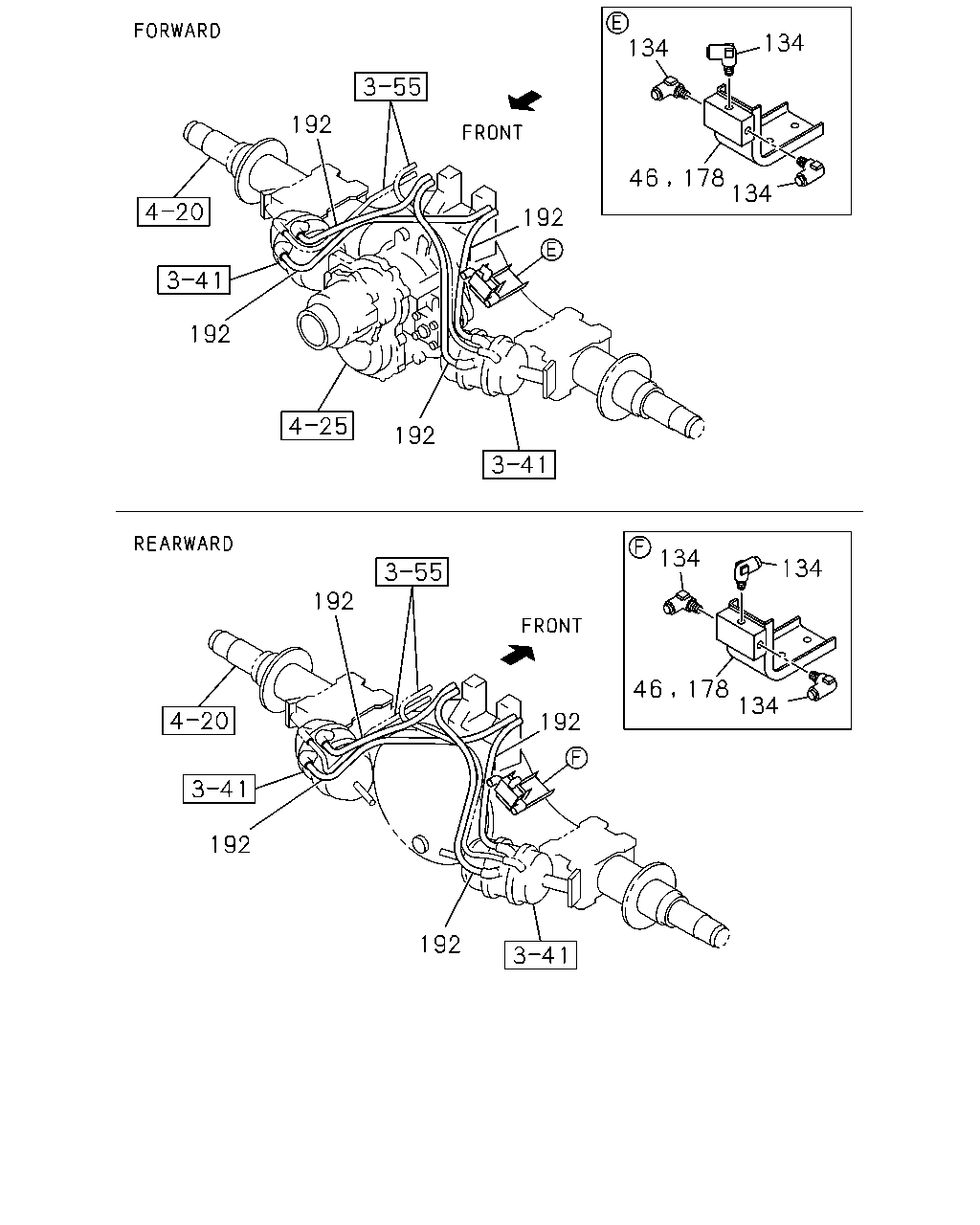

[377A] REAR AXLE SIDE NO.2 (9 parça)

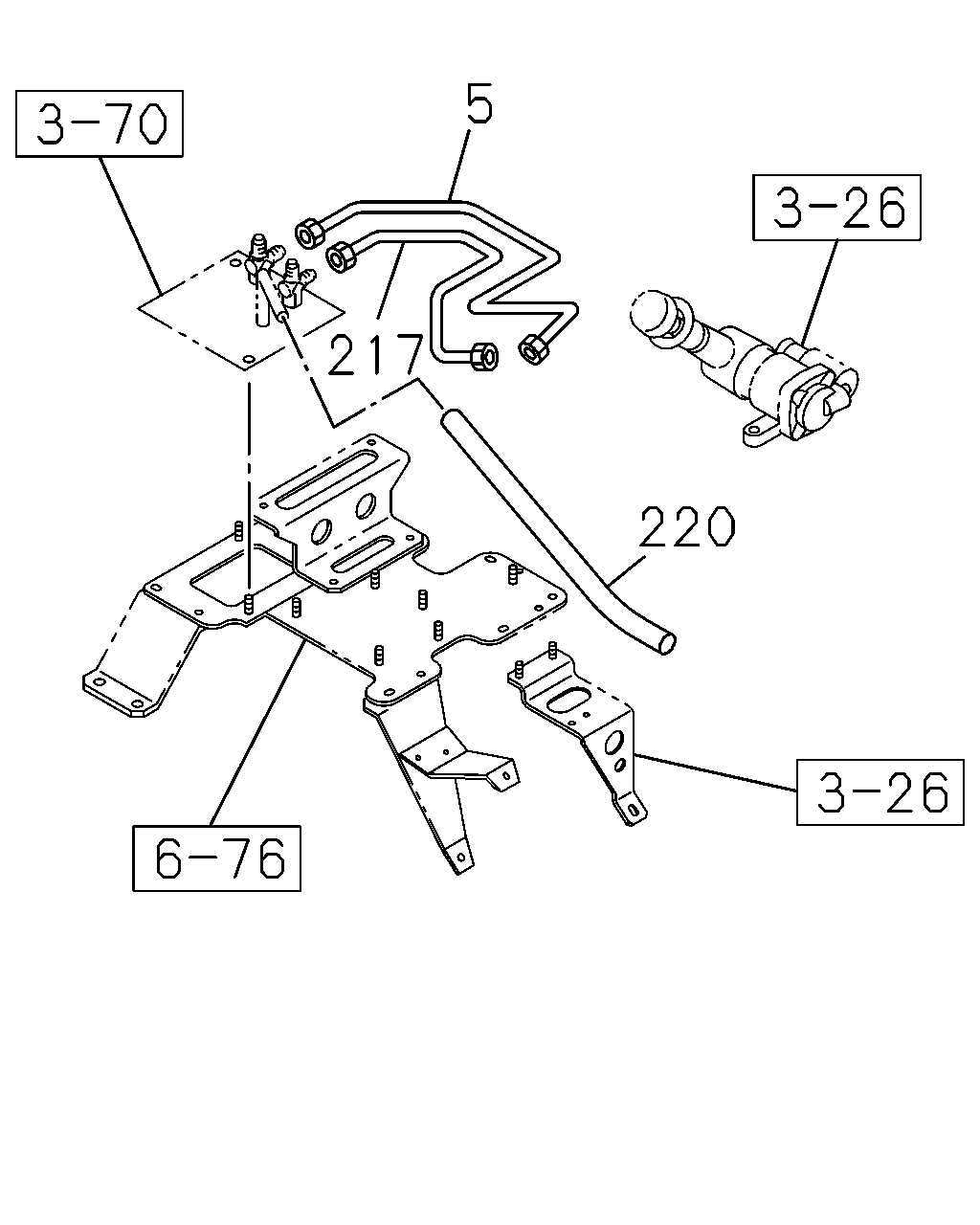

[377A] CAB SIDE NO.2 (3 parça)

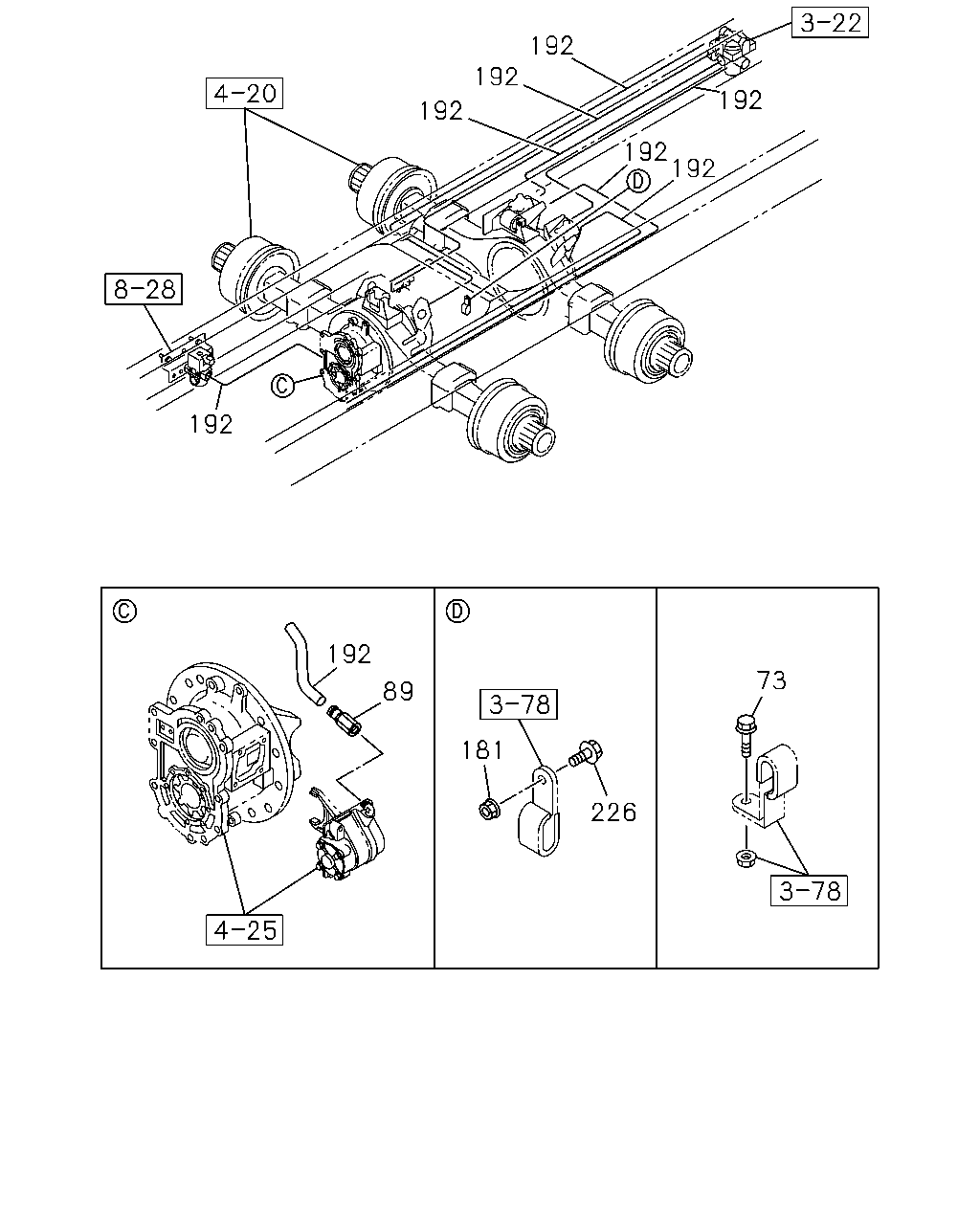

[377A] REAR AXLE SIDE NO.1 (14 parça)

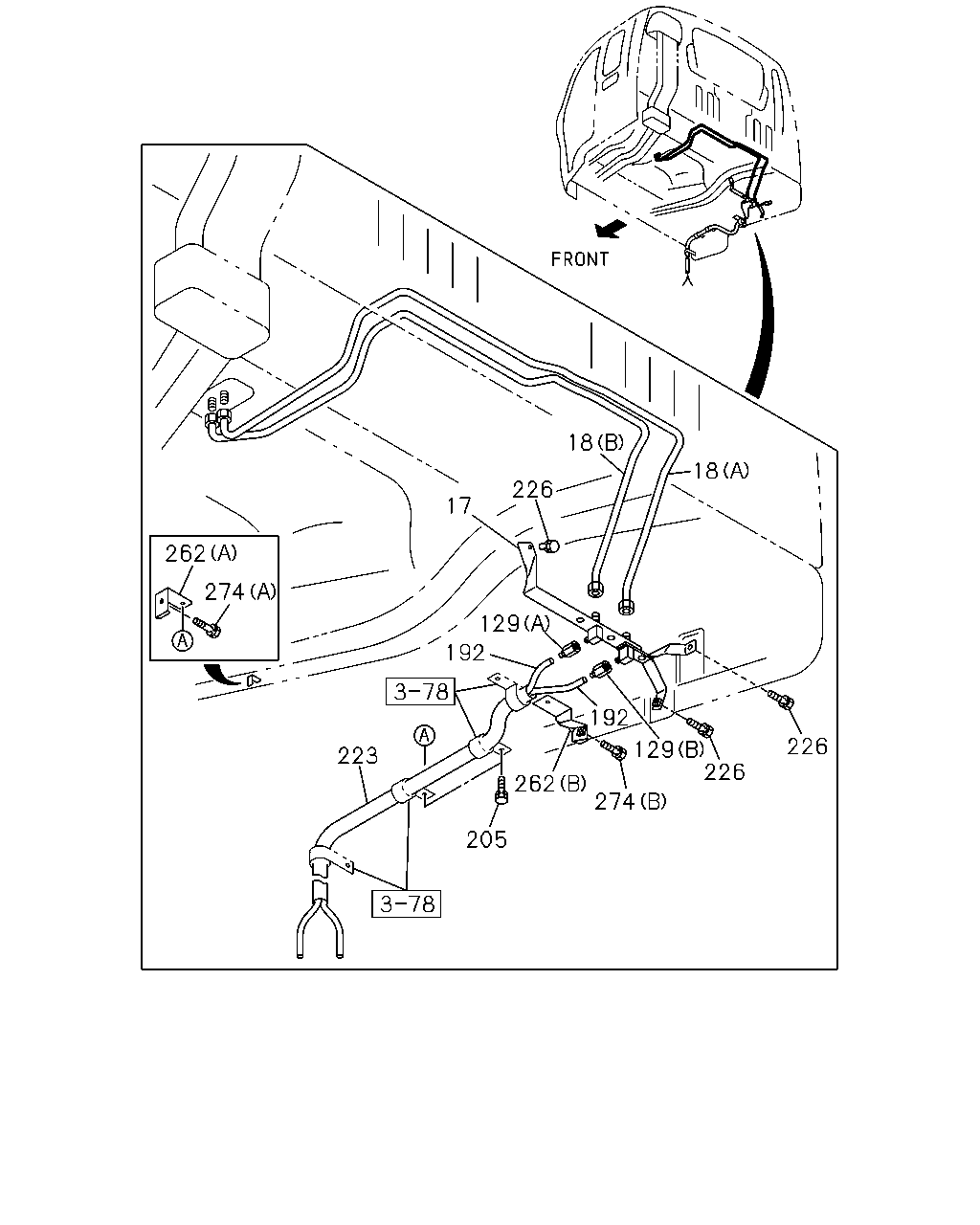

[377A] CAB SIDE NO.1 (25 parça)

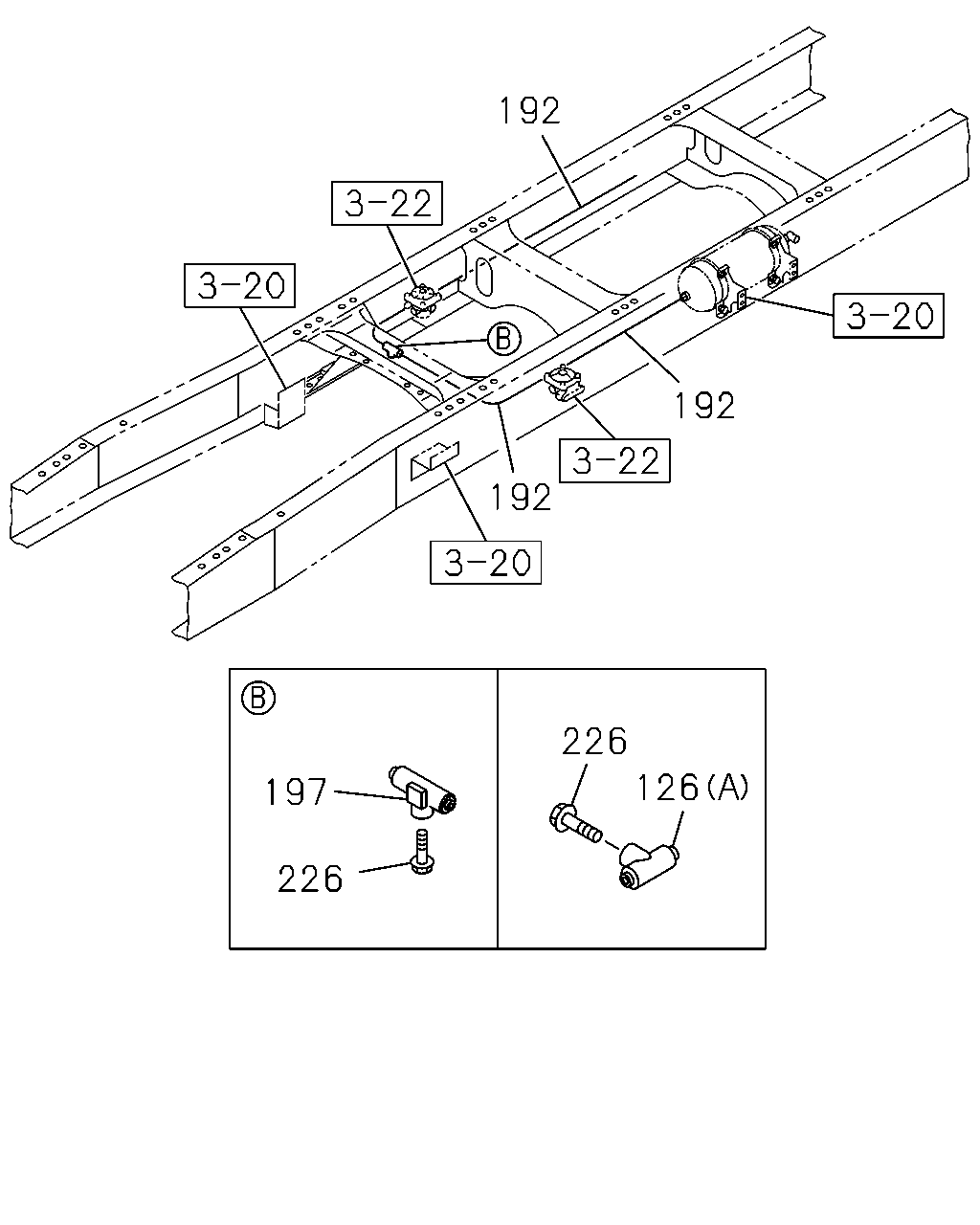

[377A] FRAME SIDE (15 parça)

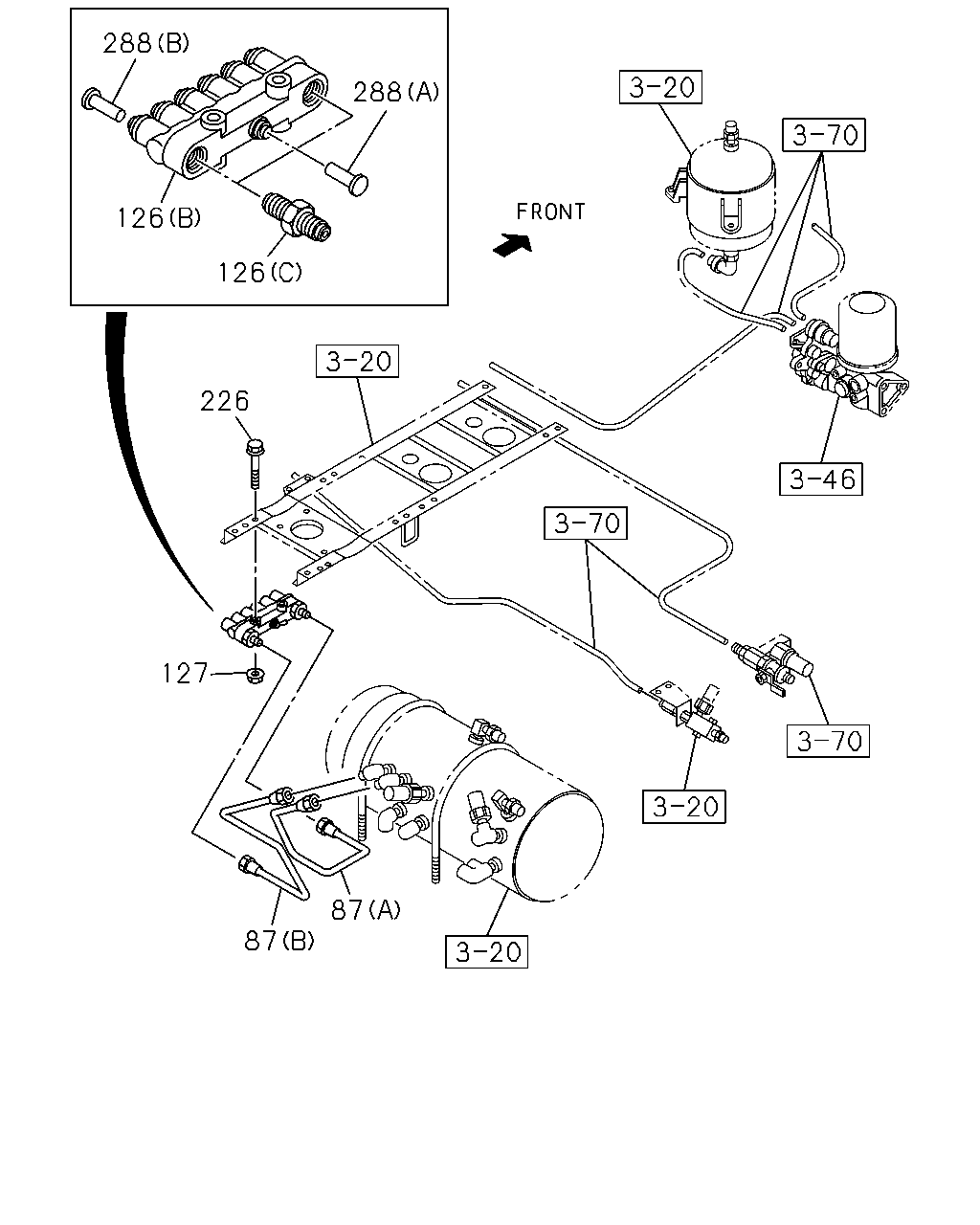

[377A] AIR TANK SIDE (13 parça)
▶
134
134
192
46
178
134
192
192
192
134
134
192
46
178
134
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
NIPPLE; AIR PIPE
1-47471-083-0
02
1
0811-0908
134
CONNECTOR
DIN12 & R3/8 ELBOW
1-09660-959-0
06
1
0811-
178
BRACKET; UNION
8-98153-830-0
02
1
0909-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0811-
5
217
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
PIPE; AIR,UNION TO PARKING VLV
1-49118-158-0
01
1
0811-
217
PIPE; AIR,PARKING BRK VLV TO UNION
1-49118-159-0
01
1
0811-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000
9-09914-701-0
01
1
0811-
192
192
192
192
192
192
192
192
73
89
181
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0811-
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0811-
181
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
02
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0811-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
02
1
0811-
226
BOLT; UNION
M8X35 FLANGE
0-28050-835-0
02
1
0811-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
0811-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0811-0904
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
18
18
226
17
262
274
129
192
192
226
129
226
223
262
274
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
1-47470-464-3
01
1
0811-
18
PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500
1-47426-423-0
01
1
0811-
18
PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950
1-47426-393-0
01
1
0811-
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0811-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0811-
205
BOLT; TUBE CLIP
M8X16 FLANGE
0-28050-816-0
03
1
0811-
205
BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0811-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0811-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0811-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=22
1-87411-030-0
AR
1
0811-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
02
1
0811-
226
BOLT; UNION
M8X35 FLANGE
0-28050-835-0
02
1
0811-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
0811-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0811-0904
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
262
BRACKET
(A)
1-79996-143-0
01
1
0811-
262
BRACKET
(B)
1-79996-258-1
01
1
0811-
274
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0811-
274
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0811-
192
192
192
226
126
197
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
UNION; NYLON TUBE
(A)
1-09661-128-0
01
1
0811-
126
UNION; NYLON TUBE
(B)
1-09661-612-1
01
1
0811-
126
UNION; NYLON TUBE
(C)
8-98107-103-0
02
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0811-
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0811-
197
UNION ASM; NYLON TUBE
1-09661-133-0
01
1
0811-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
02
1
0811-
226
BOLT; UNION
M8X35 FLANGE
0-28050-835-0
02
1
0811-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
0811-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0811-0904
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
288
288
126
126
226
127
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
PIPE; AIR,AIR TANK TO UNION
(A) L=561
1-49124-520-0
01
1
0811-
87
PIPE; AIR,AIR TANK TO UNION
(B) L=426
1-49124-521-0
01
1
0811-
126
UNION; NYLON TUBE
(A)
1-09661-128-0
01
1
0811-
126
UNION; NYLON TUBE
(B)
1-09661-612-1
01
1
0811-
126
UNION; NYLON TUBE
(C)
8-98107-103-0
02
1
0811-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
03
1
0811-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
02
1
0811-
226
BOLT; UNION
M8X35 FLANGE
0-28050-835-0
02
1
0811-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
0811-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0811-0904
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
288
PLUG
(A) OD=6 L=27
1-09661-615-0
01
1
0811-
288
PLUG
(B) OD=8
1-09661-616-0
01
1
0811-
