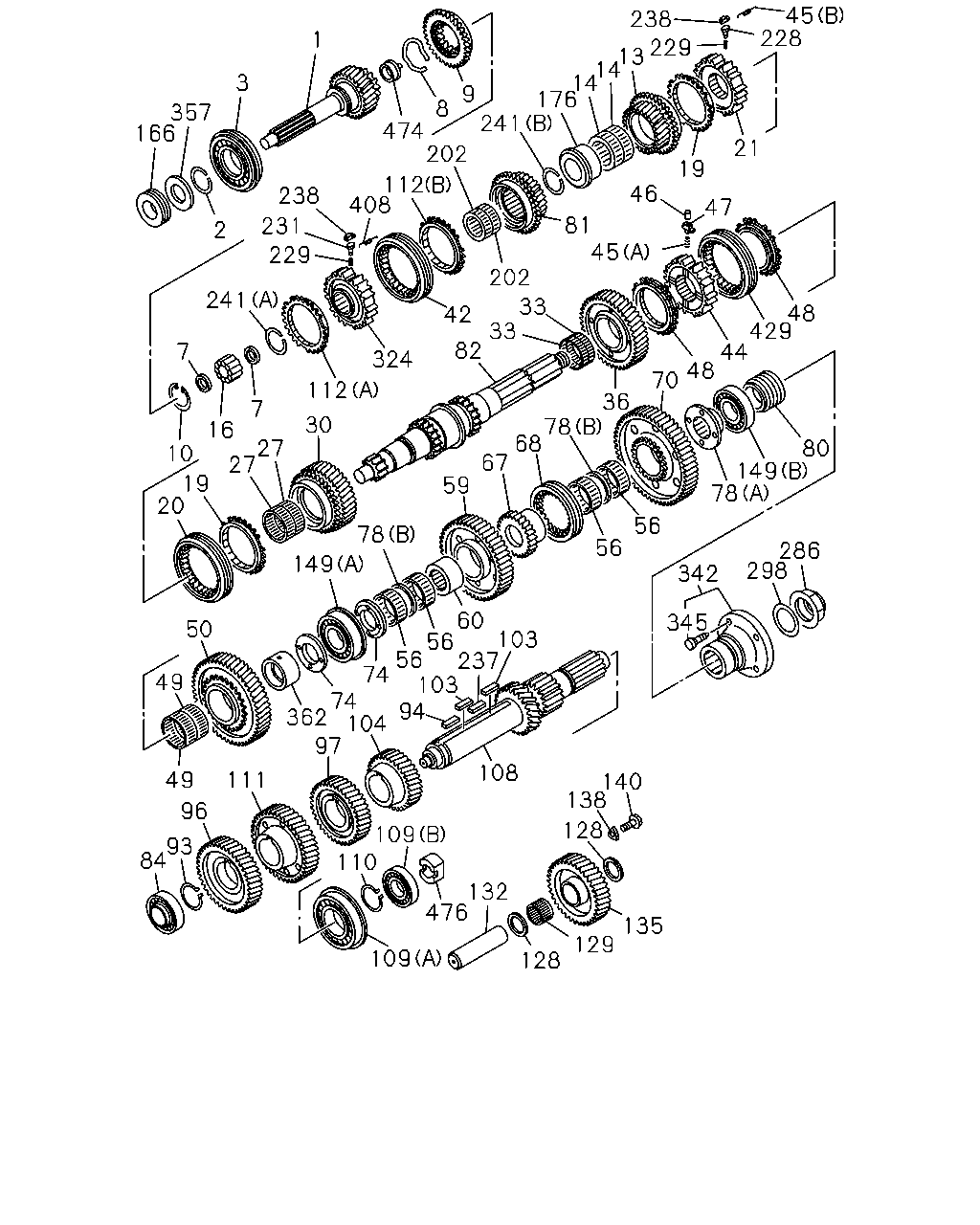

1 |
SHAFT; TOP GEAR,TRANS
Z=27
|
1-33211-992-0 |
01 |
1 |
0811- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE
|
1-09588-181-0 |
AR |
1 |
0811- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW
|
1-09588-182-0 |
AR |
1 |
0811- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE
|
1-09588-183-0 |
AR |
1 |
0811- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN
|
1-09588-184-0 |
AR |
1 |
0811- |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
1-09810-273-0 |
01 |
1 |
0811- |
| |
3 |
BEARING; TOP GEAR SHAFT
NTN
|
1-09810-274-0 |
01 |
1 |
0811- |
| |
7 |
WASHER; THRUST,MAINSHAFT
|
1-33239-262-0 |
02 |
1 |
0811- |
| |
8 |
CLIP; DOG CLU
|
1-33219-024-0 |
01 |
1 |
0811- |
| |
9 |
CLUTCH; DOG,TOP GEAR
Z=66
|
1-33265-401-0 |
01 |
1 |
0811- |
| |
10 |
RING; SNAP,PILOT BRG
OD=72.5
|
9-09180-168-0 |
01 |
1 |
0811- |
| |
13 |
GEAR; 5TH,MAINSHAFT
Z=31
|
1-33253-673-0 |
01 |
1 |
0811- |
| |
14 |
BEARING; NEEDLE,5TH
NSK
|
1-09811-376-0 |
02 |
1 |
0811-1311 |
| |
14 |
BEARING; NEEDLE,5TH
NTN
|
1-09811-401-0 |
02 |
1 |
0811- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NSK
|
1-09810-242-0 |
16 |
1 |
0811- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NTN
|
1-09810-243-0 |
16 |
1 |
0811- |
| |
19 |
RING; BLOCK,4TH & 5TH
Z=66
|
1-33265-545-1 |
02 |
1 |
0811- |
| |
20 |
SLEEVE
|
1-33262-222-0 |
01 |
1 |
0811- |
| |
21 |
HUB; CLU,4TH & 5TH
|
1-33261-252-0 |
01 |
1 |
0811- |
| |
27 |
BEARING; 4TH GEAR
NSK
|
1-09811-376-0 |
02 |
1 |
0811-1311 |
| |
27 |
BEARING; 4TH GEAR
NTN
|
1-09811-401-0 |
02 |
1 |
0811- |
| |
30 |
GEAR; 4TH,MAINSHAFT
Z=42
|
1-33253-691-0 |
01 |
1 |
0811- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
NSK
|
1-09811-380-0 |
02 |
1 |
0811-1311 |
| |
33 |
BEARING; NEEDLE,3RD GEAR
NTN
|
1-09811-381-0 |
02 |
1 |
0811- |
| |
36 |
GEAR; 3RD,MAINSHAFT
Z=44
|
1-33252-447-0 |
01 |
1 |
0811- |
| |
42 |
SLEEVE
|
1-33262-222-0 |
01 |
1 |
0811- |
| |
44 |
HUB; CLU,2ND & 3RD,MAIN
|
1-33261-261-0 |
01 |
1 |
0811- |
| |
45 |
SPRING; BLOCK INSERT
(A)
D=3.8
|
1-09580-395-0 |
06 |
1 |
0811- |
| |
45 |
SPRING; BLOCK INSERT
(B)
|
1-09583-171-0 |
03 |
1 |
0811- |
| |
46 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
06 |
1 |
0811- |
| |
47 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
06 |
1 |
0811- |
| |
48 |
SYNCHRONIZER ASM; 2ND & 3RD
|
1-33265-612-1 |
02 |
1 |
0811- |
| |
49 |
BEARING; NEEDLE,2ND GEAR
NSK
|
1-09811-378-0 |
02 |
1 |
0811-1308 |
| |
49 |
BEARING; NEEDLE,2ND GEAR
NTN
|
1-09811-379-0 |
02 |
1 |
0811- |
| |
50 |
GEAR; 2ND,MAINSHAFT
Z=53
|
1-33251-358-1 |
01 |
1 |
0811- |
| |
56 |
BEARING; NEEDLE,1ST,REV
NSK
|
1-09811-376-0 |
04 |
1 |
0811-1311 |
| |
56 |
BEARING; NEEDLE,1ST,REV
NTN
|
1-09811-401-0 |
04 |
1 |
0811- |
| |
59 |
GEAR; REV MAINSHAFT
Z=50
|
1-33257-075-0 |
01 |
1 |
0811- |
| |
60 |
COLLAR; REV MAIN
|
1-33234-087-0 |
01 |
1 |
0811- |
| |
67 |
HUB; CLU,1ST TO REV
|
1-33261-222-0 |
01 |
1 |
0811- |
| |
68 |
SLEEVE; 1ST TO REV
|
1-33262-160-0 |
01 |
1 |
0811- |
| |
70 |
GEAR; 1ST,MAINSHAFT
Z=54
|
1-33255-070-0 |
01 |
1 |
0811- |
| |
74 |
WASHER; THRUST,REV GEAR
|
1-33239-093-1 |
02 |
1 |
0811-1503 |
| |
74 |
WASHER; THRUST,REV GEAR
|
8-98304-662-0 |
02 |
1 |
1504- |
| |
78 |
COLLAR; DIST,MAINSHAFT BRG
(A)
|
1-33235-098-0 |
01 |
1 |
0811- |
| |
78 |
COLLAR; DIST,MAINSHAFT BRG
(B)
|
1-33363-030-0 |
02 |
1 |
0811- |
| |
80 |
GEAR; SPD DRIVE
Z=5
|
1-33371-028-1 |
01 |
1 |
0811- |
| |
81 |
GEAR; 7TH,MAIN
Z=24
|
1-33253-654-0 |
01 |
1 |
0811- |
| |
82 |
SHAFT; MAIN,TRANS
Z=24-37-28-24
|
1-33231-298-0 |
01 |
1 |
0811-1503 |
| |
82 |
SHAFT; MAIN,TRANS
Z=24-37-28-24
|
8-98304-660-0 |
01 |
1 |
1504- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NTN
|
1-09810-119-0 |
01 |
1 |
0811- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NSK
|
1-09810-241-0 |
01 |
1 |
0811- |
| |
93 |
RING; SNAP,COUNTER FRT BRG
|
1-09588-149-0 |
01 |
1 |
0811- |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
L=67
|
1-09735-049-0 |
01 |
1 |
0811- |
| |
96 |
GEAR; COUNTER DRIVE
Z=41
|
1-33331-272-0 |
01 |
1 |
0811- |
| |
97 |
GEAR; 5TH,COUNTER
Z=36
|
1-33338-386-0 |
01 |
1 |
0811- |
| |
103 |
KEY; COUNTER GEAR
L=63
|
1-09735-027-0 |
01 |
1 |
0811- |
| |
103 |
KEY; COUNTER GEAR
L=67
|
1-09735-049-0 |
01 |
1 |
0811- |
| |
104 |
GEAR; 4TH,COUNTER
Z=35
|
1-33338-380-0 |
01 |
1 |
0811- |
| |
108 |
SHAFT; COUNTER
Z=24-17-12
|
1-33311-331-0 |
01 |
1 |
0811- |
| |
109 |
BEARING; COUNTER SHAFT,RR
(A)
NSK
|
1-09810-186-0 |
01 |
1 |
0811- |
| |
109 |
BEARING; COUNTER SHAFT,RR
(B)
NSK
|
1-09810-205-0 |
01 |
1 |
0811- |
| |
109 |
BEARING; COUNTER SHAFT,RR
(B)
NTN
|
1-09810-206-0 |
01 |
1 |
0811- |
| |
109 |
BEARING; COUNTER SHAFT,RR
(A)
NTN
|
1-09810-207-0 |
01 |
1 |
0811- |
| |
110 |
RING; SNAP,COUNTER BRG
|
1-09588-193-1 |
01 |
1 |
0811- |
| |
111 |
GEAR; 7TH COUNTER SHAFT
Z=50
|
1-33338-388-0 |
01 |
1 |
0811- |
| |
112 |
RING; BLOCK,7TH SYN
(A)
Z=66
|
1-33265-376-7 |
01 |
1 |
0811- |
| |
112 |
RING; BLOCK,7TH SYN
(B)
Z=66
|
1-33265-545-1 |
01 |
1 |
0811- |
| |
128 |
WASHER; THRUST,REV SHAFT
T=4.0
|
9-33363-015-0 |
02 |
1 |
0811- |
| |
129 |
BEARING; NEEDLE,IDLER
NSK
|
1-09811-384-0 |
01 |
1 |
0811- |
| |
129 |
BEARING; NEEDLE,IDLER
NTN
|
1-09811-385-0 |
01 |
1 |
0811- |
| |
132 |
SHAFT; REV
|
1-33351-025-4 |
01 |
1 |
0811- |
| |
135 |
GEAR; REV IDLER
Z=36
|
1-33361-075-0 |
01 |
1 |
0811- |
| |
138 |
PIECE; LK,REV SHAFT
|
9-33354-007-0 |
01 |
1 |
0811- |
| |
140 |
BOLT; LK PIECE
M10X25
|
1-09049-006-1 |
01 |
1 |
0811- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
(B)
NSK
|
1-09810-172-0 |
01 |
1 |
0811- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
(B)
NTN
|
1-09810-173-0 |
01 |
1 |
0811- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
(A)
NSK
|
1-09810-203-0 |
01 |
1 |
0811- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
(A)
NTN
|
1-09810-204-0 |
01 |
1 |
0811- |
| |
166 |
PIECE; DIST
|
1-33363-032-1 |
01 |
1 |
0811- |
| |
176 |
COLLAR; 5TH GEAR
|
1-33234-069-1 |
01 |
1 |
0811- |
| |
202 |
BEARING; COUNTER GEAR
NSK
|
1-09811-382-0 |
02 |
1 |
0811-1311 |
| |
202 |
BEARING; COUNTER GEAR
NTN
|
1-09811-383-0 |
02 |
1 |
0811- |
| |
228 |
PLUNGER; SYN
|
1-33263-020-0 |
03 |
1 |
0811- |
| |
229 |
SPRING; PLUNGER
D=6.2
|
1-09580-091-1 |
06 |
1 |
0811- |
| |
231 |
PLUNGER
|
1-33263-020-0 |
03 |
1 |
0811- |
| |
237 |
KEY; 5TH GEAR
L=67
|
1-09735-049-0 |
01 |
1 |
0811- |
| |
238 |
INSERT
|
1-33263-025-2 |
06 |
1 |
0811- |
| |
241 |
RING; SNAP
(A)
|
1-09588-185-0 |
01 |
1 |
0811- |
| |
241 |
RING; SNAP
(B)
|
1-09588-189-0 |
01 |
1 |
0811- |
| |
286 |
NUT; LK,MAINSHAFT
M46
|
1-09449-062-0 |
01 |
1 |
0811- |
| |
298 |
GASKET; MAINSHAFT
|
1-09623-305-0 |
01 |
1 |
0811- |
| |
324 |
HUB; CLU
|
1-33261-238-0 |
01 |
1 |
0811- |
| |
342 |
FLANGE; OUTPUT
|
1-37243-314-1 |
01 |
1 |
0811-1211 |
| |
342 |
FLANGE; OUTPUT
|
8-98210-980-0 |
01 |
1 |
1212- |
| |
345 |
BOLT; FLANGE TO YOKE
M14X48.5
|
1-09046-013-0 |
04 |
1 |
0811- |
| |
357 |
RING
|
1-31349-015-0 |
01 |
1 |
0811- |
| |
362 |
COLLAR; 2ND GEAR
|
1-33234-072-0 |
01 |
1 |
0811- |
| |
408 |
SPRING
|
1-09583-171-0 |
03 |
1 |
0811- |
| |
429 |
SLEEVE; 2ND & 3RD
|
1-33262-219-0 |
01 |
1 |
0811- |
| |
474 |
NOZZLE; OIL
|
1-33219-257-0 |
01 |
1 |
0811- |
| |
476 |
ADAPTER; PUMP DRIVE
|
1-33339-066-0 |
01 |
1 |
0811- |
