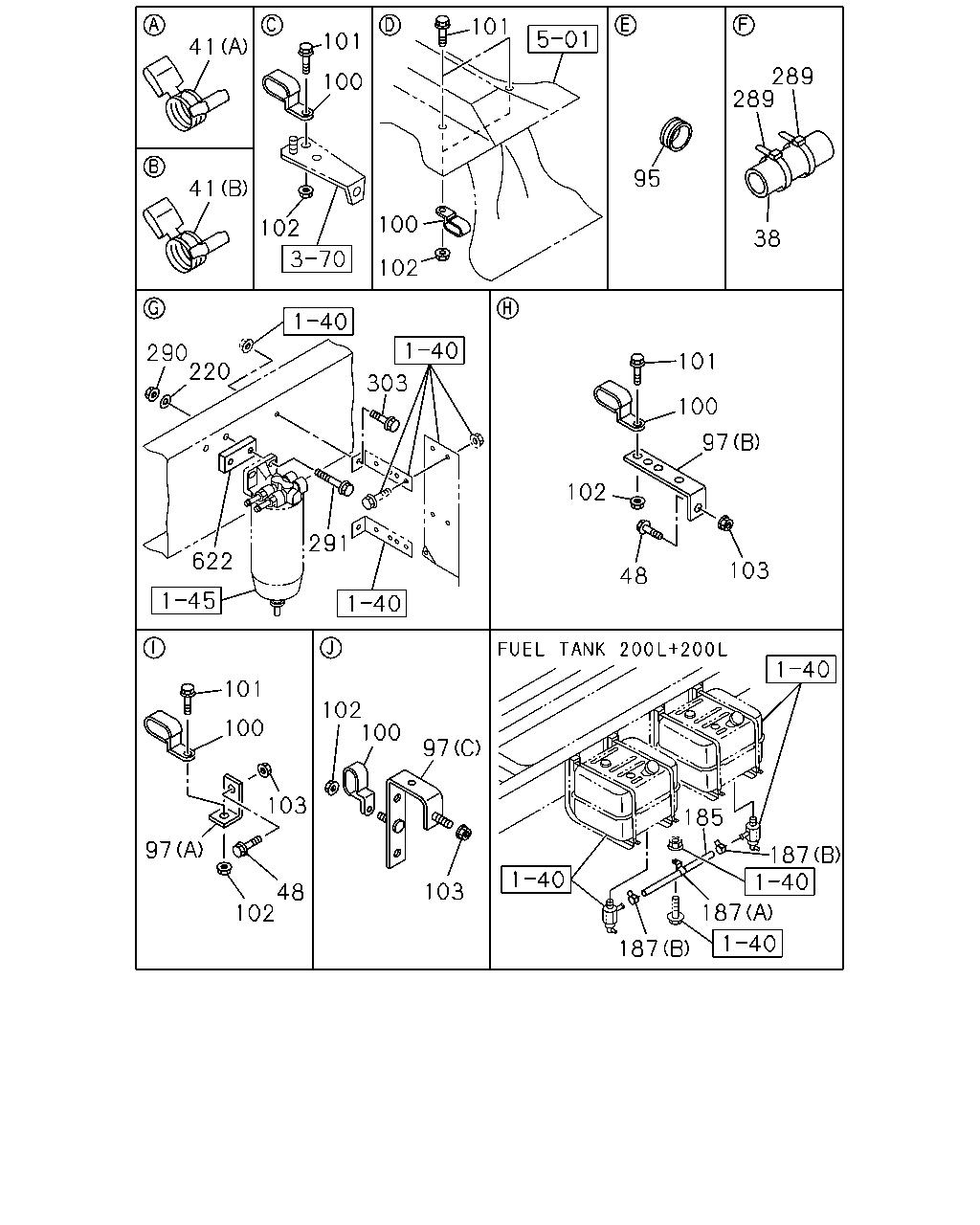

1-41 — FUEL PIPING; CHASSIS (#55277) — 26 parça
çizim 169486
101 101 41 289 289 100 95 41 100 102 38 102 290 220 101 303 100 97 102 291 622 103 48 101 102 100 100 97 103 185 97 187 103 48 102 187 187
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0811-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0811-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 0811-
48 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-
48 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0811-
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0811-
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 0811-
97 BRACKET; CLIP
(C) 		1-47479-797-0 02 1 0811-
97 BRACKET; CLIP
(B) 		1-82698-358-0 02 1 0811-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 10 1 0811-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 0811-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0811-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 10 1 0811-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0811-
185 PIPE; FUEL TANK TO TANK
FUEL TANK 200L+200L<NF7> L=1050 SERVICED BY L=3000 		0-01262-300-0 01 1 0811-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7> (B) ID=17.1 		8-94122-679-0 02 1 0811-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7> (A) ID=19 H=25 L=25 		9-09917-035-0 02 1 0811-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0811-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 05 1 0811-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0811-
303 BOLT; BRKT
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 02 1 0811-
622 SPACER; BRKT 8-98124-944-0 01 1 0811-

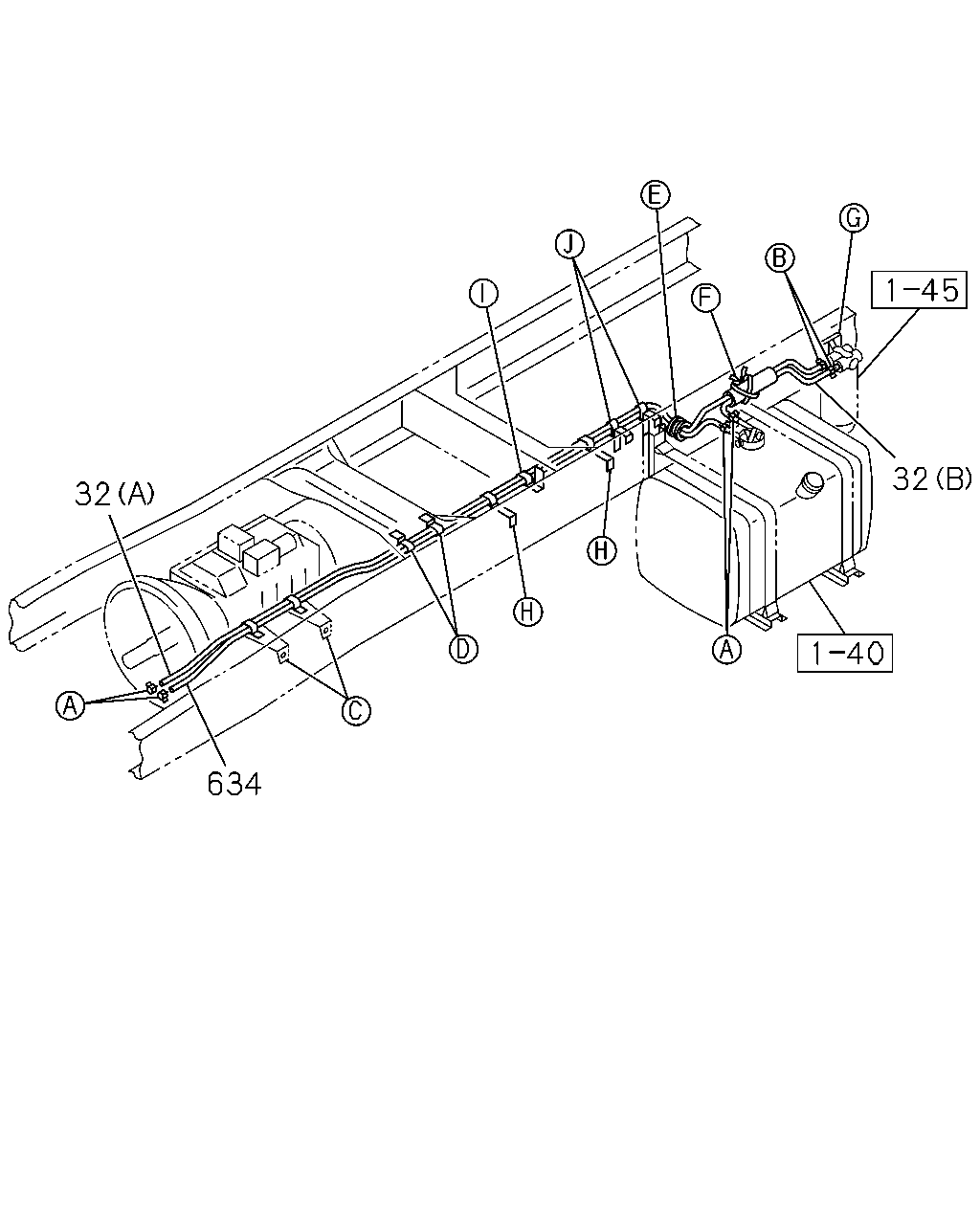

çizim 169734
32 32 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=500 SERVICED BY L=3000 		0-01260-300-0 01 1 0811-
32 PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350 		0-01262-535-0 01 1 0811-
634 HOSE; RUBBER RETURN
L=3450 SERVICED BY L=8000 		0-01260-800-0 01 1 0811-
