1-40 — FUEL TANK (#55276) — 53 parça

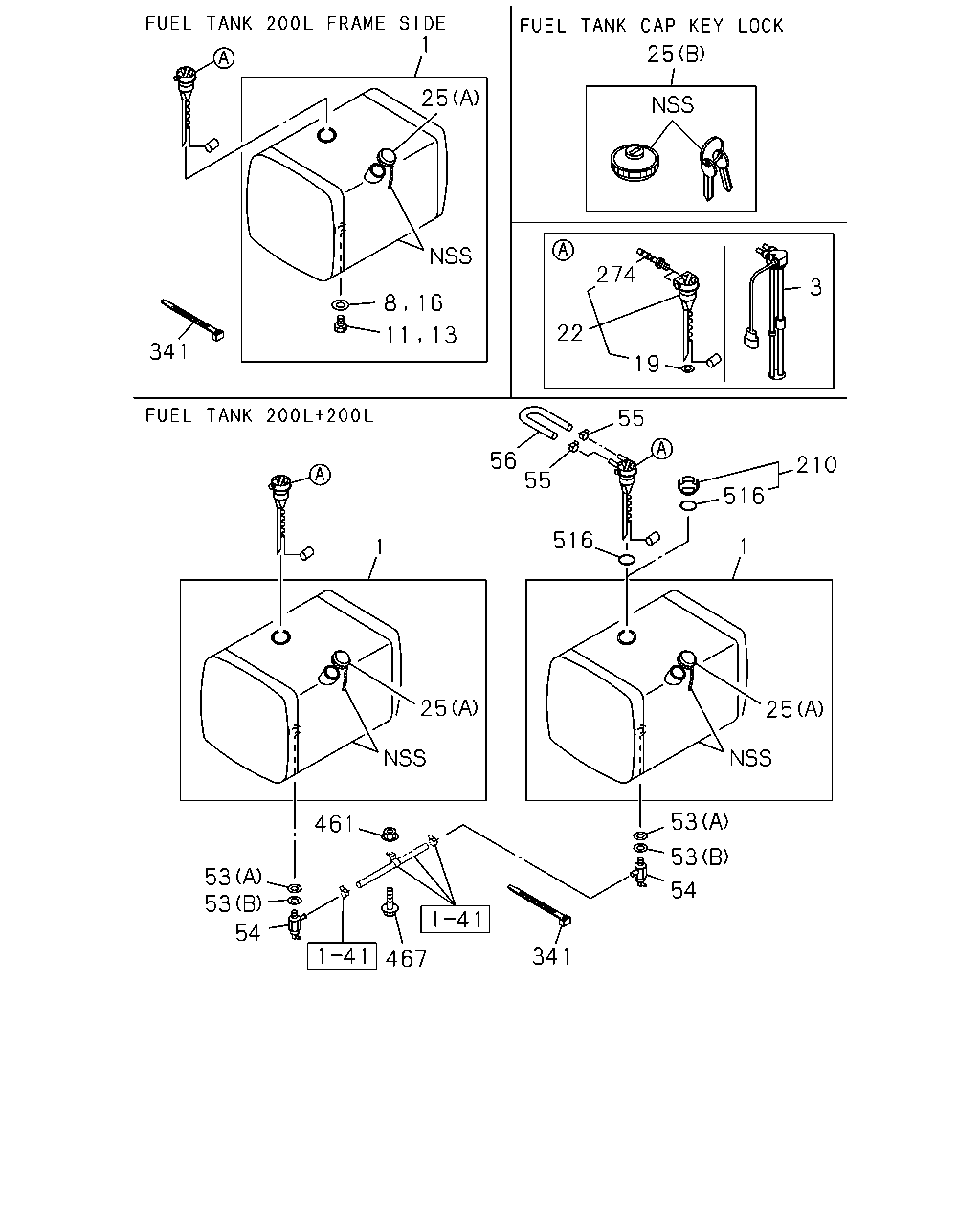

çizim 169714
1 25 8 16 11 13 22 274 19 55 56 516 516 210 25 3 55 1 25 53 53 54 341 461 53 53 54 467 1 25 341
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 200L+200L<NF7> 745X650X480 200L 		1-87411-169-0 02 1 0811-
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> 745X650X480 200L 		1-87411-169-0 01 1 0811-
3 UNIT; FUEL TANK,SUB 8-98217-750-0 01 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7> ID=18.2 T=1.6 		8-98030-453-0 02 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7> 		8-98030-605-0 02 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L<NF7> 		9-09904-176-0 02 1 1211-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> M18X12 		0-92002-418-0 01 1 1211-
13 PLUG; SCREW,SUB TANK JOINT
FUEL TANK 200L FRAME SIDE<N20> M18X12 		0-92002-418-0 01 1 0811-1210
16 GASKET; PLUG
FUEL TANK 200L FRAME SIDE<N20> ID=18.2 T=1.6 		8-98030-453-0 01 1 0811-1210
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 0811-1210
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211-
22 UNIT; FUEL TANK 1-83141-131-0 01 1 0811-1210
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7> (A) 		1-22440-056-0 02 1 0811-
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (B) 		1-22440-057-2 02 1 0811-1210
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7> FUEL TANK CAP KEY LOCK<N05> (B) 		1-22440-057-2 02 1 1211-
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> (B) 		1-22440-057-2 01 1 0811-1210
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> (B) 		1-22440-057-2 01 1 1211-
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) 		1-22440-056-0 01 1 0811-
53 GASKET; COCK,FUEL TANK
FUEL TANK 200L+200L<NF7> (B) ID=18.2 T=1.6 		8-98030-453-0 02 1 0811-1210
53 GASKET; COCK,FUEL TANK
FUEL TANK 200L+200L<NF7> (A) 		8-98030-605-0 02 1 0811-1210
54 COCK ASM; FUEL TANK
FUEL TANK 200L+200L<NF7> 		9-09904-176-0 02 1 0811-1210
55 CLIP; FUEL PIPE
FUEL TANK 200L+200L<NF7> ID=14 		1-09704-102-0 02 1 0811-
56 PIPE; FUEL SHUTTER
FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000 		0-01260-300-0 01 1 0811-
210 CAP; FUEL TANK
FUEL TANK 200L+200L<NF7> 		1-22411-076-0 01 1 0811-
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 0811-1210
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 200L+200L<NF7> L=350 		1-09707-183-0 02 1 0811-
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 200L FRAME SIDE<N20> L=350 		1-09707-183-0 01 1 0811-
461 NUT; CLIP,FUEL PIPE
FUEL TANK 200L+200L<NF7> M8 FLANGE 		0-91180-108-0 02 1 0811-
467 BOLT
FUEL TANK 200L+200L<NF7> M8X25 FLANGE 		0-28650-825-0 02 1 0811-
516 GASKET; CAP
ID=78 		8-98259-383-0 01 1 1312-
516 GASKET; CAP
FUEL TANK 200L+200L<NF7> ID=58 		1-83149-005-0 01 1 0811-1212

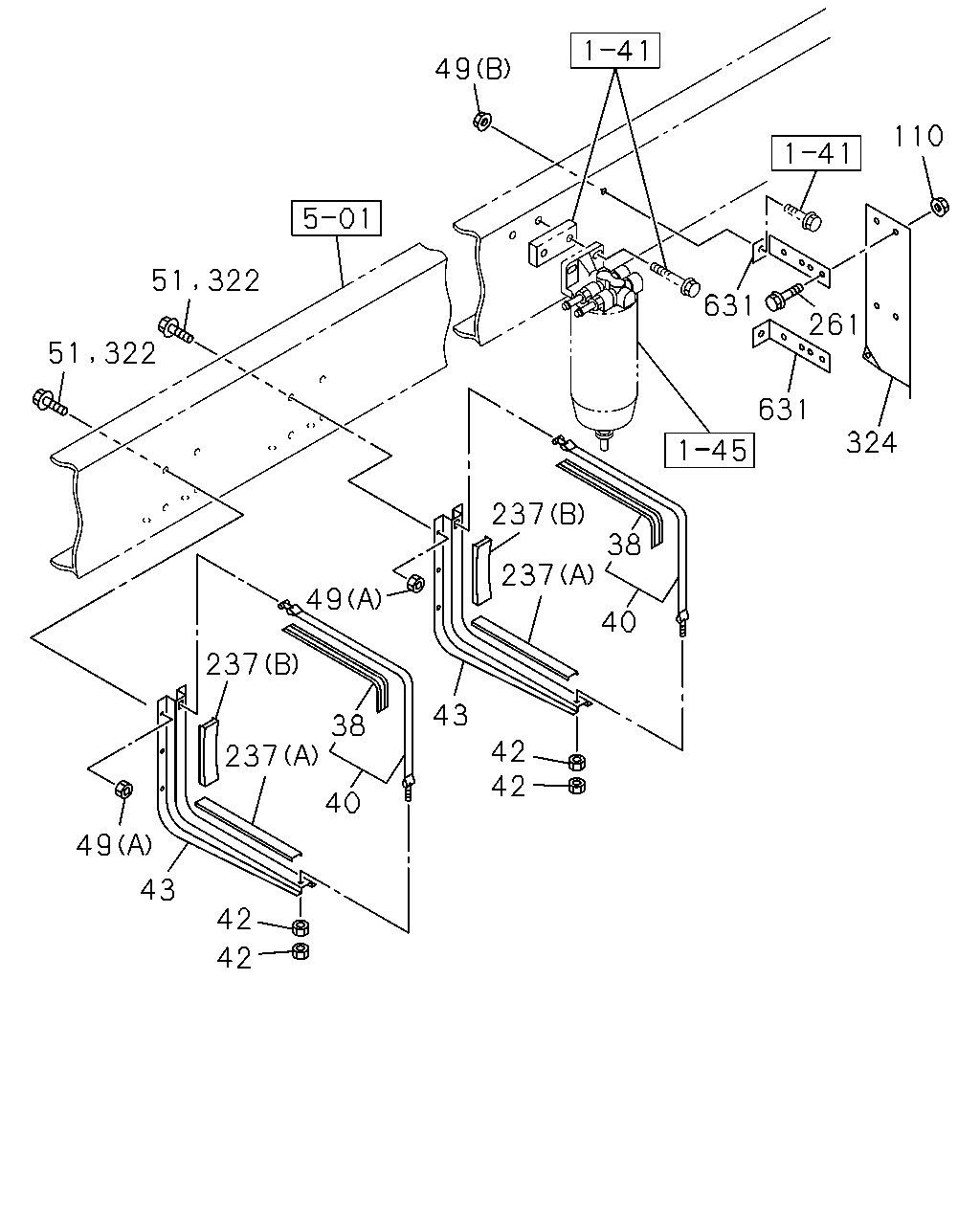

çizim 169735
49 110 322 51 631 261 51 322 631 324 237 38 237 49 40 237 43 38 42 42 237 40 49 43 42 42
BalonParca AdiParca NoAdetTipApplied Date
38 INSULATION; SUPPORT BELT
FUEL TANK 200L+200L<NF7> L=960 		1-22553-044-0 04 1 0811-
38 INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> L=960 		1-22553-044-0 02 1 0811-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L<NF7> 		1-22550-262-0 04 1 0811-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22550-262-0 02 1 0811-
42 NUT; SUPPORT BELT
FUEL TANK 200L+200L<NF7> M10 		0-91110-510-0 08 1 0811-
42 NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> M10 		0-91110-510-0 04 1 0811-
43 BRACKET; FUEL TANK
FUEL TANK 200L+200L<NF7> 		1-53461-543-0 04 1 0811-
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-543-0 02 1 0811-
49 NUT; BRKT
FUEL TANK 200L+200L<NF7> (A) M12 		0-91110-512-0 16 1 0811-
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> (A) M12 		0-91110-512-0 08 1 0811-
49 NUT; BRKT
WHEEL BASE 6300MM(63W) (B) M8 FLANGE 		0-91180-108-0 02 1 0811-
51 BOLT; BRKT TO FRAME
FUEL TANK 200L+200L<NF7> M12X40 FLANGE 		0-28051-240-0 16 1 0811-
110 NUT; PROTECTOR
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 04 1 0811-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L<NF7> (B) L=340 		1-22553-043-2 04 1 0811-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L<NF7> (A) L=540 		1-22553-064-1 04 1 0811-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (B) L=340 		1-22553-043-2 02 1 0811-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) L=540 		1-22553-064-1 02 1 0811-
261 BOLT; PROTECTOR
WHEEL BASE 6300MM(63W) M8X20 FLANGE 		0-28650-820-0 04 1 0811-
322 BOLT; BRKT FIX
FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE 		0-28051-235-0 08 1 0811-
324 PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 6300MM(63W) 		1-47471-216-0 01 1 0811-
631 BRACKET; PROTECTOR
WHEEL BASE 6300MM(63W) 		1-82698-358-0 02 1 0811-
