Isuzu WW
▶
TRUCKS
▶
CYH
▶
11318 - CYH MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

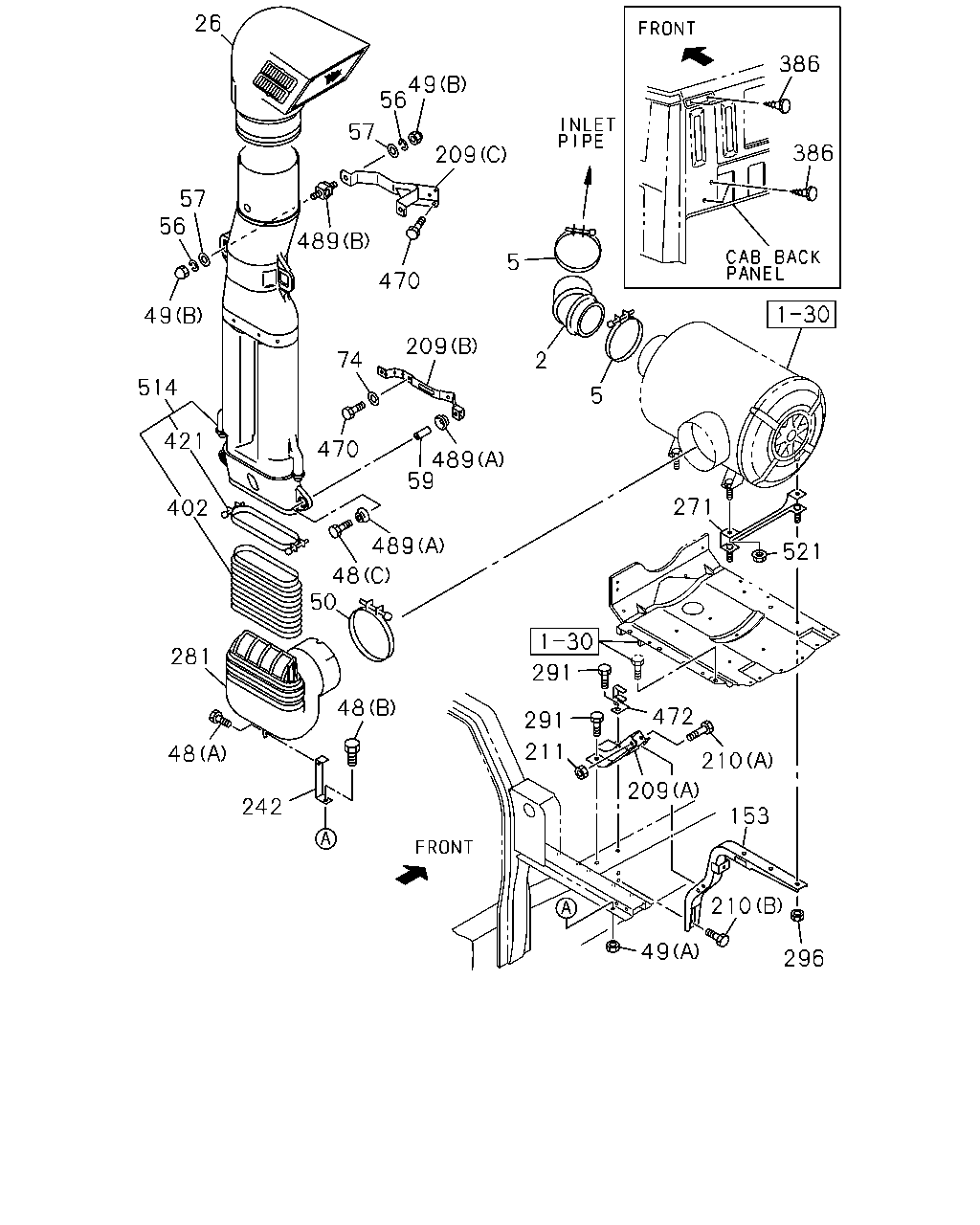

1-31 — AIR DUCT
(#55274) — 35 parça
26
386
49
56
57
386
209
57
56
489
5
470
49
209
74
2
514
5
421
470
489
59
271
402
521
489
48
50
281
291
48
472
291
211
48
210
209
242
153
210
49
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-955-1
01
1
0811-
5
CLIP; AIR DUCT
ID=130-169
1-09707-157-0
02
1
0811-
26
DUCT; AIR INT
1-14219-258-1
01
1
0811-
48
BOLT; AIR DUCT
(A) M8X25 FLANGE
0-28650-825-0
01
1
0811-
48
BOLT; AIR DUCT
(B) M10X25 FLANGE
0-28651-025-0
01
1
0811-
48
BOLT; AIR DUCT
(C) M10X26
1-09030-044-1
02
1
0811-
49
NUT; AIR DUCT
(A) M10 FLANGE
0-91180-210-0
01
1
0811-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-126-0
04
1
0811-
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
0811-
56
WASHER; LK,AIR INT DUCT
ID=8.2
1-09985-177-0
04
1
0811-
57
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
1-09985-188-0
04
1
0811-
59
TUBE; DIST,AIR INT DUCT
1-79998-228-0
02
1
0811-
74
WASHER; PL,ACL
ID=8.4 OD=22
1-09985-188-0
01
1
0811-
153
BRACKET; ACL,FRT
1-53419-265-1
01
1
0811-
209
BRACKET; ACL
(A)
1-53419-276-0
01
1
0811-
209
BRACKET; ACL
(C)
1-79990-045-2
01
1
0811-
209
BRACKET; ACL
(B)
8-98115-405-1
01
1
0811-
210
BOLT; ACL BRKT
(A) M8X70 FLANGE
0-28050-870-0
02
1
0811-
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0811-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0811-
242
BRACKET; AIR DUCT
1-23957-006-0
01
1
0811-
271
SPACER; BRKT,ACL
1-53419-343-1
02
1
0811-
281
DUCT; AIR,VERTICAL INT
1-14230-194-0
01
1
0811-
291
BOLT; ACL
M12X30 FLANGE
0-28051-230-0
02
1
0811-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0811-
386
PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5
1-76378-157-0
01
1
0811-
386
PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5
1-76378-157-0
04
1
0811-
402
GASKET; RUBBER
1-14230-149-2
01
1
0811-
421
CLAMP; AIR DUCT
1-14239-237-0
01
1
0811-
470
BOLT; BRKT
M8X25 FLANGE
8-98074-570-0
04
1
0811-
472
STOPPER; LINK ROD
1-33659-227-0
01
1
0811-
489
RUBBER; SUPPORT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0811-
489
RUBBER; SUPPORT
(B)
8-97080-149-0
02
1
0811-
514
DUCT; PRE CLEANER
1-14230-170-1
01
1
0811-
521
NUT; SPACER
M8 FLANGE
0-91180-108-0
04
1
0811-
