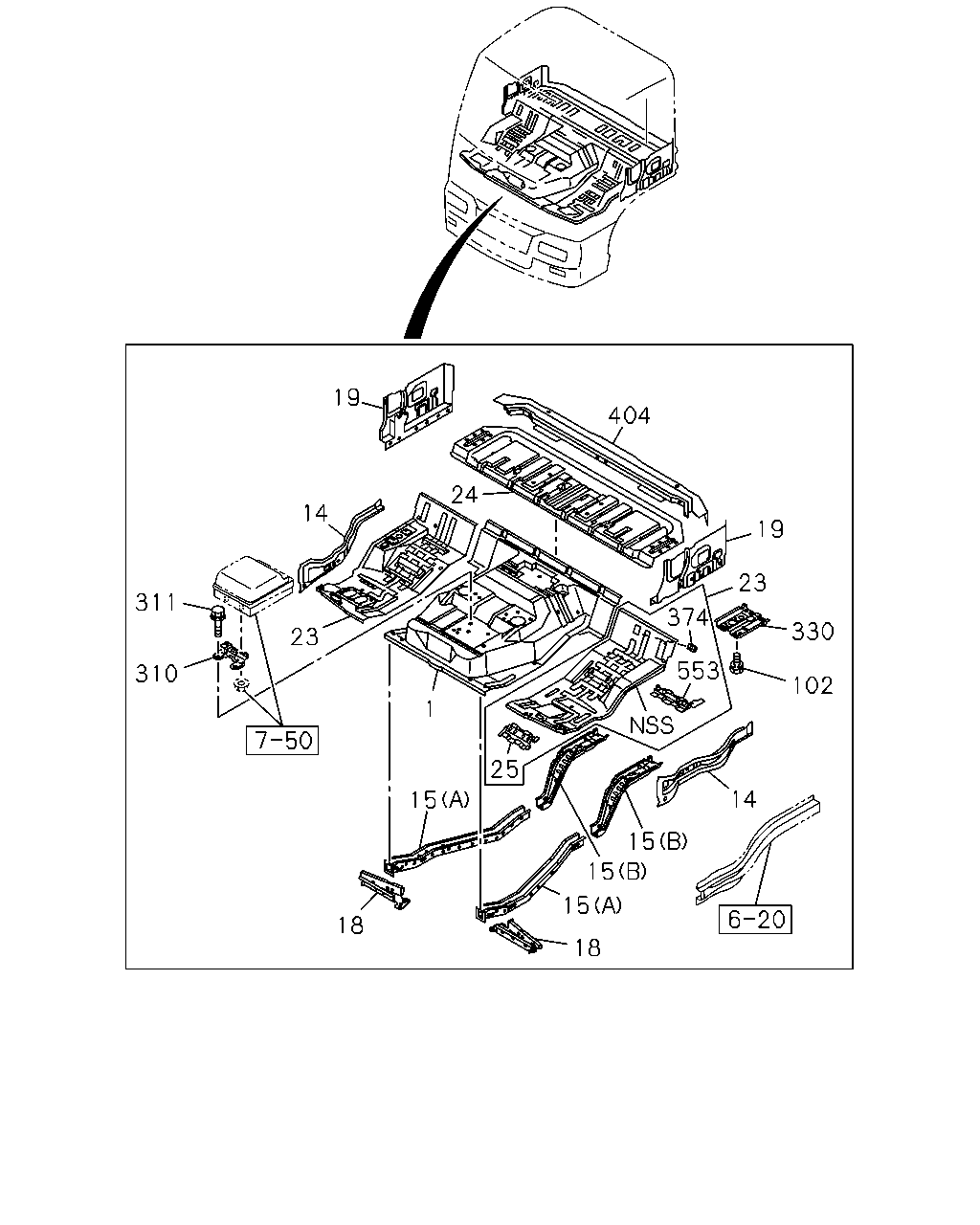

6-70 — FLOOR PANEL (#55267) — 27 parça

19 404 19 23 330 102 14 15 15 15 18 18 15 25 310 311 23 14 1 374 553 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL; FLOOR	1-62172-627-5	01	1	1008-1306
1	PANEL; FLOOR	8-98198-730-0	01	1	1307-
14	PANEL; FLOOR SIDE,FRT	1-62482-917-6	01	1	1008-
14	PANEL; FLOOR SIDE,FRT	1-62482-918-6	01	1	1008-
15	FRAME; UNDER (B)	1-62472-598-6	01	1	1008-
15	FRAME; UNDER (A)	1-62472-669-3	01	1	1008-
15	FRAME; UNDER (A)	1-62472-670-3	01	1	1008-
15	FRAME; UNDER (B)	1-62472-680-1	01	1	1008-
18	FRAME; FLOOR,CENTER SIDE	1-62472-671-3	01	1	1008-
18	FRAME; FLOOR,CENTER SIDE	1-62483-105-5	01	1	1008-
19	PANEL; FLOOR SIDE,REAR	1-62472-659-2	01	1	1008-
19	PANEL; FLOOR SIDE,REAR	1-62472-660-2	01	1	1008-
23	PANEL; FLOOR,SIDE	1-62172-800-0	01	1	1008-1306
23	PANEL; FLOOR,SIDE	8-98198-725-0	01	1	1307-
23	PANEL; FLOOR,SIDE DUMP CONTROL LEVER<RC4>	1-62172-803-0	01	1	1008-
23	PANEL; FLOOR,SIDE EXC. DUMP CONTROL LEVER<RC4>	1-62172-805-0	01	1	1008-
24	PANEL; BED PAN	1-62172-540-9	01	1	1008-
25	REINFORCEMENT; FRAME FLOOR,FRT	1-62172-780-2	01	1	1008-
102	BOLT; FLOOR BOARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-
310	BRACKET; SEAT STAND EXC. CENTER SEAT DELETE(SP9)	1-76397-015-0	01	1	1008-1306
310	BRACKET; SEAT STAND CENTER SEAT(SA1)	1-76397-015-0	01	1	1307-
311	BOLT; BRKT EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-1306
311	BOLT; BRKT CENTER SEAT(SA1) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1307-
330	REINFORCEMENT; FLOOR	1-62172-585-5	01	1	1008-
374	NUT; FLOOR M6	1-09984-110-0	05	1	1008-
404	RAIL ASM; MTG,RR	1-62472-596-8	01	1	1008-
553	REINFORCEMENT; SEAT STAND RR	1-62172-797-0	01	1	1008-
