Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

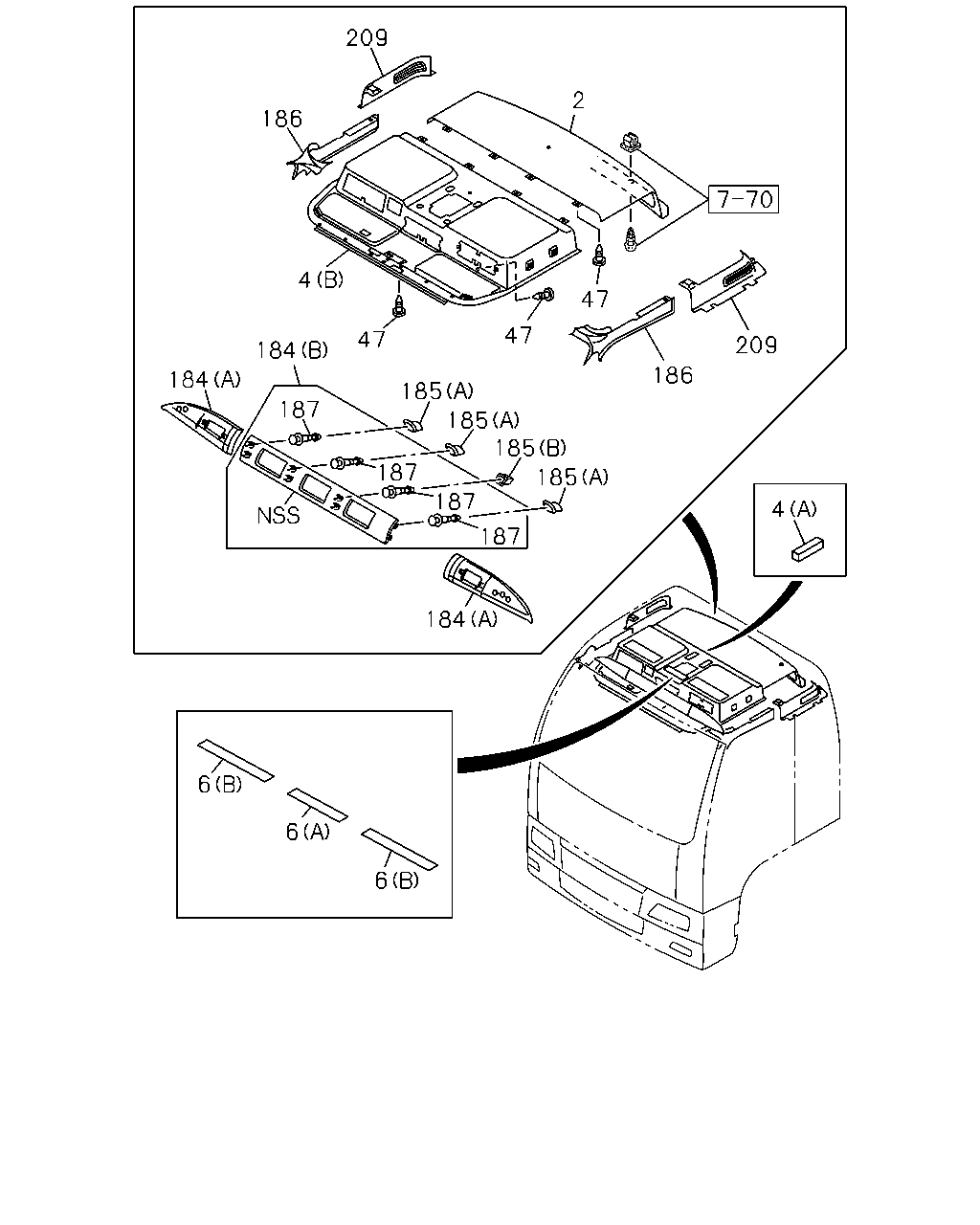

6-66 — HEAD LINING AND TRIM
(#55266) — 20 parça
209
186
4
2
47
47
47
186
209
184
184
187
185
185
185
185
187
187
187
184
6
6
6
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING; HD,ROOF RR
1-73317-502-2
01
1
1008-
4
LINING; ROOF,FRT
(A)
1-73317-436-0
02
1
1008-
4
LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> (B)
1-73317-518-3
01
1
1008-
4
LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG> (B)
1-73317-519-3
01
1
1008-
6
SPACER; HD LINING
(A) 130X300
1-73317-435-2
01
1
1008-
6
SPACER; HD LINING
(B) 140X800
1-73317-429-2
02
1
1008-
47
CLIP; HEADLINING
D5X14.7
1-09983-183-0
05
1
1008-
47
CLIP; HEADLINING
D6X23 LIGHT GRAY
1-73318-629-0
11
1
1008-
47
CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
1008-
47
CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> D7.7X25 LIGHT GRAY
1-73317-371-0
08
1
1008-
184
ORNAMENT; ROOF
(B)
1-73318-660-3
01
1
1008-
184
ORNAMENT; ROOF
(A)
1-73317-409-2
01
1
1008-
184
ORNAMENT; ROOF
(A)
1-73317-408-2
01
1
1008-
185
GROMMET; ORNAMENT
(A)
1-79198-012-0
06
1
1008-
185
GROMMET; ORNAMENT
(B)
1-79198-013-0
02
1
1008-
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-013-2
01
1
1008-
186
TRIM; ROOM,CANT RAIL SIDE
1-73346-012-2
01
1
1008-
187
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
1008-
209
COVER; GRILLE
1-73347-866-3
01
1
1008-
209
COVER; GRILLE
1-73347-865-3
01
1
1008-
