Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

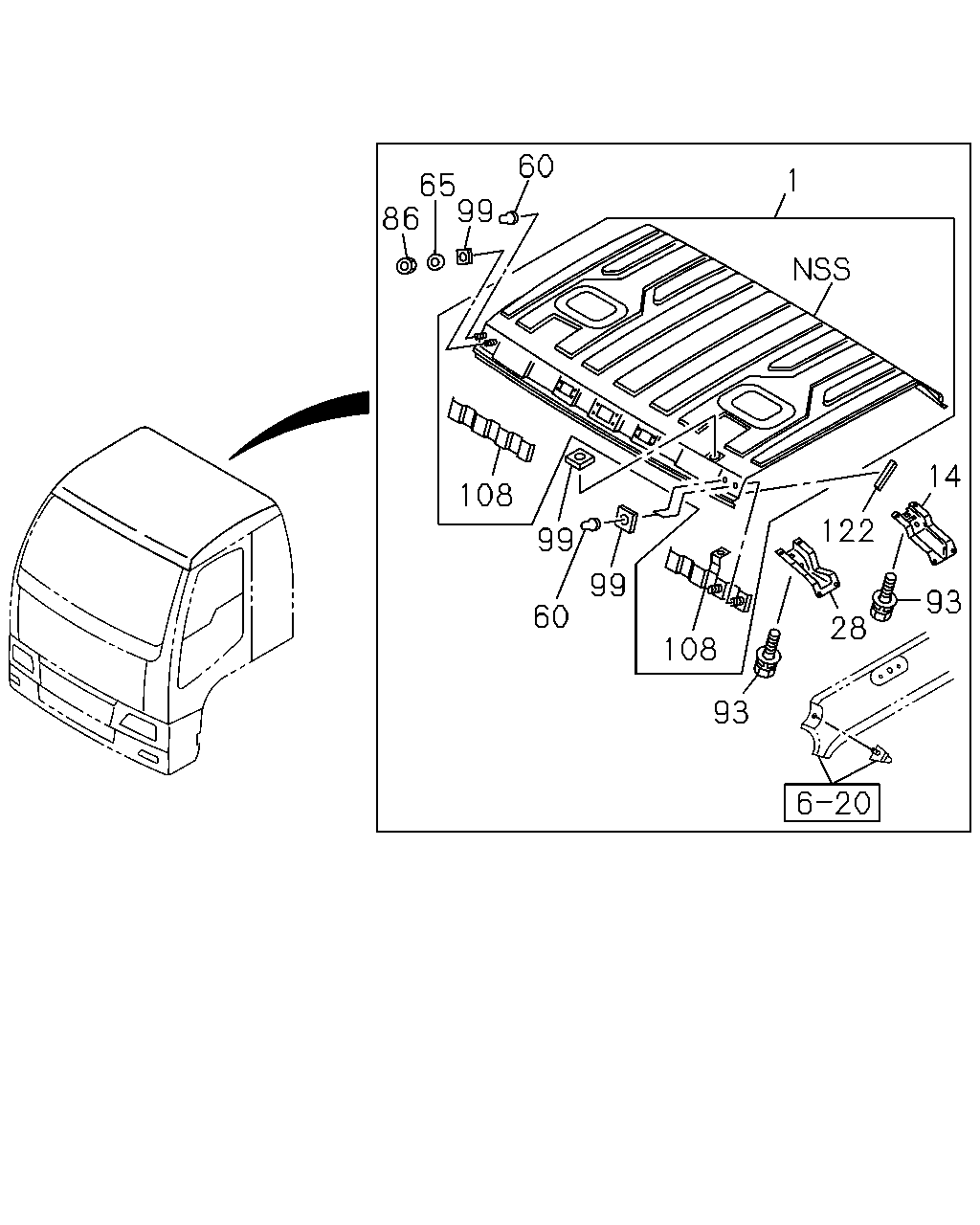

6-60 — ROOF PANEL
(#55265) — 23 parça
14
93
28
122
1
93
108
60
99
99
108
99
60
65
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
1-61170-861-0
01
1
1008-
14
SUPPORT; ROOF
1-73318-595-3
02
1
1008-
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
1008-
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
1008-
60
COVER; ROOF
1-79998-922-3
03
1
1008-
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
02
1
1008-1306
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
01
1
1307-
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
02
1
1008-1306
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
01
1
1307-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
1008-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
06
1
1307-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
10
1
1008-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
1008-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
1008-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
10
1
1008-1306
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
04
1
1307-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
1008-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
1008-
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-1
02
1
1008-
99
SEAL; BODY,METAL
75X50 ID=36
1-61281-458-1
02
1
1008-
108
PATCH; MIRROR
1-61170-772-3
01
1
1008-
108
PATCH; MIRROR
1-61170-862-1
01
1
1008-
122
SEAL; FRT UPR
1-61270-973-0
02
1
1008-
