6-47 — MUD GUARD AND INSULATOR (#55264) — 175 parça

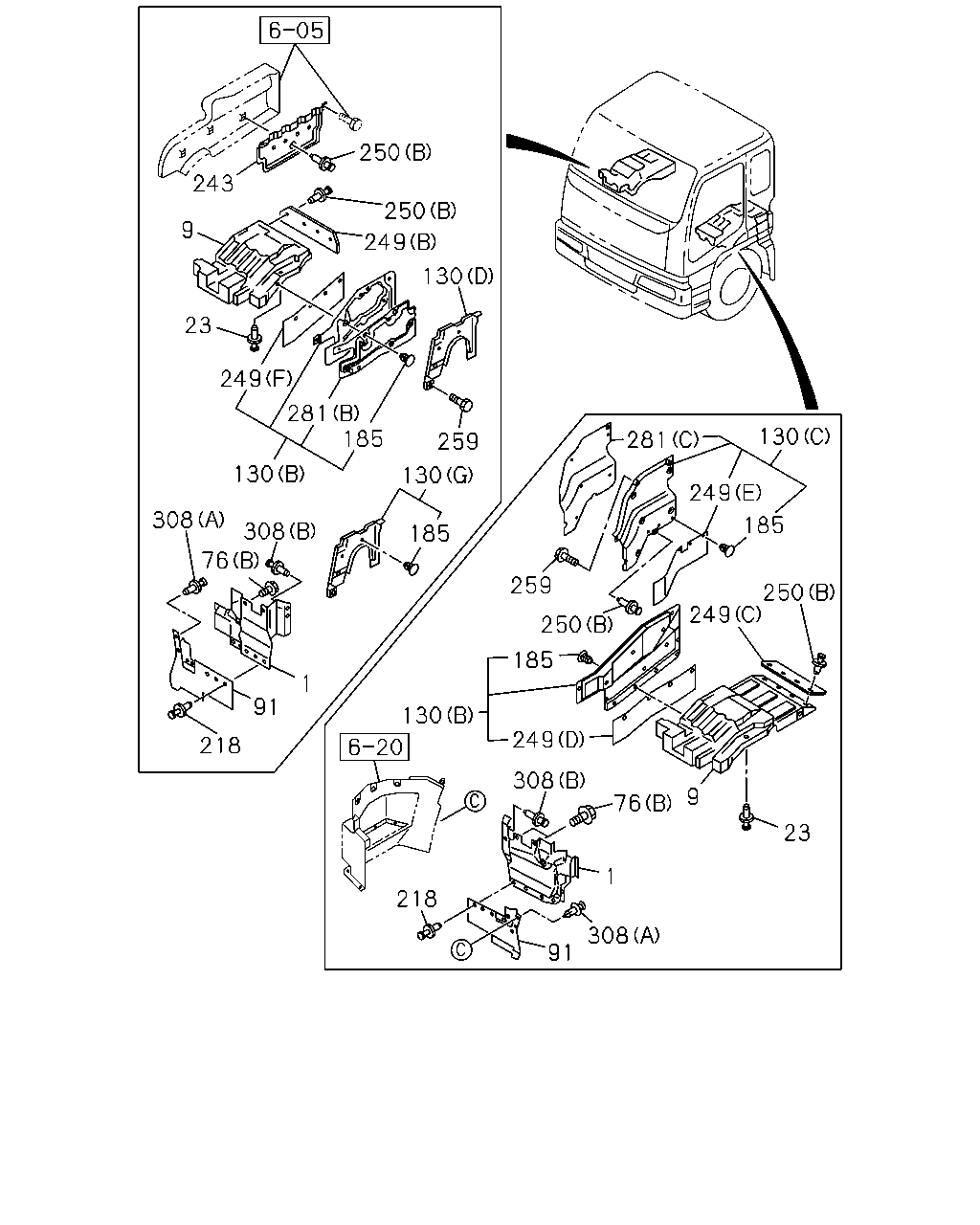

çizim 171139
130 249 185 250 249 250 259 281 185 249 308 76 9 23 1 308 130 218 91 1 91 218 308 308 76 130 130 185 259 185 281 249 23 249 250 130 250 243 9
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1008-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1008-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1008-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1008-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1307-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1307-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1008-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1008-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-1306
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1307-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1306
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1008-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1307-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1008-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1008-

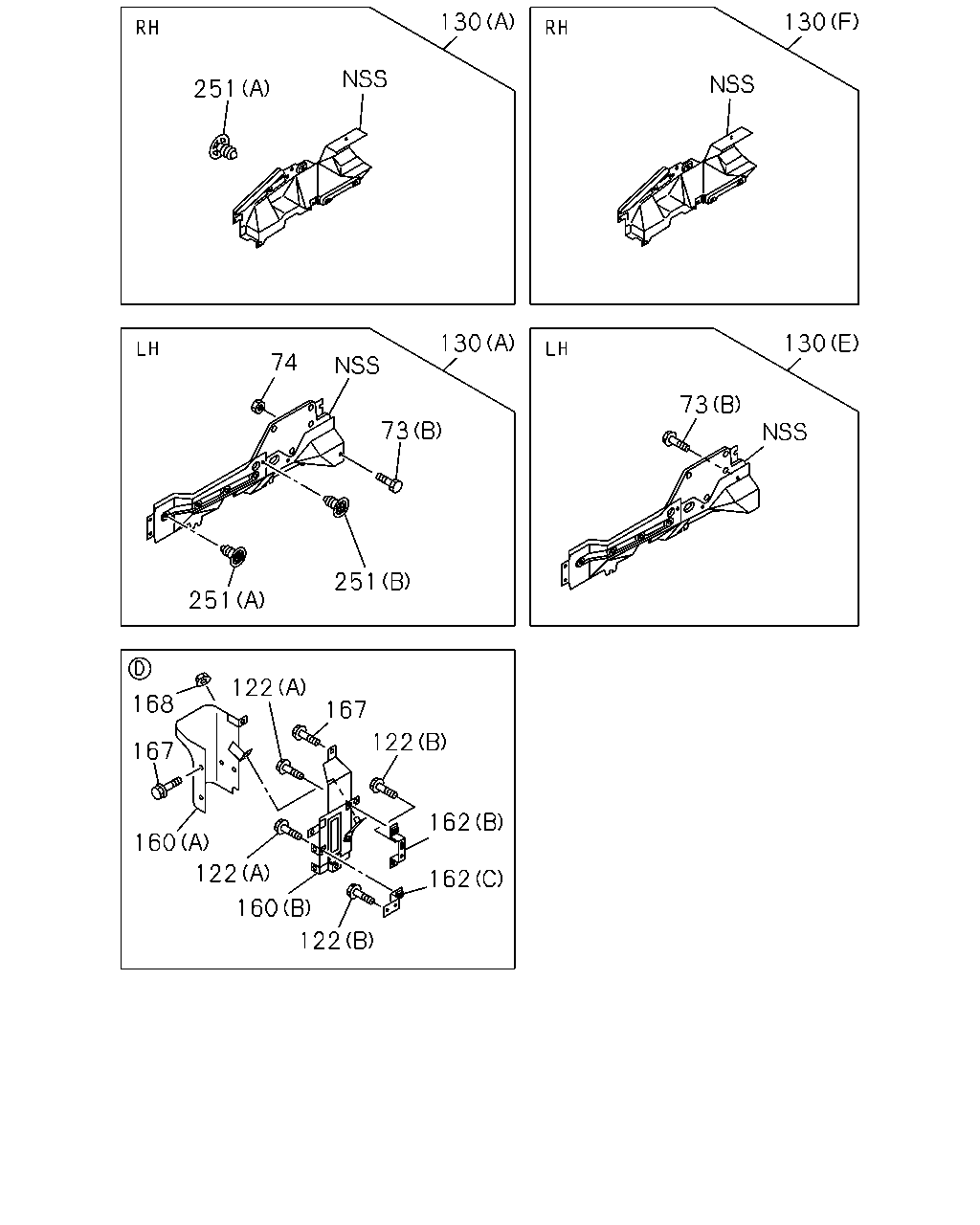

çizim 171181
130 73 162 162 122 167 122 168 167 160 122 160 122 251 251 73 130 251 130 130 74
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-1306
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1307-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1307-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1306
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-408-4 01 1 1008-1207
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 02 1 1307-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-1306
162 BRACKET
SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 01 1 1307-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1008-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1008-1306
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1008-1306
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1008-1306

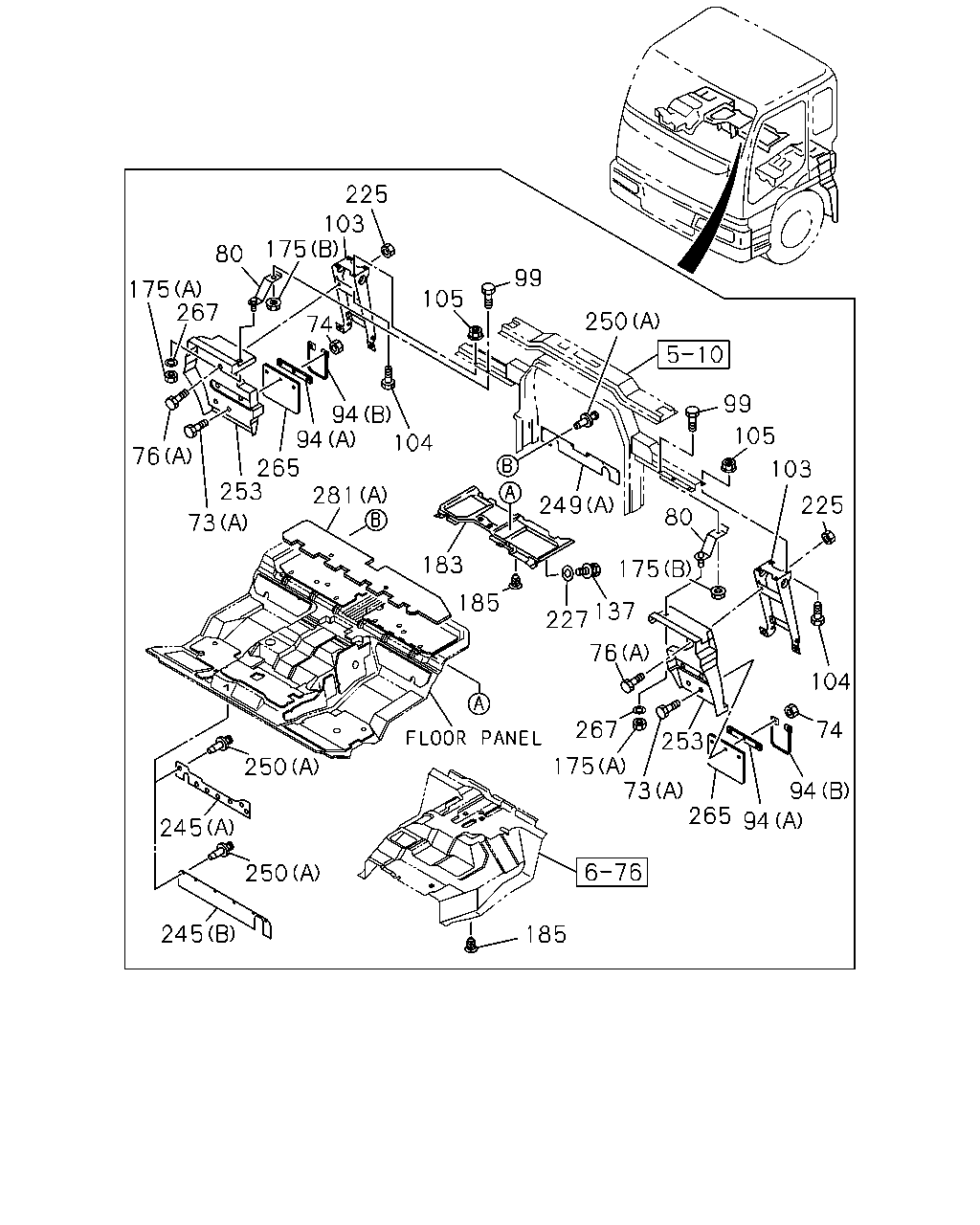

çizim 171183
245 250 185 175 73 265 74 94 94 253 267 76 104 225 103 105 99 80 175 137 227 185 183 249 250 99 105 104 94 94 265 253 73 76 175 80 175 103 225 74 267 281 250 245
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-1306
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1307-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1307-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1306
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1008-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1008-1306
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1307-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1307-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1008-1306
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1307-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1307-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1008-
103 BRACKET ASM; RR MUD FLAP 1-79931-446-0 01 1 1008-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-894-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1008-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1008-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1008-1306
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1307-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1008-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1008-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1307-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1307-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1008-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1008-
245 RUBBER; SHUTTER,RAD
(A) 		1-79937-949-1 01 1 1008-1306
245 RUBBER; SHUTTER,RAD
(B) 		8-98198-739-0 01 1 1307-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-1306
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1307-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1306
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
253 GUARD; MUD 8-98134-766-1 01 1 1008-
253 GUARD; MUD
SILENCER SINGLE VERTICAL<N28> 		8-98134-760-0 01 1 1008-1306
253 GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98134-759-0 01 1 1008-1306
253 GUARD; MUD 8-98134-759-0 01 1 1307-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1008-1306
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1307-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1307-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1008-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1307-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-

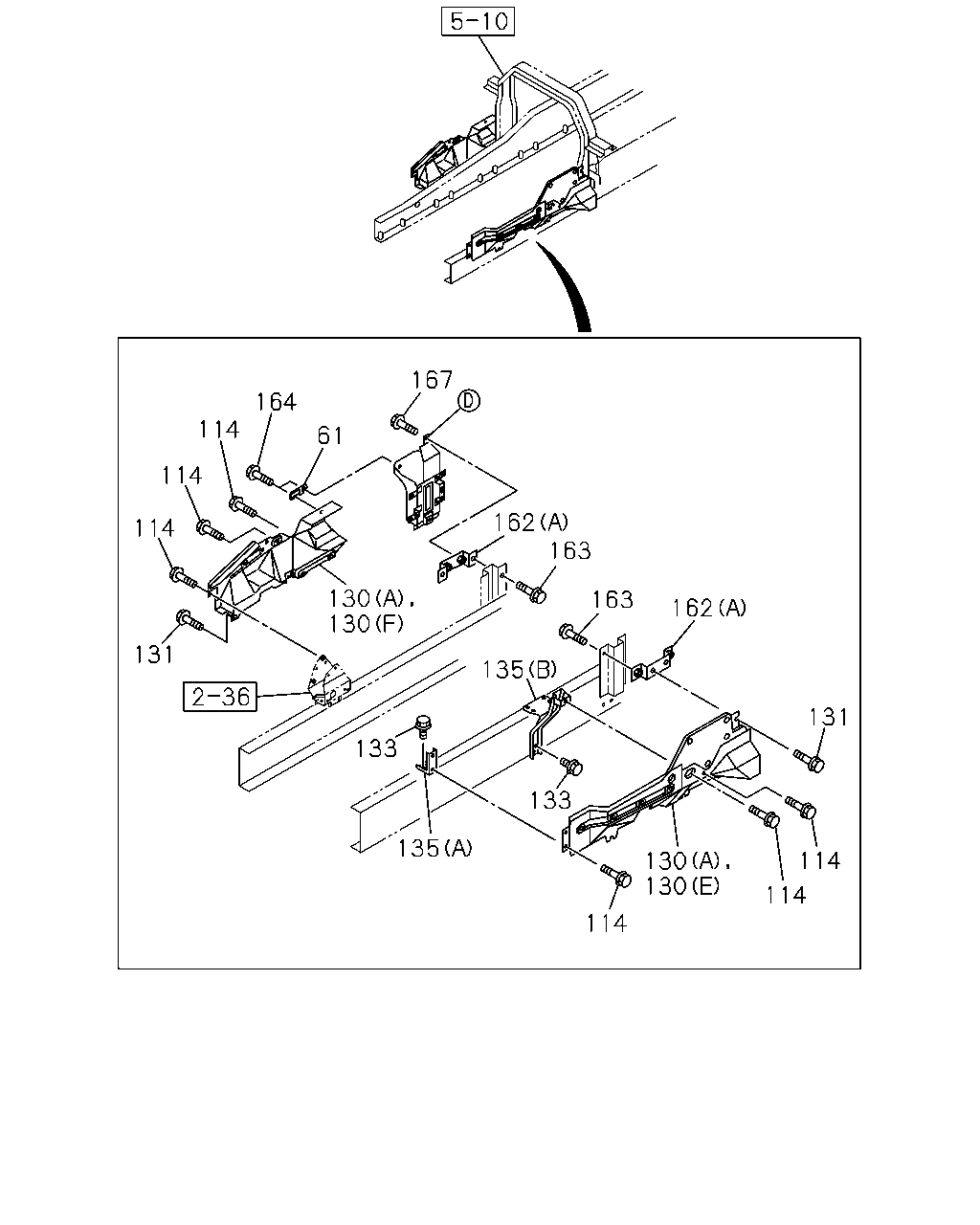

çizim 171212
114 114 131 114 133 135 133 135 163 162 163 162 130 130 167 61 164 114 114 114 131 130 130
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98039-501-1 01 1 1008-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 1008-1306
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1008-1306
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1307-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-1306
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1307-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1307-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1306
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1008-1306
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1307-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 02 1 1307-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-1306
162 BRACKET
SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 01 1 1307-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
163 BOLT; BRKT
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 04 1 1307-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-1306
163 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1307-
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
