6-20 — SIDE PANEL AND STEP (#55257) — 212 parça

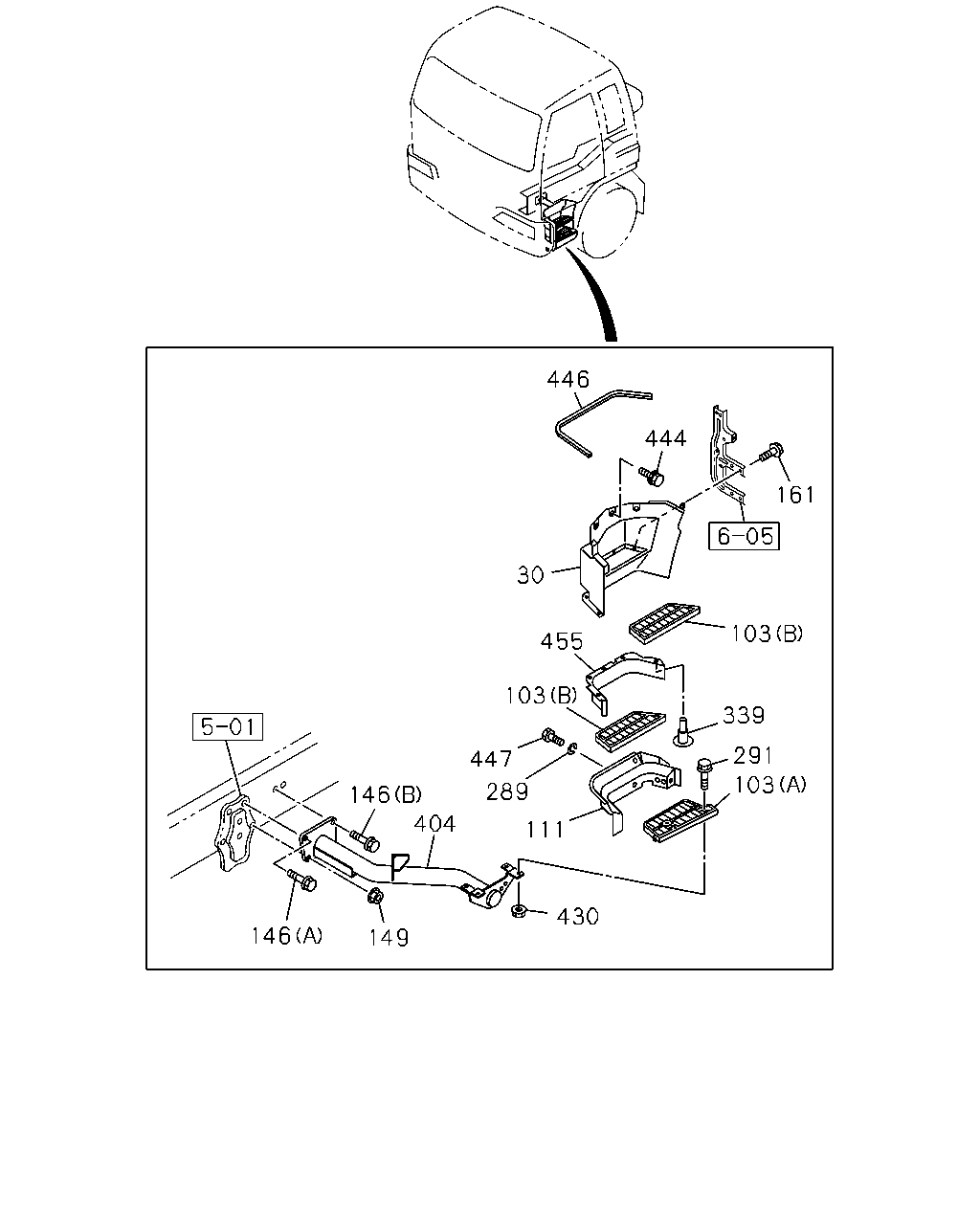

149 146 430 103 291 339 103 161 444 446 30 455 103 447 289 111 404 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-
111	COVER; 1ST STEP	8-98167-806-0	01	1	1008-1306
111	COVER; 1ST STEP	8-98167-805-0	01	1	1008-1306
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1306
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1307-1410
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	04	1	1008-1306
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	02	1	1008-1306
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1306
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1307-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-771-0	01	1	1411-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-772-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-951-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-952-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1411-
404	BRACKET	8-98138-224-3	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-383-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1411-
404	BRACKET	8-98144-629-2	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-384-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1411-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-
455	PROTECTOR; STEP	8-98157-942-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-807-2	01	1	1307-
455	PROTECTOR; STEP	8-98157-943-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-808-2	01	1	1307-

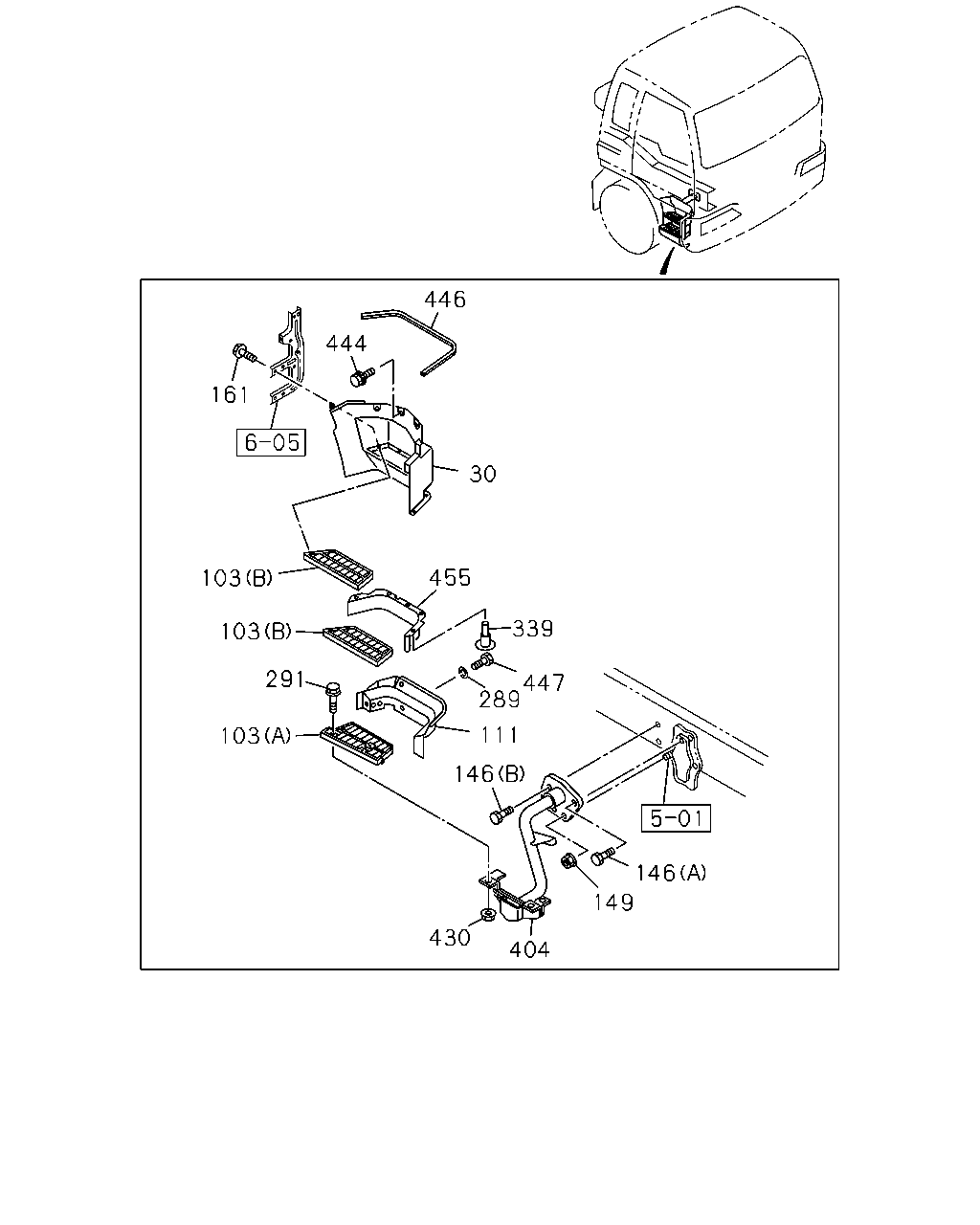

446 444 161 30 339 455 103 103 291 103 447 289 111 146 146 149 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-
111	COVER; 1ST STEP	8-98167-806-0	01	1	1008-1306
111	COVER; 1ST STEP	8-98167-805-0	01	1	1008-1306
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1306
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1307-1410
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	04	1	1008-1306
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	02	1	1008-1306
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1306
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1307-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-771-0	01	1	1411-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-772-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-951-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-952-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1411-
404	BRACKET	8-98138-224-3	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-383-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1411-
404	BRACKET	8-98144-629-2	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-384-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1411-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-
455	PROTECTOR; STEP	8-98157-942-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-807-2	01	1	1307-
455	PROTECTOR; STEP	8-98157-943-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-808-2	01	1	1307-

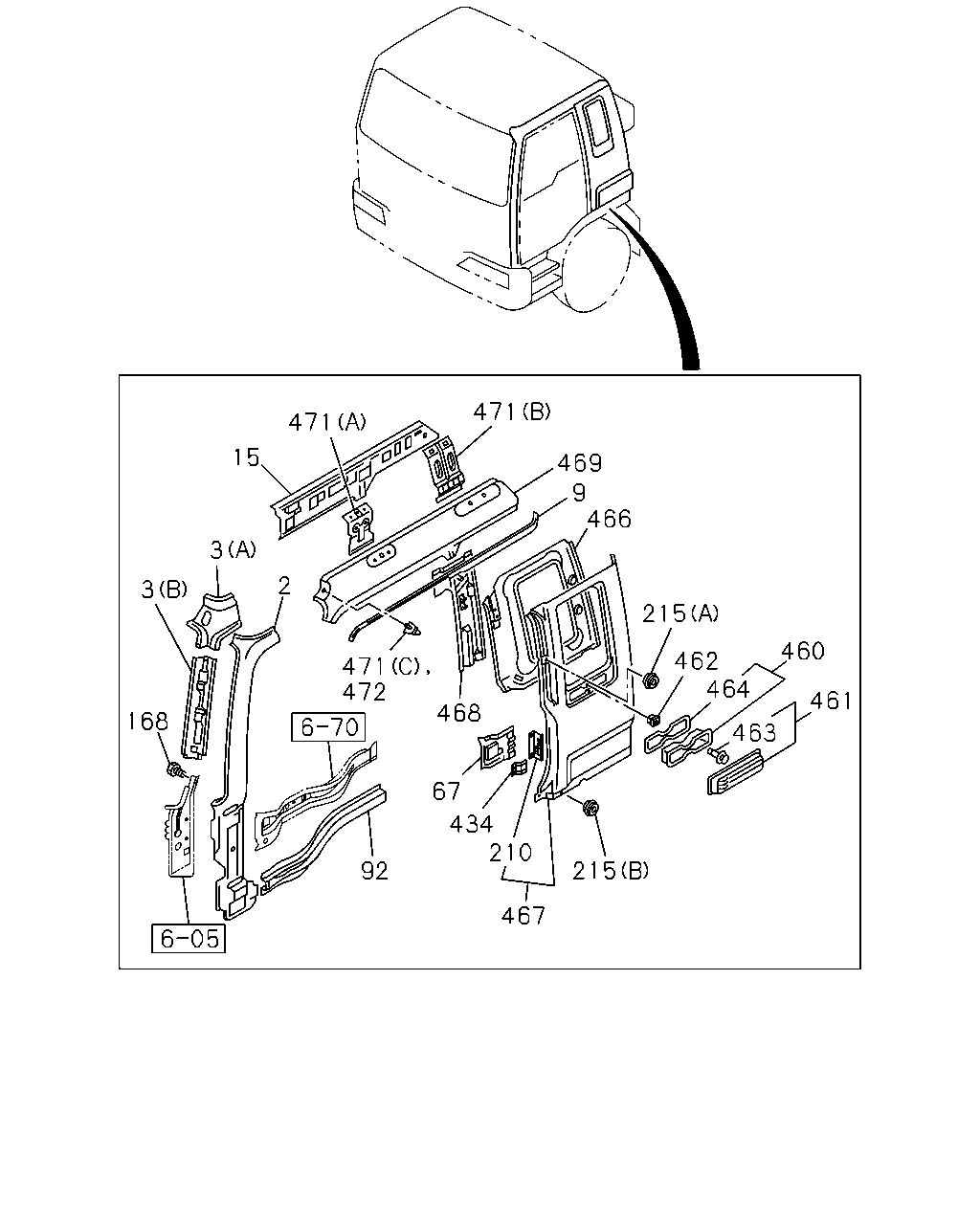

471 471 15 3 3 168 2 469 466 9 215 460 462 464 463 461 215 467 210 434 67 468 471 472 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT	1-61281-410-2	01	1	1008-
2	PILLAR; FRT	1-61281-155-4	01	1	1008-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	1008-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	1008-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	1008-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	1008-
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	1008-
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	1008-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	1008-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	1008-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	1008-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	1008-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	1008-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	1008-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1008-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	1008-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1008-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1008-
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1008-
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1008-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1008-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1008-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1008-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1008-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1008-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1008-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	1008-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	1008-
467	PANEL; OUTER,BACK CORNER	1-61281-478-5	01	1	1008-
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	1008-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	1008-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	1008-
469	ROOF; SIDE	1-61281-199-8	01	1	1008-
469	ROOF; SIDE	1-61281-198-8	01	1	1008-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1008-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1008-
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	1008-
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	1008-
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	1008-
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	1008-

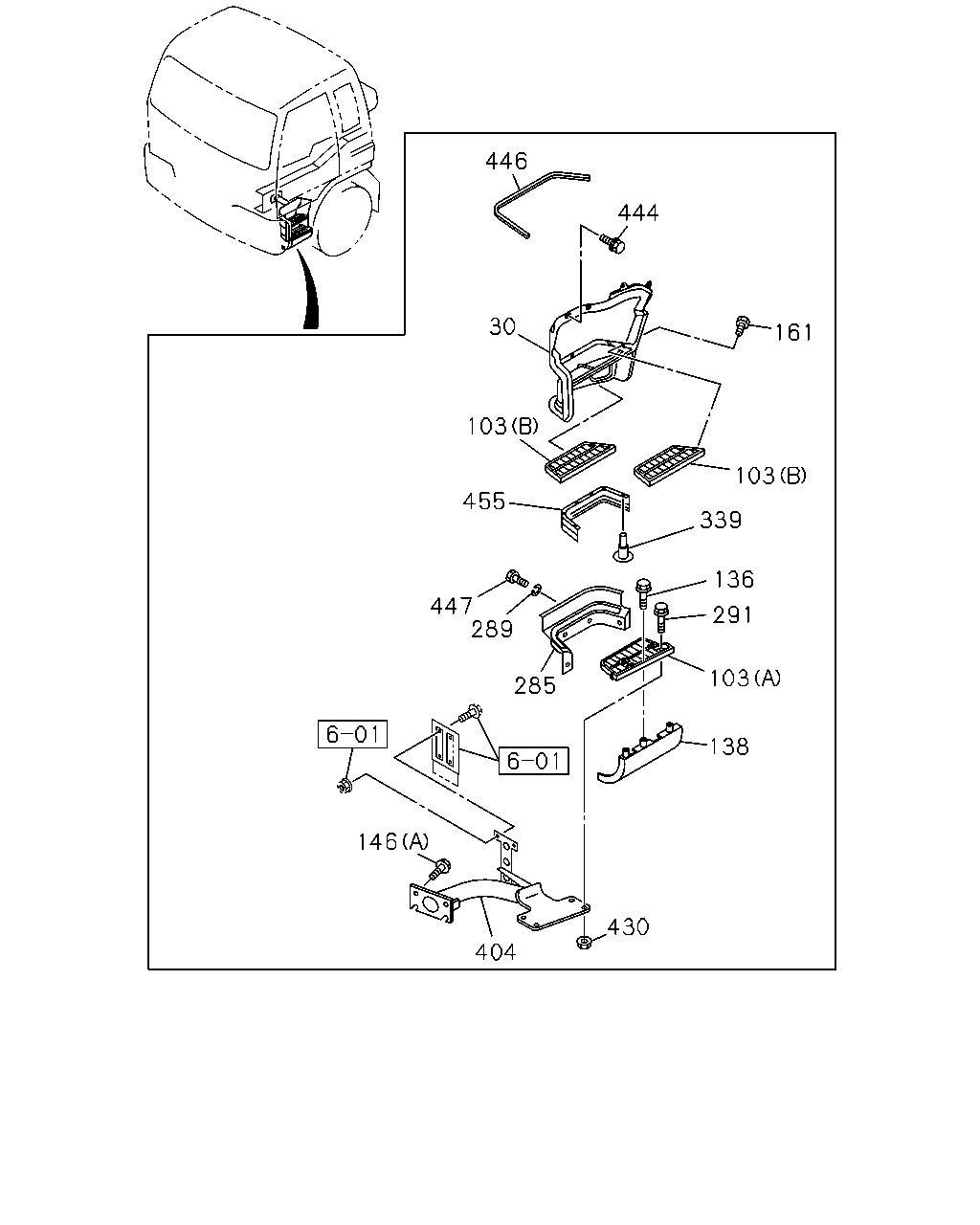

404 430 138 285 103 289 146 447 455 339 136 291 103 103 161 444 446 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1307-
138	FENDER; OVER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-815-0	01	1	1411-
138	FENDER; OVER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-816-0	01	1	1411-
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1307-1410
138	FENDER; OVER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1411-
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1307-1410
138	FENDER; OVER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1411-
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1306
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1307-1410
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	04	1	1008-1306
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1307-
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1307-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1306
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1307-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-771-0	01	1	1411-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-772-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-951-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-952-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1411-
404	BRACKET	8-98138-224-3	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-383-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1411-
404	BRACKET	8-98144-629-2	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-384-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1411-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-
455	PROTECTOR; STEP	8-98157-942-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-807-2	01	1	1307-
455	PROTECTOR; STEP	8-98157-943-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-808-2	01	1	1307-

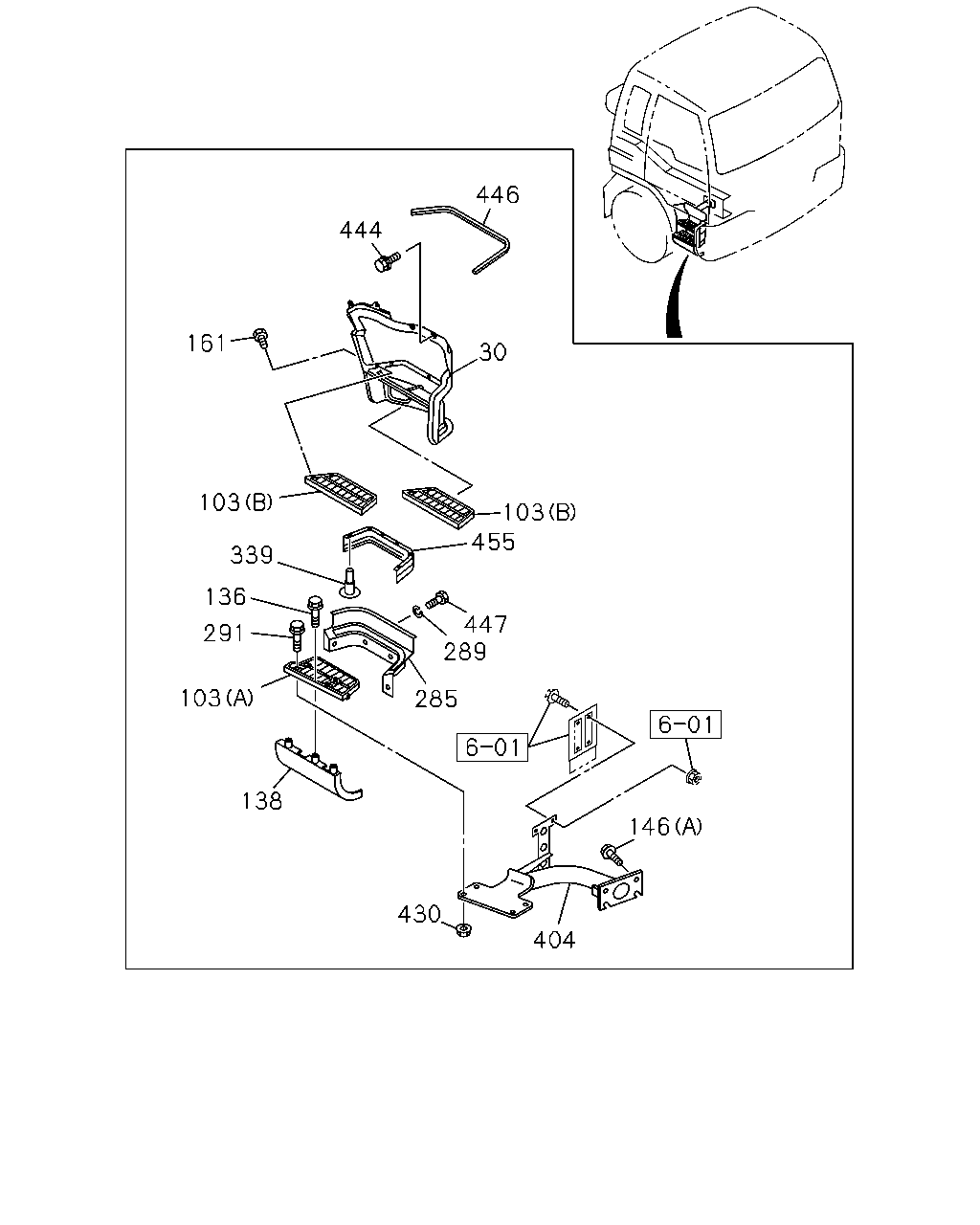

404 430 146 285 138 103 289 447 291 136 339 455 103 103 161 30 444 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1008-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1008-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1008-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1008-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1008-
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1307-
138	FENDER; OVER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-815-0	01	1	1411-
138	FENDER; OVER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-816-0	01	1	1411-
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-263-0	01	1	1307-1410
138	FENDER; OVER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1411-
138	FENDER; OVER FRONT SPOILER<VP1>	1-79931-264-0	01	1	1307-1410
138	FENDER; OVER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1411-
146	BOLT; STEP BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M12X35 FLANGE	0-28051-235-0	08	1	1411-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1008-1306
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1307-1410
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M12X30 FLANGE	0-28051-230-0	08	1	1411-1504
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	04	1	1008-1306
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1008-
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1307-
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1307-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1008-
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	1008-1306
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1307-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1008-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-771-0	01	1	1411-
404	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR>	8-98268-772-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-951-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1411-
404	BRACKET FRONT UNDER SPOILER DELETE<SGA>	8-98227-952-0	01	1	1307-1410
404	BRACKET FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1411-
404	BRACKET	8-98138-224-3	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-383-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1411-
404	BRACKET	8-98144-629-2	01	1	1008-1306
404	BRACKET FRONT SPOILER<VP1>	8-98241-384-0	01	1	1307-1410
404	BRACKET FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1411-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1008-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1008-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1008-
455	PROTECTOR; STEP	8-98157-942-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-807-2	01	1	1307-
455	PROTECTOR; STEP	8-98157-943-0	01	1	1008-1306
455	PROTECTOR; STEP	8-98125-808-2	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
