Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#55253) — 553 parça

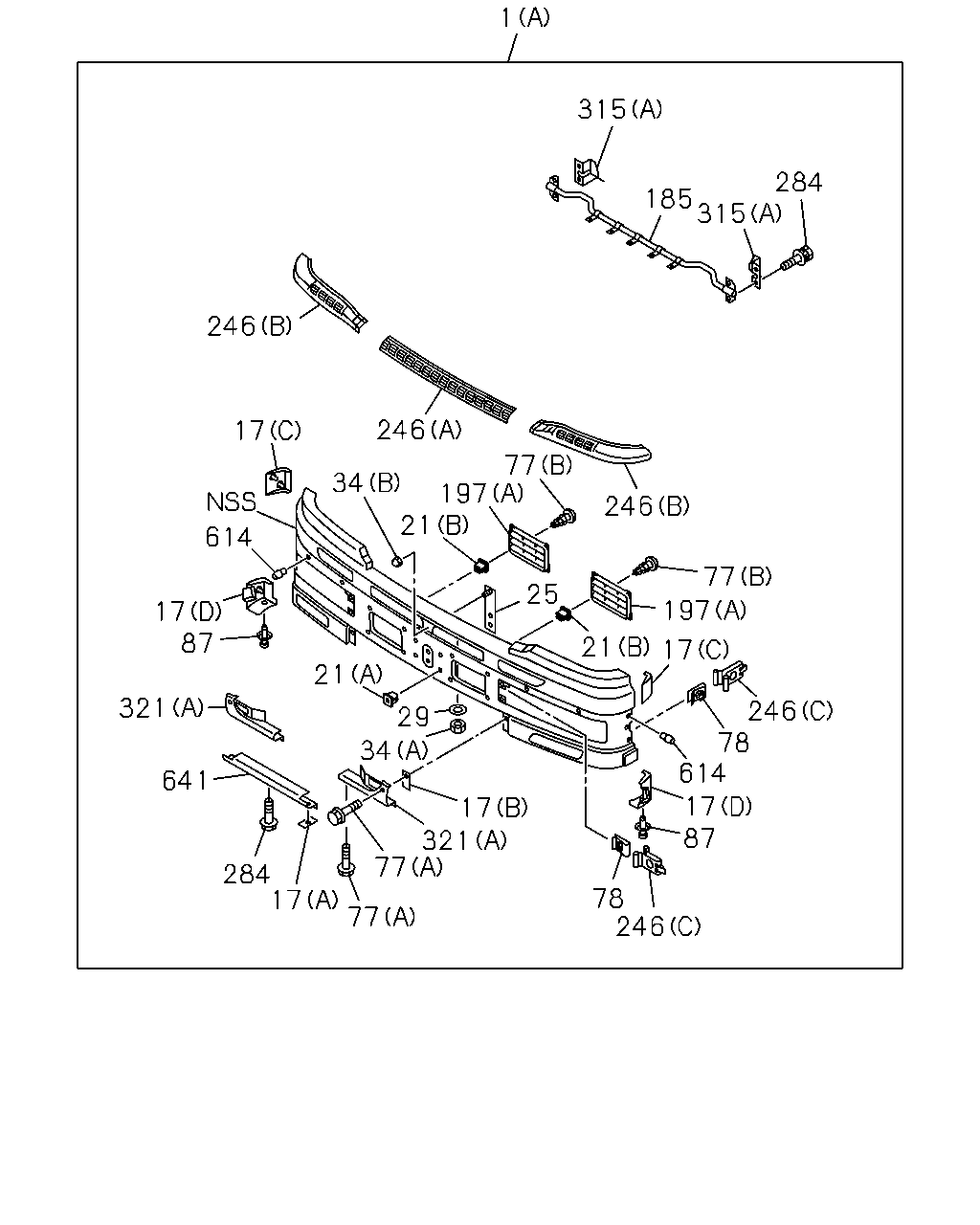

1 246 17 614 17 87 321 641 284 17 77 21 34 34 77 321 17 246 78 87 614 17 78 17 21 25 21 246 246 77 197 246 77 197 315 185 315 284 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

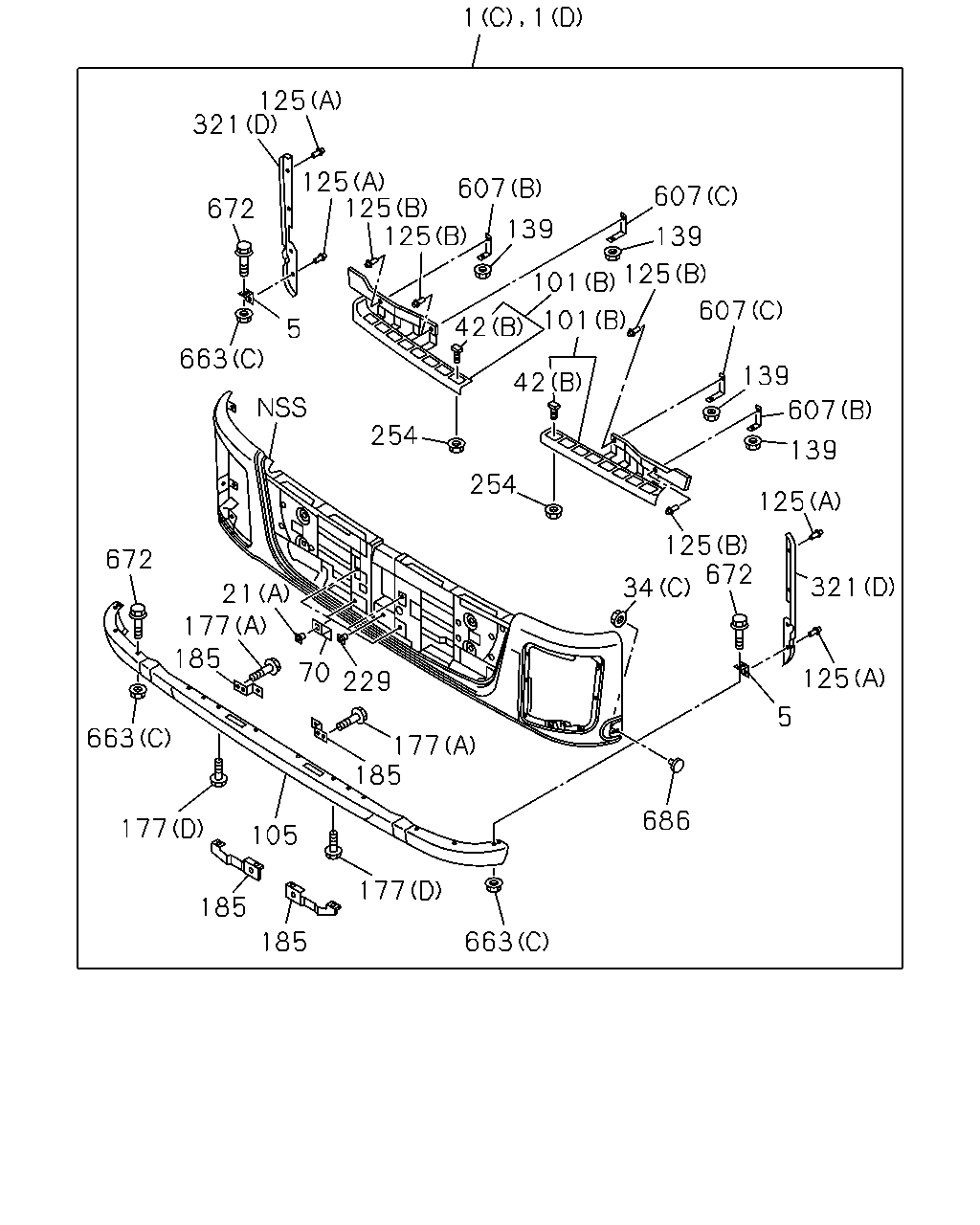

1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-

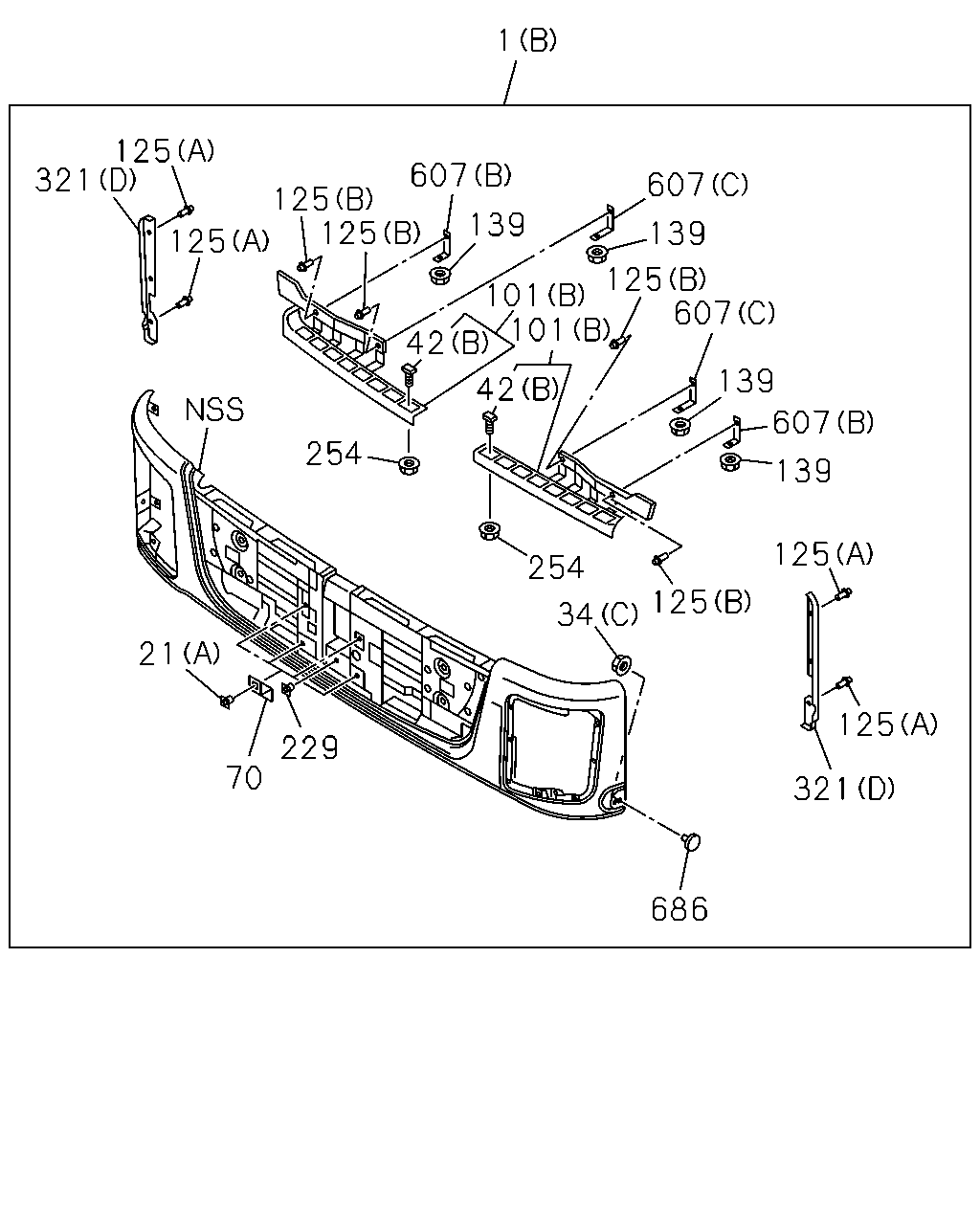

1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	1008-1306
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	1008-1306
17	PROTECTOR; FRT BUMPER (C)	8-98139-102-1	01	1	1008-1306
17	PROTECTOR; FRT BUMPER (C)	8-98139-103-1	01	1	1008-1306
17	PROTECTOR; FRT BUMPER (D)	8-98139-106-2	01	1	1008-1306
17	PROTECTOR; FRT BUMPER (D)	8-98139-107-2	01	1	1008-1306
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1008-1306
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1008-
25	SPACER; PLATFORM	1-71230-640-0	01	1	1008-1306
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	1008-1306
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1008-1306
78	NUT; SPIRE	1-71260-174-0	06	1	1008-1306
87	RIVET; POP,FRT BUMPER D8X13.5	1-09987-248-1	02	1	1008-1306
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98302-730-0	01	1	1501-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98302-731-0	01	1	1501-
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1008-1306
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1307-1412
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98139-739-0	02	1	1501-
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1306
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1307-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1306
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	1008-1306
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	1008-1306
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	1008-1306
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1008-1306
246	PROTECTOR; BUMPER (D)	8-98139-105-1	01	1	1008-1306
246	PROTECTOR; BUMPER (D)	8-98139-104-1	01	1	1008-1306
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1008-1306
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1008-1306
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1008-1306
315	STAY; BUMPER (A)	1-71230-636-0	01	1	1008-1306
315	STAY; BUMPER (A)	1-71230-637-0	01	1	1008-1306
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1008-1306
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1008-1306
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-455-1	01	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-456-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-263-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-264-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1307-
614	STOPPER; LID	1-71260-163-0	12	1	1008-1306
641	BUMPER; FRT,LWR	1-71211-304-1	01	1	1008-1306

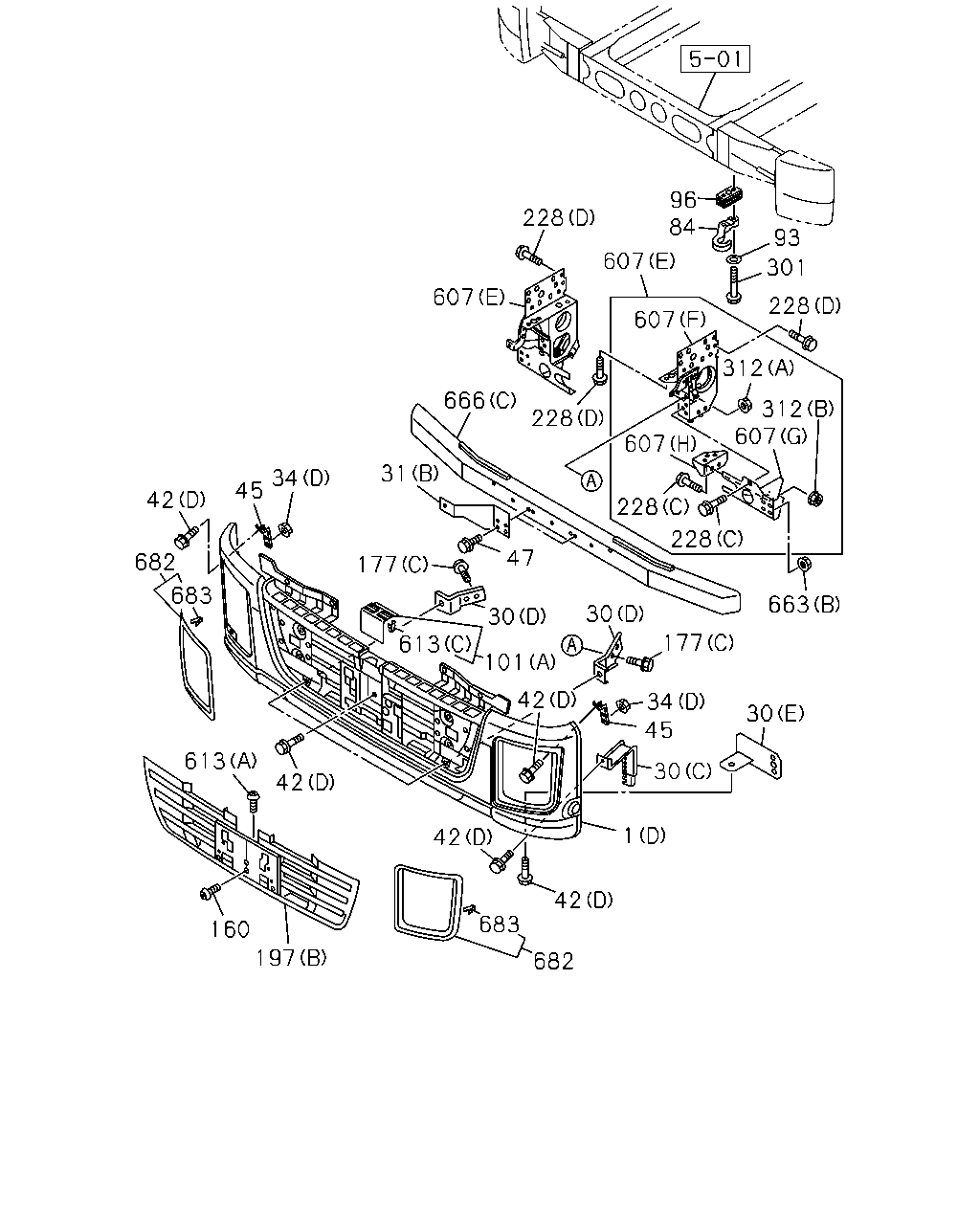

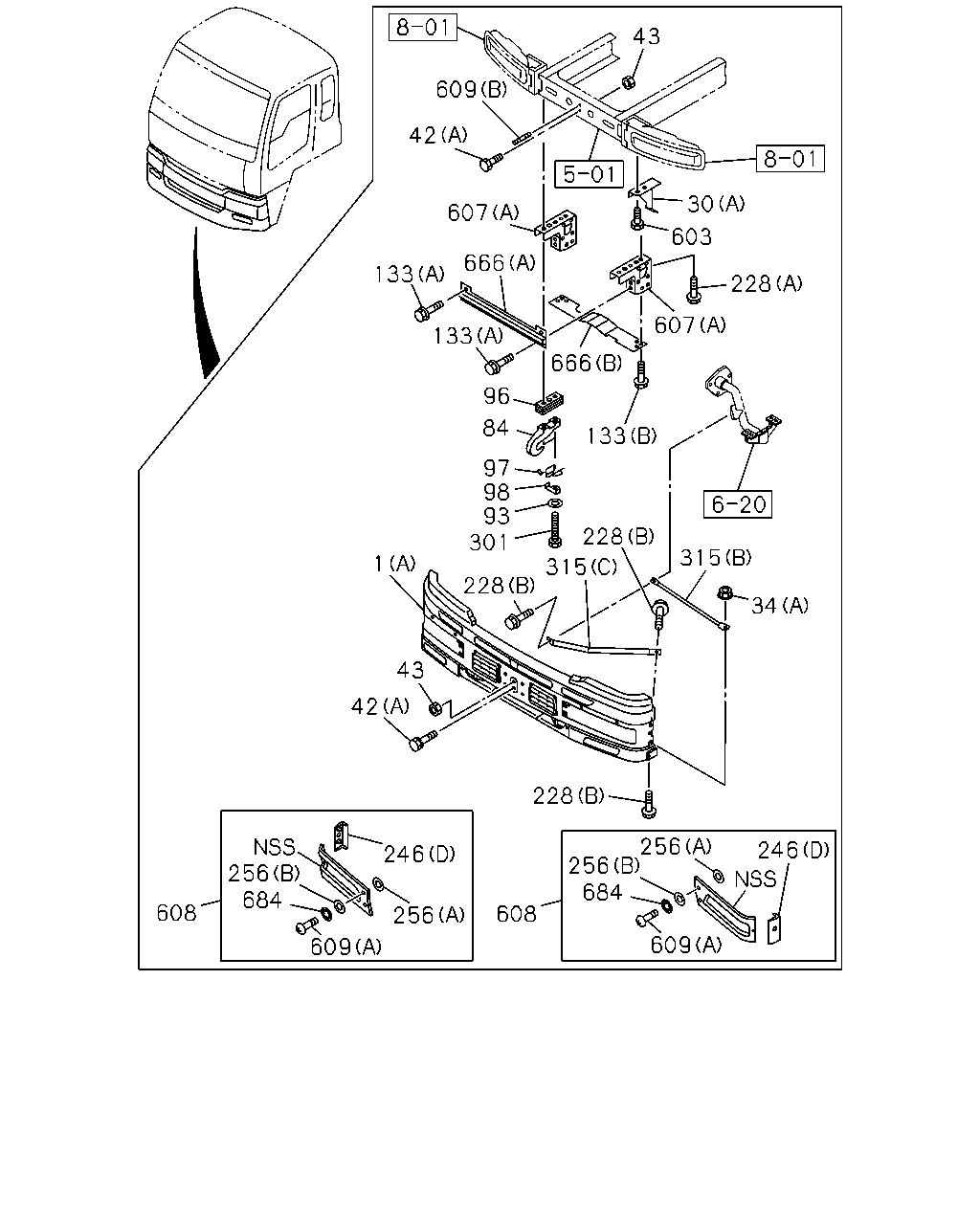

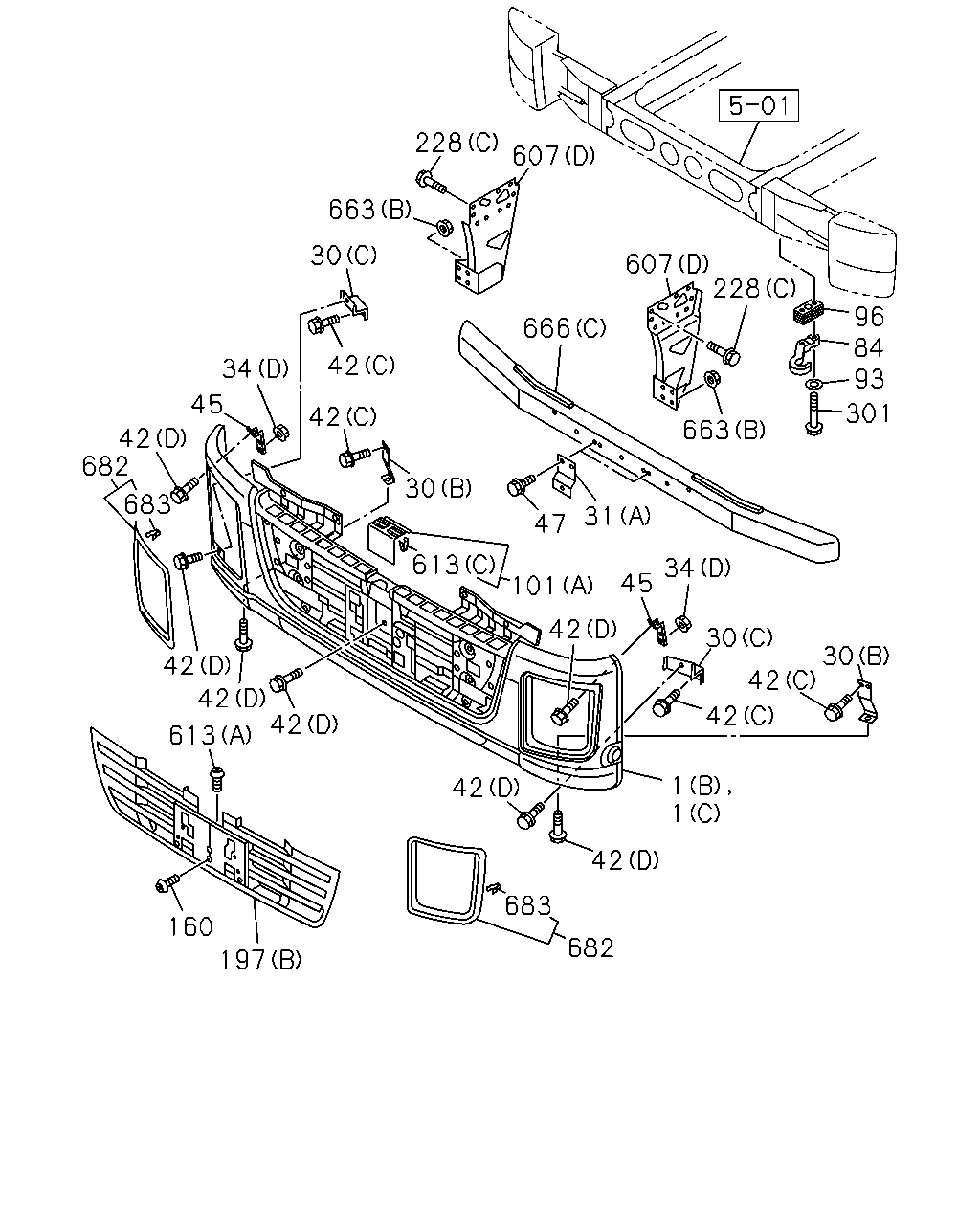

609 42 607 133 133 666 96 84 97 98 93 301 1 228 43 42 228 315 133 666 43 30 603 228 607 228 315 34 608 246 256 684 609 256 608 256 684 256 246 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-332-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-334-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-691-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-692-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-907-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-907-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-909-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-909-0	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-977-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-977-1	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-978-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-978-1	01	1	1411-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	14	1	1411-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	10	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	16	1	1411-1412
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1306
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1307-
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	03	1	1008-1306
84	HOOK	1-57181-027-1	01	1	1008-1306
84	HOOK	8-98126-930-0	01	1	1307-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1306
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1307-1410
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1008-1306
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	1008-1306
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28651-240-0	04	1	1008-1306
133	BOLT; PROTECTOR FIX (B) M12X25 FLANGE	0-28661-225-0	06	1	1008-1207
133	BOLT; PROTECTOR FIX (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-1306
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (C) M16X35 FLANGE	0-28851-635-0	12	1	1504-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1306
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1306
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1307-1410
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	1008-1306
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	1008-1306
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	1008-1306
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1008-1306
246	PROTECTOR; BUMPER (D)	8-98139-105-1	01	1	1008-1306
246	PROTECTOR; BUMPER (D)	8-98139-104-1	01	1	1008-1306
256	WASHER; PL (A)	1-71260-173-0	06	1	1008-1306
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	1008-1306
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1306
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1307-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1306
315	STAY; BUMPER (C)	1-71230-434-0	02	1	1008-1306
315	STAY; BUMPER (A)	1-71230-636-0	01	1	1008-1306
315	STAY; BUMPER (A)	1-71230-637-0	01	1	1008-1306
315	STAY; BUMPER (B)	1-71230-491-0	01	1	1008-1306
315	STAY; BUMPER (B)	1-71230-492-0	01	1	1008-1306
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1008-1306
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-542-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-543-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-477-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-478-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-441-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-442-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-158-2	01	1	1411-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-159-2	01	1	1411-
607	BRACKET (D)	8-98211-758-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-758-0	01	1	1411-
607	BRACKET (D)	8-98211-759-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-759-0	01	1	1411-
607	BRACKET (A)	8-97608-469-3	01	1	1008-1306
607	BRACKET (C)	8-98147-053-0	02	1	1307-
607	BRACKET (A)	8-97608-470-3	01	1	1008-1306
607	BRACKET (B)	8-98147-054-0	02	1	1307-
608	LID; BUMPER	8-98138-789-3	01	1	1008-1306
608	LID; BUMPER	8-98138-788-3	01	1	1008-1306
609	STUD; BUMPER (A)	1-71260-175-0	06	1	1008-1306
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	1008-1306
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C)	8-98172-164-0	01	1	1411-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (C)	8-98220-526-0	01	1	1411-
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1306
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1307-1410
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1306
684	WASHER	8-98148-221-0	06	1	1008-1306

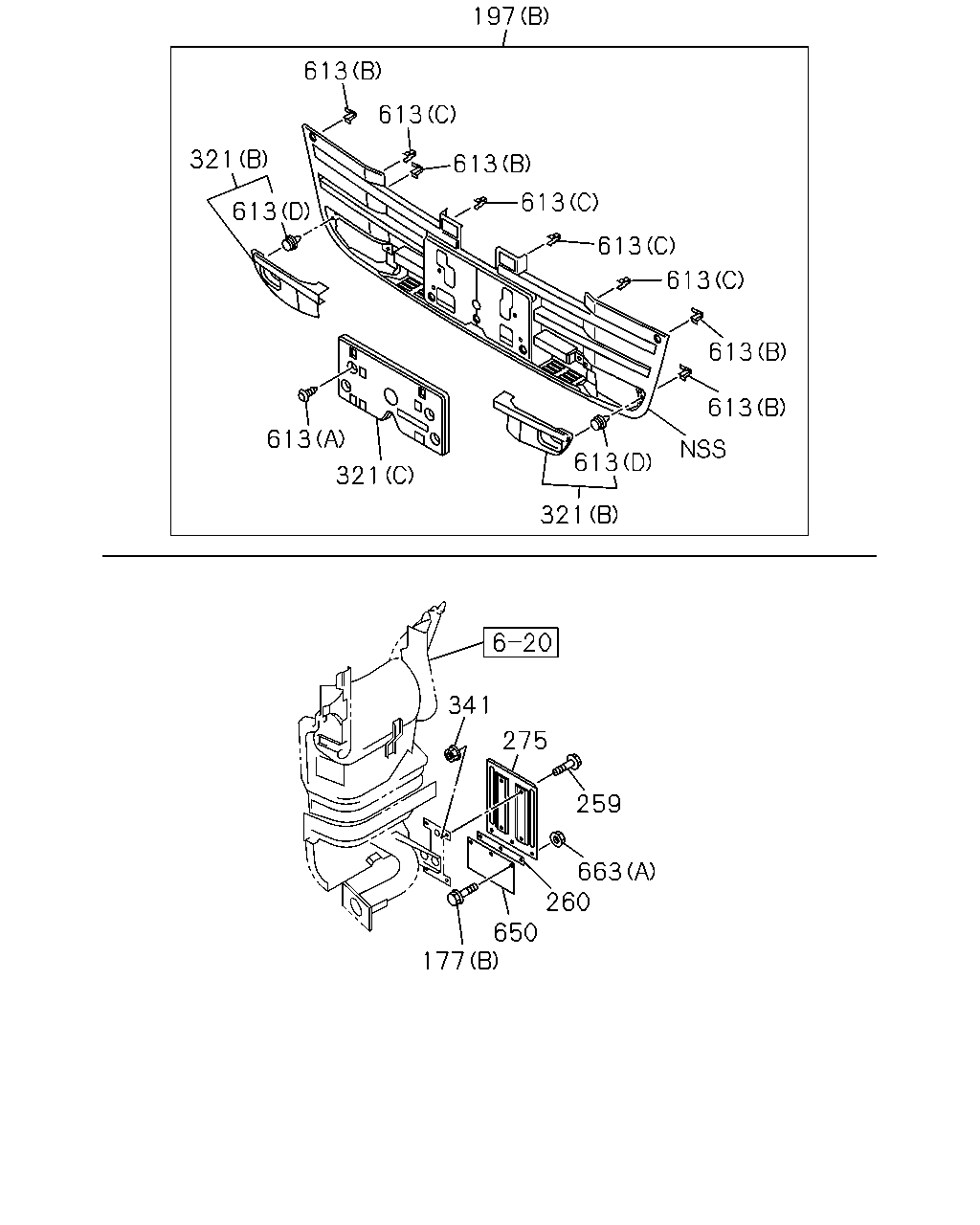

613 613 613 613 613 613 613 613 613 613 613 321 321 321 341 275 259 663 260 650 177 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1501-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1307-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1307-1410
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1306
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1307-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1306
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1307-1410
259	BOLT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1411-1510
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1307-1410
260	RETAINER; UPR SKIRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-829-0	02	1	1411-1510
275	GUARD; FRT	8-98125-825-0	02	1	1307-1410
275	GUARD; FRT EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-825-0	02	1	1411-1510
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-455-1	01	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-456-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-263-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-264-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1307-
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1307-1410
341	NUT; COVER EXC. FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE	0-91180-108-0	08	1	1411-1510
613	CLIP (D)	8-97581-651-2	04	1	1307-
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1307-
613	CLIP (B)	8-98025-698-0	08	1	1307-
613	CLIP (C)	8-98144-173-1	06	1	1307-
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1307-1410
650	RUBBER; MUD COVER EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98125-828-0	02	1	1411-1510
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1307-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1307-1410
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1307-

96 607 228 607 666 228 607 84 93 228 301 312 607 228 228 607 312 663 30 177 30 47 31 177 45 34 42 682 683 613 42 160 197 42 683 1 42 42 101 613 34 45 30 30 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-332-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-334-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-691-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-692-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-907-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-907-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-909-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-909-0	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-977-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-977-1	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-978-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-978-1	01	1	1411-
31	SUPPORT; FRT BUMPER,LWR FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98286-670-0	01	1	1411-1412
31	SUPPORT; FRT BUMPER,LWR FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98286-671-0	01	1	1411-1412
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1> (A)	8-98139-742-0	02	1	1307-1410
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-742-0	02	1	1411-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	14	1	1411-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	10	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	16	1	1411-1412
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1306
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1307-
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1307-
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> M10X30 FLANGE	0-28051-030-0	04	1	1307-1412
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M10X30 FLANGE	0-28051-030-0	04	1	1501-
84	HOOK	1-57181-027-1	01	1	1008-1306
84	HOOK	8-98126-930-0	01	1	1307-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1306
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1307-1410
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1307-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1307-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1307-
160	SCREW M5X16	8-94380-268-0	01	1	1307-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1501-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1307-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1307-1410
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1306
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1307-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1306
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (C) M16X35 FLANGE	0-28851-635-0	12	1	1504-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1306
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1306
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1307-1410
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1306
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1307-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1306
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) M16	0-91110-516-0	02	1	1504-
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) M16 FLANGE	0-91180-216-0	04	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-542-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-543-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-477-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-478-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-441-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-442-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-158-2	01	1	1411-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-159-2	01	1	1411-
607	BRACKET (D)	8-98211-758-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-758-0	01	1	1411-
607	BRACKET (D)	8-98211-759-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-759-0	01	1	1411-
607	BRACKET (A)	8-97608-469-3	01	1	1008-1306
607	BRACKET (C)	8-98147-053-0	02	1	1307-
607	BRACKET (A)	8-97608-470-3	01	1	1008-1306
607	BRACKET (B)	8-98147-054-0	02	1	1307-
613	CLIP (D)	8-97581-651-2	04	1	1307-
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1307-
613	CLIP (B)	8-98025-698-0	08	1	1307-
613	CLIP (C)	8-98144-173-1	06	1	1307-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1307-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1307-1410
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1307-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C)	8-98172-164-0	01	1	1411-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (C)	8-98220-526-0	01	1	1411-
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1306
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1307-1410
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1306
682	BEZEL; BUMPER	8-98123-444-2	01	1	1307-
682	BEZEL; BUMPER	8-98123-445-2	01	1	1307-
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1307-

228 663 30 607 666 607 663 228 96 93 84 301 31 47 101 34 45 42 30 42 42 30 613 30 42 42 34 45 42 682 683 42 42 613 42 160 197 683 682 42 42 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-332-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-334-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-691-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (E)	8-98286-692-0	01	1	1411-1412
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-907-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-907-0	01	1	1411-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (B)	8-98139-909-0	01	1	1307-1410
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98139-909-0	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-638-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-977-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-977-1	01	1	1411-
30	BRACKET; FRT BUMPER (A)	1-71230-639-0	01	1	1008-1306
30	BRACKET; FRT BUMPER (C)	8-98135-978-1	01	1	1307-1410
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98135-978-1	01	1	1411-
31	SUPPORT; FRT BUMPER,LWR FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98286-670-0	01	1	1411-1412
31	SUPPORT; FRT BUMPER,LWR FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98286-671-0	01	1	1411-1412
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1> (A)	8-98139-742-0	02	1	1307-1410
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-742-0	02	1	1411-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	14	1	1411-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	10	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	16	1	1411-1412
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1306
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1307-
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1307-
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> M10X30 FLANGE	0-28051-030-0	04	1	1307-1412
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M10X30 FLANGE	0-28051-030-0	04	1	1501-
84	HOOK	1-57181-027-1	01	1	1008-1306
84	HOOK	8-98126-930-0	01	1	1307-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1008-
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1411-
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	1008-1306
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1307-1410
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1411-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1307-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1307-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1307-
160	SCREW M5X16	8-94380-268-0	01	1	1307-
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	1008-1306
197	GRILLE; BUMPER (B)	8-98144-188-4	01	1	1307-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	1008-1306
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (C) M16X35 FLANGE	0-28851-635-0	12	1	1504-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (D) M16X40 FLANGE	0-28851-640-0	10	1	1411-
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	1008-1306
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1008-1306
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1307-1410
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE	0-28851-635-0	06	1	1411-
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1008-1306
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1307-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1008-1306
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-542-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-543-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-477-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-478-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-441-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-442-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-158-2	01	1	1411-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-159-2	01	1	1411-
607	BRACKET (D)	8-98211-758-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-758-0	01	1	1411-
607	BRACKET (D)	8-98211-759-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-759-0	01	1	1411-
607	BRACKET (A)	8-97608-469-3	01	1	1008-1306
607	BRACKET (C)	8-98147-053-0	02	1	1307-
607	BRACKET (A)	8-97608-470-3	01	1	1008-1306
607	BRACKET (B)	8-98147-054-0	02	1	1307-
613	CLIP (D)	8-97581-651-2	04	1	1307-
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1307-
613	CLIP (B)	8-98025-698-0	08	1	1307-
613	CLIP (C)	8-98144-173-1	06	1	1307-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1307-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1307-1410
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1307-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C)	8-98172-164-0	01	1	1411-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (C)	8-98220-526-0	01	1	1411-
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	1008-1306
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1307-1410
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98198-583-0	01	1	1411-
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	1008-1306
682	BEZEL; BUMPER	8-98123-444-2	01	1	1307-
682	BEZEL; BUMPER	8-98123-445-2	01	1	1307-
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1307-

1 607 125 139 607 139 139 125 125 321 125 34 686 254 42 101 42 101 607 125 125 139 125 321 125 254 229 70 21 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1008-1306
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1008-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	14	1	1411-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	10	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	16	1	1411-1412
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1306
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1307-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1307-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1307-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1307-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1307-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1307-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1307-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1307-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1307-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1307-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-455-1	01	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-456-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-263-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-264-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1307-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-542-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-543-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-477-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-478-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-441-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-442-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-158-2	01	1	1411-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-159-2	01	1	1411-
607	BRACKET (D)	8-98211-758-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-758-0	01	1	1411-
607	BRACKET (D)	8-98211-759-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-759-0	01	1	1411-
607	BRACKET (A)	8-97608-469-3	01	1	1008-1306
607	BRACKET (C)	8-98147-053-0	02	1	1307-
607	BRACKET (A)	8-97608-470-3	01	1	1008-1306
607	BRACKET (B)	8-98147-054-0	02	1	1307-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1307-

1 1 607 607 125 321 125 125 672 42 101 139 101 125 139 607 139 139 125 321 125 5 672 125 34 686 254 42 254 5 663 21 672 177 185 663 70 229 177 185 177 185 185 105 177 663 607 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE	8-97466-340-0	01	1	1501-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	8-97417-846-3	01	1	1307-
1	BUMPER ASM; FRT (A)	8-98138-769-3	01	1	1008-1306
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	8-97424-794-3	01	1	1307-1412
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE	8-97424-794-3	01	1	1501-
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1307-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1008-1306
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1008-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	04	1	1008-1306
34	NUT; BRKT,BUMPER (C) M6 FLANGE	0-91180-106-0	02	1	1307-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	1008-1306
34	NUT; BRKT,BUMPER (D) M10 FLANGE	0-91180-110-0	04	1	1307-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1008-1306
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	10	1	1411-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	14	1	1411-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	10	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT UNDER SPOILER DELETE<SGA> (D) M10X30 FLANGE	8-98055-942-0	12	1	1411-1412
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE	8-98055-942-0	12	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	14	1	1307-1410
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE	8-98055-942-0	16	1	1411-1412
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1307-1410
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1411-1412
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1501-
42	BOLT; BUMPER (A) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1008-1306
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1307-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1307-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1307-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1307-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1307-
105	AIR DAM FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1307-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1307-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1307-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1307-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1307-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1501-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1411-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1307-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1307-1410
177	BOLT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1411-1510
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98302-730-0	01	1	1501-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98302-731-0	01	1	1501-
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	1008-1306
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1307-1412
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98139-739-0	02	1	1501-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1307-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-455-1	01	1	1307-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (D)	8-98123-456-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1307-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-263-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1307-
321	COVER; BUMPER FRT SIDE (A)	1-71260-264-1	01	1	1008-1306
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1307-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-542-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (H)	8-98223-543-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-477-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98290-478-1	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-441-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98304-442-0	01	1	1504-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-158-2	01	1	1411-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98288-159-2	01	1	1411-
607	BRACKET (D)	8-98211-758-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-758-0	01	1	1411-
607	BRACKET (D)	8-98211-759-0	01	1	1307-1410
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98211-759-0	01	1	1411-
607	BRACKET (A)	8-97608-469-3	01	1	1008-1306
607	BRACKET (C)	8-98147-053-0	02	1	1307-
607	BRACKET (A)	8-97608-470-3	01	1	1008-1306
607	BRACKET (B)	8-98147-054-0	02	1	1307-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1307-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1307-1410
663	NUT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE	0-91180-108-0	06	1	1411-1510
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1307-
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1307-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
