Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#55250) — 66 parça
◀

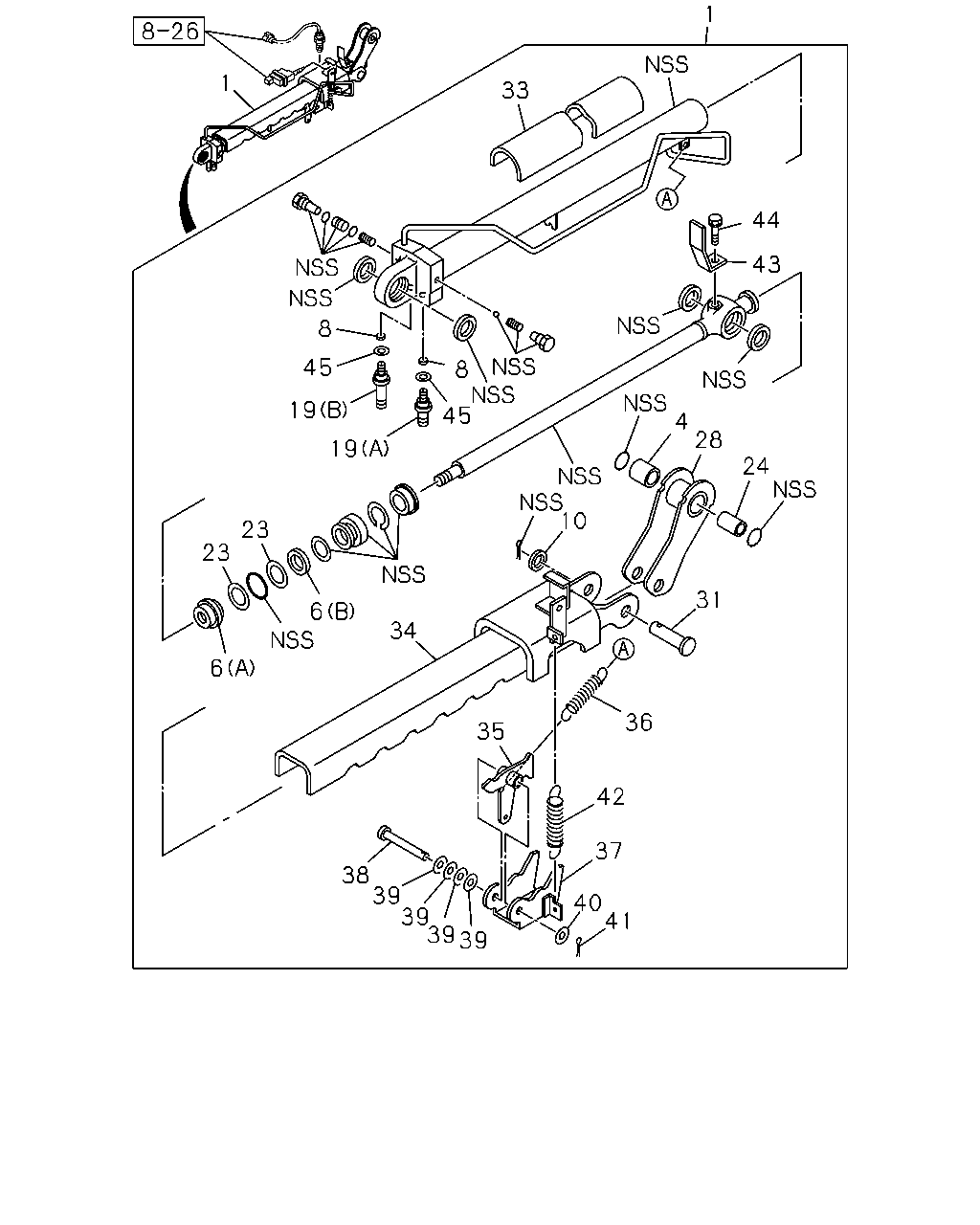

[517A] -'13/6 COMPONENT (32 parça)

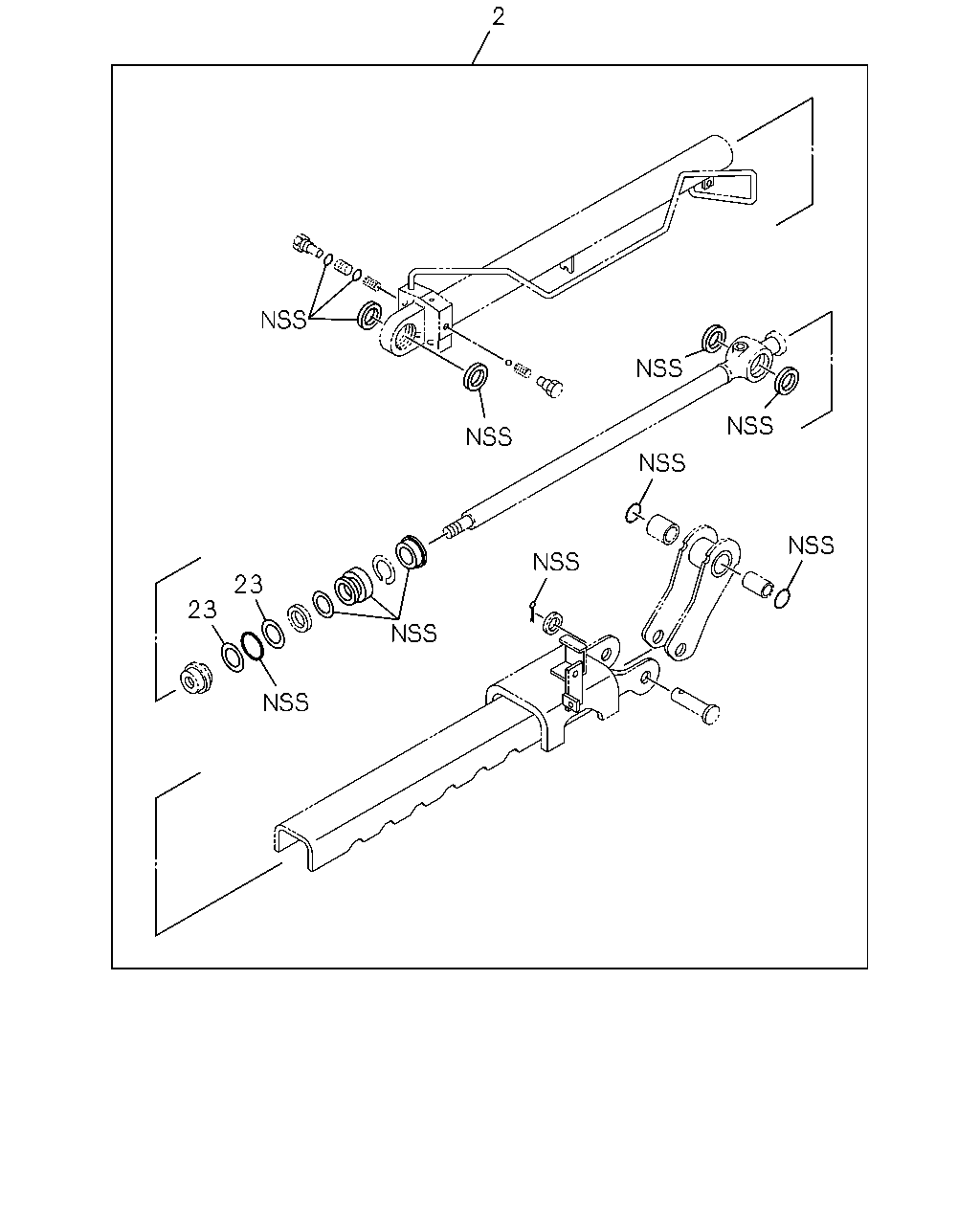

[517A] -'13/6 REPAIR KIT (3 parça)

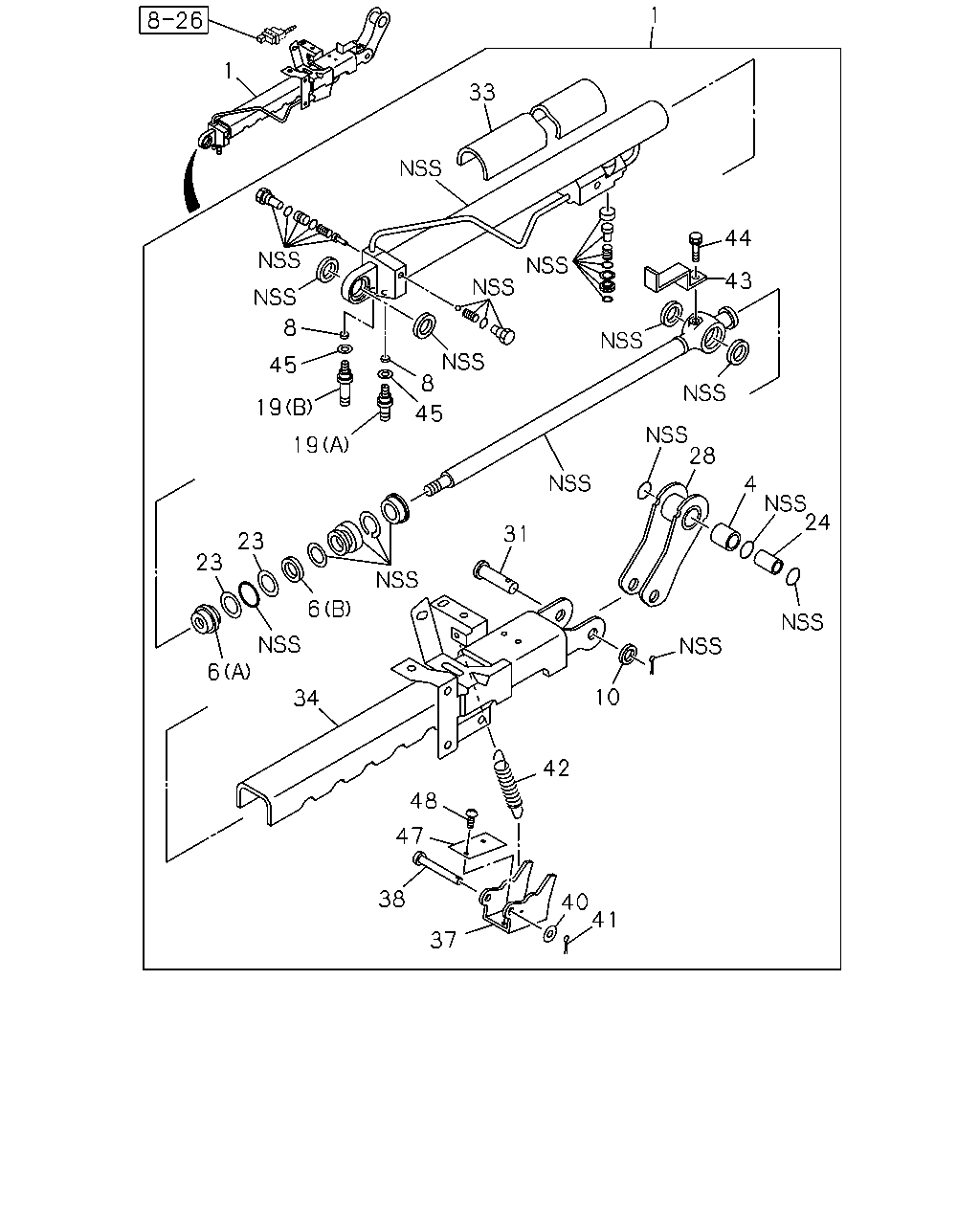

[517A] '13/7- COMPONENT (28 parça)

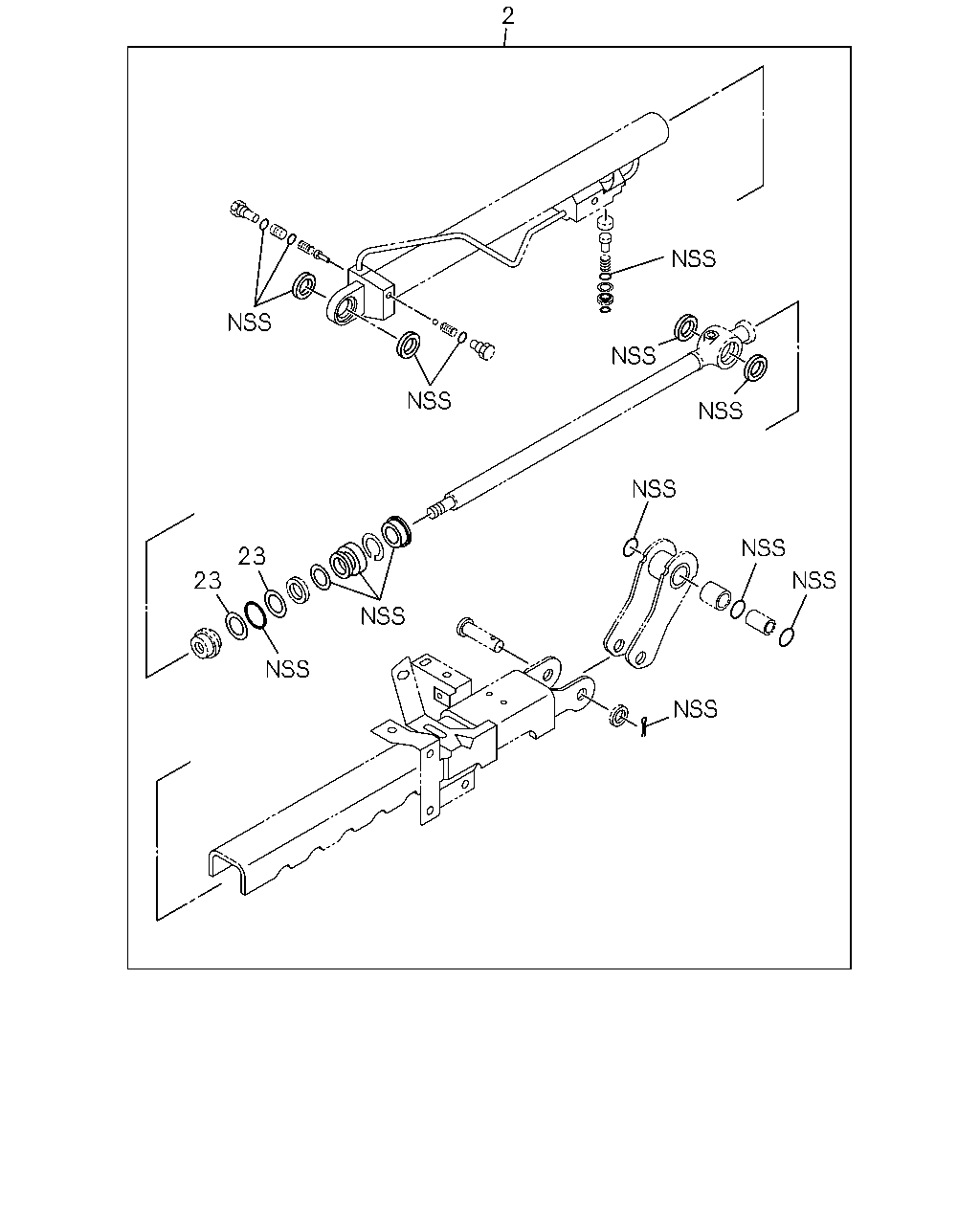

[517A] '13/7- REPAIR KIT (3 parça)
▶
1
33
44
28
43
4
24
1
8
19
8
45
45
19
23
23
31
36
42
35
37
41
40
39
39
39
39
38
34
6
6
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
1-53457-139-1
01
1
1008-1306
1
CYLINDER; OIL,CAB TILT
8-98198-740-0
01
1
1307-
4
BUSHING; OIL CYL
1-53458-405-0
01
1
1008-
6
PISTON; OIL CYL
(A)
8-98134-365-0
01
1
1008-
6
PISTON; OIL CYL
(B)
8-98134-367-0
01
1
1008-
8
FILTER; OIL CYL
1-53458-102-0
02
1
1008-
10
WASHER; OIL CYL
1-53458-401-0
01
1
1008-
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
1008-
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
1008-
23
RING; SNAP
1-53457-048-0
02
1
1008-
24
COLLAR; LEVER
1-53458-398-0
01
1
1008-
28
LEVER; OIL CYL
1-53458-557-1
01
1
1008-
31
PIN; OIL CYL
1-53457-172-0
01
1
1008-
33
COVER; CYL
1-53458-556-0
01
1
1008-
34
STOPPER; OIL CYL
1-53458-555-0
01
1
1008-
35
LEVER; WIRE
1-53458-689-0
01
1
1008-1306
36
SPRING; WIRE LEVER
1-53458-552-0
01
1
1008-1306
37
LEVER; STOPPER
1-53458-722-0
01
1
1008-1306
37
LEVER; STOPPER
8-98235-591-0
01
1
1307-
38
PIN; STOPPER
1-53458-550-0
01
1
1008-
39
SHIM; LEVER
T=0.7
1-53458-546-0
AR
1
1008-1306
39
SHIM; LEVER
T=0.5
1-53458-547-0
AR
1
1008-1306
39
SHIM; LEVER
T=0.3
1-53458-548-0
AR
1
1008-1306
39
SHIM; LEVER
T=0.1
1-53458-549-0
AR
1
1008-1306
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
1008-
41
PIN; SPLIT
1-53458-545-0
01
1
1008-
42
SPRING; LOCK LEVER
1-53458-544-0
01
1
1008-1306
42
SPRING; LOCK LEVER
1-53457-168-0
01
1
1307-
43
PLATE; SW
1-53458-543-0
01
1
1008-1306
43
PLATE; SW
1-53457-167-0
01
1
1307-
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
1008-
45
GASKET; OIL CYL
1-53458-073-0
02
1
1008-
2
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
8-98169-204-0
01
1
1008-1306
2
REPAIR KIT; OIL CYL
1-85579-068-0
01
1
1307-
23
RING; SNAP
1-53457-048-0
02
1
1008-
1
33
8
1
19
45
45
8
31
10
4
28
24
43
44
19
6
23
6
34
23
48
47
38
37
40
41
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
1-53457-139-1
01
1
1008-1306
1
CYLINDER; OIL,CAB TILT
8-98198-740-0
01
1
1307-
4
BUSHING; OIL CYL
1-53458-405-0
01
1
1008-
6
PISTON; OIL CYL
(A)
8-98134-365-0
01
1
1008-
6
PISTON; OIL CYL
(B)
8-98134-367-0
01
1
1008-
8
FILTER; OIL CYL
1-53458-102-0
02
1
1008-
10
WASHER; OIL CYL
1-53458-401-0
01
1
1008-
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
1008-
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
1008-
23
RING; SNAP
1-53457-048-0
02
1
1008-
24
COLLAR; LEVER
1-53458-398-0
01
1
1008-
28
LEVER; OIL CYL
1-53458-557-1
01
1
1008-
31
PIN; OIL CYL
1-53457-172-0
01
1
1008-
33
COVER; CYL
1-53458-556-0
01
1
1008-
34
STOPPER; OIL CYL
1-53458-555-0
01
1
1008-
37
LEVER; STOPPER
1-53458-722-0
01
1
1008-1306
37
LEVER; STOPPER
8-98235-591-0
01
1
1307-
38
PIN; STOPPER
1-53458-550-0
01
1
1008-
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
1008-
41
PIN; SPLIT
1-53458-545-0
01
1
1008-
42
SPRING; LOCK LEVER
1-53458-544-0
01
1
1008-1306
42
SPRING; LOCK LEVER
1-53457-168-0
01
1
1307-
43
PLATE; SW
1-53458-543-0
01
1
1008-1306
43
PLATE; SW
1-53457-167-0
01
1
1307-
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
1008-
45
GASKET; OIL CYL
1-53458-073-0
02
1
1008-
47
PLATE; THRUST,OIL CYL
1-53457-169-0
01
1
1307-
48
SCREW; OIL CYL
M5X8
1-53458-005-0
02
1
1307-
2
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
8-98169-204-0
01
1
1008-1306
2
REPAIR KIT; OIL CYL
1-85579-068-0
01
1
1307-
23
RING; SNAP
1-53457-048-0
02
1
1008-
