◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#55247) — 149 parça
çizim 171102
65 204 203 70 69 72 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1008-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1008-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1008-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1008-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1008-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1008-1306
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1307-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1008-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1008-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1008-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1008-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1008-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1008-

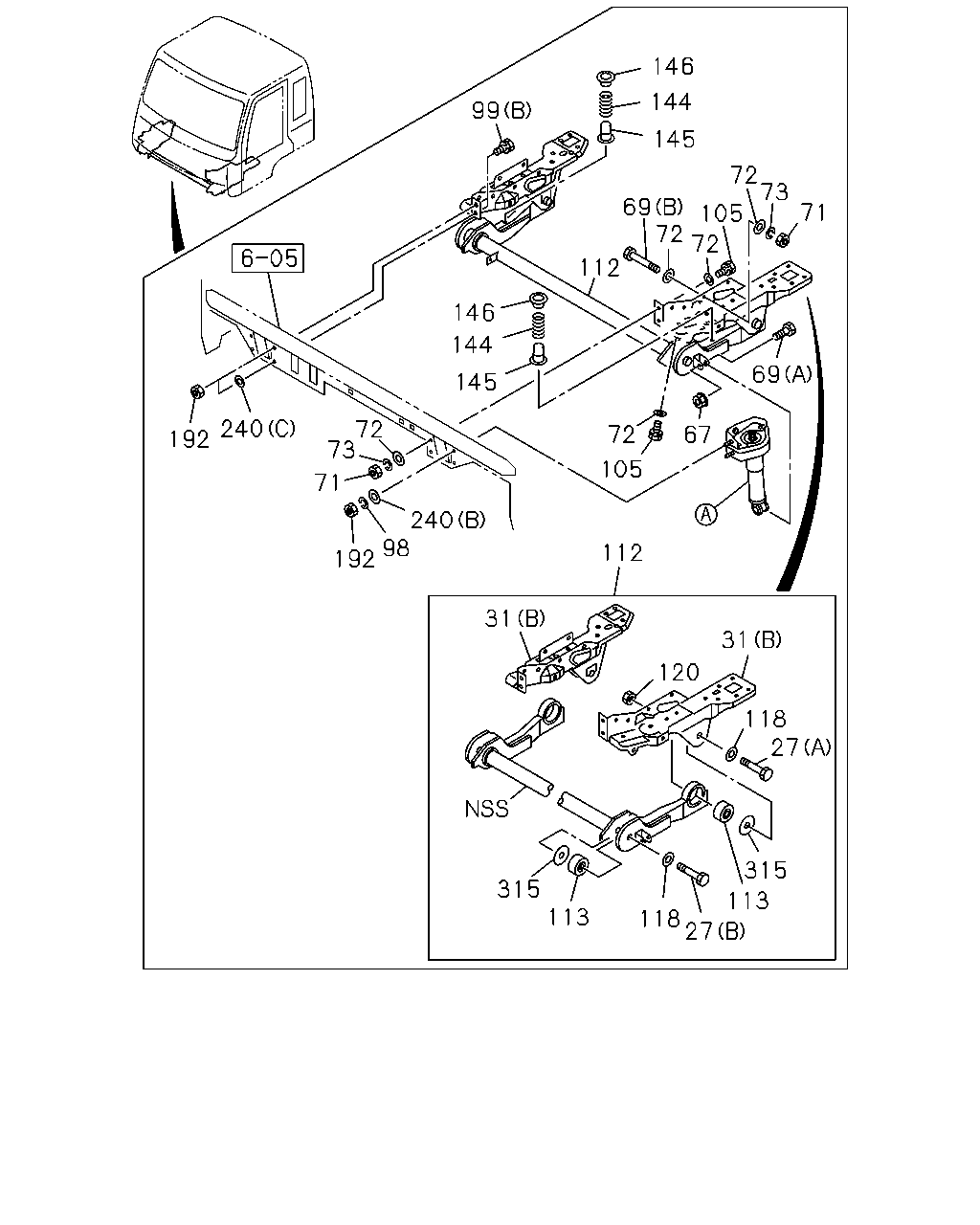

çizim 171108
99 146 144 145 72 73 71 105 72 72 69 112 146 144 145 72 105 67 69 112 31 120 118 27 315 113 27 118 113 315 31 240 98 192 71 73 72 240 192
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1008-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1008-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 1008-1306
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1307-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1008-
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1008-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1008-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1008-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1008-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 04 1 1008-1306
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1307-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1008-1306
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1307-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1008-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1008-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1008-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1008-1306
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1307-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 11 1 1008-1306
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 1307-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-7 01 1 1008-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1008-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1008-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1008-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1008-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1008-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1008-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 1008-1306
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1307-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1008-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1008-1410
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1008-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1008-

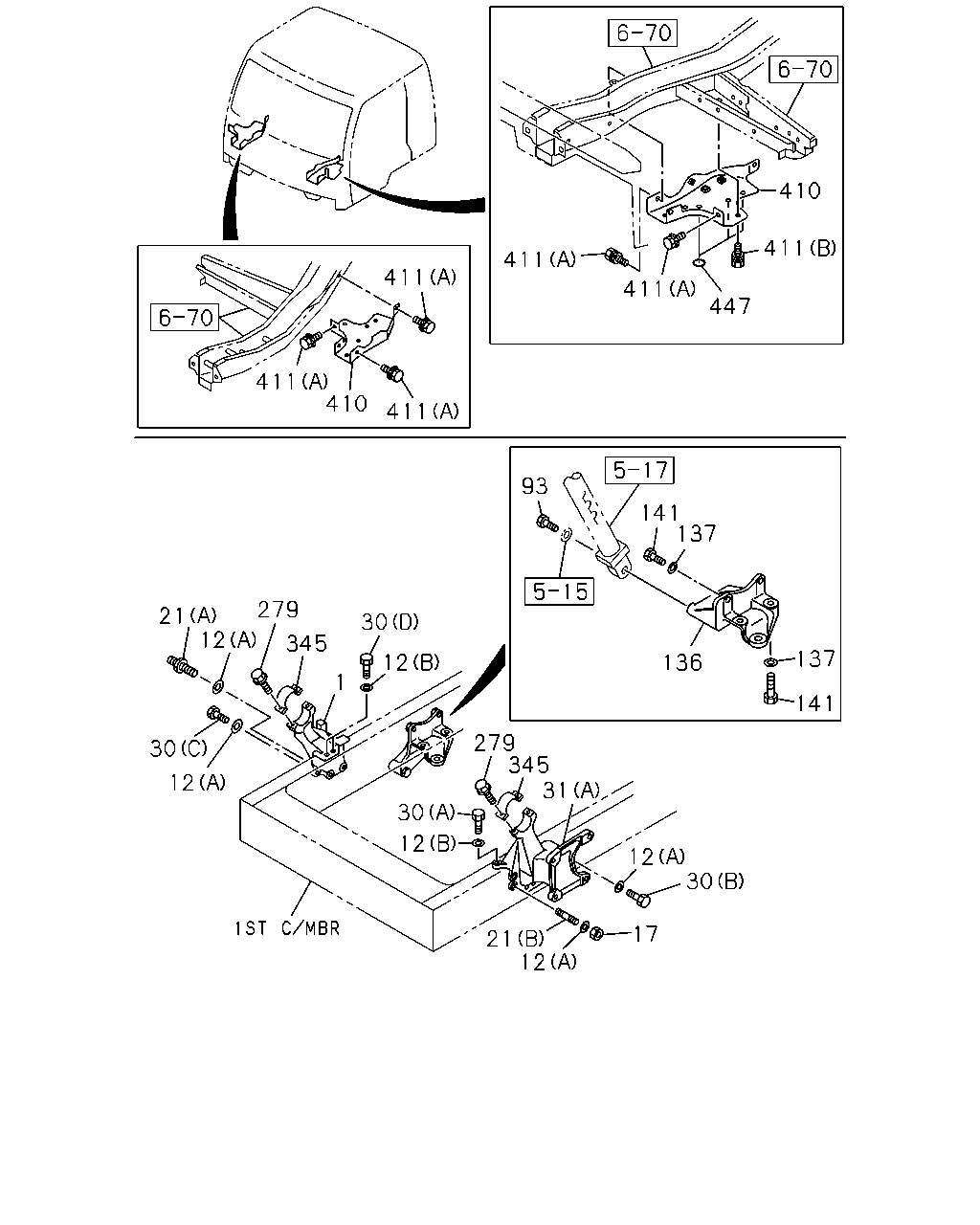

çizim 171112
411 411 21 30 279 410 411 447 411 411 410 411 12 30 345 12 93 137 136 137 279 12 31 345 17 21 12 12 30 141 30 12 141 1
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-306-1 01 1 1008-1306
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1307-1510
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1511-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1008-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1008-1306
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1307-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1008-
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81 		1-09029-069-0 02 1 1008-
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 1008-
30 BOLT; CAB FRT FOOT
(D) M14X50 		0-20951-450-0 02 1 1307-
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1008-
30 BOLT; CAB FRT FOOT
(B) M16X50 		0-20951-650-0 05 1 1008-
30 BOLT; CAB FRT FOOT
(C) M16X45 		9-92061-645-0 03 1 1008-1306
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 03 1 1307-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 1008-1306
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1307-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1008-
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1008-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1008-
136 BRACKET; OIL CYL 1-53458-903-0 01 1 1008-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1008-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1008-
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1008-1510
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511-
345 CAP; CAB 1-53458-336-3 02 1 1008-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1008-
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1008-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1008-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1008-
447 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 1008-

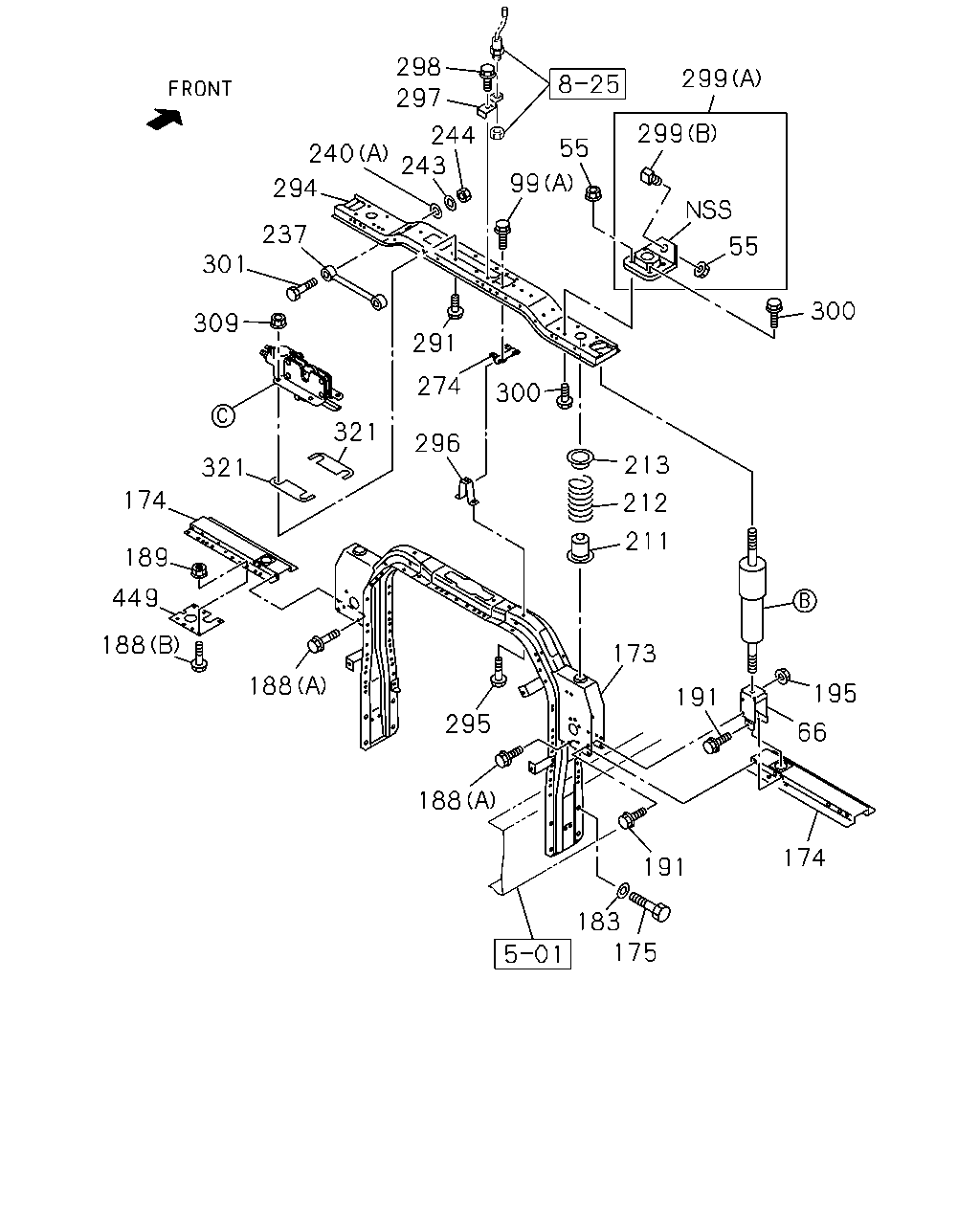

çizim 171128
298 297 244 243 240 294 237 301 309 321 174 189 449 188 188 321 291 274 296 300 99 55 299 299 55 300 213 212 211 173 191 195 66 174 191 183 175 188 295
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1008-
66 BRACKET; S/ABS 1-53458-755-1 01 1 1008-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1008-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1008-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1008-1306
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1307-
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1008-1009
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1010-
174 OUTRIGGER 8-98158-645-0 01 1 1008-1306
174 OUTRIGGER 8-97614-275-1 01 1 1307-
174 OUTRIGGER 8-98158-646-0 01 1 1008-1306
174 OUTRIGGER 8-98198-712-2 01 1 1307-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1008-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1008-
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1511-
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1008-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1511-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1008-
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1008-
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1008-
212 SPRING; COIL 1-09580-515-0 02 1 1008-
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1008-
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1008-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1008-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1008-1410
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1008-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1008-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1008-
274 PIN 1-53458-996-0 01 1 1008-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1008-
294 MEMBER; FLOATING 1-53454-950-3 01 1 1008-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1008-
296 STOPPER; UPR 1-53458-973-1 01 1 1008-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1008-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1008-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1008-
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1008-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1008-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1008-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1008-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1511-

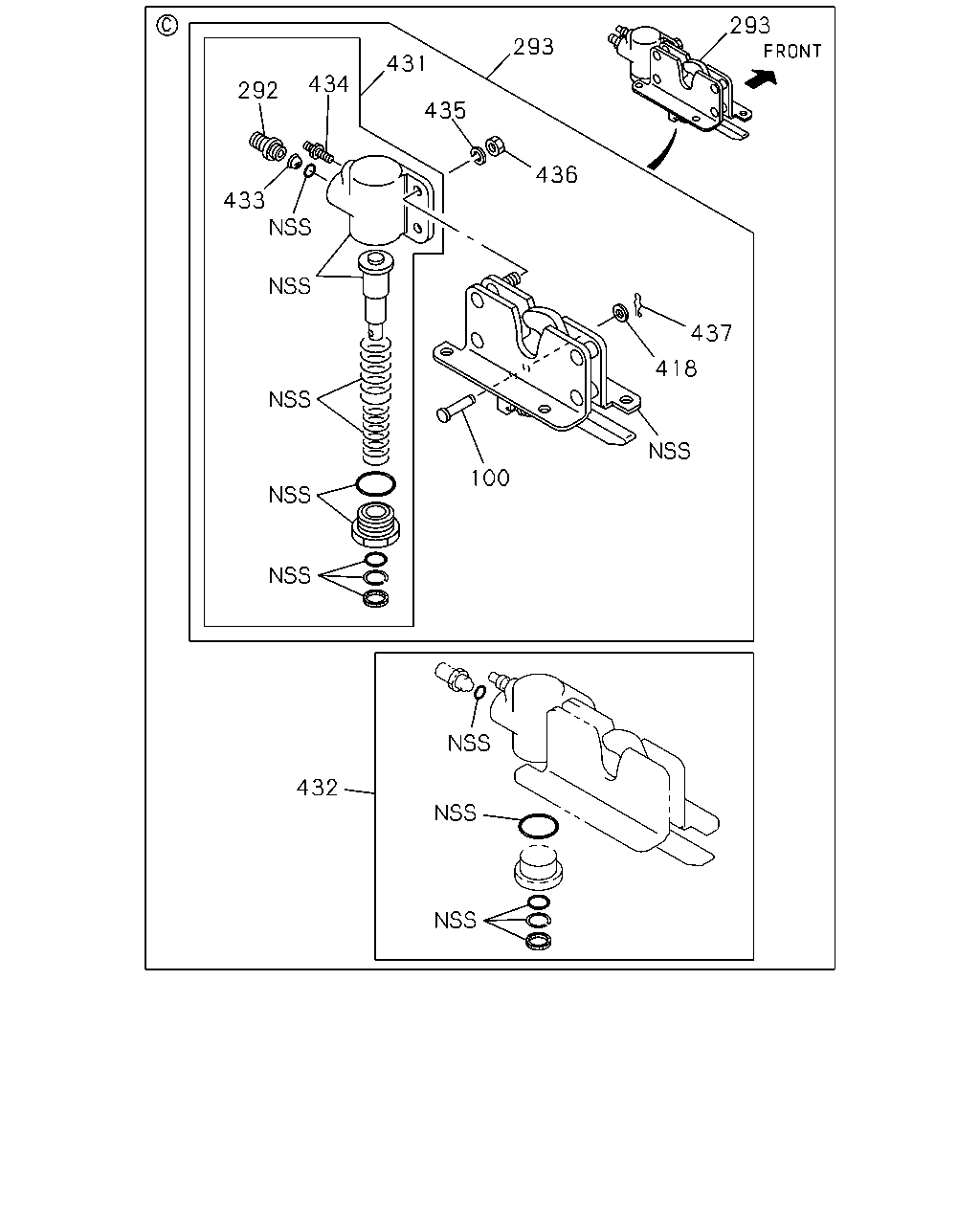

çizim 171136
293 293 431 434 292 433 435 436 437 418 432 100
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 1008-
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1008-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1008-
418 WASHER; PL,PIN 1-53458-059-0 01 1 1008-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1008-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1008-
433 FILTER; AIR CYL 1-53458-048-0 01 1 1008-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1008-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1008-
436 NUT; AIR CYL 1-53458-528-0 02 1 1008-
437 PIN; SNAP 1-53458-526-0 01 1 1008-
çizim 171142
294 202 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
66 BRACKET; S/ABS 1-53458-755-1 01 1 1008-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1008-
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1008-1009
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1010-
174 OUTRIGGER 8-98158-645-0 01 1 1008-1306
174 OUTRIGGER 8-97614-275-1 01 1 1307-
174 OUTRIGGER 8-98158-646-0 01 1 1008-1306
174 OUTRIGGER 8-98198-712-2 01 1 1307-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1008-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1008-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1008-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1008-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1008-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1008-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1008-
294 MEMBER; FLOATING 1-53454-950-3 01 1 1008-
