◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#55241) — 51 parça

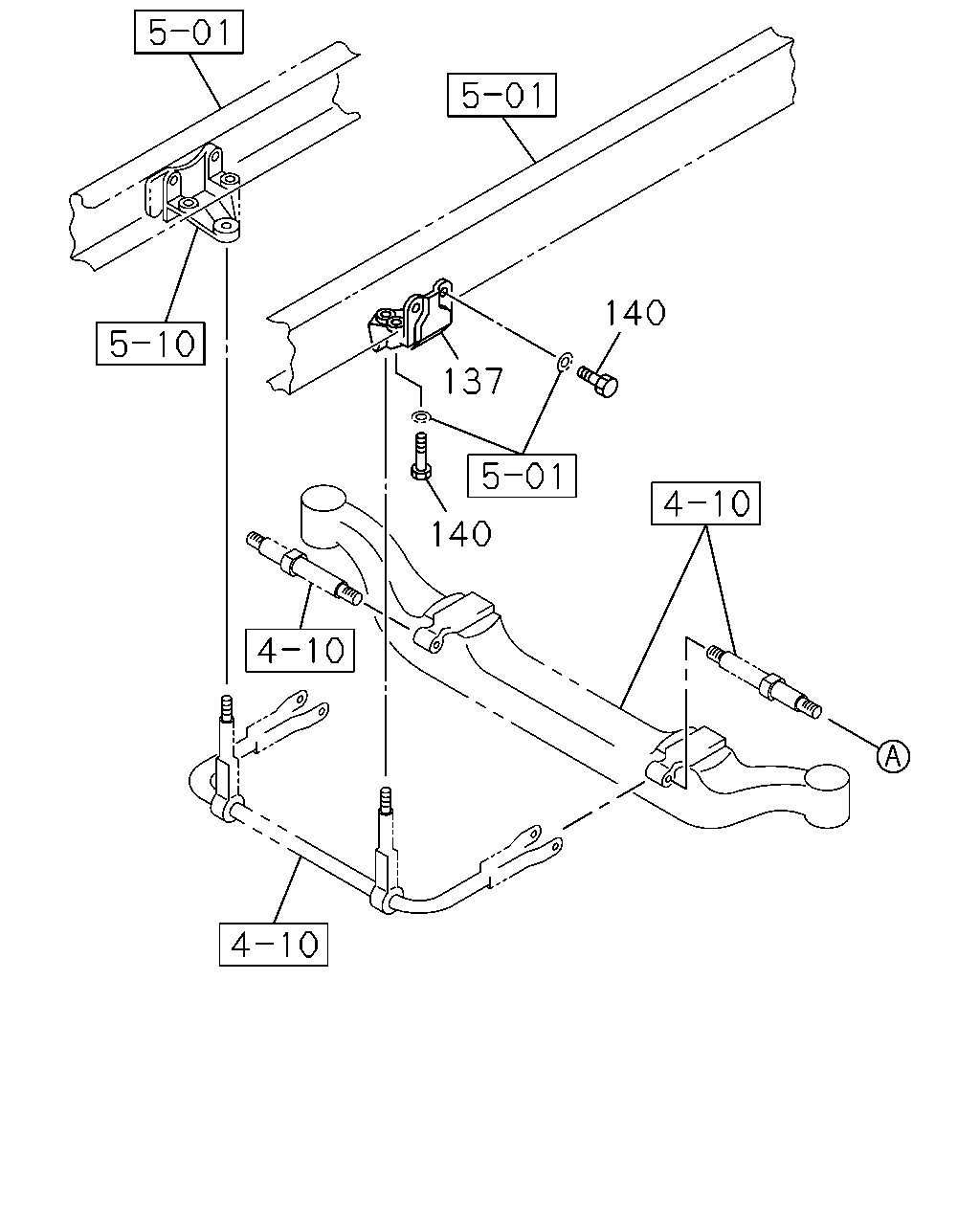

çizim 171106
140 137 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME 1-51781-112-0 01 1 1008-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1008-

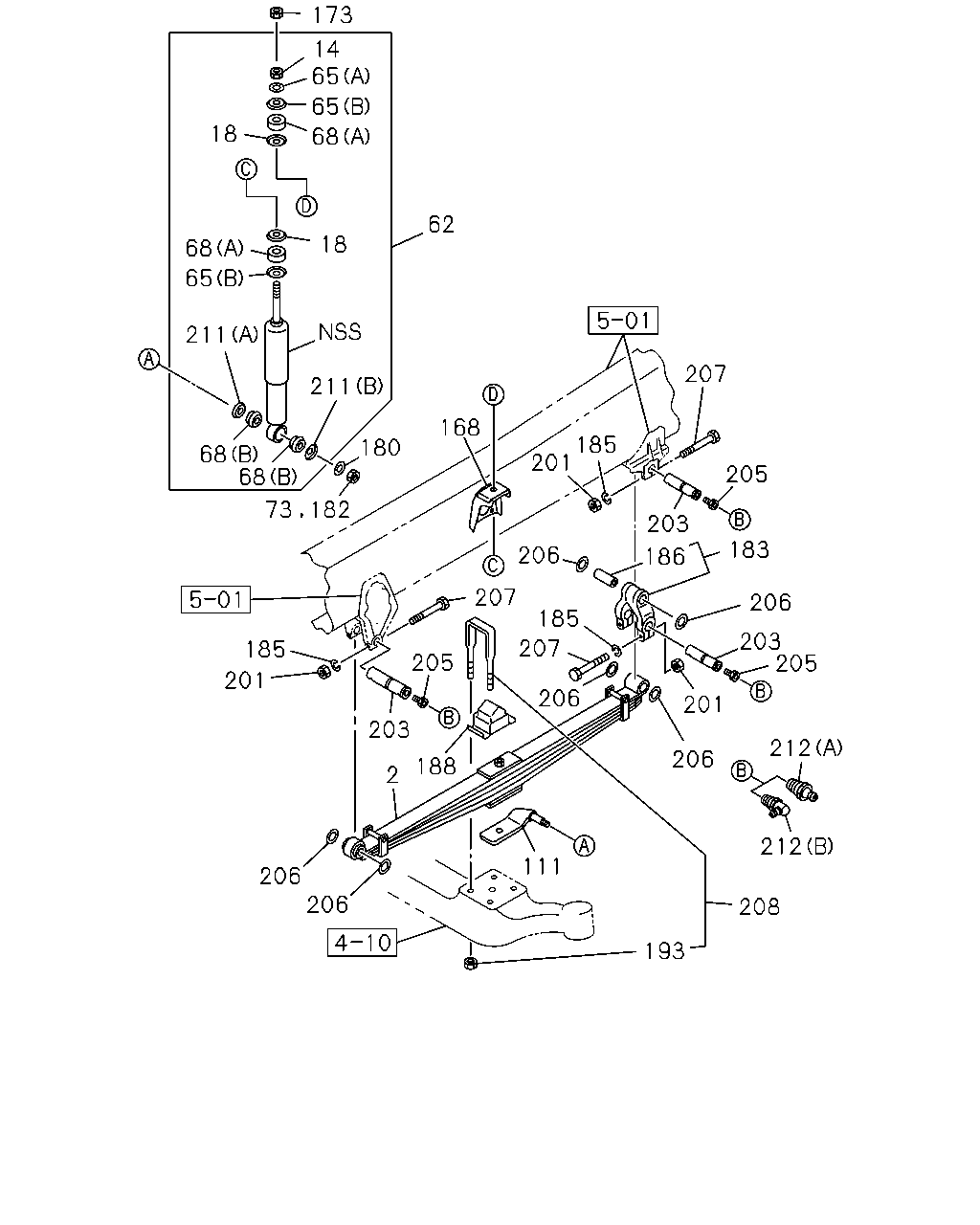

çizim 171130
208 212 212 206 193 201 203 205 206 183 205 111 188 2 206 206 203 205 207 207 206 185 206 201 62 18 68 65 65 186 203 207 185 201 73 182 180 168 211 68 68 211 65 68 18 14 173 185
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98162-076-0 02 1 1307-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF 		8-97617-349-0 02 1 1008-1306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-97617-349-0 02 1 1307-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98229-520-0 02 1 1408-1510
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98229-520-0 02 1 1511-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98229-520-0 02 1 1511-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1008-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1008-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1307-
62 ABSORBER ASM; SHOCK,FRT 1-51630-837-0 02 1 1008-1306
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-837-0 02 1 1307-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1307-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1008-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1008-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1008-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1008-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008-1306
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1307-1405
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1008-1306
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1307-1405
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1406-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1008-1306
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1307-1405
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1406-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1008-
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1008-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1008-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1406-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008-1306
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1008-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1008-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1008-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1008-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1008-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1008-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1008-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1008-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1008-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1008-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-380-2 04 1 1307-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1008-1206
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207-1306
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1307-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1008-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1008-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1008-
