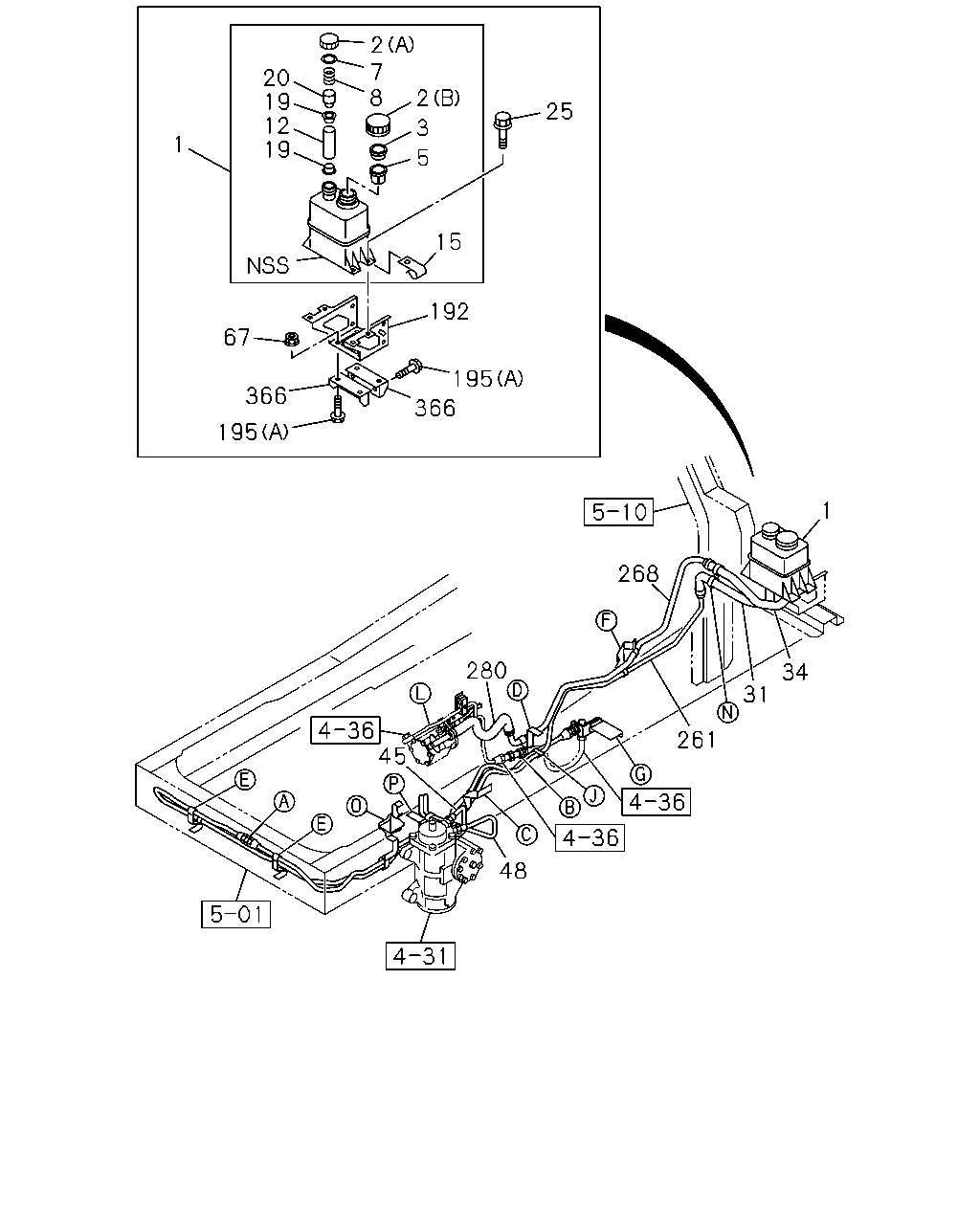

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#55237) — 213 parça

5 3 2 8 7 2 25 15 192 366 195 195 366 67 1 19 12 19 20 1 34 31 261 268 280 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1306
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1307-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1306
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1307-
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1411-
45	PIPE; OIL,P/S UNIT TO UNION	8-98169-560-0	01	1	1008-1306
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1307-1410
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98169-599-0	01	1	1008-1306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1307-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1307-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1307-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-1306
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1307-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-1306
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1307-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-
261	PIPE; OIL,UNION TO HOSE	8-98178-029-0	01	1	1008-1306
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1307-1410
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1306
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1307-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1307-

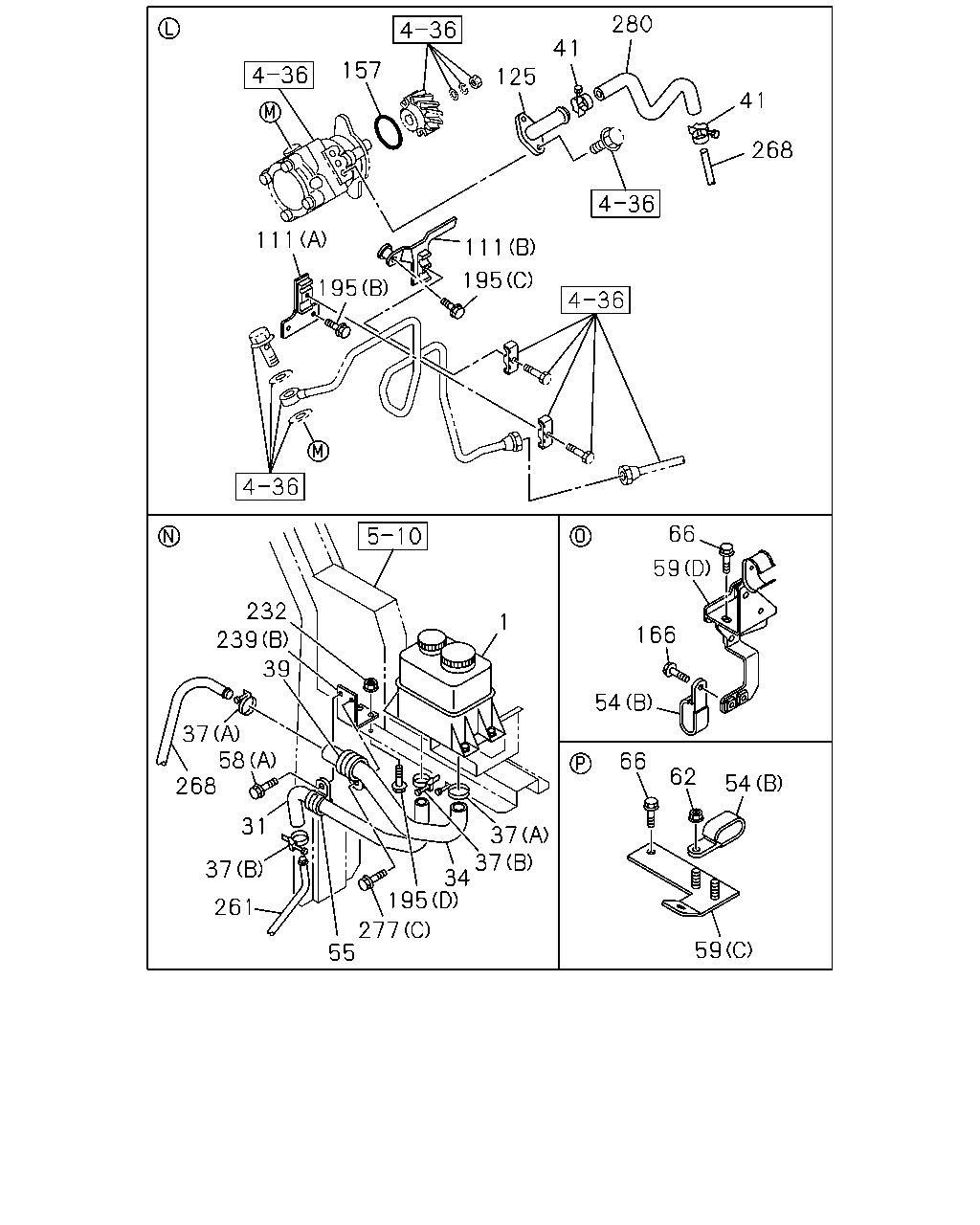

68 261 268 277 37 55 39 58 37 278 58 229 2 7 8 20 19 12 19 15 2 3 5 1 25 37 34 31 37 45 261 31 34 1 48 268 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1306
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1307-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1306
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1307-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-1306
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1307-
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1411-
45	PIPE; OIL,P/S UNIT TO UNION	8-98169-560-0	01	1	1008-1306
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1307-1410
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98169-599-0	01	1	1008-1306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-229-0	01	1	1307-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	1008-1306
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1306
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-1306
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1008-1306
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	1008-1306
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-
261	PIPE; OIL,UNION TO HOSE	8-98178-029-0	01	1	1008-1306
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1307-1410
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1306
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1307-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1306
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1306
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	1008-1306
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-

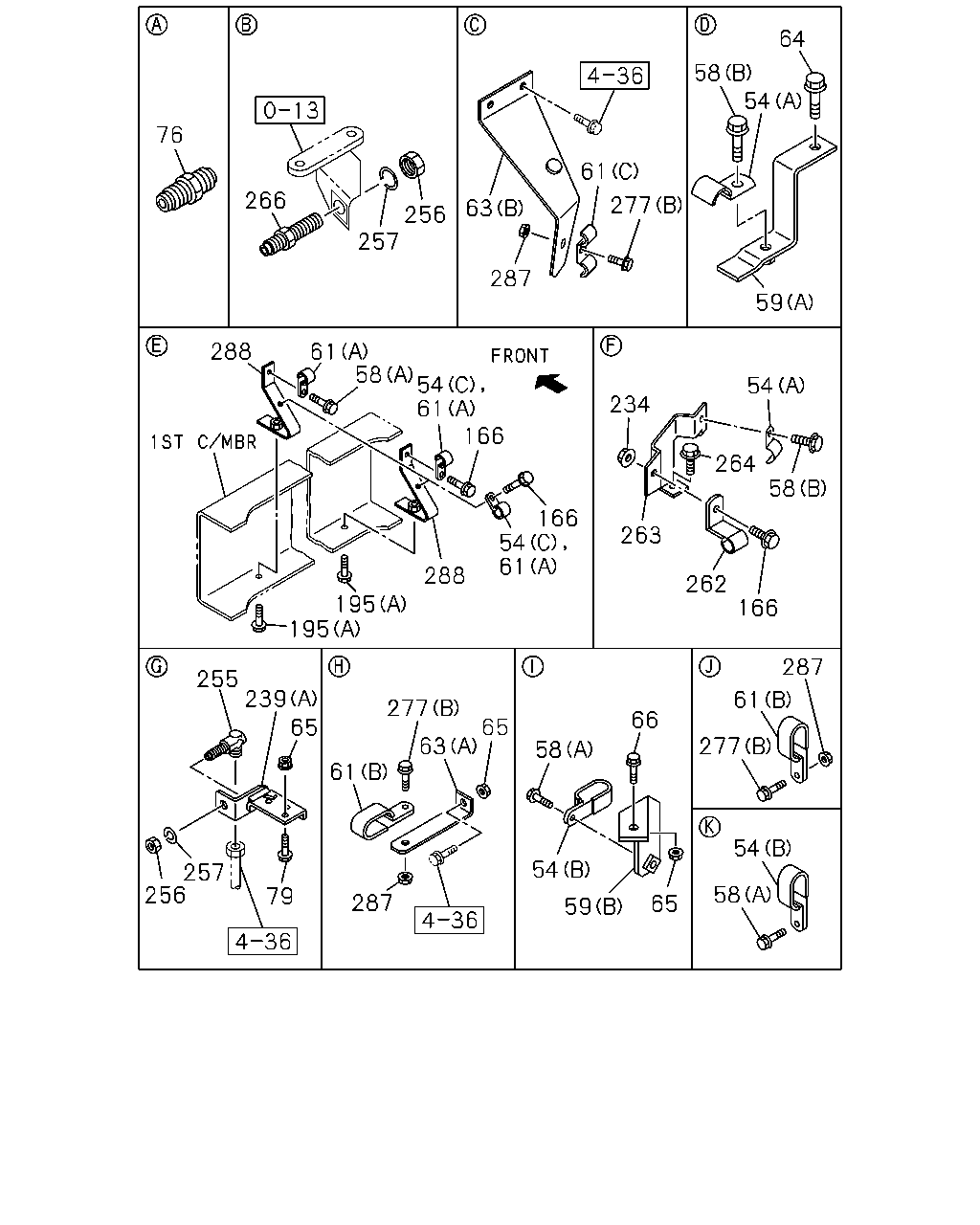

76 266 257 256 63 287 61 277 58 64 54 59 54 58 264 234 263 262 166 166 54 61 166 61 54 58 61 288 288 195 195 287 61 277 54 58 65 59 54 58 66 65 63 287 277 61 65 79 239 255 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1008-1306
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1008-1306
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1307-
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1306
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-1306
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98287-558-0	01	1	1411-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1307-1410
59	BRACKET; CLIP,OIL PIPE EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98239-922-0	01	1	1411-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	1008-1306
59	BRACKET; CLIP,OIL PIPE (C)	8-98224-867-0	01	1	1307-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1008-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-1306
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1307-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1008-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1008-1306
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-1306
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1008-1306
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1307-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> M8X45 FLANGE	0-28050-845-0	01	1	1411-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-1410
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	01	1	1411-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-1306
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1307-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-1306
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1307-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-
239	BRACKET; FLEX HOSE (B)	1-21464-780-0	01	1	1307-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1008-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1306
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1306
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1306
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1307-
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1008-

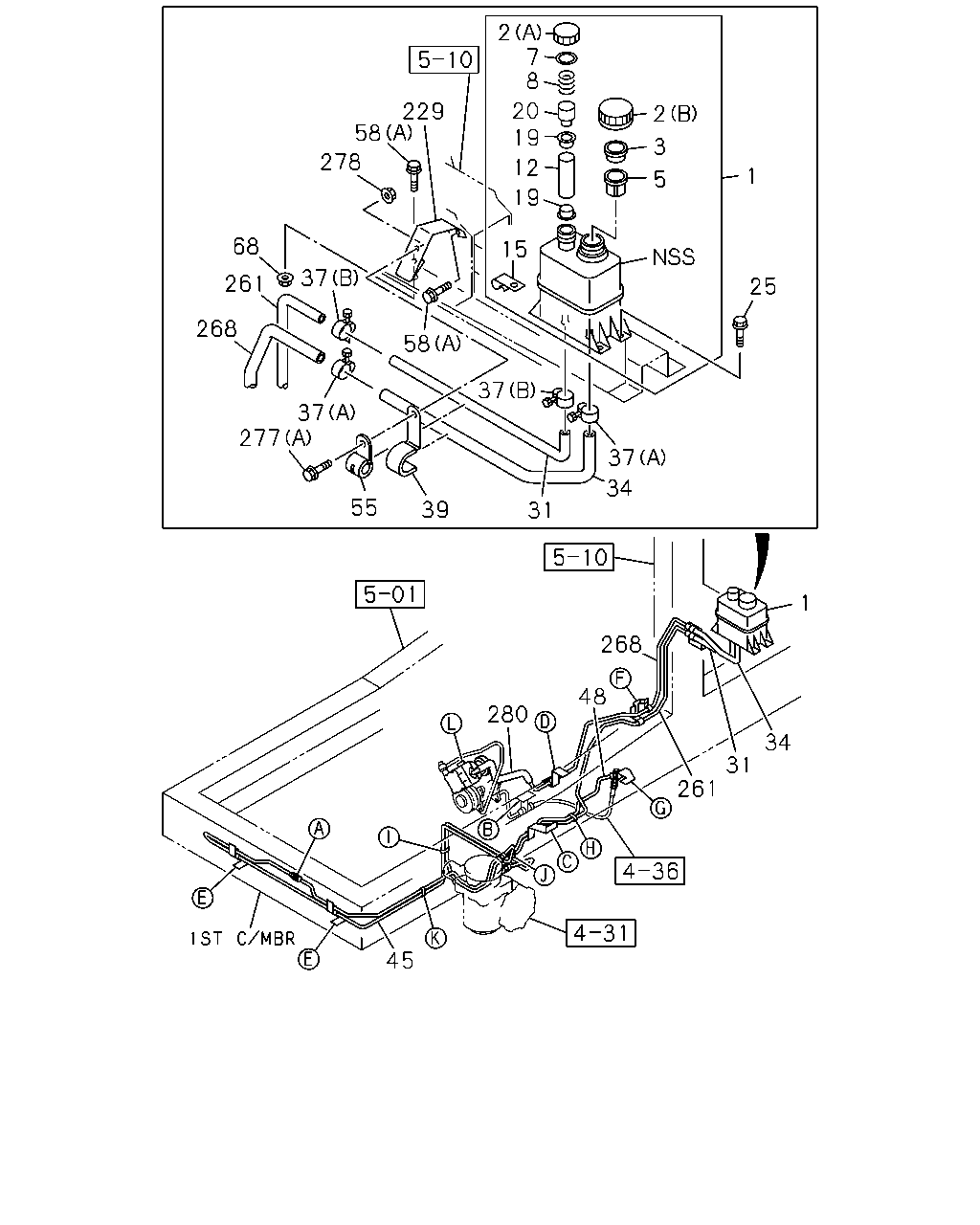

268 41 111 195 66 59 166 54 66 62 54 59 1 232 239 37 58 268 31 37 261 37 37 34 195 277 55 111 157 125 41 280 195 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-1306
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1307-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-1306
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1307-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-1306
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1307-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1008-1306
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	1008-1306
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1307-
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	1008-1306
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1306
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-1306
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98287-558-0	01	1	1411-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1307-1410
59	BRACKET; CLIP,OIL PIPE EXC. FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98239-922-0	01	1	1411-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	1008-1306
59	BRACKET; CLIP,OIL PIPE (C)	8-98224-867-0	01	1	1307-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1307-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1008-1306
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1307-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> M8X45 FLANGE	0-28050-845-0	01	1	1411-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-1410
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	01	1	1411-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-1306
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1307-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-1306
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1307-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1307-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-
239	BRACKET; FLEX HOSE (B)	1-21464-780-0	01	1	1307-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98287-562-0	01	1	1411-
261	PIPE; OIL,UNION TO HOSE	8-98178-029-0	01	1	1008-1306
261	PIPE; OIL,UNION TO HOSE	8-98233-230-0	01	1	1307-1410
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-230-0	01	1	1411-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-1306
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1307-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-1306
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-1306
277	BOLT; HOSE CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
