Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

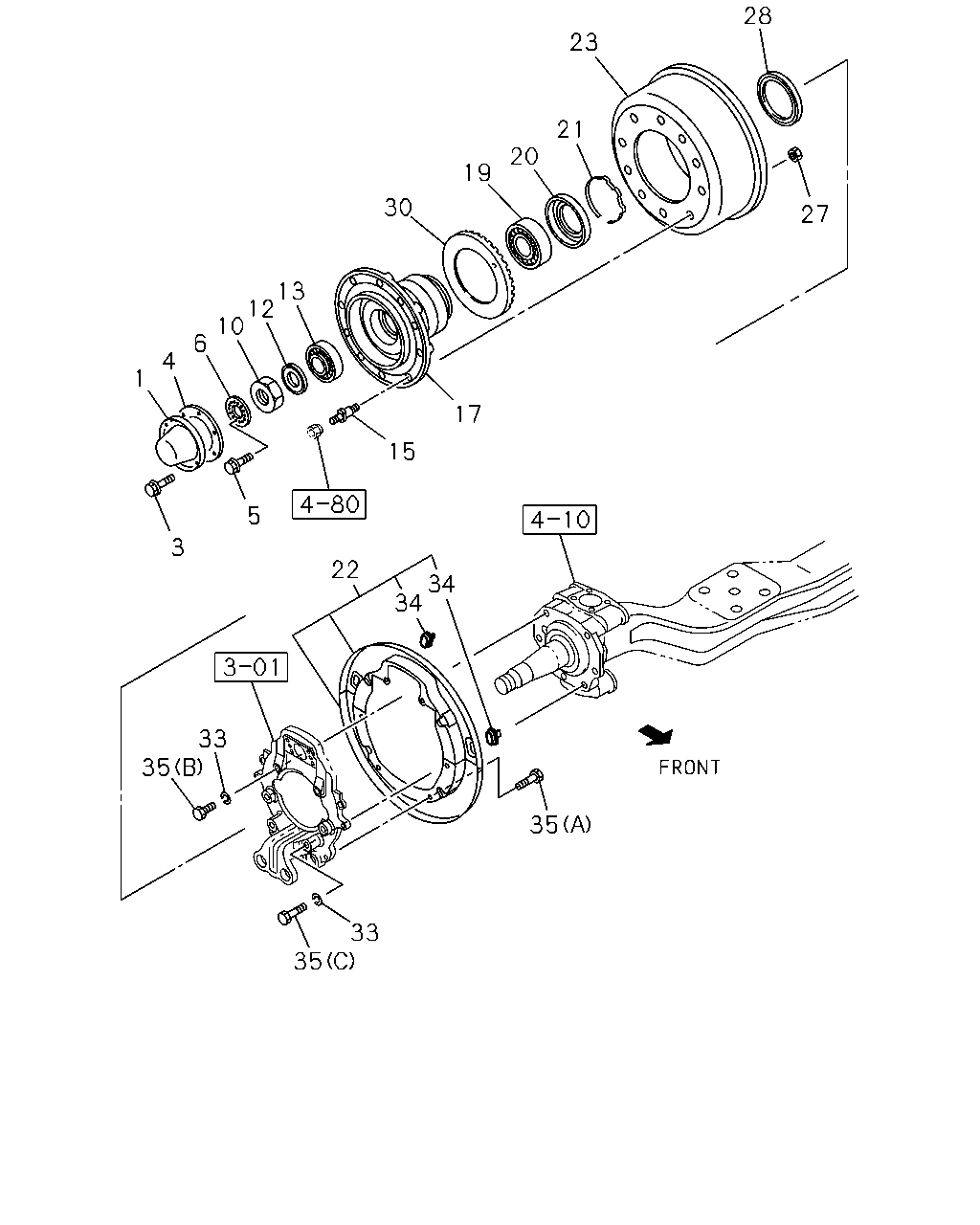

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#55231) — 24 parça
27
23
28
21
20
19
30
17
13
12
10
6
4
1
15
5
3
22
34
34
35
33
35
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1008-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
1008-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1008-
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
04
1
1008-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1202-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1008-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1008-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1008-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1008-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
20
1
1008-
17
HUB; FRT AXLE
1-42312-160-0
02
1
1008-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1008-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1008-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1008-
22
COVER SET; FRT BRK DRUM
1-87831-225-0
02
1
1008-
23
DRUM; BRK,FRT
1-42315-365-0
02
1
1008-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
20
1
1008-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1008-
30
RING; EXCITER,FRT HUB
1-42319-203-0
02
1
1008-
33
WASHER; LK,DRUM COVER
ID=18.2
0-91510-818-0
12
1
1008-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1008-
35
BOLT; DRUM COVER
(C) M18X65
1-09000-789-0
04
1
1008-
35
BOLT; DRUM COVER
(B) M18X45
1-09000-790-0
08
1
1008-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
12
1
1008-
