4-10 — FRONT AXLE (#55230) — 157 parça

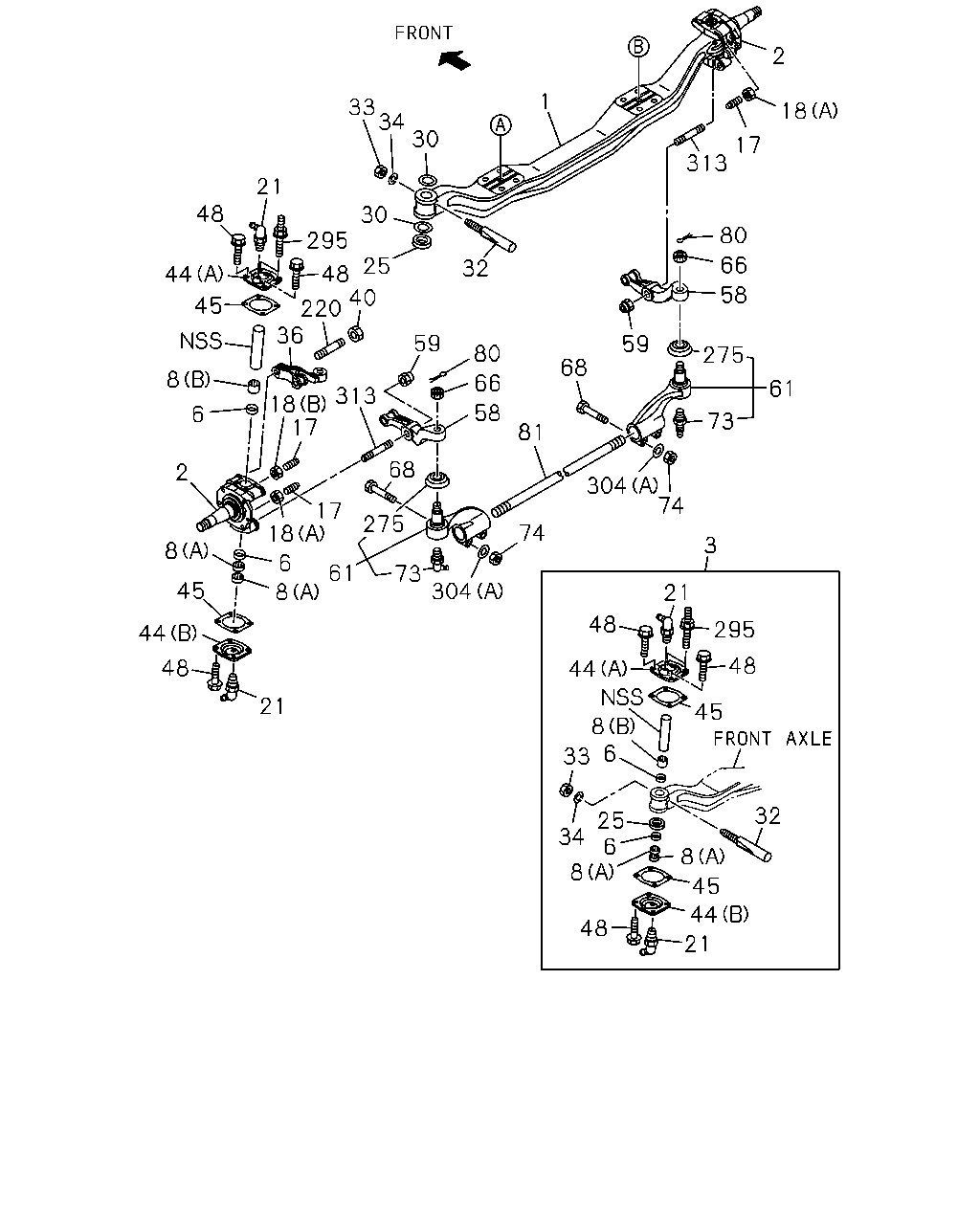

2 18 17 313 80 66 58 275 61 73 59 1 30 34 33 21 48 44 45 8 6 2 8 45 44 48 21 8 6 18 17 18 17 36 220 40 48 295 30 25 32 59 313 68 58 66 80 81 68 275 73 61 74 3 74 304 304 48 21 44 295 48 45 8 33 6 32 8 25 34 6 8 48 45 44 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
3	KING PIN SET	1-87831-349-2	02	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1008-
58	ARM; TIE ROD	8-98145-592-0	01	1	1008-
58	ARM; TIE ROD	8-98145-593-0	01	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1008-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1008-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-

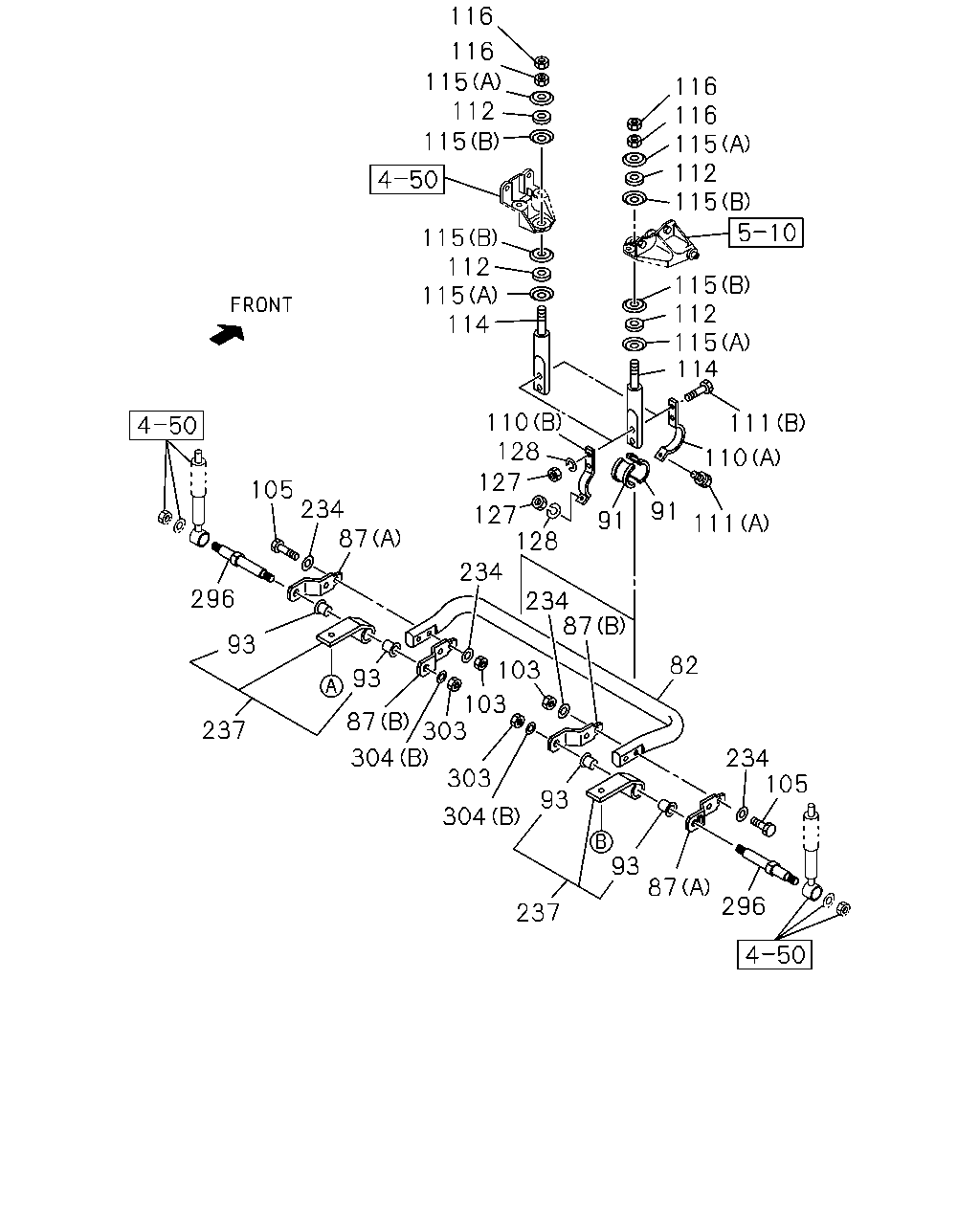

116 116 115 112 115 115 112 115 114 110 128 127 127 128 234 87 82 234 105 296 87 93 93 304 303 304 93 87 303 93 296 237 237 111 110 111 114 115 112 115 115 112 115 116 116 234 87 234 105 103 103 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1008-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1008-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1008-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1008-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1008-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1008-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1008-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1008-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1008-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1008-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1008-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1008-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1008-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1008-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1008-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1008-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1008-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1008-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1008-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1008-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1008-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1008-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1008-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1008-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1008-

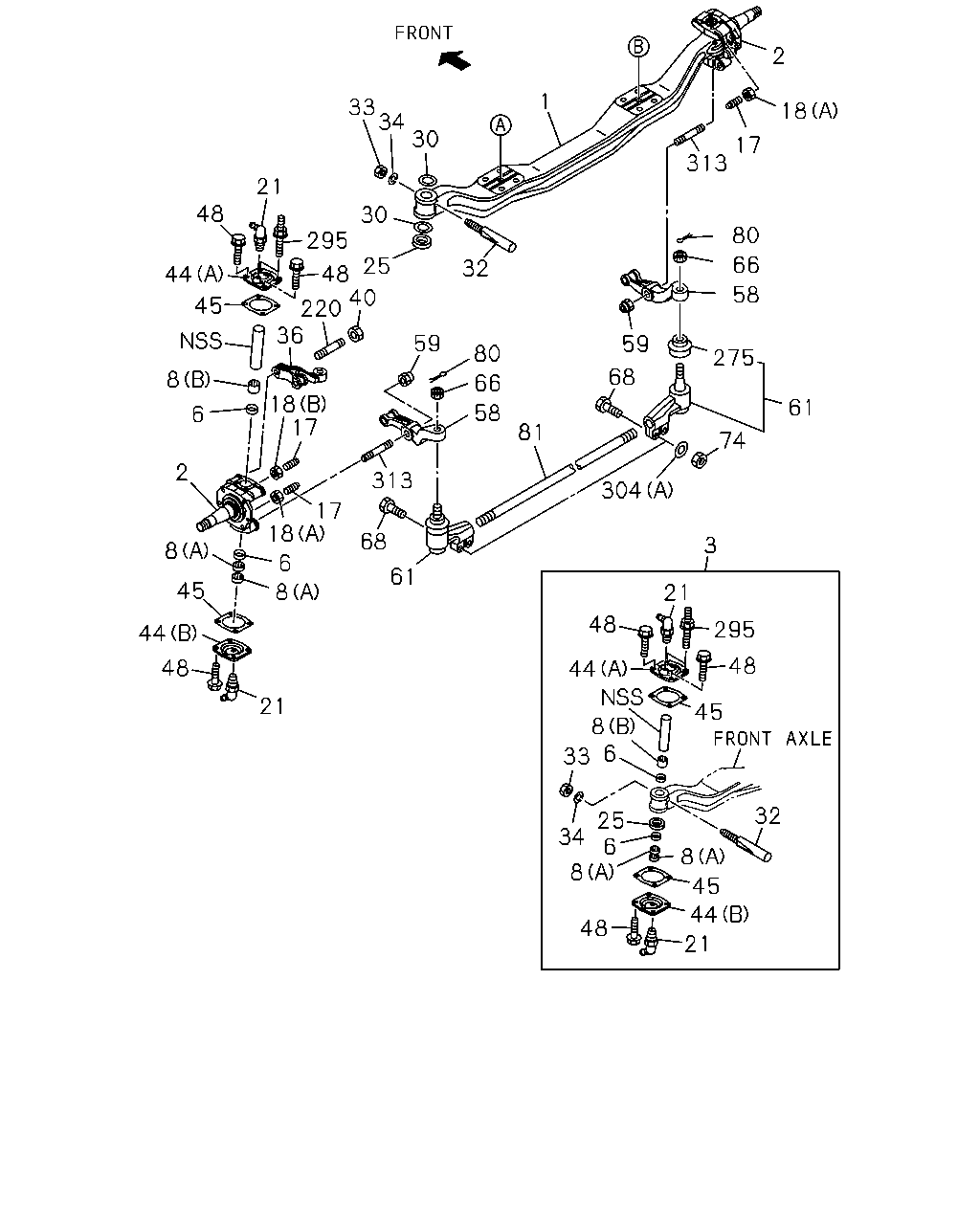

2 17 313 18 80 58 61 275 66 74 304 68 59 3 295 48 45 21 48 44 8 33 6 25 34 6 8 48 8 45 44 21 32 1 32 80 59 58 66 81 61 68 313 17 17 18 8 6 21 48 44 8 2 45 18 6 8 45 44 48 21 295 48 220 40 25 33 30 34 30 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
3	KING PIN SET	1-87831-349-2	02	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1008-
58	ARM; TIE ROD	8-98145-592-0	01	1	1008-
58	ARM; TIE ROD	8-98145-593-0	01	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1008-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1008-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-

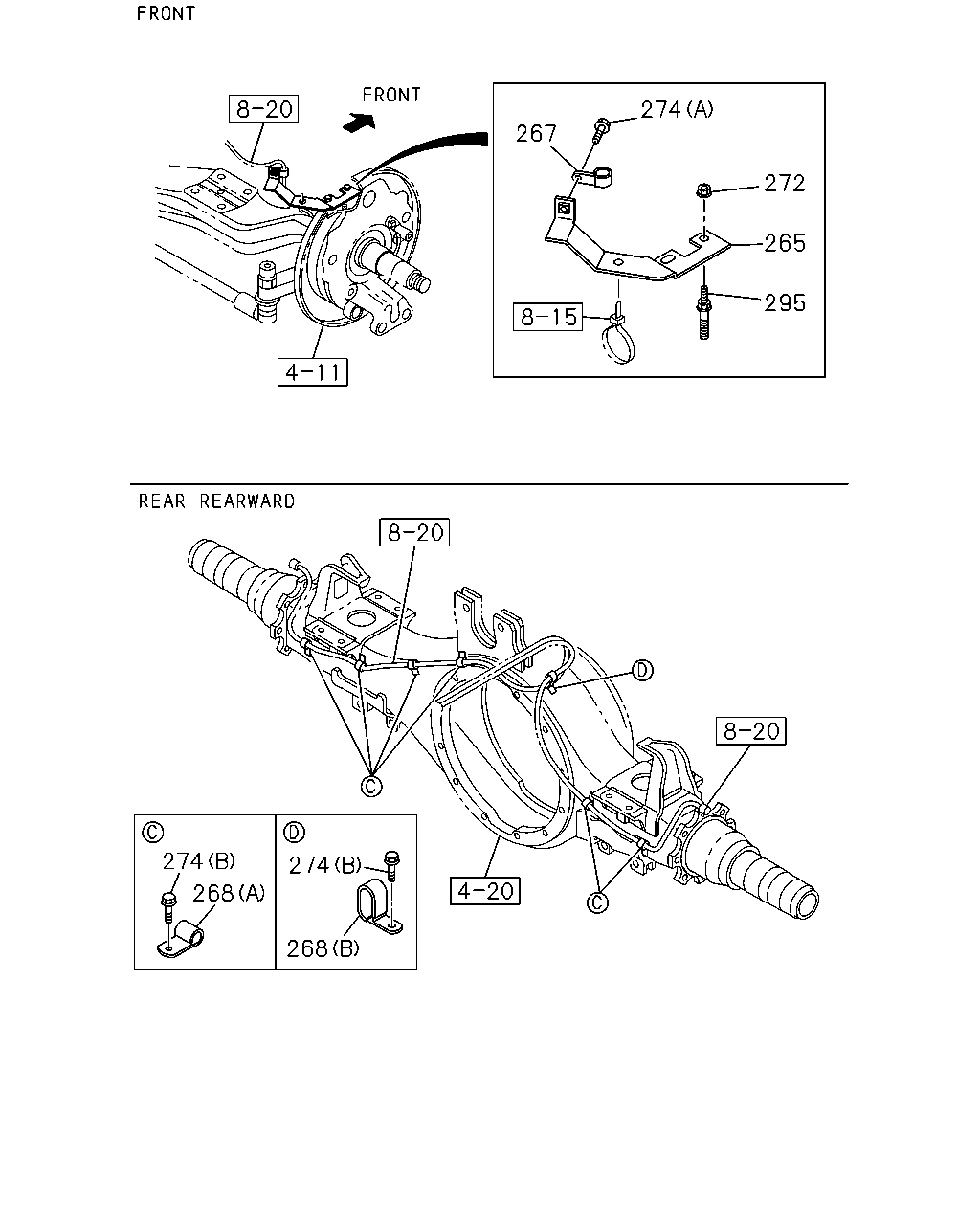

274 272 265 295 274 268 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1008-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1008-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1008-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1008-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1008-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1008-
274	BOLT; CLIP (B) M8X10 FLANGE	0-28050-810-0	07	1	1008-
274	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-
