◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#55226) — 294 parça

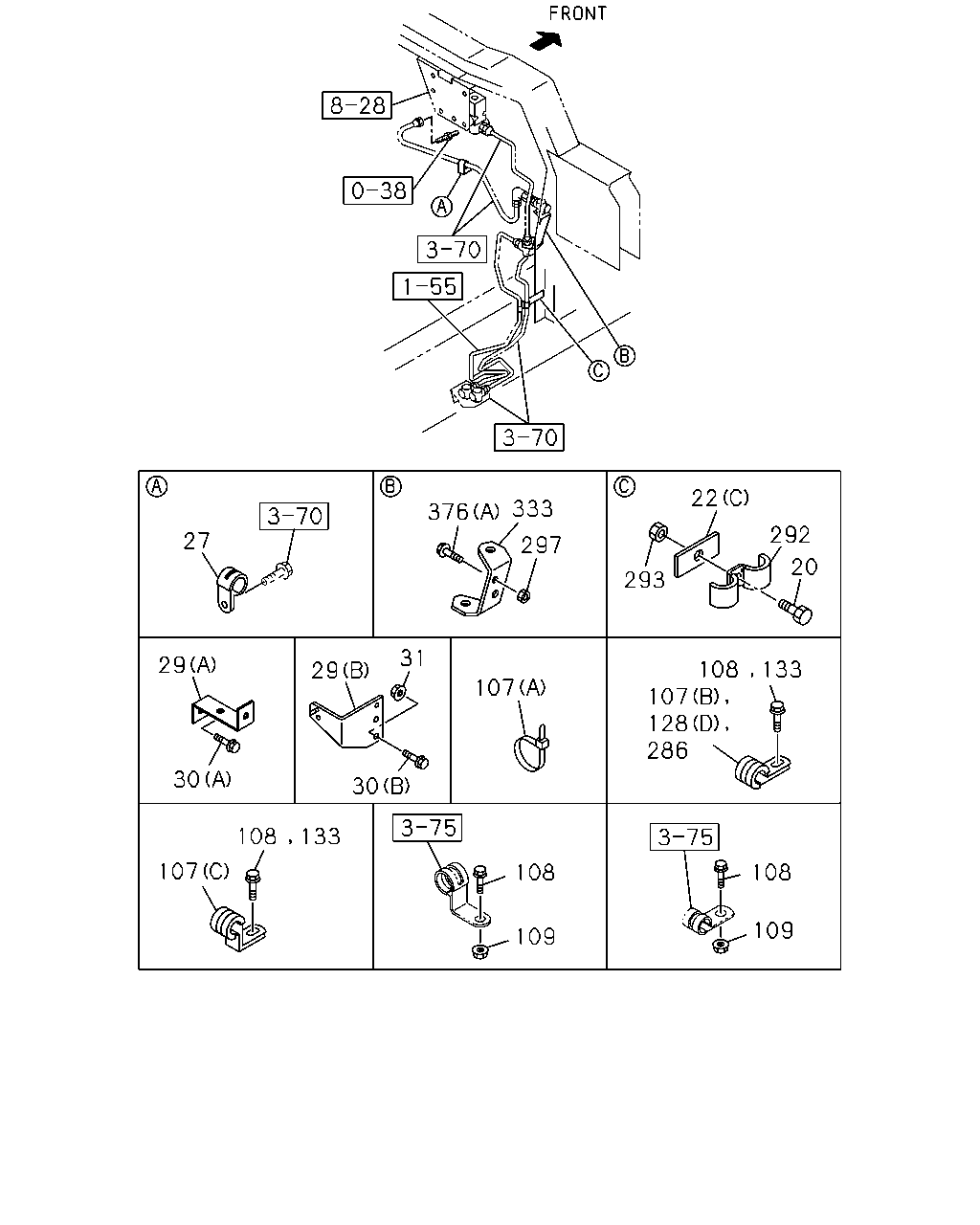

çizim 171111
109 108 109 108 133 108 107 30 29 29 31 30 107 286 128 107 133 108 20 292 22 293 297 333 376 27
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1307-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1008-1306
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1008-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1008-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 06 1 1008-1306
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1307-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1008-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1008-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1008-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1306
107 CLIP; NYLON TUBE
(D) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1307-
107 CLIP; NYLON TUBE
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-1306
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 09 1 1008-1306
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1307-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1008-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1307-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1306
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-
128 CLIP; NYLON TUBE
(A) ID=24.5 L=27 		1-09701-049-0 01 1 1008-1306
128 CLIP; NYLON TUBE
(D) ID=24 L=27 		1-09700-809-0 01 1 1307-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1008-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 09 1 1008-1008
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1009-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1008-1306
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1307-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 18 1 1008-1306
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1307-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1307-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
286 CLIP; NYLON TUBE
ID=15 L=28 		1-09701-216-0 01 1 1307-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1008-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 1008-1306
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1306
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1307-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-1510
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-1510
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1511-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-

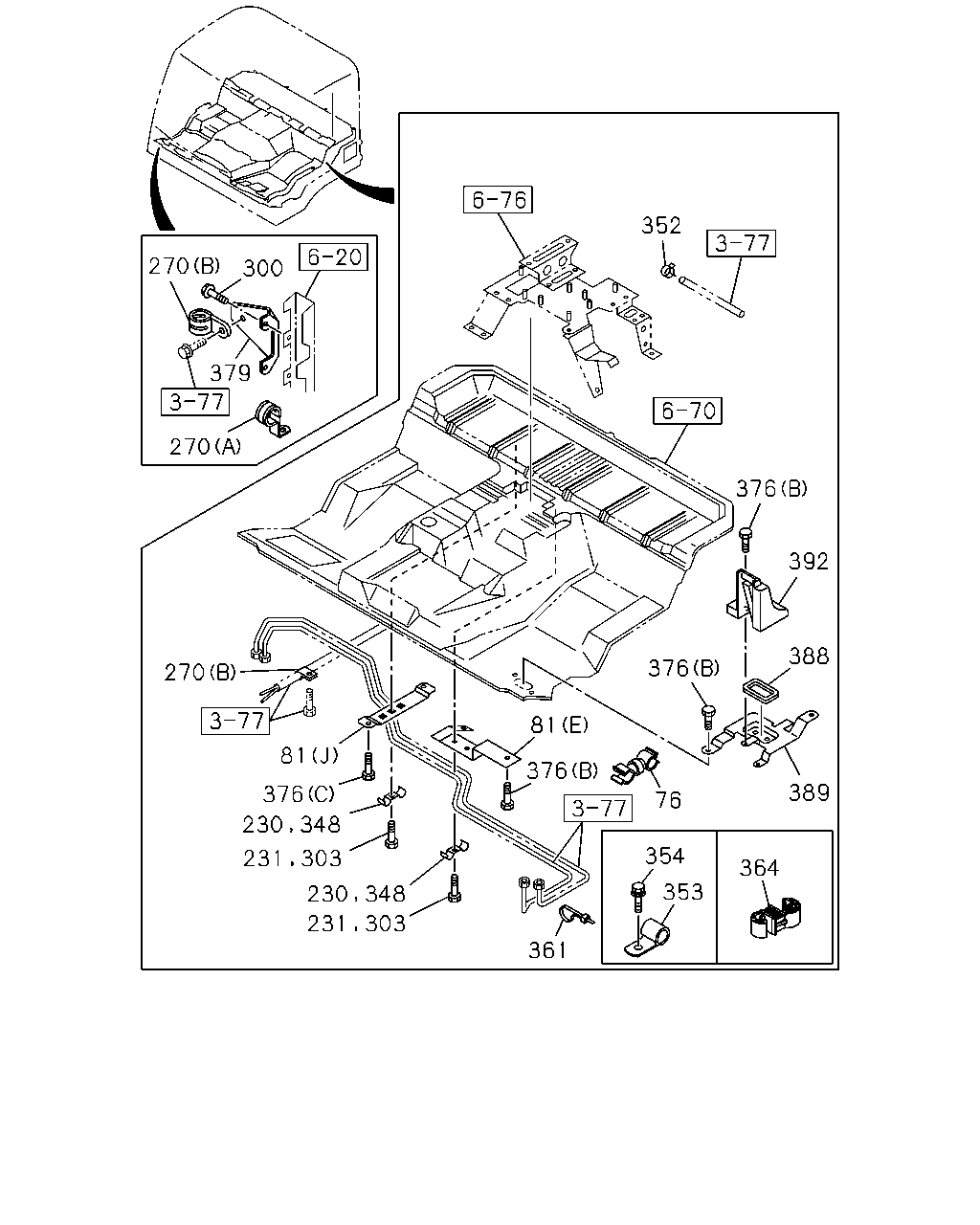

çizim 171129
352 300 270 379 270 376 392 388 376 389 76 376 81 270 81 376 230 348 231 303 230 348 303 231 354 353 361 364
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 1008-
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-47471-274-0 02 1 1008-1306
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1307-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(D) 		1-47478-113-0 02 1 1008-1306
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1307-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1008-
230 CLIP; PIPE,AIR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1306
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1307-
231 BOLT; CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1306
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1008-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-
303 BOLT; PIPE CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1306
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
303 BOLT; PIPE CLIP
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-1306
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1008-
348 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1306
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1008-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1008-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 1008-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-1510
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-1510
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1511-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1008-
388 SEAL
L=215 		1-79738-794-1 01 1 1008-
389 BRACKET; UNION 1-79738-790-1 01 1 1008-
392 COVER; BRKT 1-73996-264-1 01 1 1008-

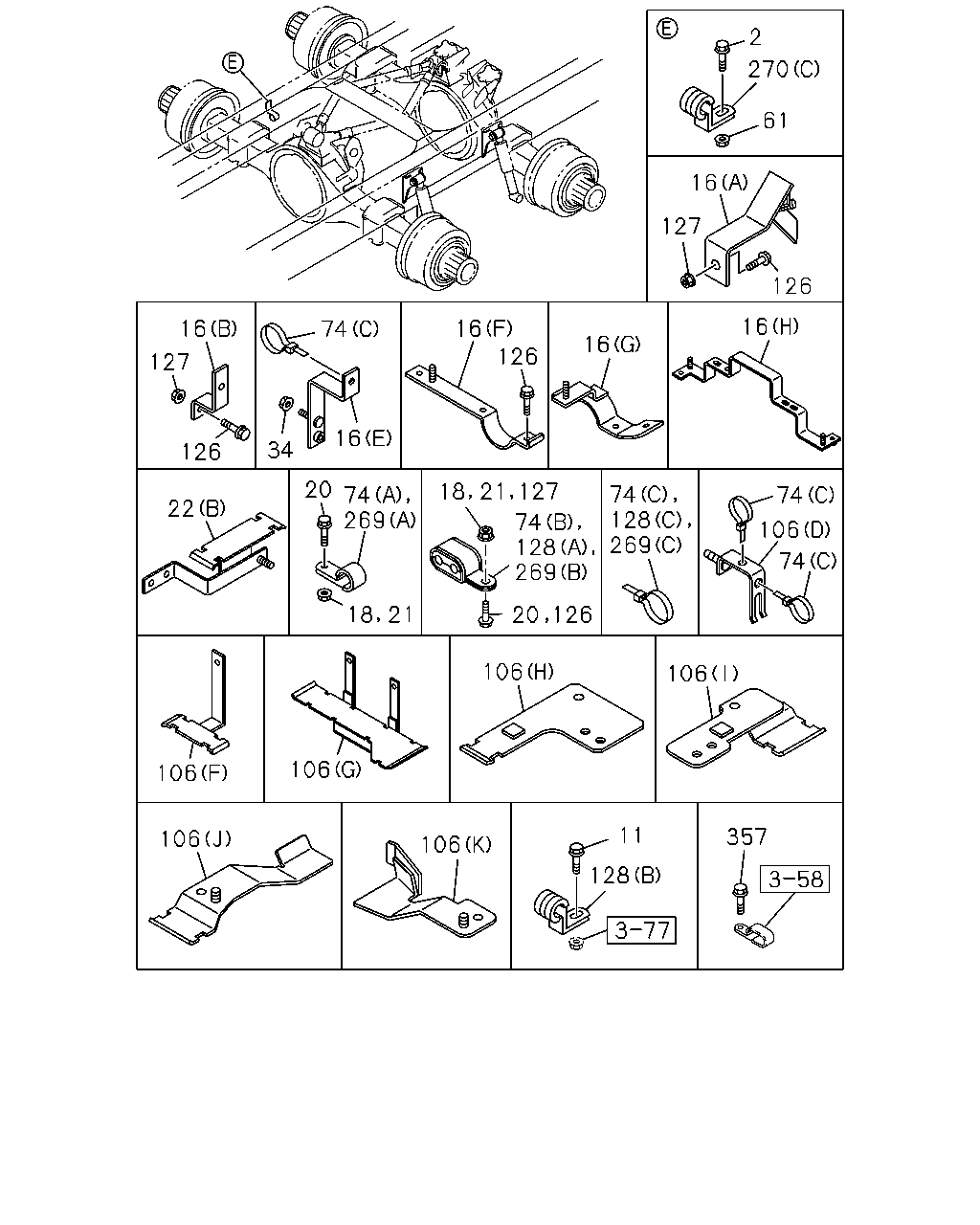

çizim 171141
2 270 61 16 127 126 16 16 126 16 16 74 34 16 127 126 22 20 74 269 18 21 18 21 127 74 128 269 20 126 74 128 269 74 106 74 106 106 106 106 106 106 11 128 357
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1008-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1008-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 03 1 1008-1306
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1307-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1008-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1008-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 02 1 1008-1306
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1307-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1307-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 02 1 1008-1306
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1307-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1307-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1008-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1008-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1307-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1008-1306
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1008-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1008-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1008-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 06 1 1008-1306
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1307-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1008-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1008-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1008-
74 CLIP; NYLON TUBE
(A) ID=13 		1-09701-030-1 04 1 1008-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 01 1 1008-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 14 1 1008-1008
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 15 1 1009-
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		1-47478-420-0 01 1 1307-1404
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47471-274-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1307-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 01 1 1008-1306
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1307-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(G) 		8-97615-493-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1307-
106 BRACKET; TUBE CLIP
(H) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		8-98057-133-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(G) 		8-98226-741-1 01 1 1307-1312
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1401-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1008-1306
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1008-1306
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1307-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-1306
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-
128 CLIP; NYLON TUBE
(A) ID=24.5 L=27 		1-09701-049-0 01 1 1008-1306
128 CLIP; NYLON TUBE
(D) ID=24 L=27 		1-09700-809-0 01 1 1307-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1008-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 09 1 1008-1008
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1009-
269 CLIP; BAND,NYLON TUBE
(A) ID=13 		1-09701-030-1 05 1 1008-
269 CLIP; BAND,NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 04 1 1008-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1008-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1008-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1008-

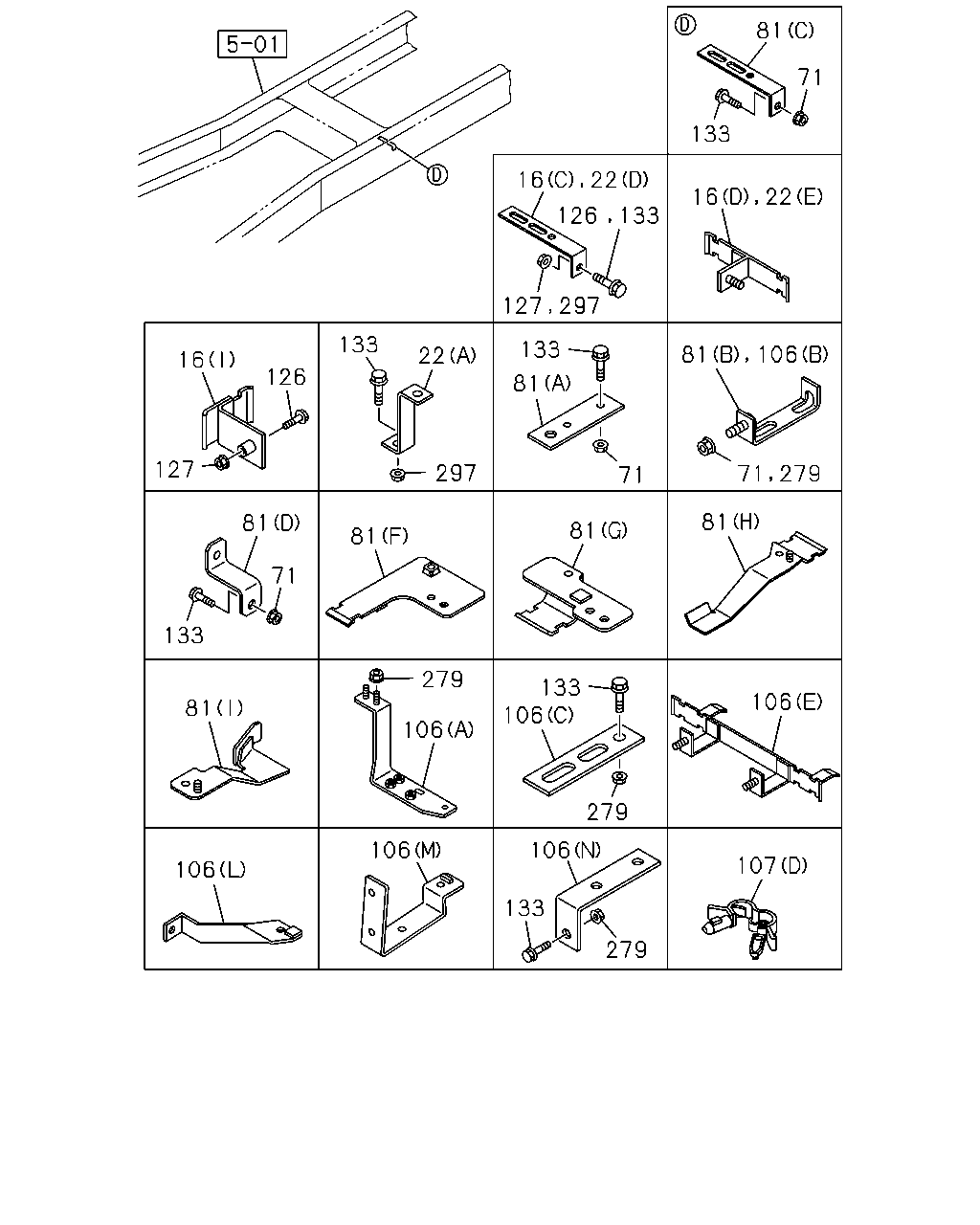

çizim 171191
107 279 133 106 106 106 81 279 106 106 106 133 81 81 81 81 71 133 127 126 133 297 22 16 71 71 279 106 81 81 133 297 127 133 126 22 16 16 22 133 71 81 279
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1008-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1008-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 03 1 1008-1306
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1307-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1008-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1008-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 02 1 1008-1306
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1307-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1307-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 02 1 1008-1306
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1307-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1307-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1008-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1008-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1008-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 06 1 1008-1306
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1307-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1008-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-47471-274-0 02 1 1008-1306
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1307-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(D) 		1-47478-113-0 02 1 1008-1306
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1307-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1008-
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		1-47478-420-0 01 1 1307-1404
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47471-274-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1307-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 01 1 1008-1306
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1307-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(G) 		8-97615-493-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1307-
106 BRACKET; TUBE CLIP
(H) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		8-98057-133-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(G) 		8-98226-741-1 01 1 1307-1312
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1401-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1306
107 CLIP; NYLON TUBE
(D) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1307-
107 CLIP; NYLON TUBE
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-1306
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1008-1306
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1008-1306
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1307-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-1306
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1008-1306
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1307-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 18 1 1008-1306
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1307-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1307-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 1008-1306
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1306
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
