3-70 — BRAKE PIPING; AIR,AIR MASTER (#55223) — 192 parça

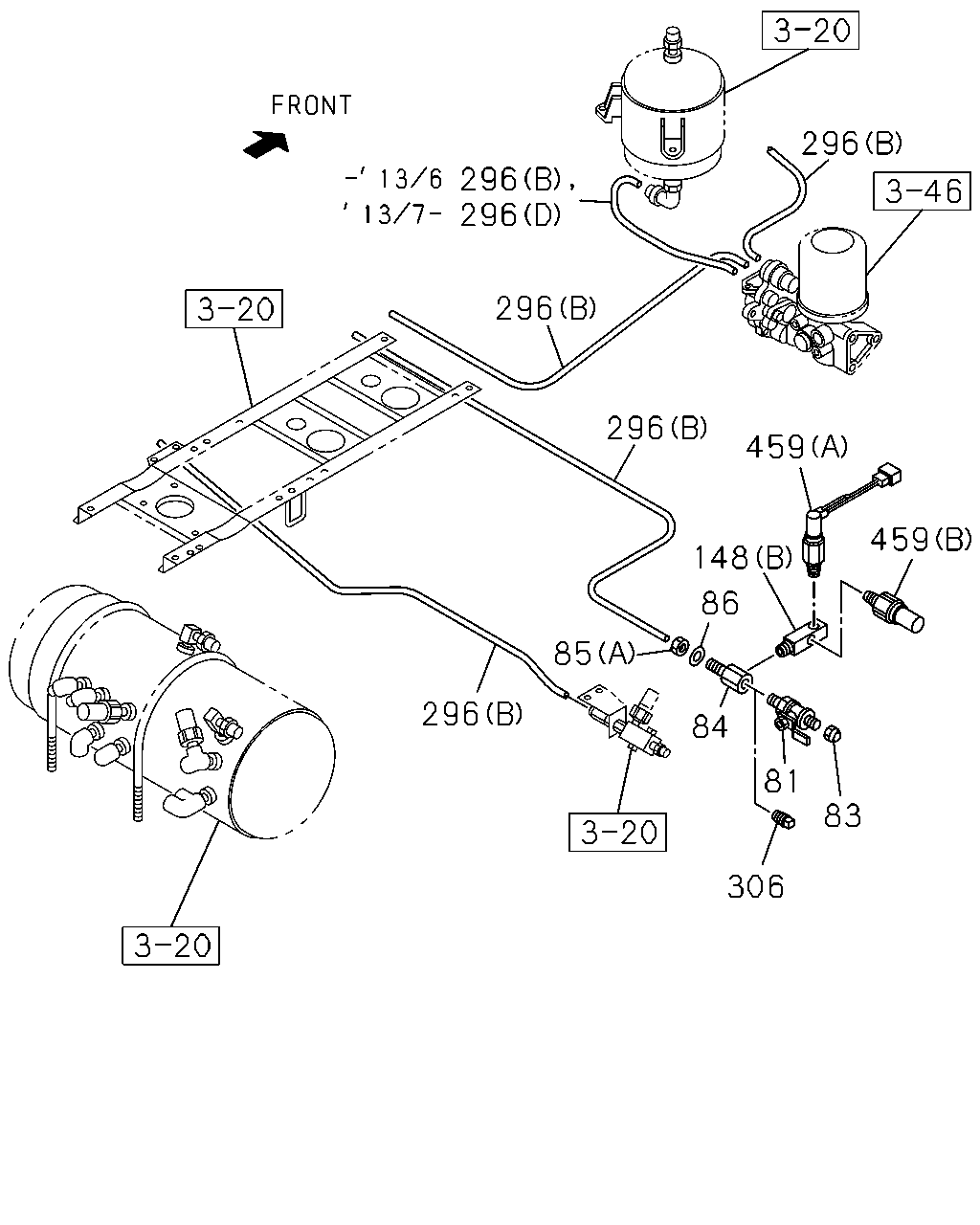

çizim 171061
296 296 296 296 296 459 459 148 86 85 84 81 83 306 296
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1008-1306
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1008-1306
84 UNION; NYLON TUBE 1-09661-092-0 01 1 1008-1306
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1008-1306
85 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1307-1308
85 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1309-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1008-1306
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 1008-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1008-1306
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 1008-1306
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1008-1306

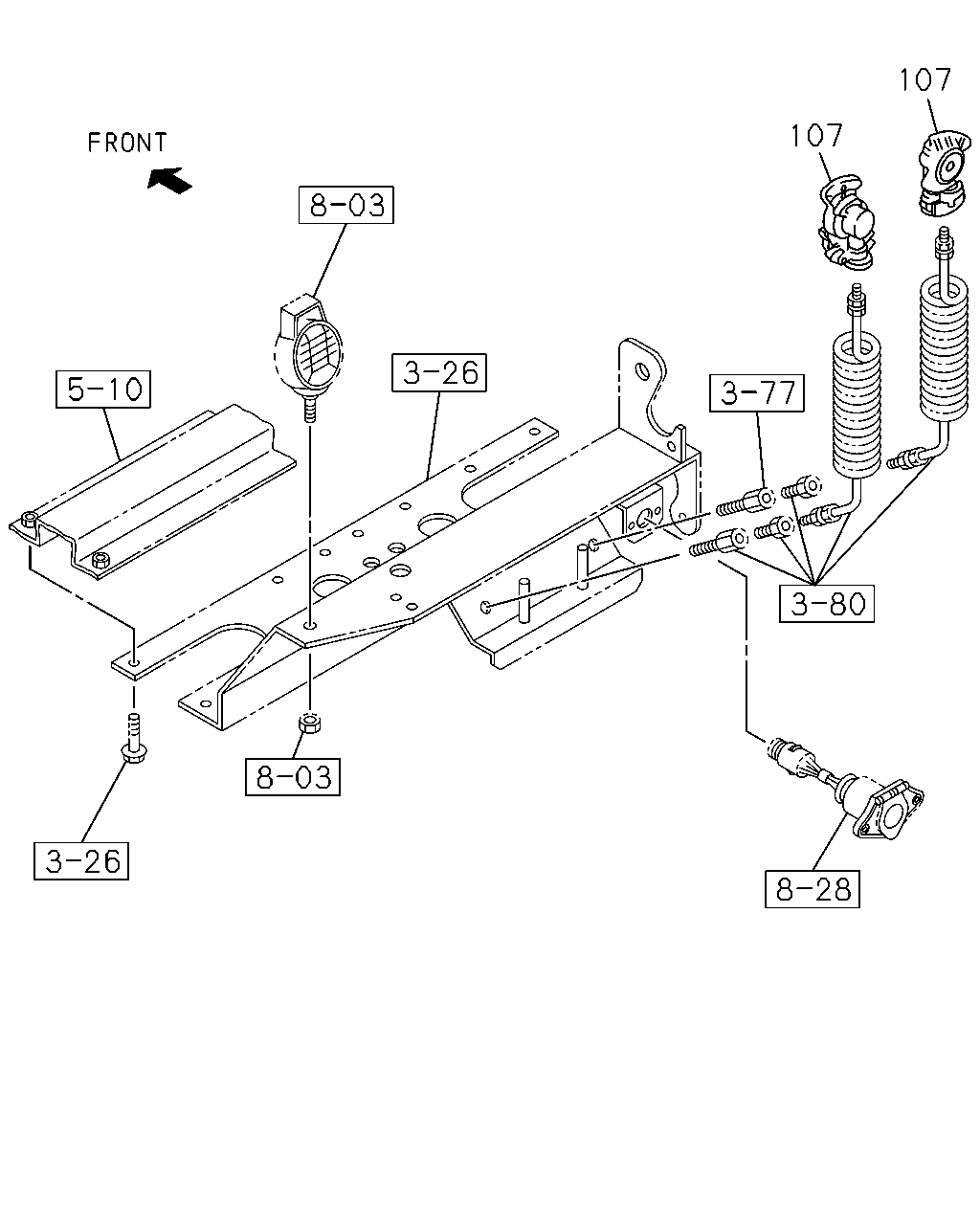

çizim 171067
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1008-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1008-

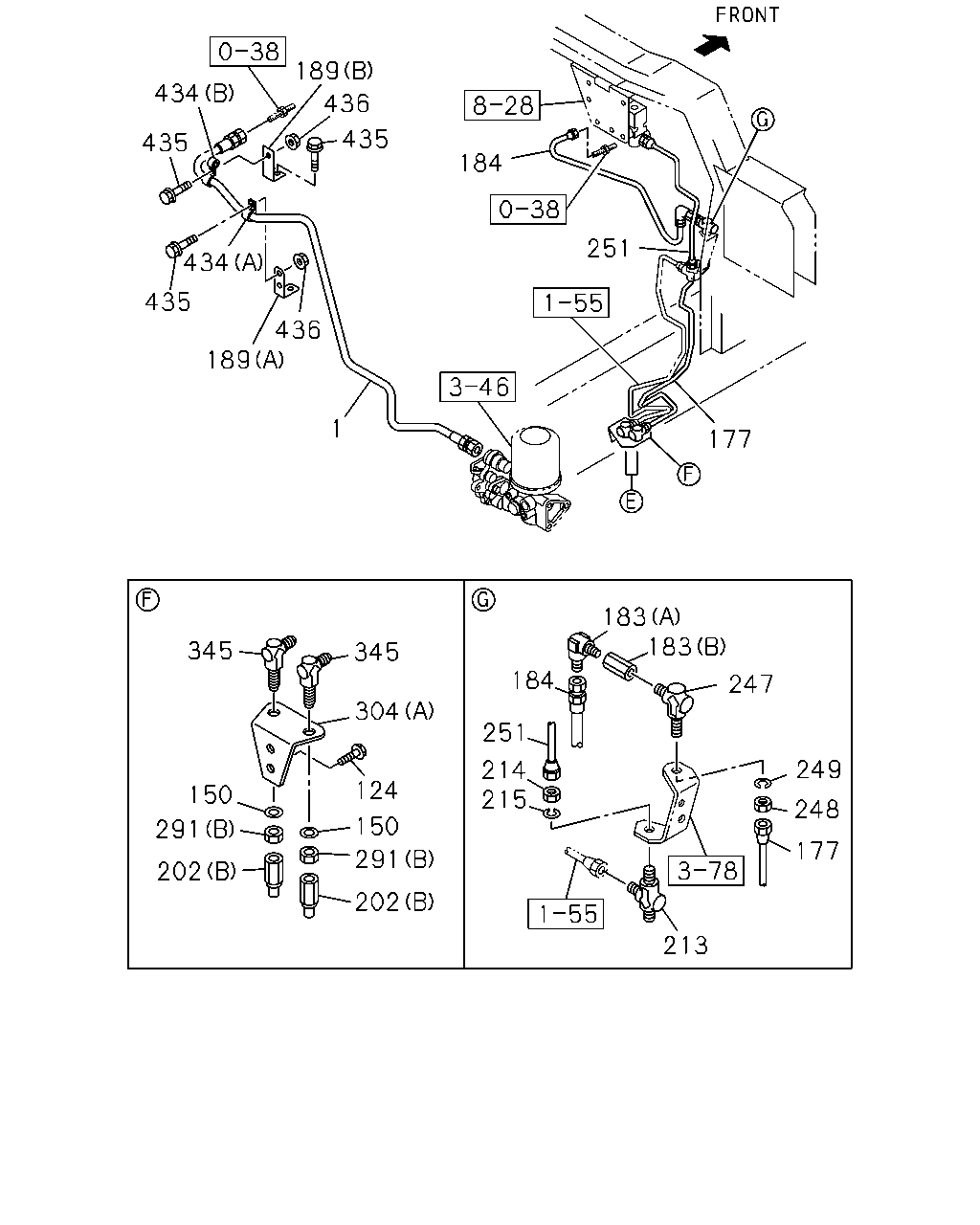

çizim 171069
434 435 434 435 189 436 1 435 436 189 184 251 177 183 183 247 249 248 177 213 215 214 251 184 345 304 124 150 291 202 202 291 150 345
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1008-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1008-
189 BRACKET; FLEX HOSE
(C) 		8-97645-648-0 01 1 1307-1308
189 BRACKET; FLEX HOSE
(C) 		8-97646-842-0 01 1 1309-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1008-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1008-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-1306
202 ADAPTER
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1008-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1008-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1008-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1008-

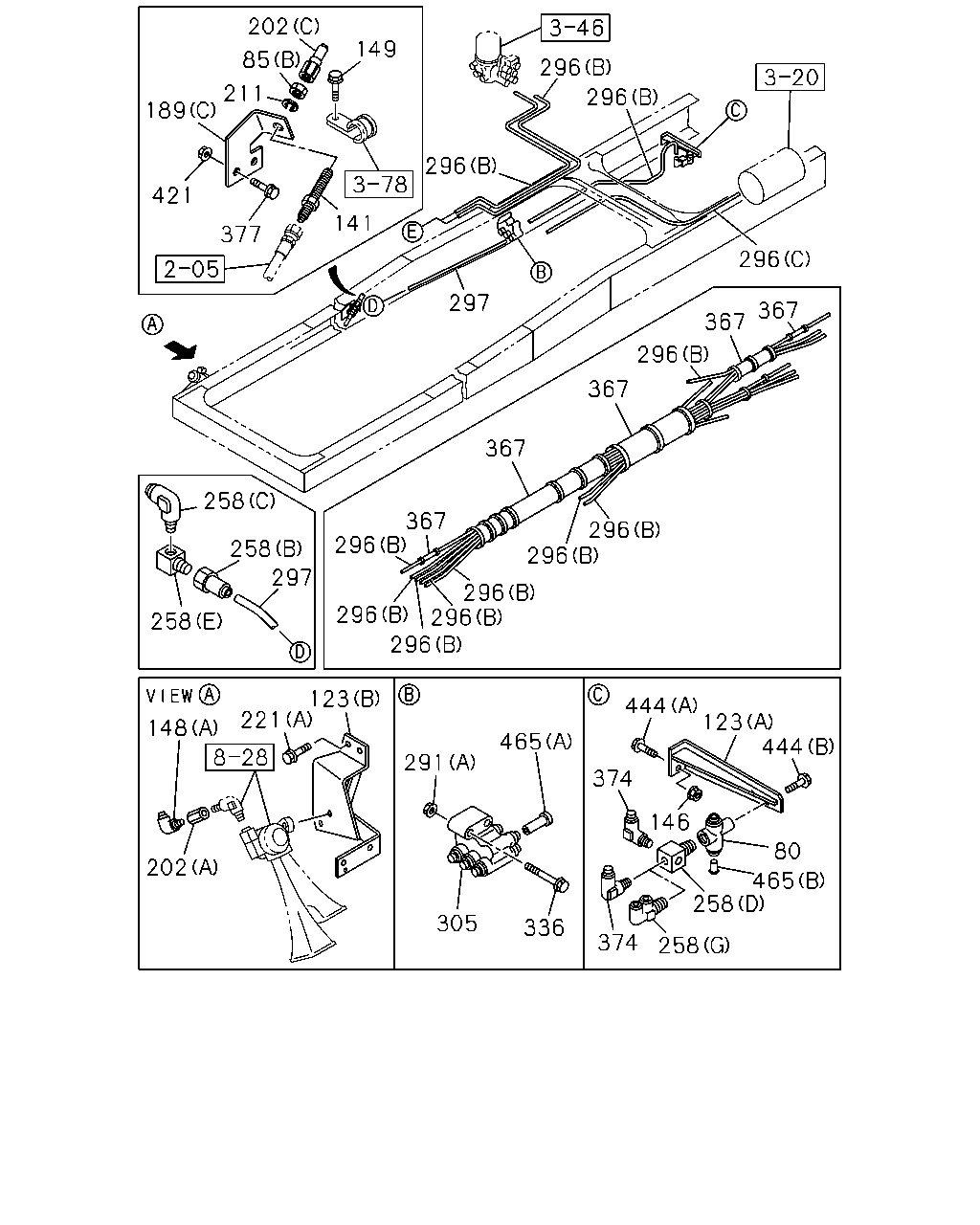

çizim 171124
123 444 444 80 465 258 258 374 146 374 465 291 305 336 123 221 148 202 258 258 258 297 296 296 296 296 296 367 296 296 367 367 296 367 367 296 296 296 296 297 141 377 421 189 211 85 202 149
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1008-1306
85 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1307-1308
85 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-1306
141 UNION; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1307-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 1008-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
189 BRACKET; FLEX HOSE
(C) 		8-97645-648-0 01 1 1307-1308
189 BRACKET; FLEX HOSE
(C) 		8-97646-842-0 01 1 1309-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1008-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1008-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-1306
202 ADAPTER
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
211 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 1307-1308
211 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 1309-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1306
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1307-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1008-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1008-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-1306
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1307-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1307-
çizim 171153
120 372 297 343 232 330 343 231 334 330 231 337 434 337 232
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) 		1-47470-655-0 01 1 1008-1306
120 CONNECTOR; AIR PIPE 1-47470-655-0 01 1 1307-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) 		8-98138-506-1 01 1 1008-1306
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1008-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1008-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-

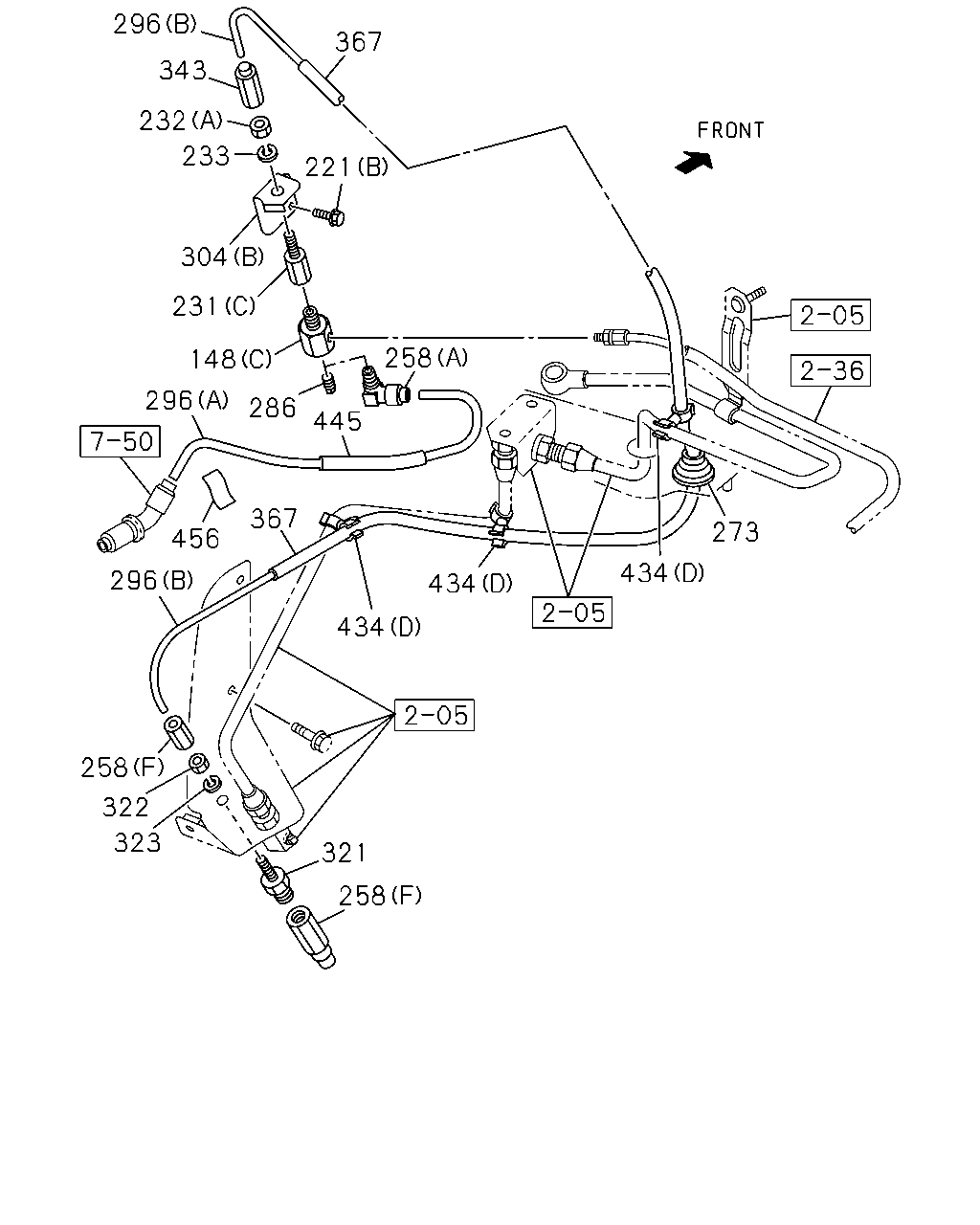

çizim 171163
258 321 323 322 258 296 456 367 434 434 434 273 258 445 286 296 148 231 304 221 367 233 232 343 296
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 1008-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1306
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1307-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
273 GROMMET 1-09332-102-0 01 1 1008-
286 PLUG; AIR PIPE
RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1307-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1008-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
321 JOINT; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1008-
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 1008-
323 WASHER; LK,JOINT
ID=12.2 		0-91510-512-0 01 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
445 GUARD
L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1008-1306
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1307-
456 SEAL; NYLON TUBE
100X40 		1-72498-022-1 01 1 1008-1306
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
