0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#5522) — 125 parça

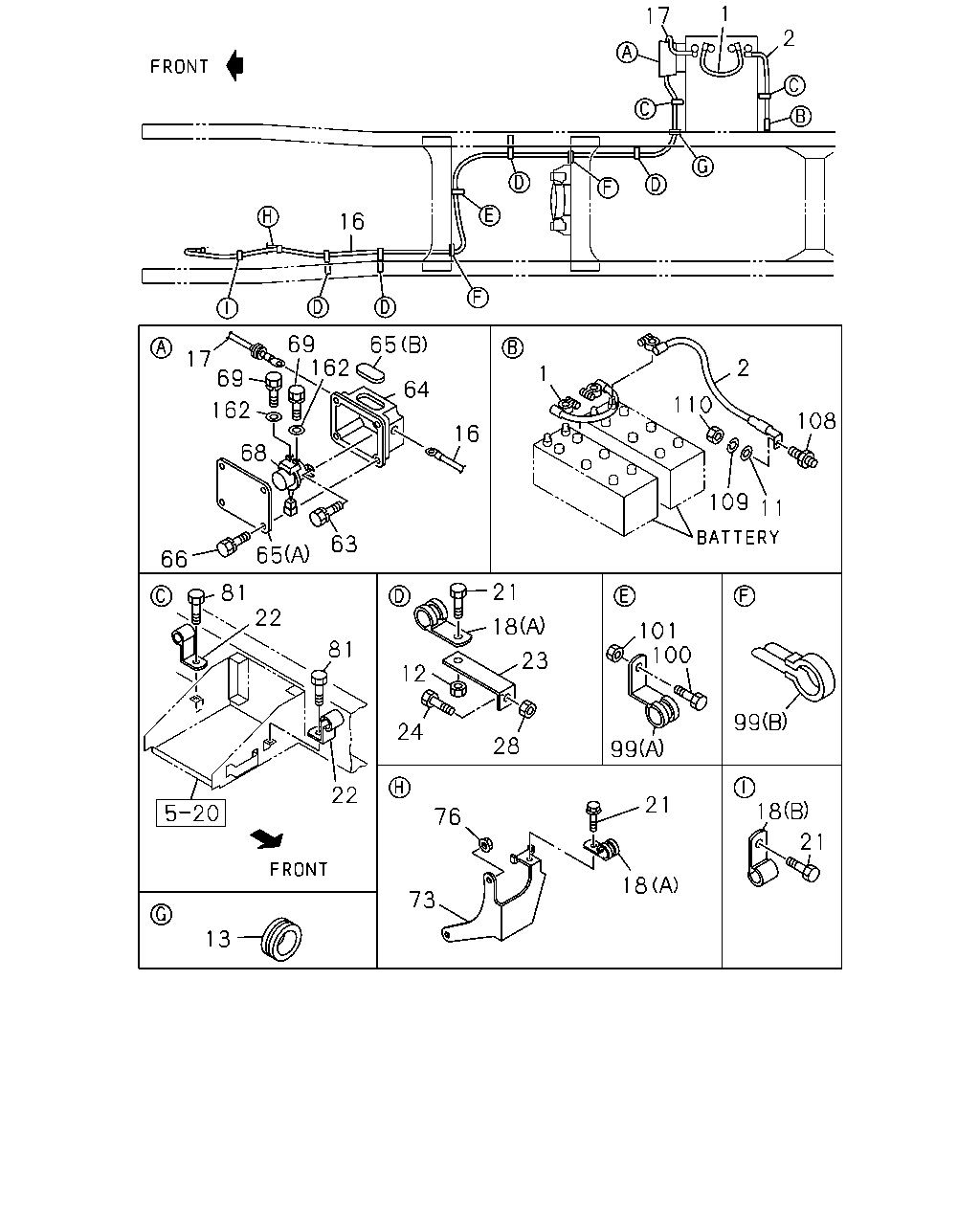

çizim 9228
1 17 2 16 69 162 65 17 69 2 1 64 110 162 108 16 68 109 11 63 65 66 21 81 22 18 101 100 81 23 12 99 24 28 99 18 22 21 76 21 18 73 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=180 		1-82650-280-2 01 1 9603-9810 ●
1 CABLE; BATTERY
L=450 		1-82650-281-2 01 1 9603-9810 ●
1 CABLE; BATTERY
L=180 		1-82650-280-2 01 1 9905- ● ●
1 CABLE; BATTERY
L=180 		1-82650-280-2 01 1 9811-9904 ●
1 CABLE; BATTERY
L=450 		1-82650-281-2 01 1 9905- ● ●
1 CABLE; BATTERY
L=450 		1-82650-281-2 01 1 9811-9904 ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9603-9904 ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9905- ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9811-9904 ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9810 ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9905- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9811-9904 ●
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9603-9606 ●
12 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 03 1 9607-9708 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9709-9810 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9811-9904 ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9810 ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 9606-9810 ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9811-9904 ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 9905- ● ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 9811-9904 ●
16 CABLE; STARTER TO RELAY
L=3850 		1-82652-601-0 01 1 9603-9608 ●
16 CABLE; STARTER TO RELAY
L=2790 		1-82652-634-0 01 1 9609-9904 ●
16 CABLE; STARTER TO RELAY
L=2790 		1-82652-634-0 01 1 9905- ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9603-9810 ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9905- ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9811-9904 ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9603-9810 ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9603-9810 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9603-9810 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9603-9810 ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9905- ● ●
18 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 03 1 9811-9904 ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9905- ● ●
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 9811-9904 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905- ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 9811-9904 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9905- ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A> (A) ID=18 L=28 		1-09701-067-0 01 1 9811-9904 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 03 1 9607-9810 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9810 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 03 1 9811-9904 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9811-9904 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 03 1 9905- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9603-9810 ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9811-9904 ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9905- ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9603-9810 ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9811-9904 ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9905- ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9810 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9811-9904 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9905- ● ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 03 1 9603-9606 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9607-9810 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9811-9904 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9603-9810 ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9811-9904 ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9905- ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9603-9611 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9612-9810 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9811-9904 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9905- ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9603-9810 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9603-9611 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9612-9810 ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9811-9904 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9811-9904 ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9905- ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9905- ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9603-9810 ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9811-9904 ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9905- ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9603-9711 ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9712-9810 ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9811-9904 ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9905- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9603-9810 ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9811-9904 ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9905- ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> 		1-82699-822-0 01 1 9603-9903 ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> 		1-82698-139-0 01 1 9904-9904 ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> 		1-82698-139-0 01 1 9905- ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9607-9810 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9811-9904 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9810 ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9811-9904 ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9603-9810 ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9603-9810 ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9811-9904 ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9811-9904 ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9905- ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9905- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9810 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9811-9904 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9603-9606 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9810 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9811-9904 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9603-9810 ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9811-9904 ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9905- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9603-9603 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-508-0 01 1 9604-9810 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9811-9904 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9905- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9603-9810 ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9811-9904 ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9905- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9603-9810 ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9811-9904 ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9905- ● ●
