◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#55217) — 33 parça

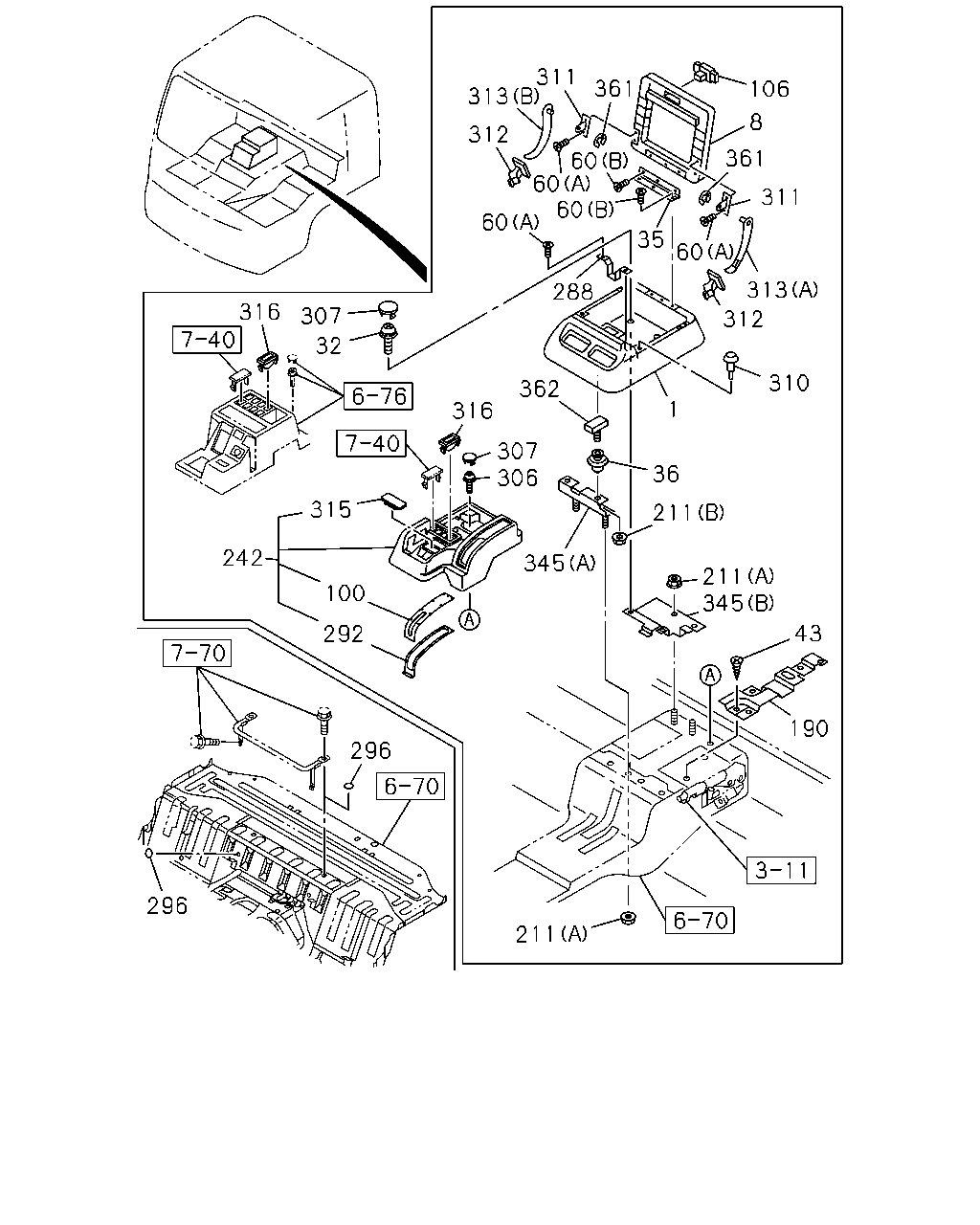

çizim 144968
311 313 312 60 60 60 60 361 35 60 361 8 106 311 313 312 310 1 288 362 316 32 307 316 315 242 100 292 296 296 307 306 36 211 345 211 345 43 190 211
BalonParca AdiParca NoAdetTipApplied Date
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 1106-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 1106-
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 1106-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 1106-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-09984-190-0 02 1 1106-
43 SCREW; BRKT,PARCEL BOX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1311-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1106-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 		8-94279-325-0 04 1 1106-
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 1311-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> 		1-72538-312-0 01 1 1106-
190 BRACKET; PARCEL BOX,SEAT SIDE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98070-394-0 01 1 1311-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE 		0-91180-108-0 04 1 1106-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (B) M8 FLANGE 		8-94279-518-0 02 1 1106-
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97409-818-1 01 1 1311-
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-190-0 01 1 1106-
292 RETAINER; COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-162-1 01 1 1311-
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1106-
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 		0-38050-616-0 03 1 1311-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 1106-1310
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-951-0 02 1 1311-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 1311-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-187-0 02 1 1106-
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 1106-
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 1106-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 1106-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 1106-
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97409-339-0 01 1 1311-
316 BOX; COIN 8-94482-280-2 02 1 1106-1310
316 BOX; COIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94482-280-2 02 1 1311-
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-232-1 01 1 1106-
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-233-0 01 1 1106-
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 1106-
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> 		1-72538-308-0 02 1 1106-
