◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#55216) — 81 parça

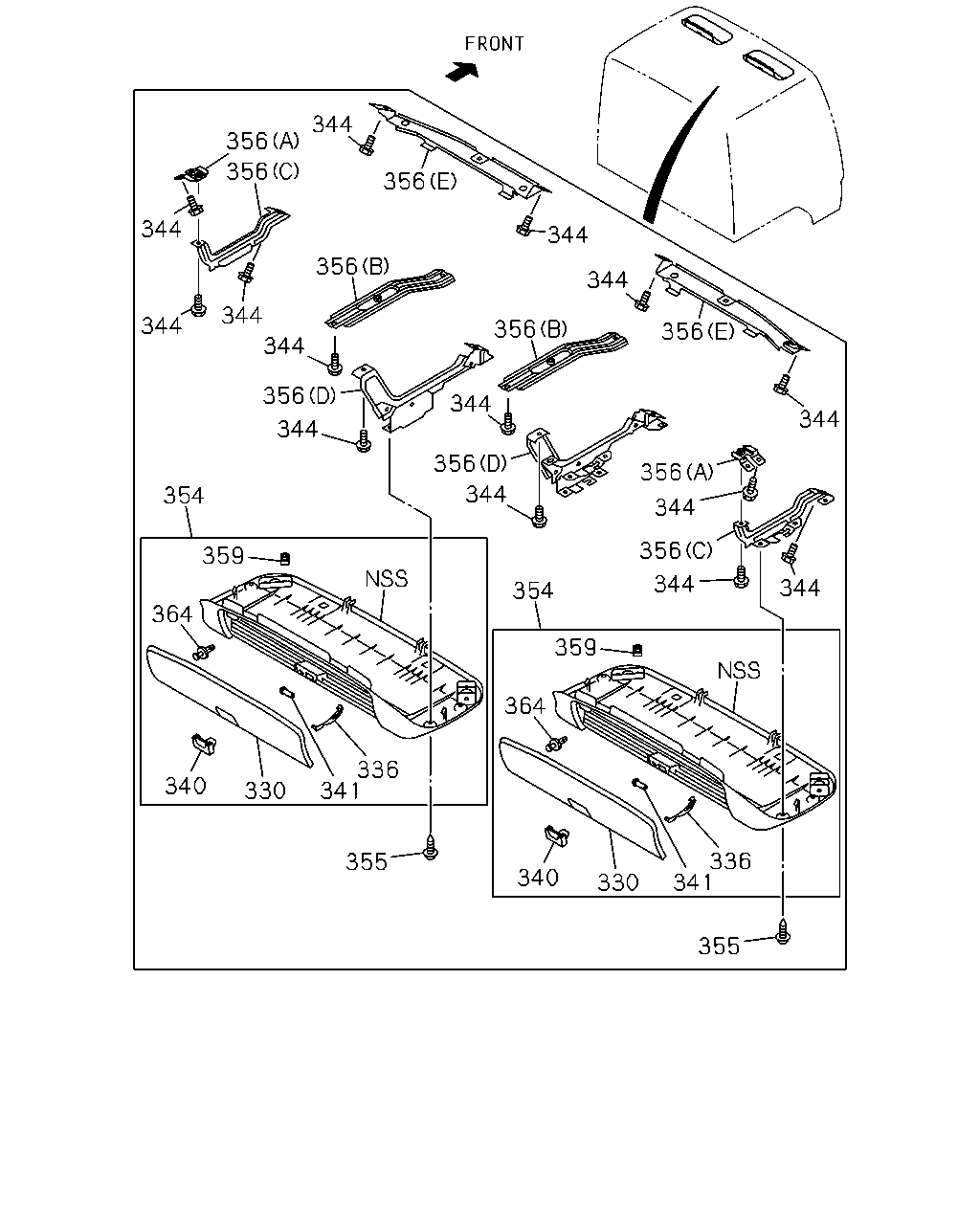

çizim 144965
356 344 344 344 344 356 356 356 344 344 356 344 356 356 344 356 356 344 344 344 354 344 344 354 359 364 340 330 341 336 355 340 330 341 355 336 359 364 344 356
BalonParca AdiParca NoAdetTipApplied Date
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1311-
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 01 1 1311-
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1106-1310
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 01 1 1106-1310
336 STAY; LID 1-72448-379-3 02 1 1106-
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 02 1 1106-
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1106-
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 01 1 1106-
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1106-
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 02 1 1106-
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 12 1 1106-
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 08 1 1106-
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1106-1401
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-386-5 01 1 1106-1401
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402-
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97428-821-0 01 1 1402-
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1106-
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1106-
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1106-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 01 1 1106-
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1106-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 01 1 1106-
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 1106-
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 1106-
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 1106-
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1106-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98014-088-3 01 1 1106-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98023-257-2 01 1 1106-
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1106-
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 04 1 1106-
364 STOPPER; LID 8-98010-867-1 03 1 1106-
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 03 1 1106-

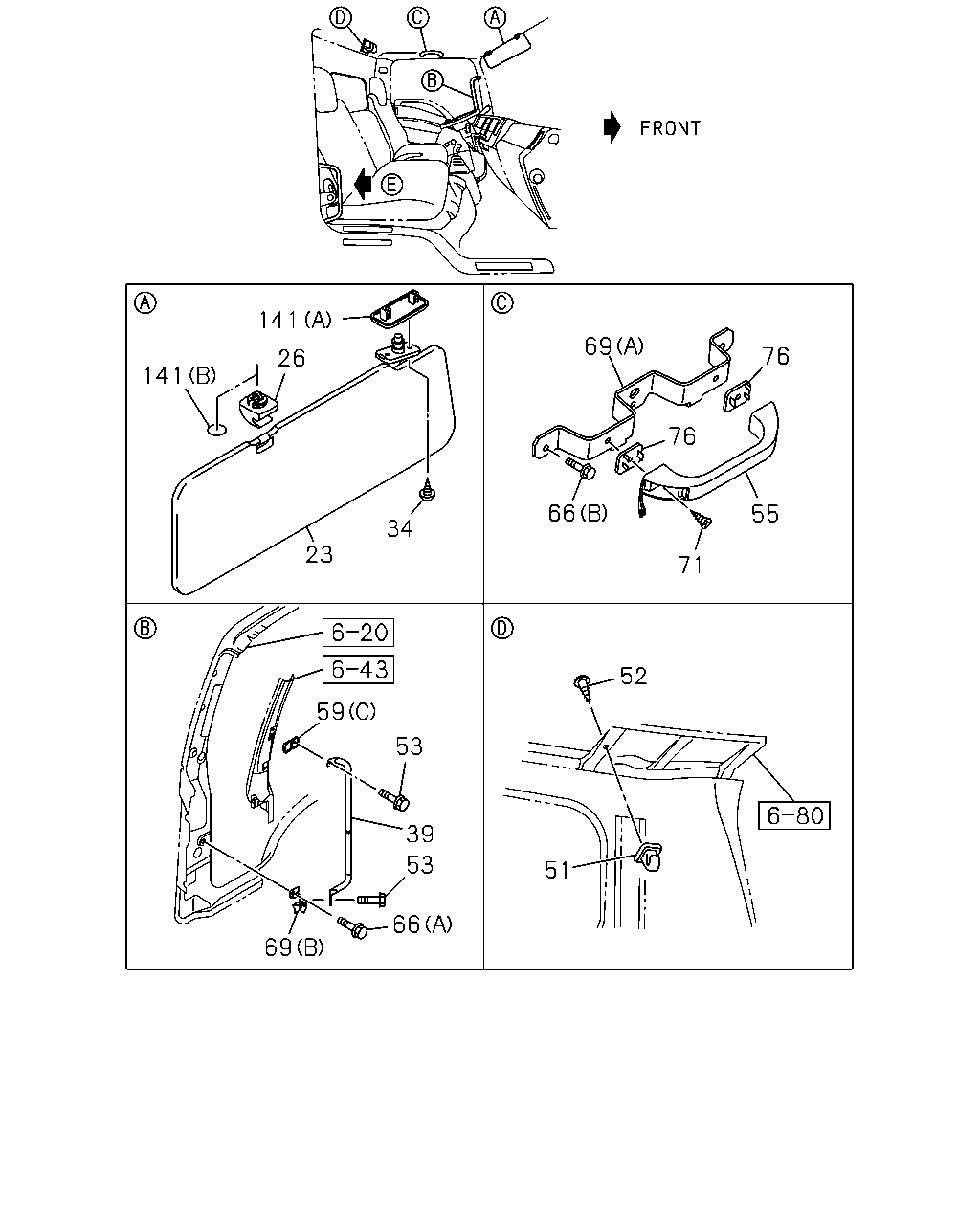

çizim 144966
141 141 26 34 23 69 76 76 55 71 66 52 51 69 66 53 39 53 59
BalonParca AdiParca NoAdetTipApplied Date
23 SUN VISOR
DARK GRAY 		8-97405-170-3 01 1 1106-
23 SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97407-373-2 01 1 1106-
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1106-
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97405-171-0 01 1 1106-
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1106-
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 1106-1310
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 02 1 1106-1310
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 1311-
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 02 1 1311-
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 1311-
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 1106-
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 1106-
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1106-
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1106-
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1106-
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1106-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1106-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1106-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1106-
66 BOLT; ASSIST GRIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1106-1108
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1109-
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1106-
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1106-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-974-3 01 1 1106-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-973-3 01 1 1106-
71 SCREW
M6X28 		8-98004-344-0 02 1 1106-
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1106-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1402-
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1106-1310
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1106-1310
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1311-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1311-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1311-
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1106-1310
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1106-1310
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1311-1401
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1311-1401
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1311-1401
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402-

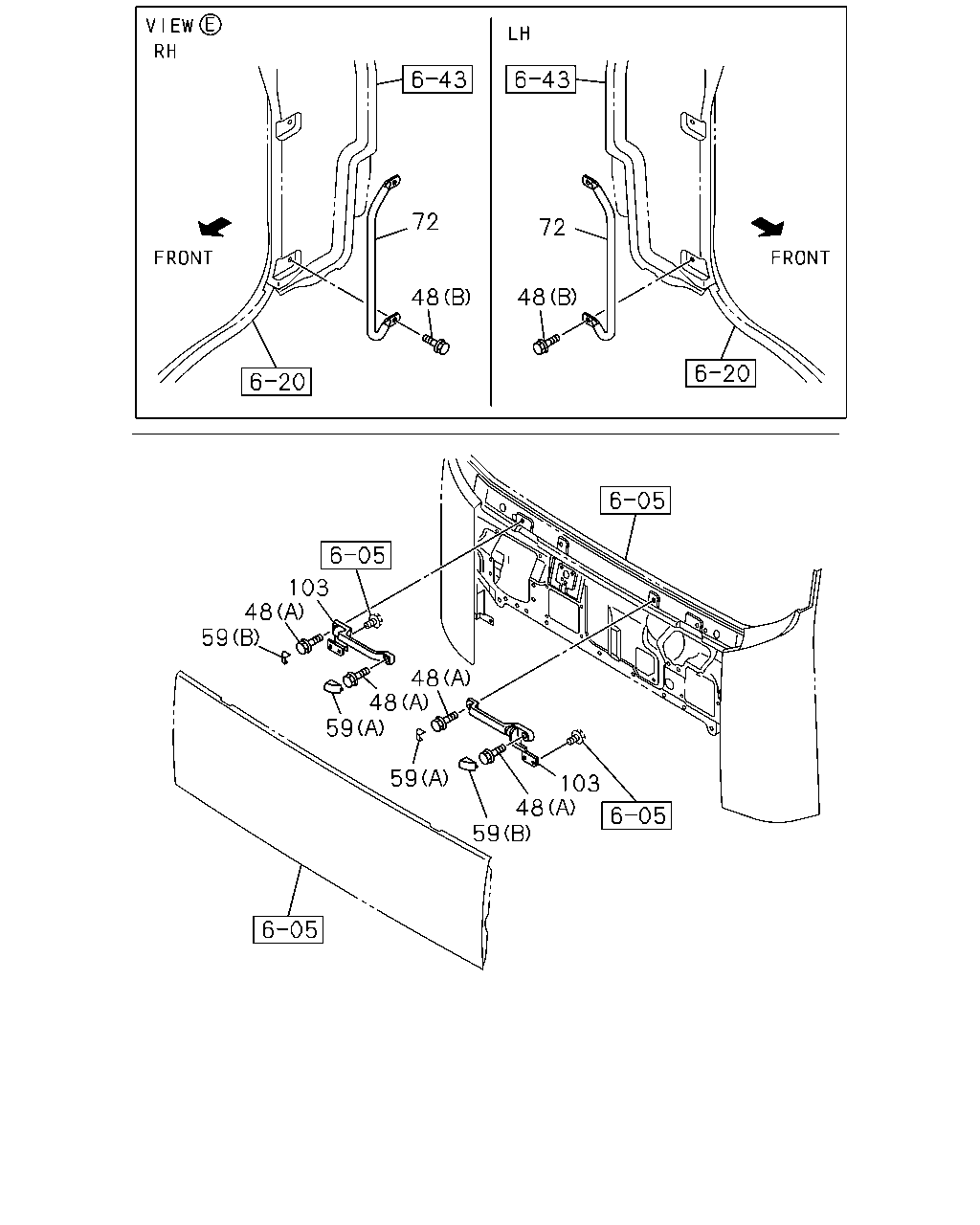

çizim 144967
72 48 72 48 103 48 59 48 48 59 59 59 48 103
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1106-
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1106-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1106-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1106-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1106-
72 GRIP; ASSIST,CAB ENTRY,BACK 8-97386-939-0 02 1 1106-1510
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98315-144-0 02 1 1511-
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1106-
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1106-
