Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

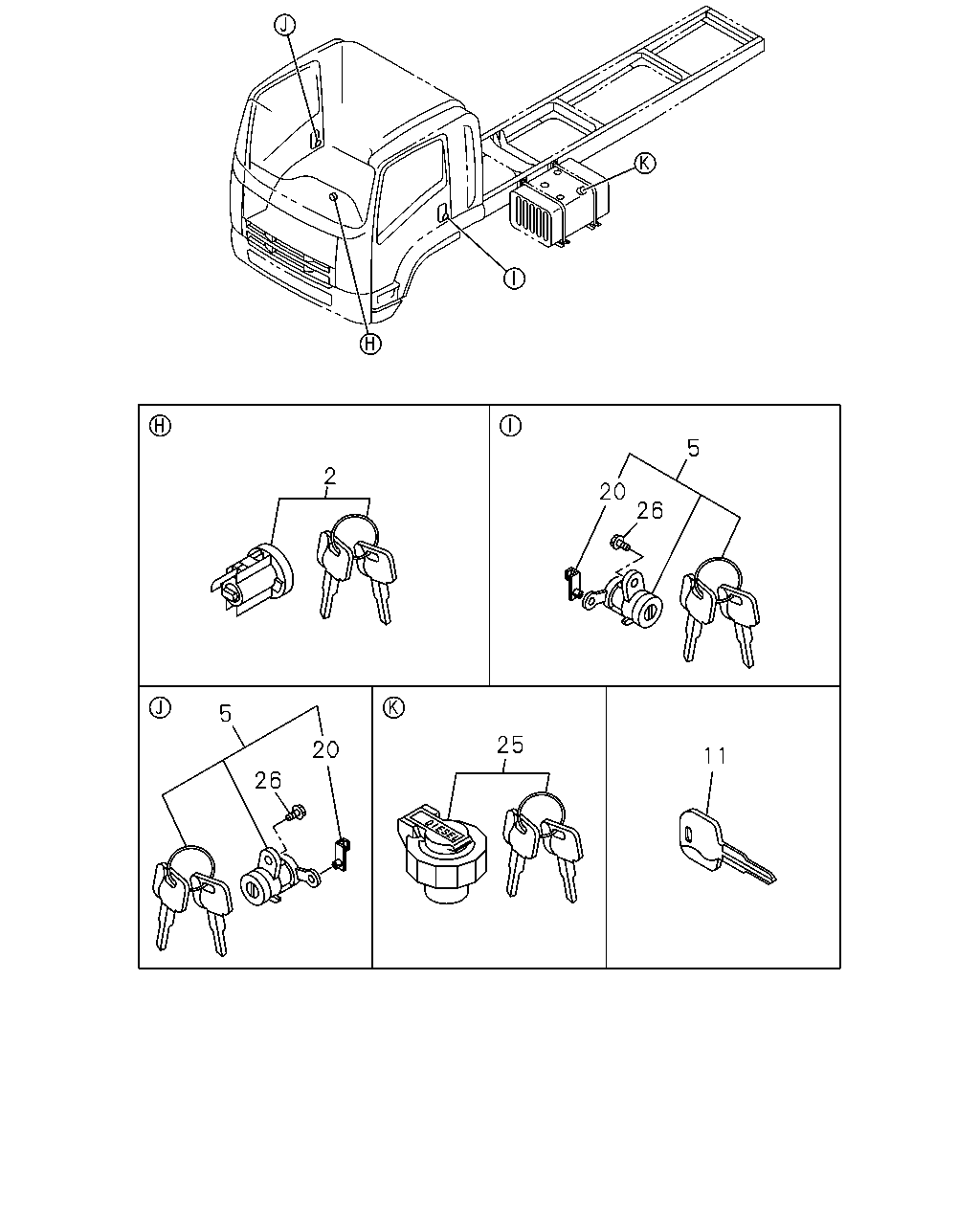

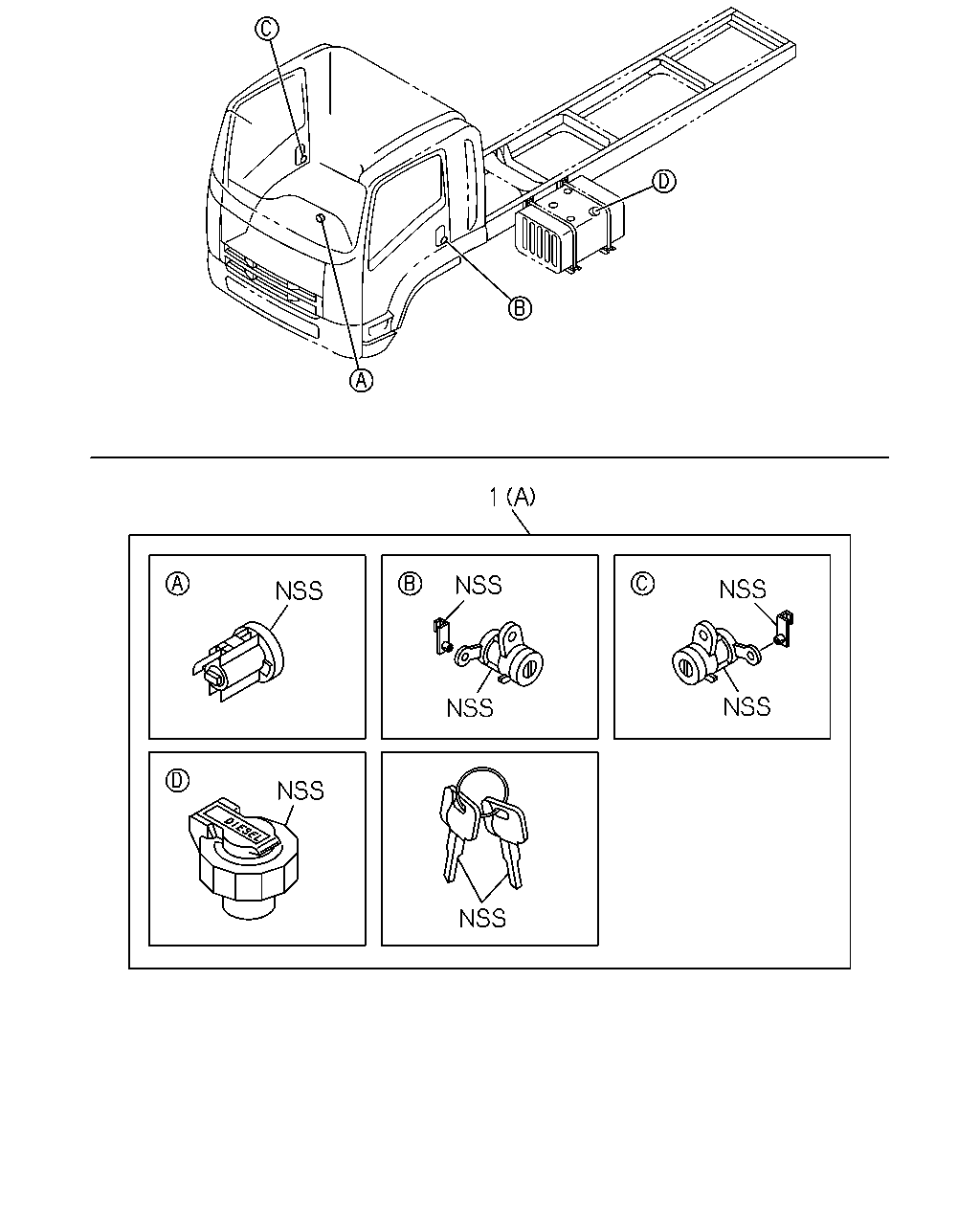

7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#55213) — 31 parça
◀
[730A] CYLINDER SET;FUEL TANK CAP KEY LOCK (5 parça)
[730A] LOCK CYLINDER AND OTHER PARTS (21 parça)
[730A] CYLINDER SET;EXC.FUEL TANK CAP KEY LOCK (5 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98145-979-0
01
1
1106-1203
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98201-216-0
01
1
1204-
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98056-003-0
01
1
1106-1203
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98201-161-0
01
1
1204-1511
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98201-161-0
01
1
1512-
5
20
2
5
26
25
20
11
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 200L FRAME SIDE<N20>
8-98055-148-0
01
1
1106-1203
2
BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 200L FRAME SIDE<N20>
8-98201-342-0
01
1
1204-1511
2
BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98201-342-0
01
1
1512-
2
BARREL ASM; W/KEY,STRG LOCK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98201-342-0
01
1
1512-
5
CYLINDER ASM; DOOR LOCK
FUEL TANK 200L FRAME SIDE<N20>
8-98055-149-0
01
1
1106-1511
5
CYLINDER ASM; DOOR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98055-149-0
01
1
1512-
5
CYLINDER ASM; DOOR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98055-149-0
01
1
1512-
5
CYLINDER ASM; DOOR LOCK
FUEL TANK 200L FRAME SIDE<N20>
8-98055-150-0
01
1
1106-1511
5
CYLINDER ASM; DOOR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98055-150-0
01
1
1512-
5
CYLINDER ASM; DOOR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98055-150-0
01
1
1512-
11
KEY; BLANK
FUEL TANK 200L FRAME SIDE<N20>
8-98055-170-0
AR
1
1106-1511
11
KEY; BLANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98055-170-0
AR
1
1512-
11
KEY; BLANK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98055-170-0
AR
1
1512-
20
SNAP; DOOR LOCK CYL
FUEL TANK 200L FRAME SIDE<N20>
8-98055-181-0
01
1
1106-1511
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98055-181-0
01
1
1512-
20
SNAP; DOOR LOCK CYL
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98055-181-0
01
1
1512-
20
SNAP; DOOR LOCK CYL
FUEL TANK 200L FRAME SIDE<N20>
8-98055-182-0
01
1
1106-1511
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>
8-98055-182-0
01
1
1512-
20
SNAP; DOOR LOCK CYL
EXC. FUEL TANK CAP KEY LOCK<N05>
8-98055-182-0
01
1
1512-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05>
8-98146-010-0
01
1
1106-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1106-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98145-979-0
01
1
1106-1203
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98201-216-0
01
1
1204-
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98056-003-0
01
1
1106-1203
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98201-161-0
01
1
1204-1511
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98201-161-0
01
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
