7-10 — CAUTION PLATE AND LABEL (#55211) — 10 parça

çizim 145036

49 35 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1106-
	6	PLATE; CAUTION,SPARE TIRE EXC. CAUTIONS SPANISH<YN1>	8-98082-437-0	01	1	1106-
	35	PLATE; CAUTION,CAB CAUTIONS SPANISH<YN1>	8-98070-109-0	01	1	1106-
	35	PLATE; CAUTION,CAB EXC. CAUTIONS SPANISH<YN1>	8-98065-363-0	01	1	1106-
	49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	8-98069-841-0	01	1	1106-
	49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS SPANISH<YN1>	8-98122-354-0	01	1	1106-

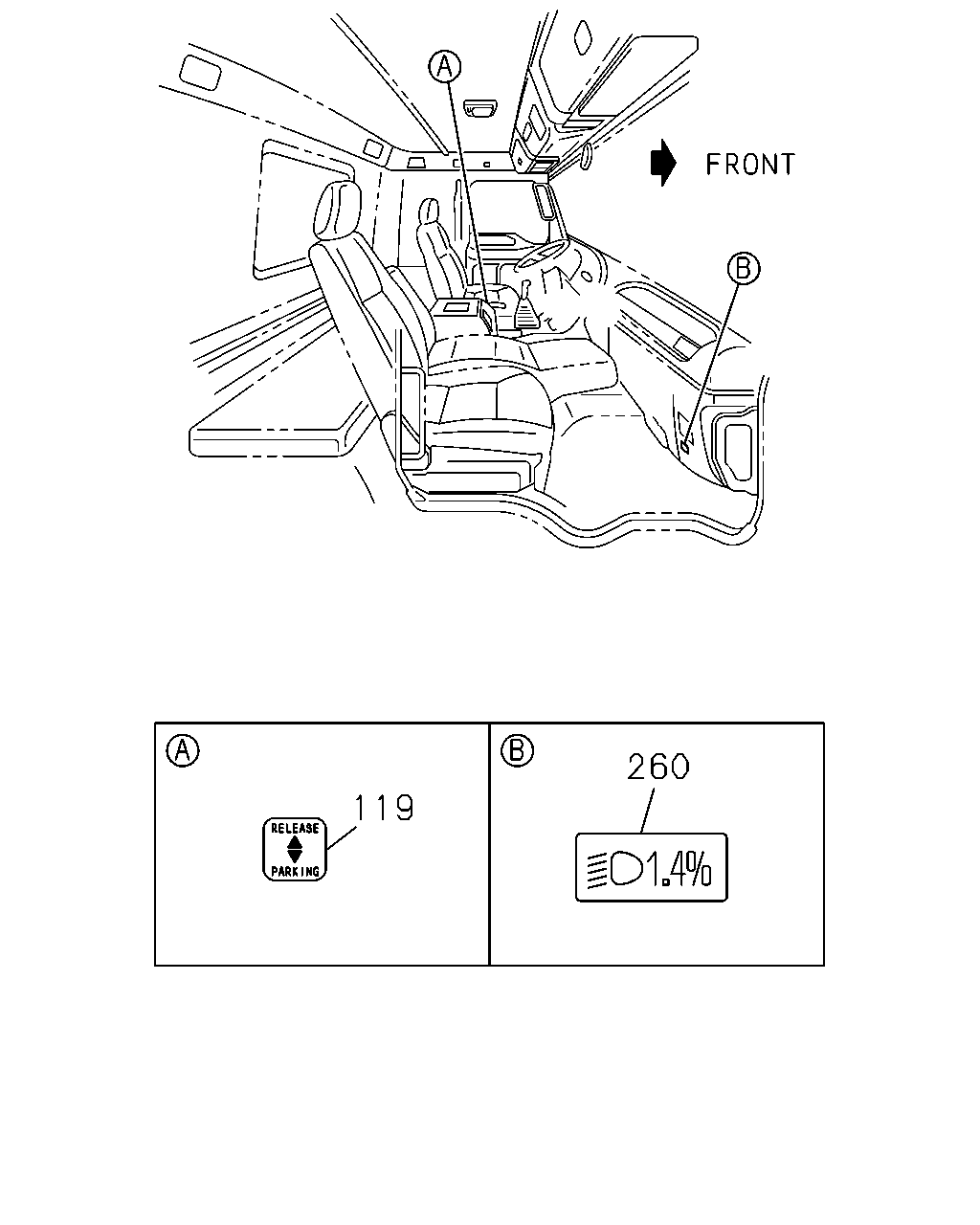

çizim 145049

119 260

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1>	1-85881-944-0	01	1	1106-1310
	119	PLATE; CAUTION,HAND BRK LEVER EXC. CAUTIONS SPANISH<YN1>	1-85881-759-0	01	1	1106-1310
	119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	1311-
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1106-
