◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#55198) — 16 parça

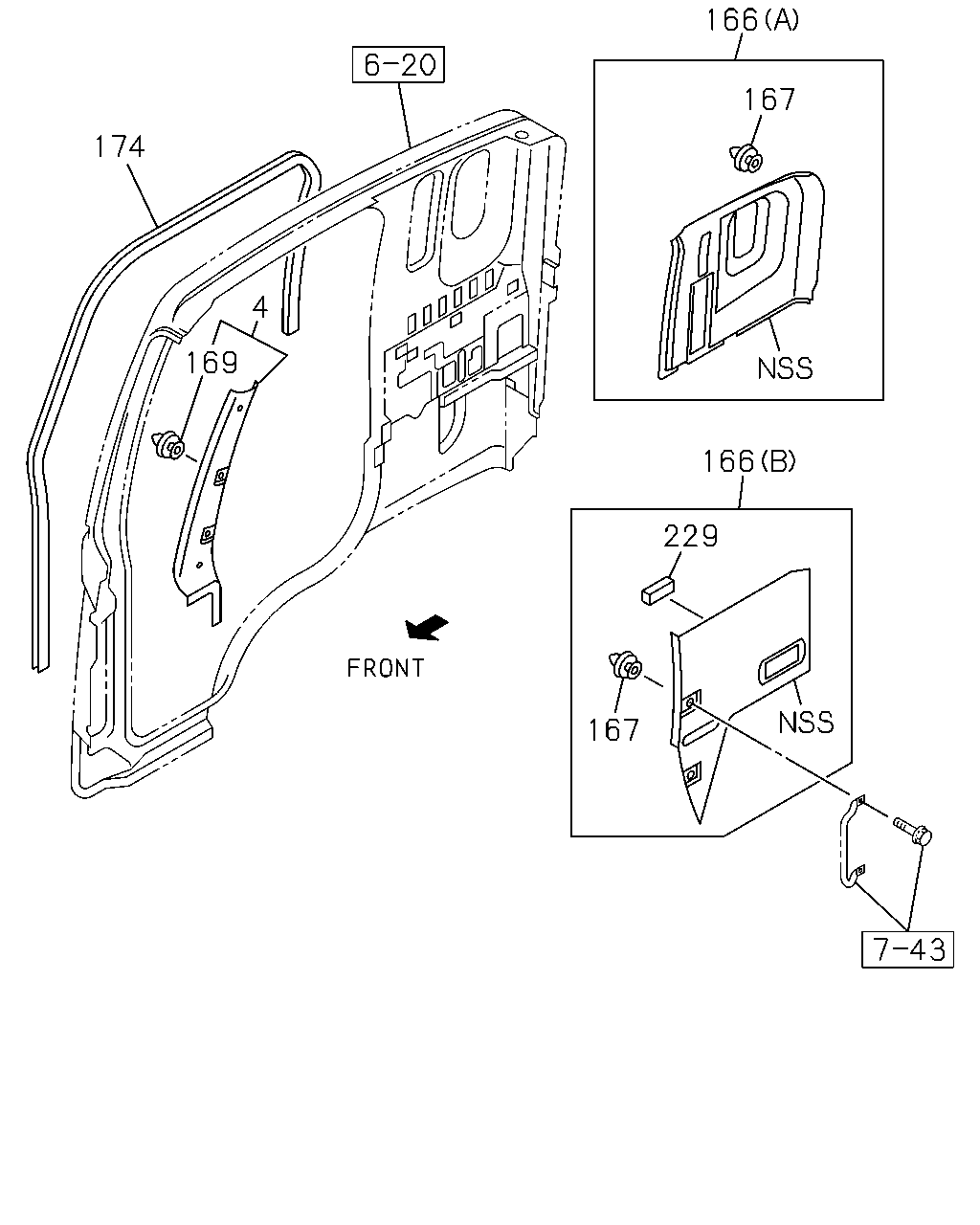

çizim 145044
174 4 169 166 167 166 229 167
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1106-
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1106-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1106-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1106-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 1106-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1106-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 1106-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1106-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1106-
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1106-
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1106-1509
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510-
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1106-1509
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510-
229 SEAL 8-98080-972-0 02 1 1106-
229 SEAL 8-98080-972-0 02 1 1106-
