◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#55193) — 85 parça

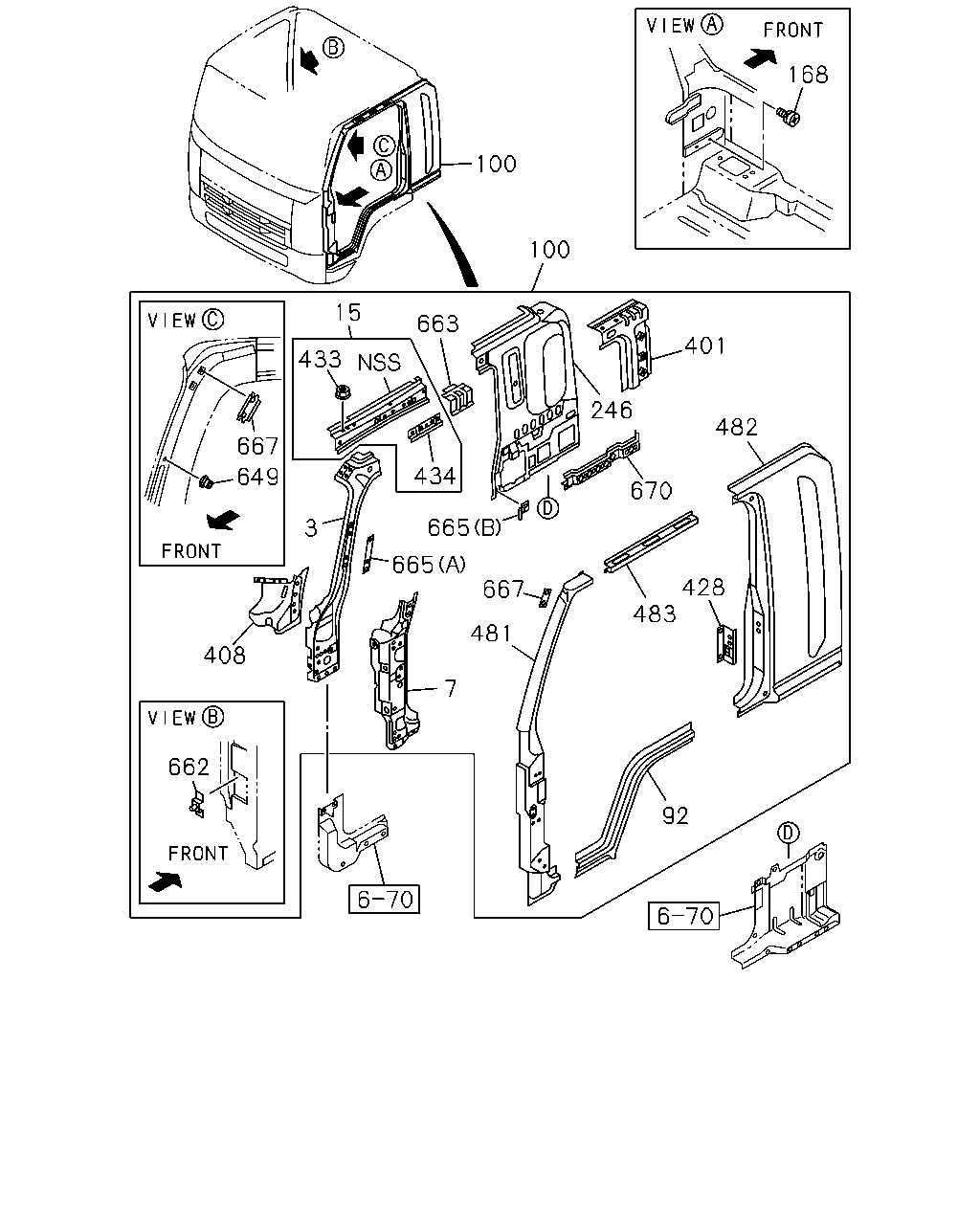

çizim 144951
100 100 168 667 649 662 408 3 7 433 15 663 434 665 665 667 481 246 401 482 670 428 483 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1106-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1106-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1106-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1106-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1106-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1106-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1106-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1106-
100 PANEL ASM; BODY SIDE 8-97586-076-6 01 1 1106-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98020-223-7 01 1 1106-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1106-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1106-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1106-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1106-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1106-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1106-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1106-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1106-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1106-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1106-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1106-1310
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1311-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1106-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1106-
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1106-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-911-0 01 1 1106-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-715-1 01 1 1106-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1106-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1106-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1106-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1106-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1106-
662 BRACKET; DUCT 8-97584-611-1 01 1 1106-
663 BRACKET; AIR 8-97585-208-2 01 1 1106-
663 BRACKET; AIR 8-97585-207-2 01 1 1106-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1106-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1311-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1106-1310
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1311-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1106-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1106-1310
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1311-

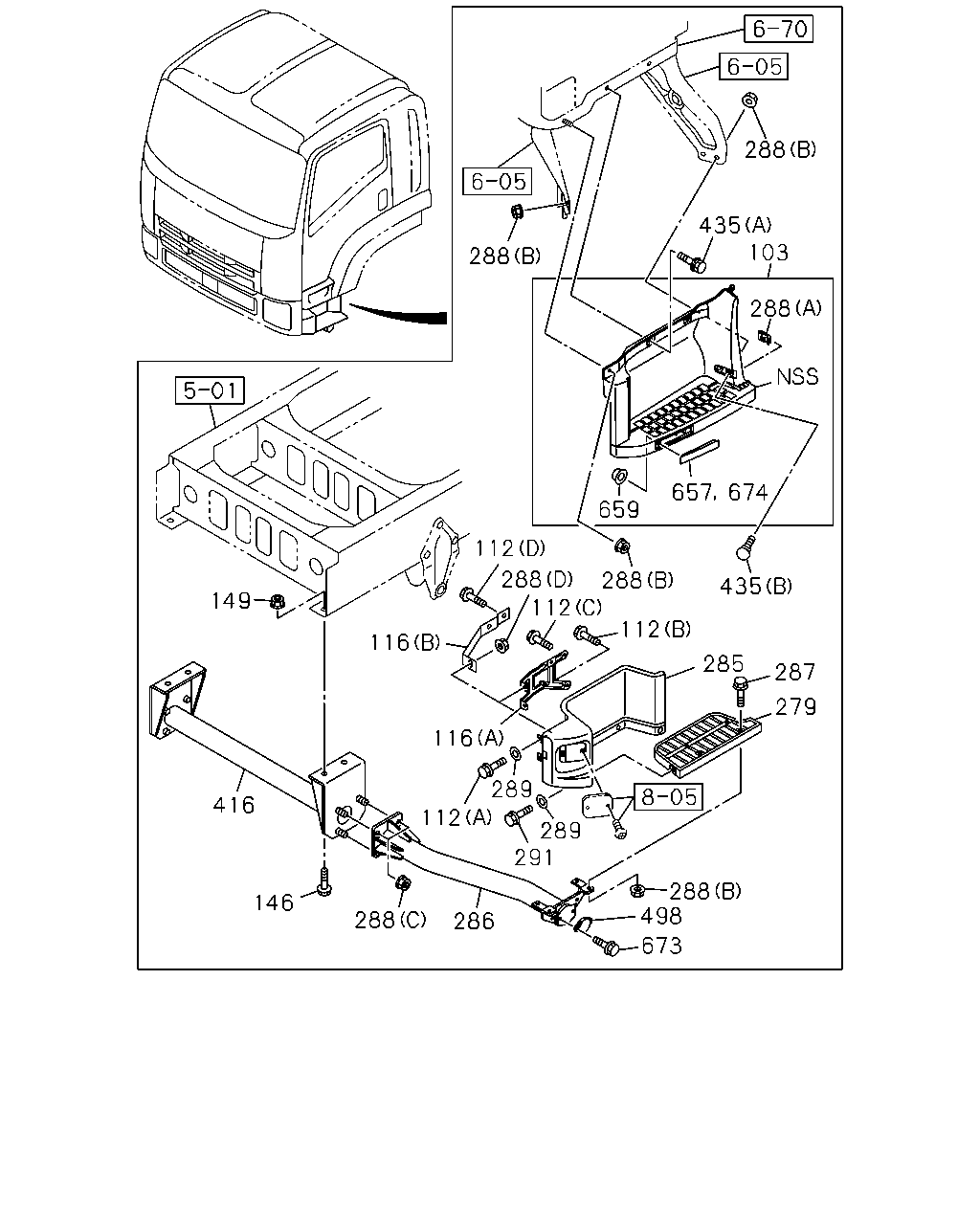

çizim 145051
288 288 435 103 288 674 657 659 112 288 288 435 112 112 285 287 279 116 149 416 146 288 286 673 498 288 291 289 112 289 116
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1106-1106
103 PLATE; STEP 8-98037-346-2 01 1 1106-
103 PLATE; STEP 8-98069-976-2 01 1 1106-1106
103 PLATE; STEP 8-98037-345-2 01 1 1106-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 1106-1112
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1201-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 1106-1112
112 BOLT; 1ST STEP
(D) M8X12 FLANGE 		0-28050-812-0 04 1 1201-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1106-1112
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 1106-1112
116 STAY; 1ST STEP,FRT
(B) 		8-98196-756-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 1106-1112
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1106-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1106-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1106-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1106-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1106-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1106-
286 STEP ASM; 1ST 8-98082-430-1 01 1 1106-1106
286 STEP ASM; 1ST 8-98043-554-4 01 1 1106-
286 STEP ASM; 1ST 8-98082-431-1 01 1 1106-1106
286 STEP ASM; 1ST 8-98043-555-4 01 1 1106-
287 BOLT; BOARD STEP
M8X40 FLANGE 		0-28650-840-0 08 1 1106-1107
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1108-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1201-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 1106-1106
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1106-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1106-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1106-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1106-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1106-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1106-
416 BRACKET; ASSIST STEP
MANUAL TRANSMISSION<X9C> 		8-98053-542-4 01 1 1106-1310
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1311-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1106-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1106-
498 REFLECTOR 1-82290-011-1 02 1 1106-1106
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1106-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1106-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1106-1106
674 COVER; REFLECTOR 8-98092-734-0 01 1 1106-1106
674 COVER; REFLECTOR 8-98092-733-0 01 1 1106-1106
